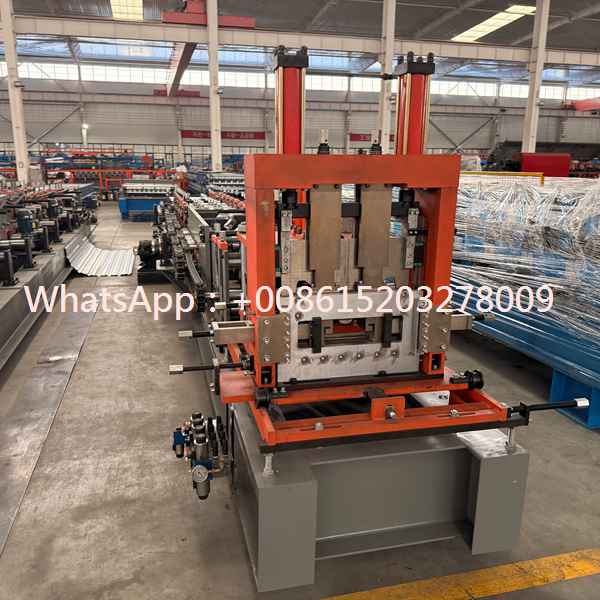

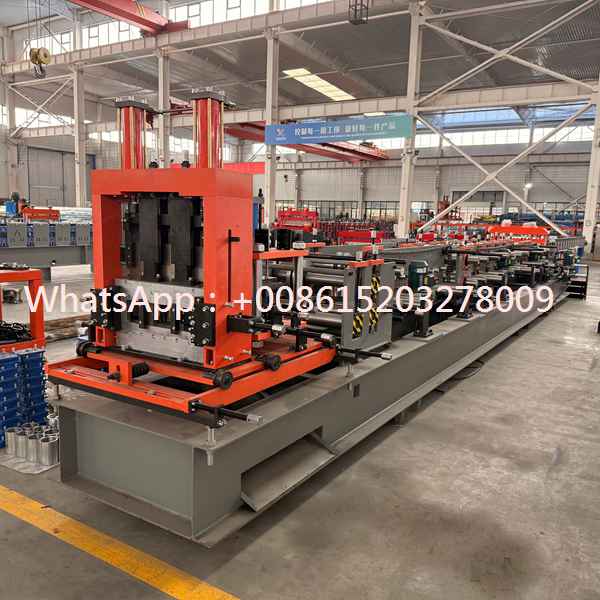

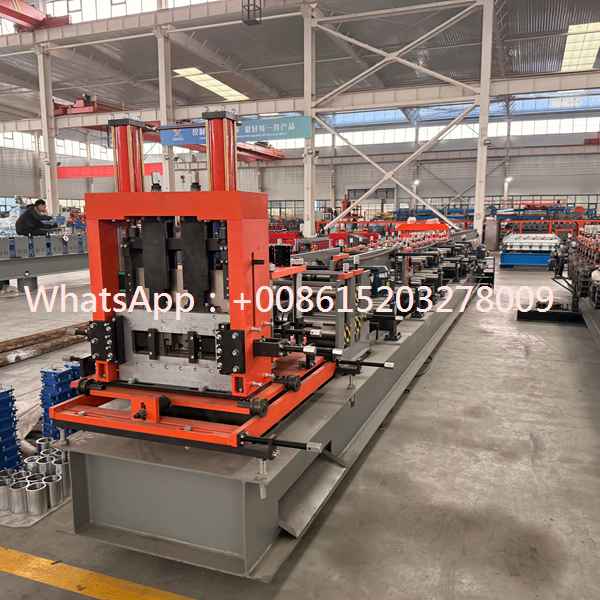

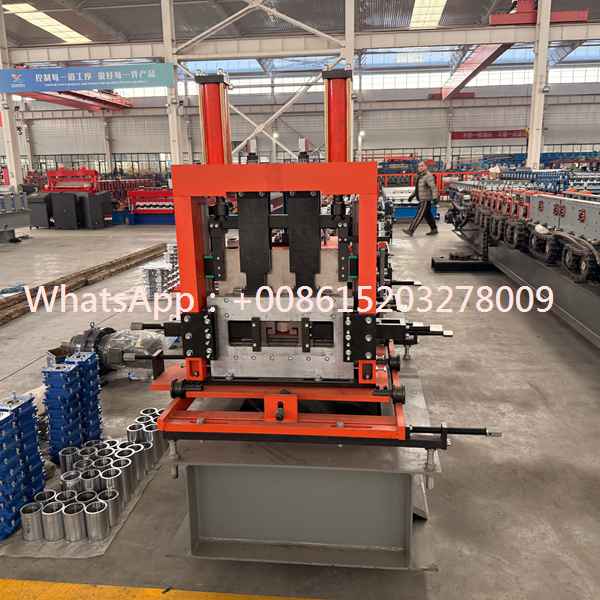

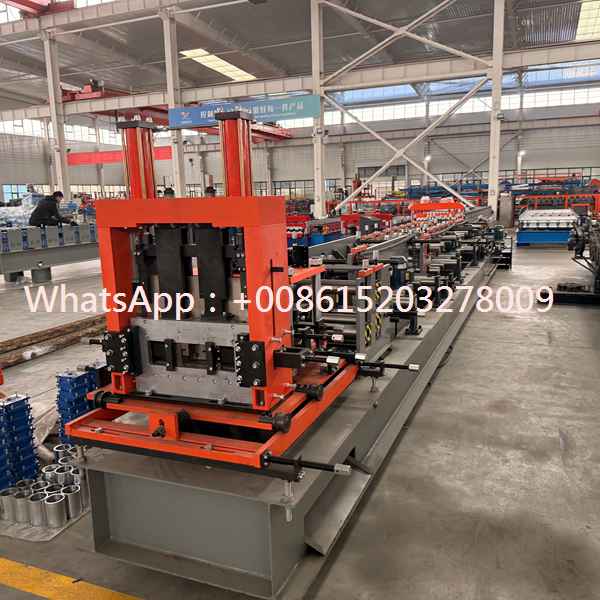

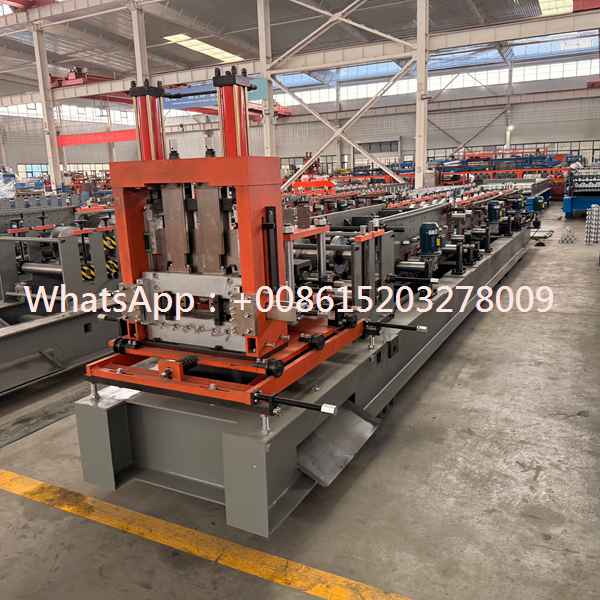

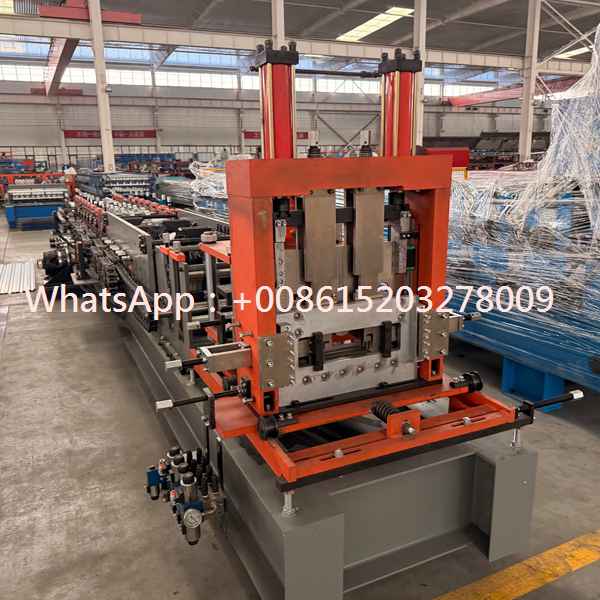

The Automatic Purlin Roll Forming Machine is a professional production system designed for manufacturing high-quality C and Z steel purlins used in modern steel structure buildings. The machine adopts advanced cold roll forming technology to continuously process metal coils into accurate structural profiles with excellent strength, stable dimensions and reliable performance.
Purlins produced by this machine are widely used as important supporting components in industrial buildings, warehouses, workshops, commercial structures and prefabricated construction systems. The equipment provides an efficient manufacturing solution for companies requiring continuous and stable steel purlin production.
With automatic control, precision forming and flexible production capability, the machine helps manufacturers improve productivity, reduce manual operation and achieve consistent quality for different construction projects.
The purlin roll forming machine integrates multiple production functions into one complete system, including coil feeding, profile forming, punching, cutting and finished product output. The automatic production process improves efficiency and ensures accurate processing of steel components.
According to different project requirements, the equipment can produce various C and Z purlin specifications by adjusting forming parameters and machine settings. This flexible design allows manufacturers to serve different markets with one production line.
The machine is suitable for both large-scale structural steel production and customized purlin manufacturing applications.
The forming section uses multiple precision roller stations to gradually shape flat steel strips into finished purlin profiles. The continuous forming method ensures smooth material processing and maintains accurate profile dimensions.
The roller design is optimized according to different purlin sizes, thicknesses and shapes. This helps improve product straightness, structural strength and overall appearance quality.
The reinforced machine frame provides stable support during operation, reducing vibration and improving equipment durability for long-term industrial production.
| Item | Specification |
|---|---|
| Machine Type | Automatic Purlin Roll Forming Machine |
| Processing Material | Galvanized Steel, Carbon Steel Coil |
| Profile Type | C Purlin, Z Purlin |
| Material Thickness | 1.5-3.5 mm |
| Production Speed | 15-40 m/min |
| Forming Method | Continuous Cold Roll Forming |
| Punching System | Automatic Hydraulic Punching |
| Cutting System | Hydraulic Automatic Cutting |
| Control System | PLC Automatic Control |
| Application | Steel Structure Component Manufacturing |
The machine is designed to produce both C-shaped and Z-shaped purlins according to different construction requirements. The adjustable structure allows manufacturers to change product specifications efficiently.
This flexibility reduces the need for multiple machines and improves production efficiency. It is an ideal choice for companies producing various steel framing components.
| Purlin Product | Application |
|---|---|
| C Purlin | Roof and wall support structures |
| Z Purlin | Large span steel buildings |
| Customized Steel Profile | Special engineering projects |
| Structural Framing Component | Industrial construction systems |
The integrated punching system allows holes to be processed automatically according to engineering drawings and preset parameters. Accurate hole positioning improves installation efficiency at construction sites.

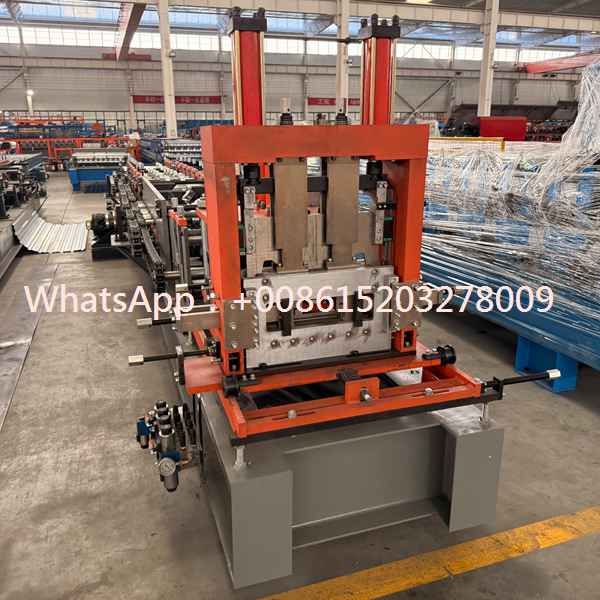

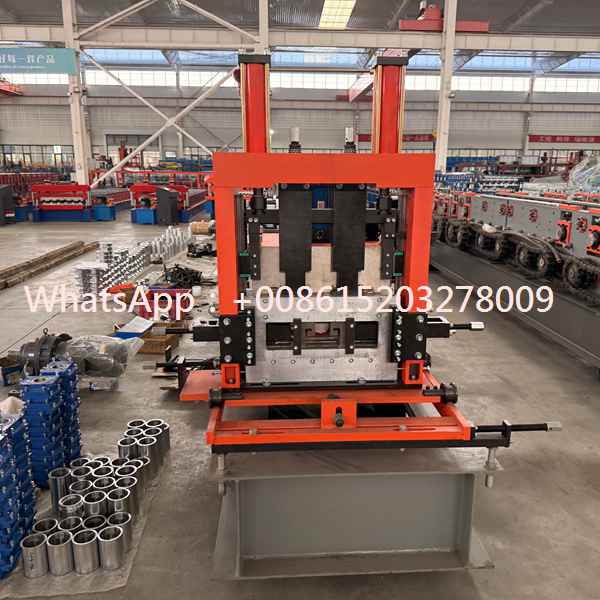

The cutting unit provides precise length control and automatic separation of finished purlins. The combination of punching and cutting functions creates a complete automated production process.
The feeding unit ensures smooth transportation of steel coils into the forming section. The guiding system maintains correct material alignment and improves production stability.
The production line can be equipped with auxiliary equipment such as automatic decoilers, leveling devices and automatic collection systems to achieve higher production automation.
| Production Stage | Description |
|---|---|
| Coil Loading | Install steel coil material |
| Material Feeding | Transfer steel strip into machine |
| Punching Process | Create required connection holes |
| Roll Forming | Shape C or Z purlin profile |
| Automatic Cutting | Cut finished purlin length |
| Product Collection | Prepare purlins for construction |
Steel purlins manufactured by this machine are widely used in construction projects because of their excellent load-bearing performance and convenient installation characteristics.
| Feature | Benefit |
|---|---|
| Automatic Production | Improves manufacturing efficiency |
| Precision Roll Forming | Ensures accurate profiles |
| C/Z Flexible Production | Supports different products |
| Integrated Processing | Reduces manual operation |
| Stable Structure | Provides long-term reliability |
The Automatic Purlin Roll Forming Machine provides an efficient and reliable solution for manufacturers producing structural steel components. With advanced roll forming technology, automatic control and flexible production capability, the equipment meets the requirements of modern steel construction industries.
It helps enterprises improve production capacity, reduce production costs and supply high-quality C and Z purlins for industrial, commercial and large-scale steel structure projects.
