Professional Steel Purlin Manufacturing Solution

Steel purlins are important secondary members in many steel building systems. They are commonly positioned between primary structural elements to support roof or wall cladding and transfer loads within the engineered framing system. Producing these sections efficiently requires a forming line capable of maintaining stable dimensions throughout continuous coil processing.

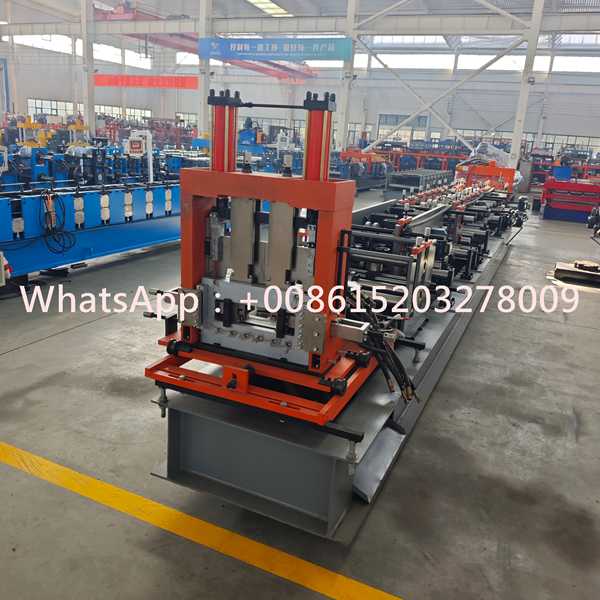

This purlin roll forming machine is designed to convert steel coil into finished structural profiles through a controlled sequence of decoiling, feeding, guiding, progressive forming, optional punching, and automatic cutting. The production process is suitable for manufacturers supplying purlins to industrial, commercial, agricultural, and warehouse construction projects.

The machine configuration can be developed around the required profile drawing, steel material, thickness range, finished length, punching pattern, and production capacity. This provides manufacturers with a practical platform for producing standardized sections as well as project-specific structural members.

Technical Specifications

Note: Final specifications are determined according to the selected steel grade, material thickness, profile dimensions, production speed, punching requirements, finished lengths, and customer application.

What Is a Purlin Roll Forming Machine?

A purlin roll forming machine is a continuous metal-processing system used to manufacture structural purlin sections from steel coil. Instead of cutting individual flat strips and manually bending them, the production line progressively shapes the material as it travels through a series of forming stations.

The process allows manufacturers to establish a consistent production method for long structural members. The finished profiles can be supplied in different lengths according to project drawings and may include pre-punched holes when required.

C and Z profiles are among the commonly selected section types for steel framing. The appropriate geometry should be determined by the structural design, material specification, applicable building standards, and project requirements.

How the Production Line Works

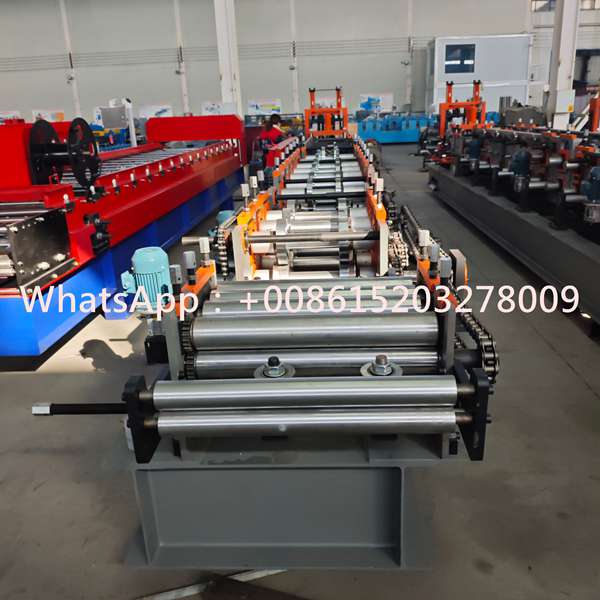

Production starts with a steel coil loaded onto the decoiler. The coil is gradually released and directed toward the feeding section. Guide equipment keeps the strip aligned as it enters the forming system.

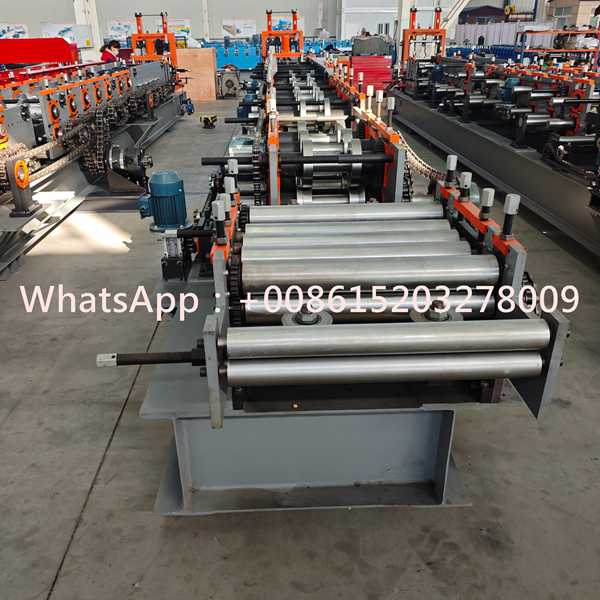

A leveling unit can be incorporated when required to help establish a stable material condition before forming. The prepared strip then moves through the roller stations, where the flat steel gradually develops into the specified structural section.

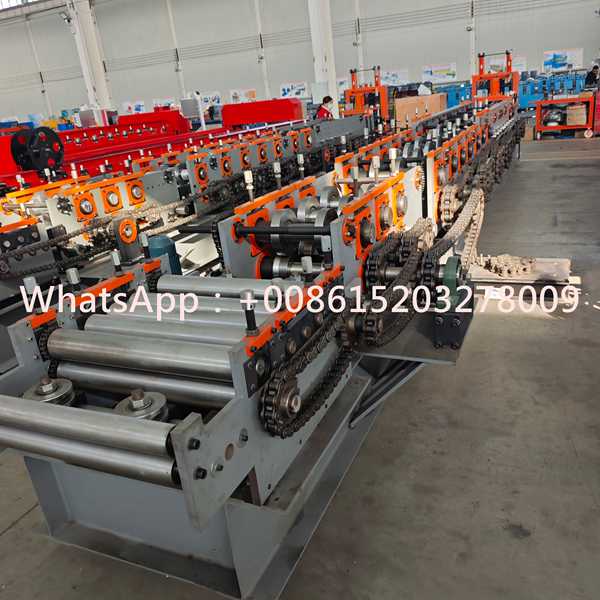

Each forming station contributes a controlled amount of bending. The progressive sequence helps distribute the deformation across the machine and provides a continuous path toward the final C or Z profile.

If the finished purlins require connection holes, an integrated punching system can be included. Hole positions are established according to the approved engineering drawing and coordinated with the production sequence.

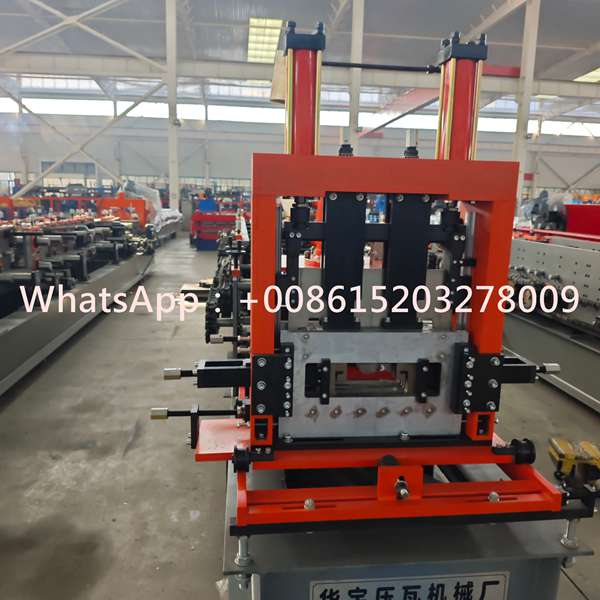

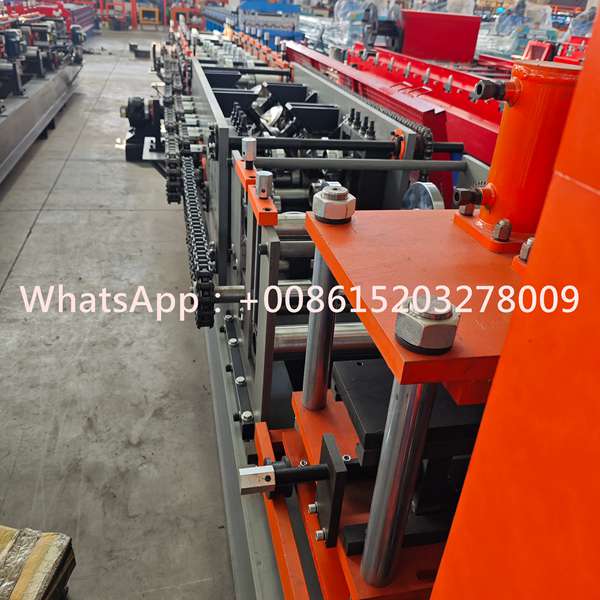

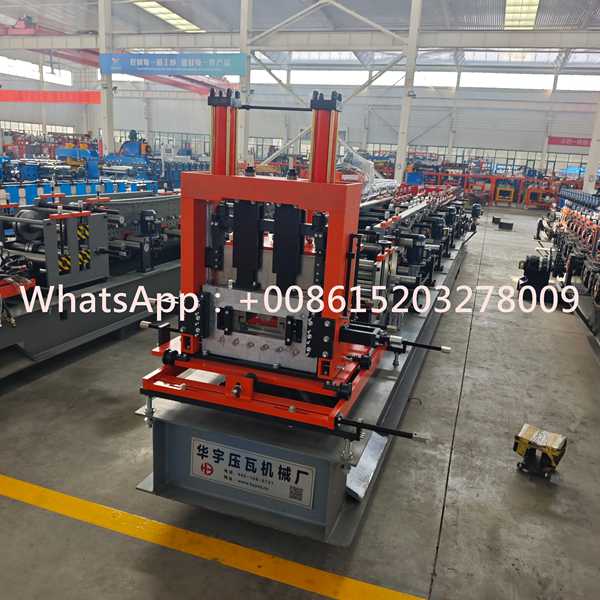

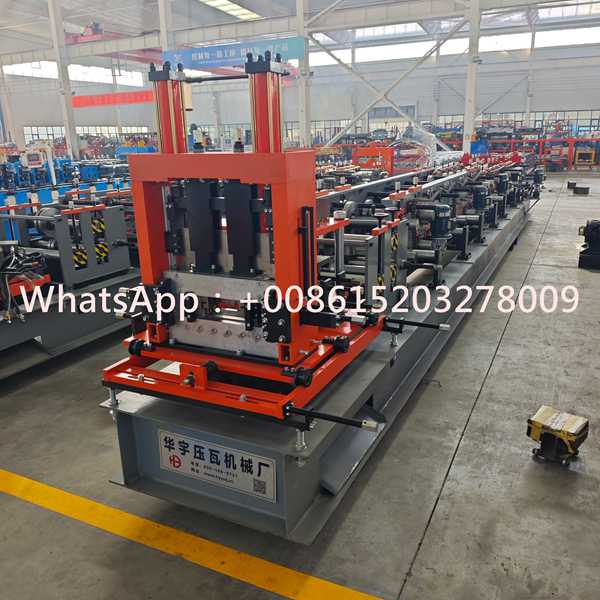

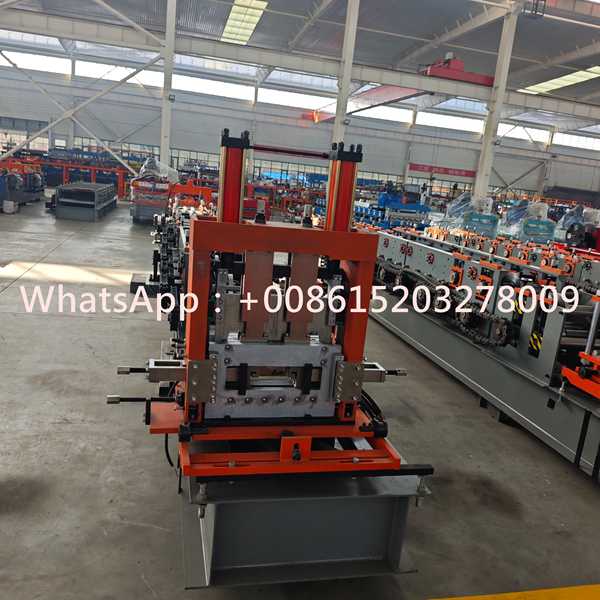

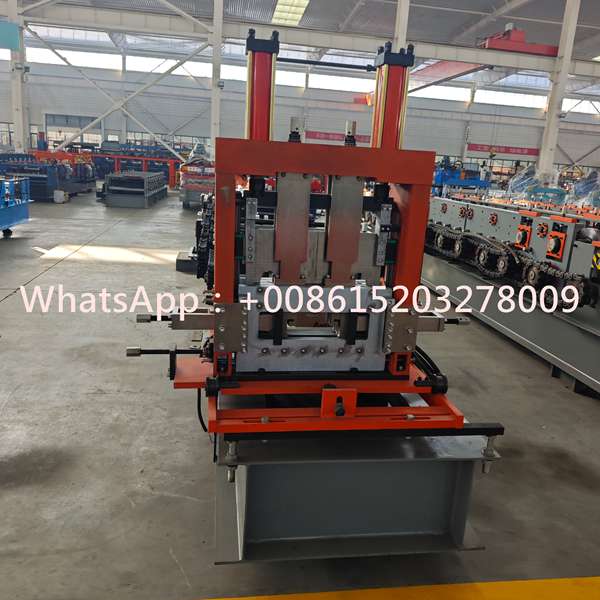

Once the profile reaches its final geometry, the cutting unit separates the continuous section into individual members. The finished purlins can then be collected, inspected, bundled, and prepared for transportation.

C Purlin and Z Purlin Production

C and Z purlins have different cross-sectional geometries and are selected according to the structural arrangement of the building. A production line can be designed specifically for one profile or configured to accommodate multiple section requirements.

The forming rollers are developed according to the selected profile drawing. The web height, flange width, lip size, corner geometry, and overall section width determine the roller configuration.

For projects involving several profile dimensions, the adjustment system can be selected according to the required production range. Depending on the machine concept, profile changes may involve manual adjustment, mechanical positioning, or other configured adjustment methods.

The final profile should always be verified against the approved engineering drawing before production is released for a construction project.

Steel Material and Forming Considerations

The machine can process selected structural steel coil according to the designed profile and thickness range. Material properties have a direct influence on forming behavior, so steel grade and thickness should be confirmed during the machine design stage.

Changes in material strength may affect the forming force required to achieve the target geometry. The roller arrangement, shafts, bearings, transmission components, and drive system should therefore be selected with the intended material specification in mind.

Surface condition can also influence production. Coated steel requires suitable material handling and forming conditions to minimize unnecessary surface damage during processing.

Consistent coil width and thickness can contribute to more stable feeding and profile development. Customers should provide available material data when requesting a machine configuration.

Automatic Production and Process Control

The PLC-based control system provides centralized management of the production sequence. Operators can enter required production parameters through the control interface and monitor the machine during operation.

Automatic length control allows the production line to create individual purlins according to programmed dimensions. This is especially useful when a construction order contains multiple member lengths.

Production counting and parameter management can help operators organize large batches. Once the correct settings have been established for a specific profile, repeat production can be performed with a more structured setup procedure.

Additional automation functions can be incorporated according to the customer's production concept. The required automation level should be selected based on product variety, order volume, available operators, and investment objectives.

Connection Hole Processing

Many purlins require holes for fastening and structural connections. An optional punching system allows these openings to be incorporated into the production sequence.

The punching tooling can be designed according to hole diameter, quantity, spacing, and location. The exact arrangement depends on the connection design and should be confirmed from the customer's technical drawings.

Online punching can reduce the need to transfer finished members to a separate drilling or punching workstation. This can simplify material handling and provide a more continuous manufacturing workflow.

Sample members should be checked before mass production to confirm that the punching layout matches the approved design. Punch and die condition should also be monitored during long production runs.

Applications in Steel Construction

Purlin forming equipment can support manufacturers serving a broad range of steel construction markets. The finished members are commonly incorporated into secondary framing systems according to the building's structural design.

Customized Machine Configuration

A purlin production line should be matched to the actual products a manufacturer intends to sell. Profile dimensions, steel material, punching requirements, and production volume all influence the appropriate machine configuration.

Customization may include C or Z profile dimensions, web height, flange width, lip size, material thickness, steel grade, punching layout, finished length, forming speed, and output arrangement.

Customers can provide a profile drawing, CAD file, or detailed dimensional information during the quotation stage. These documents help establish the forming roller geometry and processing requirements.

The overall machine layout can also be adapted to workshop conditions. Coil loading direction, output direction, machine length, safety guarding, electrical supply, and auxiliary equipment can be considered during project planning.

Quality Control During Purlin Production

Consistent section geometry is important for steel fabrication because purlins need to fit correctly with the primary frame and associated cladding or connection components.

During commissioning, sample profiles can be inspected for overall width, web height, flange dimensions, lip geometry, straightness, hole positions, and finished length. The machine can then be adjusted according to the measured results.

During regular production, operators should monitor material tracking, roller alignment, cutting accuracy, and punching quality. Periodic dimensional inspection can help identify changes before they affect a large quantity of finished members.

Installation and Commissioning

Installation should follow the agreed machine layout and foundation requirements. Adequate space should be provided for coil loading, finished-product handling, machine maintenance, and operator access.

Before production begins, the forming stations, transmission components, electrical system, control panel, cutting equipment, and optional punching system are checked.

Trial production is then performed using the specified steel material. The resulting purlins are measured against the approved drawing, while the cutting and punching functions are verified when included in the machine configuration.

Operators can receive practical guidance on machine startup, parameter settings, profile adjustment, production monitoring, lubrication, cleaning, and routine troubleshooting.

Maintenance and Technical Support

Regular maintenance helps preserve forming accuracy and machine reliability. Forming rollers, shafts, bearings, transmission components, cutting tools, punching tooling, electrical connections, and fasteners should be inspected according to the operating schedule.

Lubrication should be performed using suitable products and appropriate intervals. Operators should also monitor abnormal vibration, unusual noise, material deviation, or changes in finished profile dimensions.

Technical support can cover machine operation, profile adjustment, punching settings, cutting parameters, maintenance procedures, and troubleshooting. Replacement wear parts can be identified according to the actual machine configuration.
