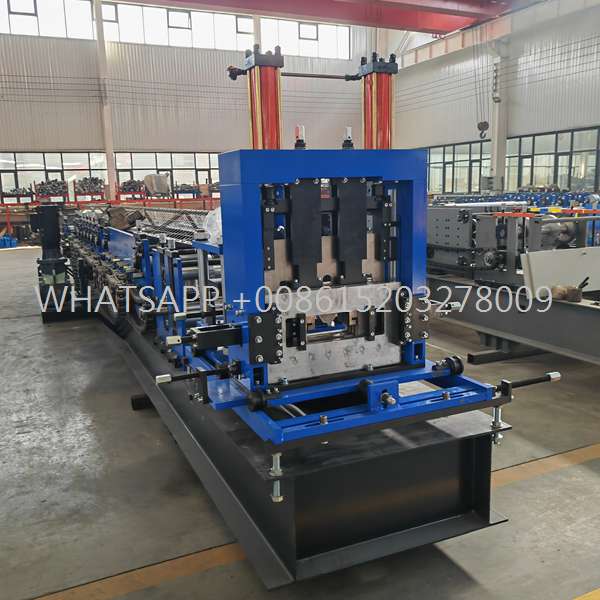

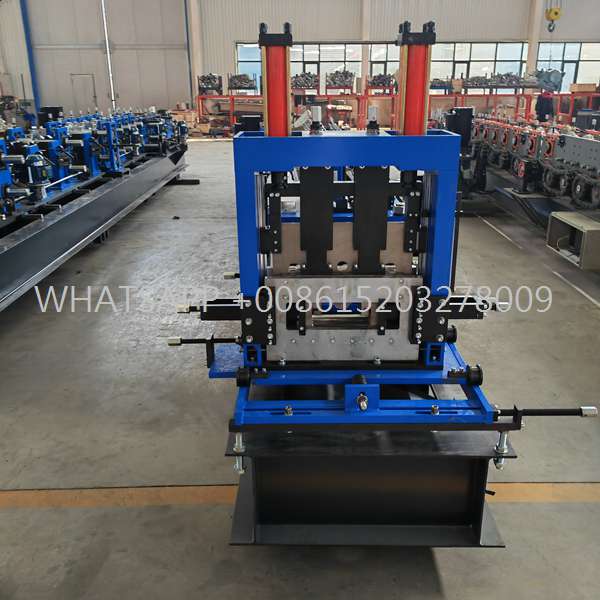

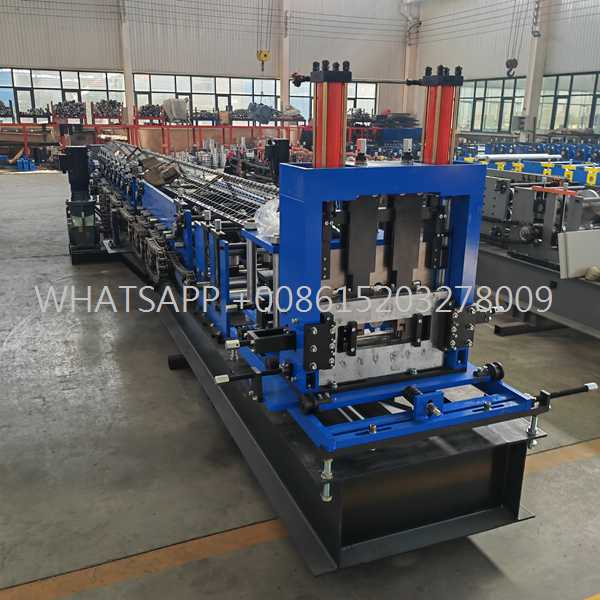

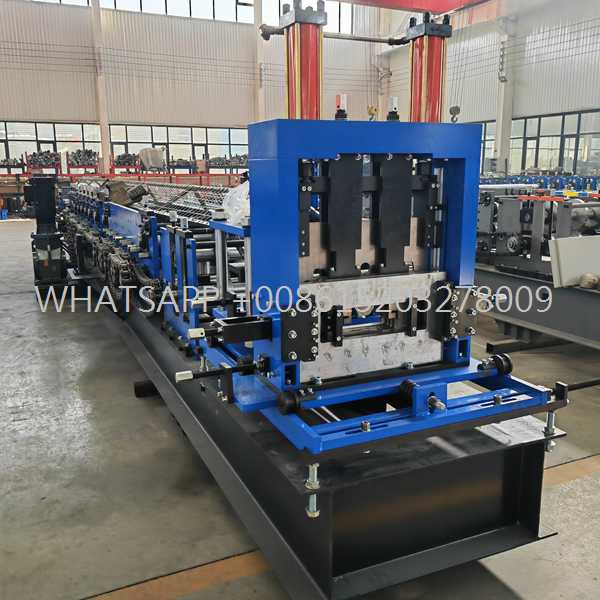

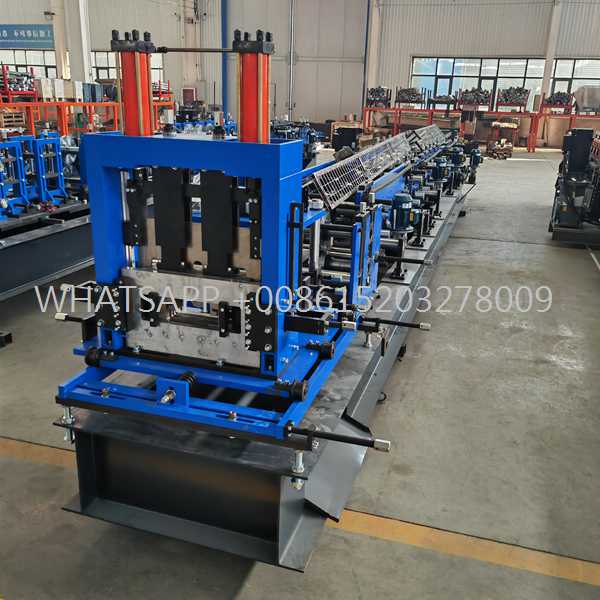

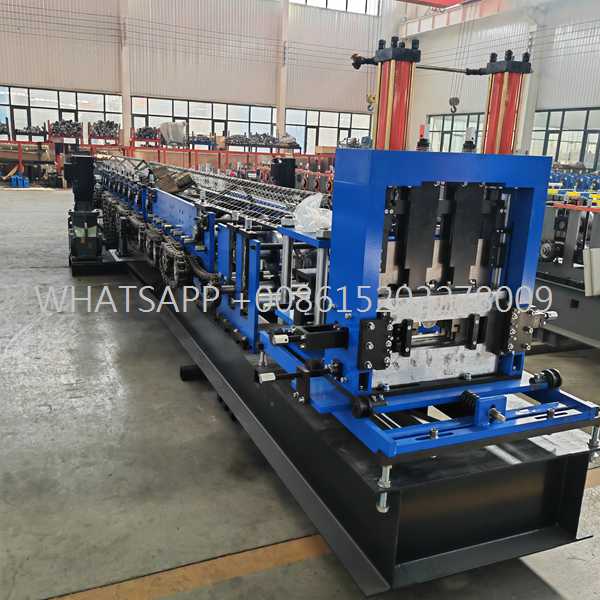

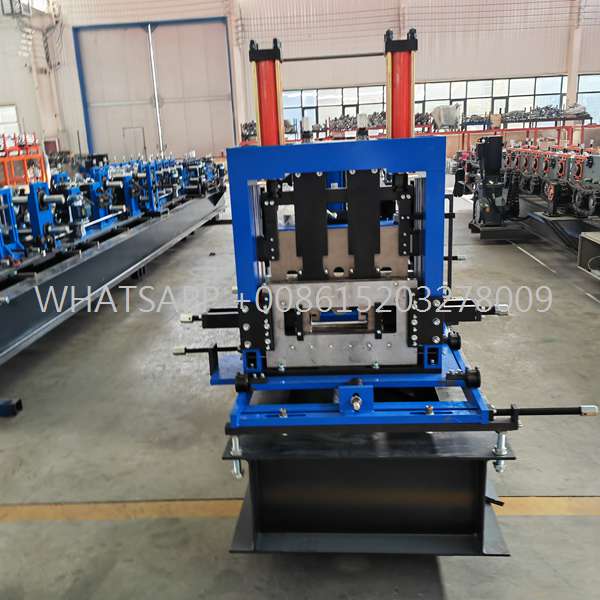

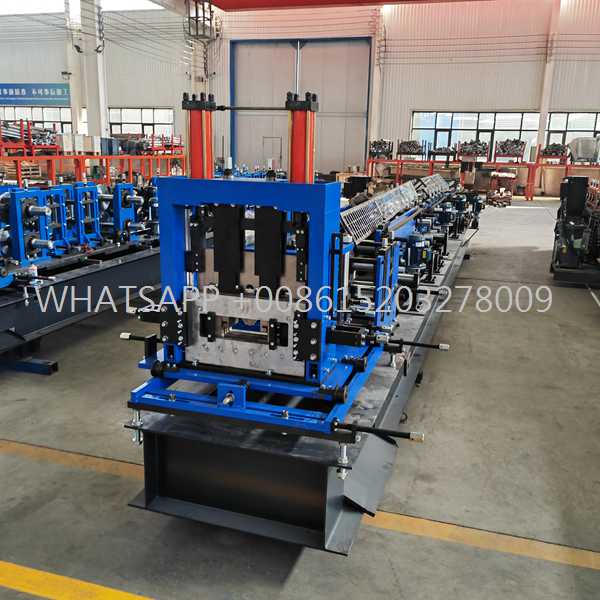

The industrial Purlin Roll Former represents a breakthrough in metal processing technology, specifically developed to cater to the high-volume demands of modern pre-engineered steel buildings and infrastructure development. Engineered to handle a versatile array of raw materials, including high-tensile galvanized coils and hot-rolled structural steel, this fully automated profiling line transforms sheet metal into high-capacity C and Z steel framing channels. By embedding an advanced computerized electronic system, mill operators can easily input specific production parameters into a centralized touchscreen console. The machinery then instinctively re-adjusts its forming widths, flange positions, and return lips within moments, entirely removing the labor-intensive mechanics of manual tool changeovers and setting errors.
Are you striving to enhance your manufacturing facility with faster processing speeds and unbeatable geometric precision? Our heavy-duty purlin roll former delivers an exceptional combination of rugged structural engineering, intelligent automation, and high-speed operational efficiency. This state-of-the-art cold-forming system is engineered to meet the strict technical standards demanded by global architecture and civil engineering sectors. It reliably creates high-accuracy secondary framing components utilized in modern commercial storehouses, industrial manufacturing zones, transport centers, and large-scale agricultural projects. Integrating this automated line enables your plant to fulfill custom orders rapidly while drastically lowering material waste, manual labor costs, and job transition times.
The core innovation of this equipment centers on its dynamic, software-driven size transformation system. Traditional production mills frequently require operators to physically slide spacers or swap out individual forming rollers to shift product dimensions—a tedious process that stalls workflow schedules for hours. Conversely, our modern roll forming mill utilizes synchronized servo-motorized tracking shafts governed by a proprietary PLC operating layout. With a quick entry of blueprint dimensions into the user-friendly command terminal, the entire roller network recalibrates automatically. This versatile capability ensures that small-batch custom requests and massive volume orders can be run consecutively on a single processing line without costly downtime.
Advanced Engineering Characteristics & Structural Advantages
| Technical Category | Operational Specifications / Capabilities |
|---|---|
| Compatible Input Strips | Cold Rolled Steel, Hot Rolled Carbon Steel, Hot-Dip Galvanized Coils |
| Material Tensile Threshold | Yield Strength from 235 MPa up to 550 MPa (High-Tensile Structural Grades) |
| Thickness Processing Range | 1.5 mm to 3.2 mm (Heavy-duty modifications up to 4.0mm available upon request) |
| Channel Web Dimensions (H) | 100 mm to 300 mm (Infinitely adjustable via computerized PLC data inputs) |
| Profile Flange Dimensions (B) | 40 mm to 85 mm (Fully motorized automated variable adjustment) |
| Return Drop Lip Dimensions (C) | 10 mm to 25 mm (Precise motorized automated positioning) |
| Linear Production Velocity | 15 m/min to 25 m/min (Continuous forming speed, punching variable) |
| Forming Progression Steps | 17 to 22 Roller Pass Stations (Designed for gradual metal relief) |
| Main Drive Mechanism | Heavy-gauge dual directional roller chain or hardened universal joint gearboxes |
| Spindle Shaft Dimensions | High-tensile 40Cr steel alloy, turned, ground, and tempered; Diameter 80mm/95mm |
| Automation Software Architecture | Multi-lingual PLC Controller with Touch Screen HMI Interface |
| Die Shear & Punch Steel Type | Premium Cr12MoV tool steel, vacuum hardened to HRC 60+ |
| Total System Motor Capacity | Main Motor: 18.5 KW to 22 KW; Hydraulic Station: 7.5 KW to 11 KW |
| Operating Power Infrastructure | 380V / 440V, 50Hz / 60Hz, 3-Phase Phase Configuration (Tailored to local grids) |
The cold-formed profiles created by this industrial roll forming system act as the backbone of contemporary architectural design. Renowned for their high strength-to-weight structural ratios, these steel channels form the structural ribs, roof framing lines, lateral wall supports, and interior floor trusses for large infrastructure investments. They are heavily incorporated into the assembly of deep-span industrial complexes, regional distribution warehouses, transport infrastructure hubs, institutional properties, and modern modular building sectors.
Furthermore, with the rapid expansion of global solar energy infrastructure, these precision-profiled beams are highly valued for constructing durable ground racking, tracker frameworks, and mounting foundations within vast solar fields. This clean energy transition provides a reliable and highly profitable commercial avenue for metal processing facilities worldwide.
This automated manufacturing framework comprises distinct mechanical modules that operate in absolute synchronization with the master controller:
Before leaving our machinery construction plant, every single line undergoes rigorous testing under maximum load with real steel materials for several consecutive hours. Our quality control engineers carefully monitor electrical signals, hydraulic heating curves, and linear encoder responsiveness to ensure everything operates flawlessly. This thorough validation process ensures your factory gains a dependable, plug-and-play production asset that achieves high-yield output immediately upon arrival.
As an established manufacturer specializing in heavy-duty cold roll forming technology, we provide flexible customization choices to accommodate specific fabrication drawings, structural thicknesses, and punching plans. Reach out to our engineering team today to secure an immediate, factory-direct wholesale quotation, exhaustive layout footprints, and a tailored business proposal engineered to scale your output capacity!
