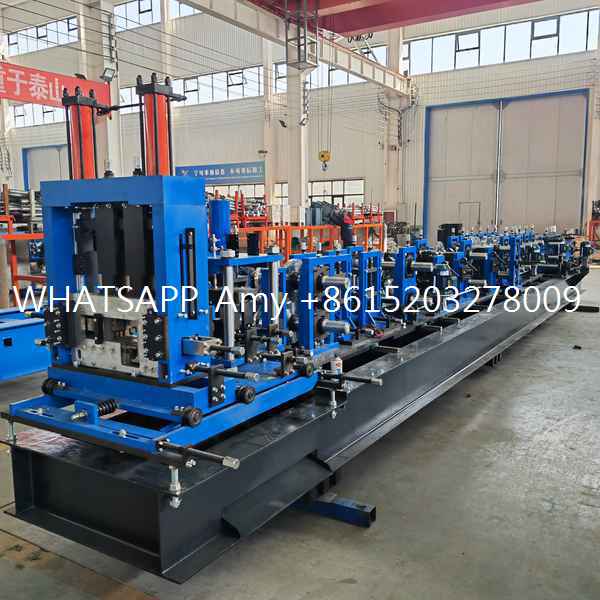

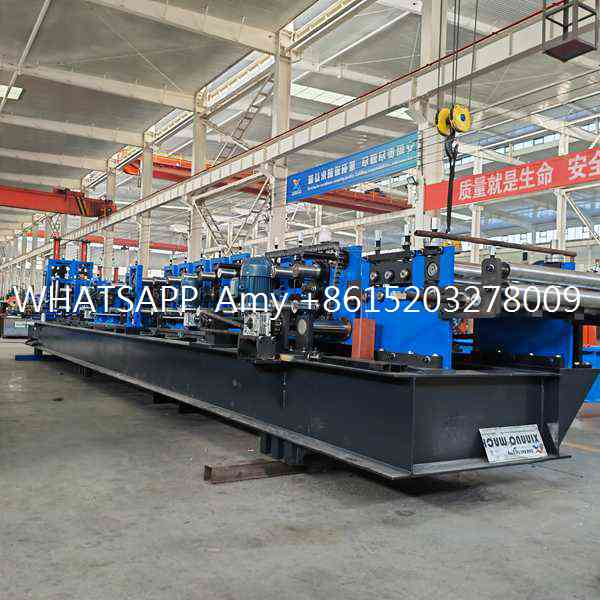

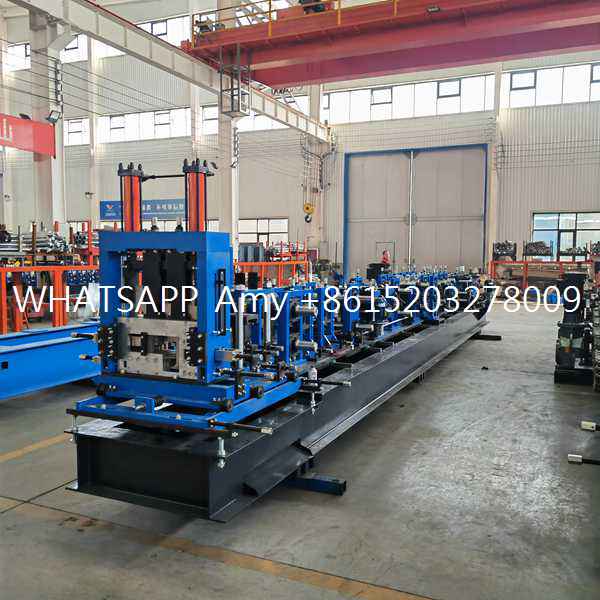

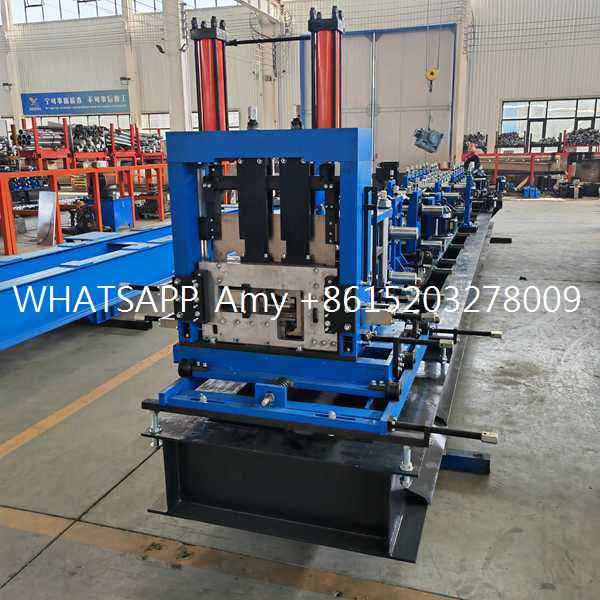

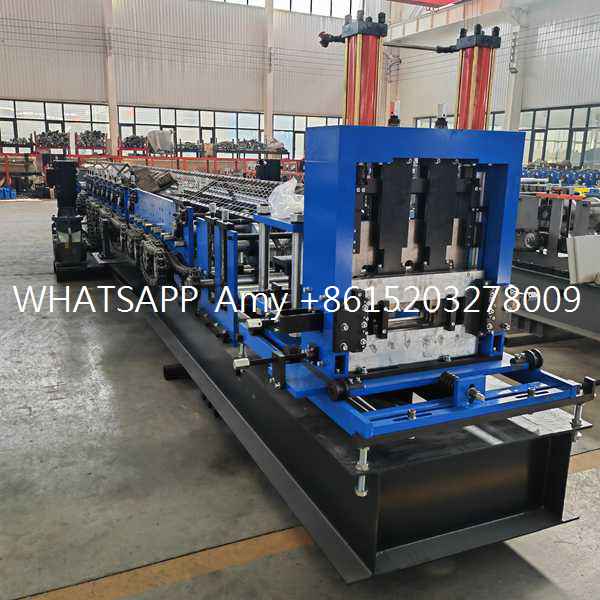

CZ Purlin Machine is an advanced roll forming system designed for automatic production of both C and Z steel purlins. It features fast profile change, precise forming, and high efficiency for steel structure applications.
One machine produces both C and Z purlins
Fast automatic size change saves setup time
High precision forming ensures consistent profile accuracy
Strong structure supports heavy-duty continuous production
PLC control simplifies operation and improves efficiency
The CZ Purlin Machine is a highly efficient roll forming solution designed to produce both C and Z shaped steel purlins on a single production line. It is widely used in steel structure buildings, industrial workshops, warehouses, and prefabricated construction systems where flexibility and productivity are essential.
This machine is capable of processing galvanized steel, cold-rolled steel, and pre-painted steel coils with various thickness ranges. By adopting an advanced roll forming design, the material is gradually shaped through multiple forming stations, ensuring smooth profile transitions, accurate dimensions, and excellent surface quality.
One of the key features of the CZ purlin machine is its automatic size adjustment system. Width and height changes can be completed quickly through servo motors controlled by the PLC system, eliminating the need for manual roller replacement. The automatic C/Z profile change significantly reduces downtime and increases overall production efficiency.

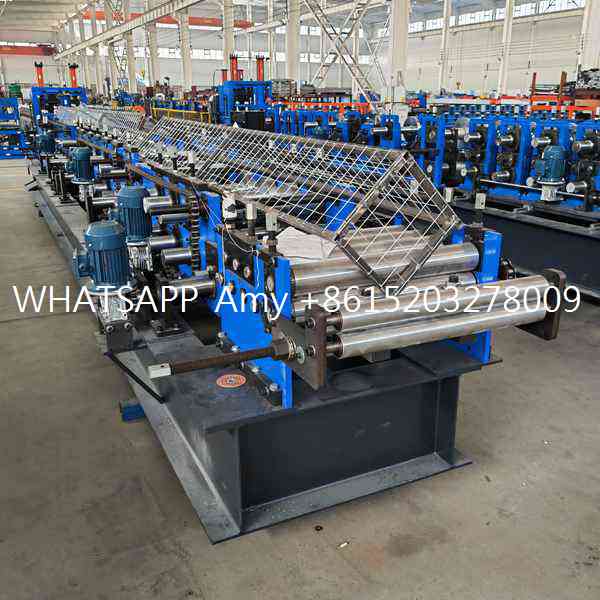

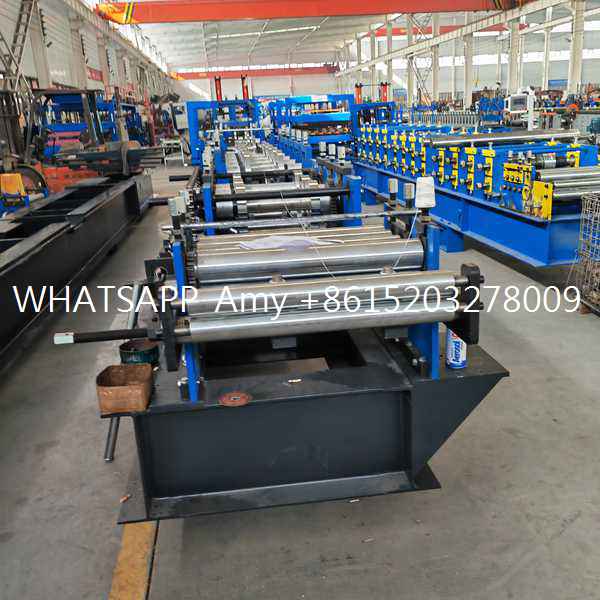

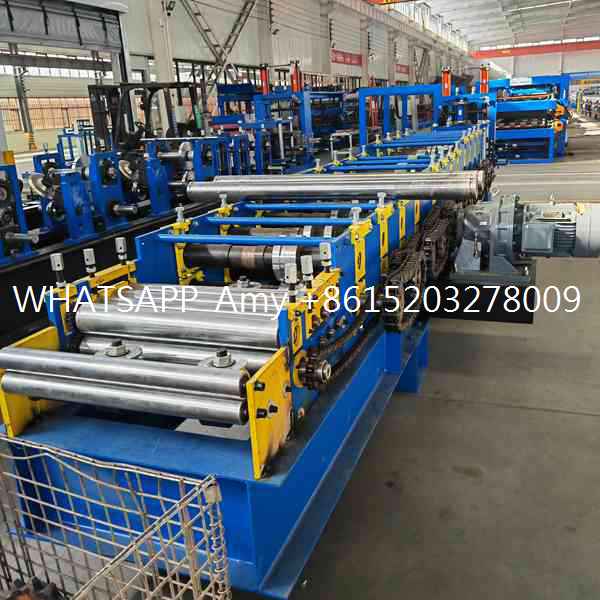

The complete production line generally includes a decoiler, feeding and guiding unit, roll forming section, punching system (optional), hydraulic or servo cutting system, and finished product table. Optional automatic stacking and labeling systems can be integrated to meet higher automation requirements.
The PLC control system with touch screen interface allows operators to set production parameters such as purlin size, length, quantity, and production speed. Once programmed, the machine runs automatically with stable performance and minimal manual intervention, reducing labor cost and operational errors.

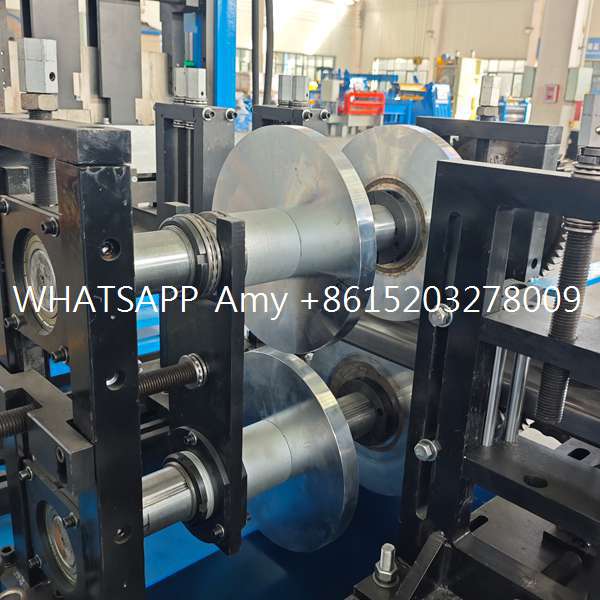

All forming rollers are manufactured from high-grade alloy steel and undergo heat treatment for enhanced wear resistance and durability. Precision machining ensures consistent forming quality even during long-term, high-speed operation.

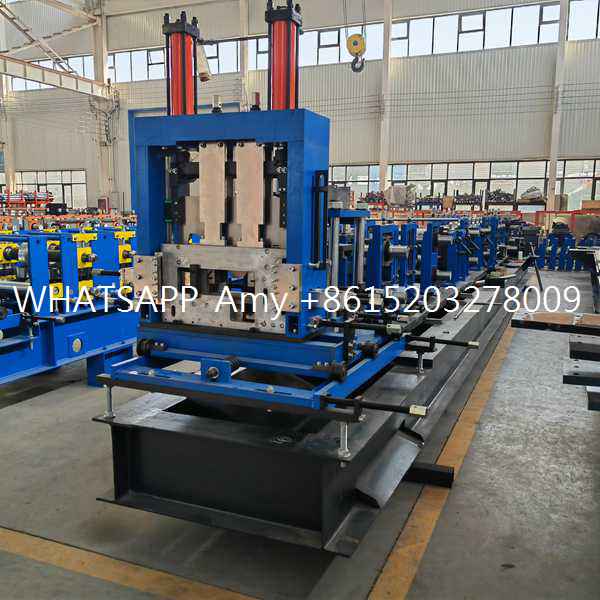

The cutting system delivers clean and accurate cuts with tight length tolerance, minimizing material waste and ensuring smooth edges. Depending on production needs, pre-punching or post-punching configurations can be selected.
With its robust structure, intelligent control, and flexible configuration, the CZ Purlin Machine is an ideal solution for manufacturers seeking high-efficiency, multi-profile purlin production for global steel construction markets.
