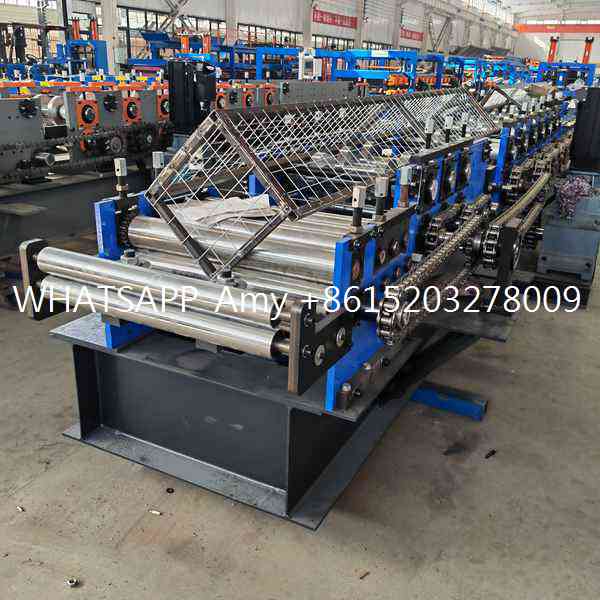

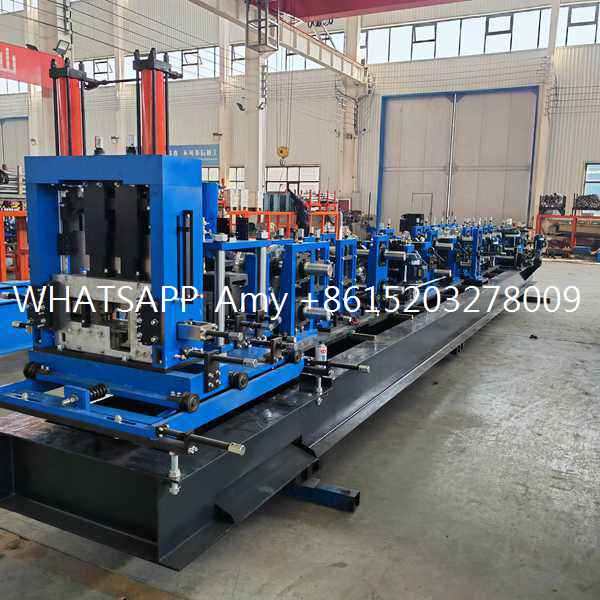

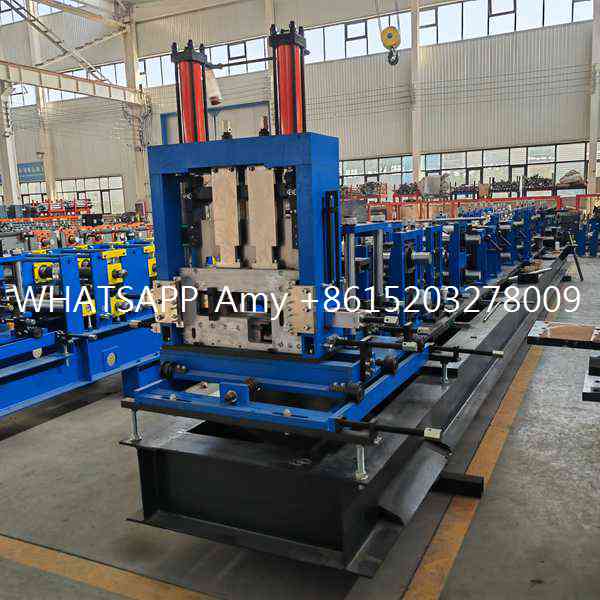

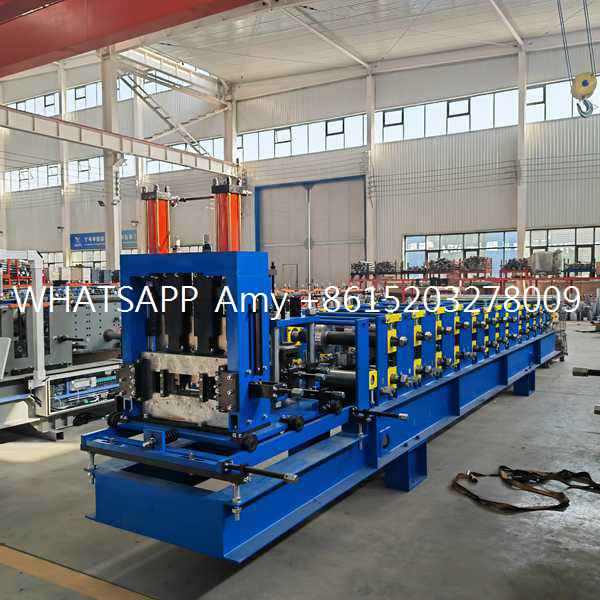

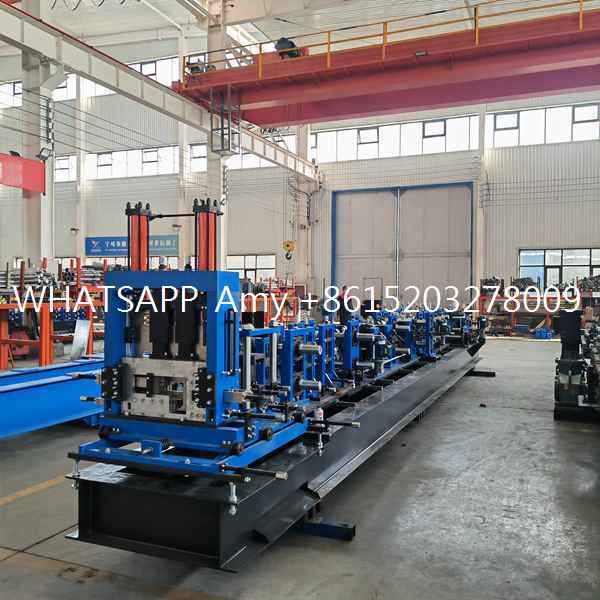

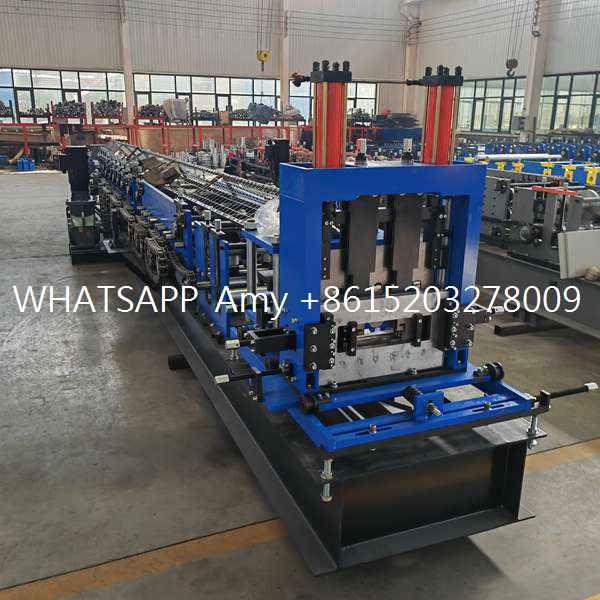

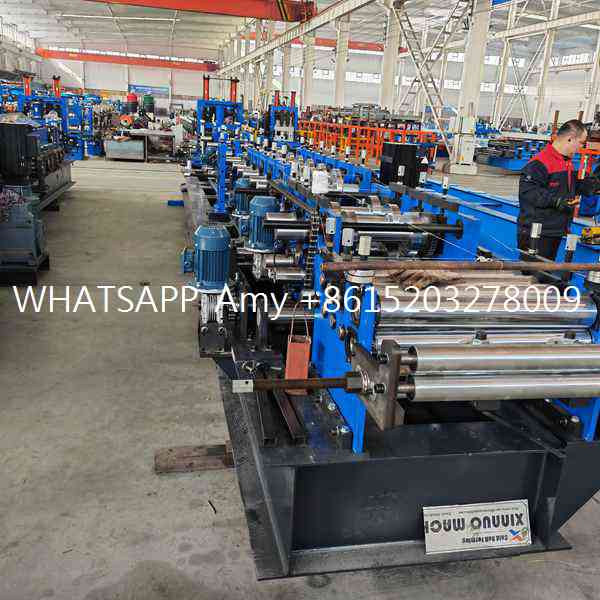

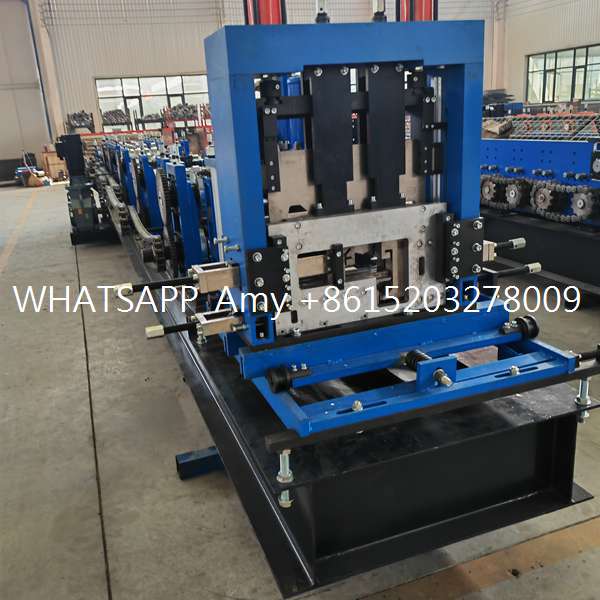

CZ Purlin Roll Forming Machine

The CZ Purlin Roll Forming Machine is an advanced and highly efficient production solution developed for manufacturing both C and Z shaped steel purlins on a single roll forming line. It is widely used in steel structure buildings, industrial plants, warehouses, and prefabricated construction projects where flexibility, speed, and precision are critical.

This machine is suitable for processing galvanized steel, cold-rolled steel, and pre-painted steel coils with different thickness ranges. Through a series of precision-engineered forming stations, the steel strip is gradually shaped into accurate C or Z profiles with smooth edges and uniform dimensions. The optimized forming process minimizes material stress, ensuring strong and reliable finished products.

One of the main advantages of this machine is its automatic C/Z profile change and size adjustment capability. Width and height adjustments are controlled by servo motors and managed through the PLC system, allowing operators to switch between different purlin sizes and profile types quickly without manual roller replacement. This significantly reduces setup time and improves overall production efficiency.

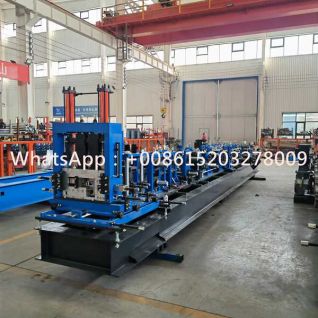

A complete CZ purlin roll forming line typically includes a decoiler, feeding and guiding system, roll forming section, punching unit (optional), cutting system, and finished product table. Additional automation options such as automatic stacking, labeling, and packaging systems can be integrated according to production needs.

The PLC control system with a user-friendly touch screen interface allows precise control of production parameters, including purlin size, length, quantity, and forming speed. Once programmed, the machine operates automatically with high stability, reducing operator workload and minimizing human error.

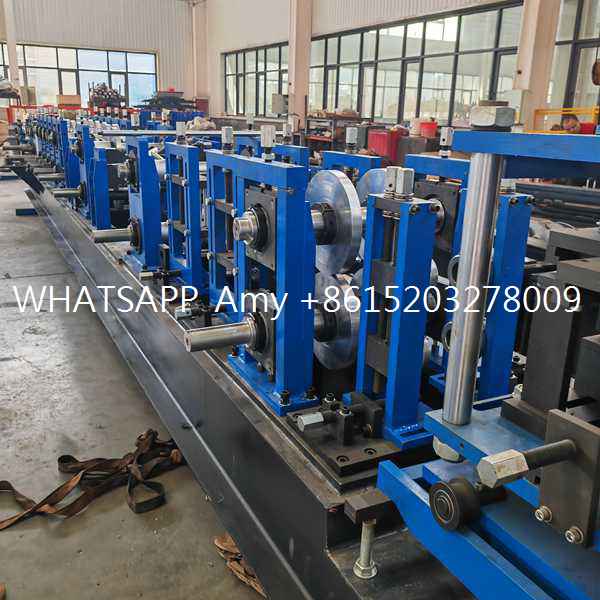

All forming rollers are manufactured from high-quality alloy steel and undergo heat treatment for excellent wear resistance and long service life. Precision machining ensures smooth forming and consistent quality during long-term operation. The cutting system delivers clean and accurate cuts with tight length tolerance, helping reduce material waste.

With its robust structure, intelligent automation, and flexible configuration, the CZ Purlin Roll Forming Machine is an ideal choice for manufacturers seeking a reliable and high-output solution for producing C and Z purlins for global steel construction markets.
