♦ Suitable Material: G450 G550 galvanized steel strip
♦ Main frame: 400mm+450mm H beam
♦ Wall thickness of main forming machine: 50mm
♦ Thickness of feeding material: 1.5-3.0mm for G550 and 2-4mm for Q235
♦ Roller station: 14 rows+11rows
♦ Roller material: Cr12+Gcr15
♦ Chain size:2.5 inch
♦ Diameter of shaft:95mm
With over 30 years of manufacturing expertise and a portfolio spanning 157 countries, our proficiency in catering to diverse global market demands is unparalleled.
This extensive international footprint attests to our deep understanding of varying industry needs, positioning us as a trusted authority in the field of steel fabrication machinery.
At the core of our success lies a team of seasoned professionals.
Our design team, boasting an average of 15 years of experience in the industry, plays a pivotal role in developing cutting-edge solutions.
Their in-depth knowledge and insights enable them to create machines that not only meet but exceed customer expectations, aligning perfectly with market requirements.

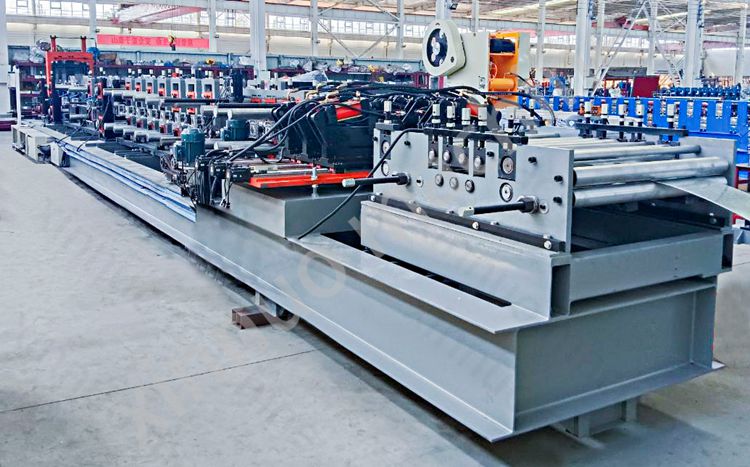

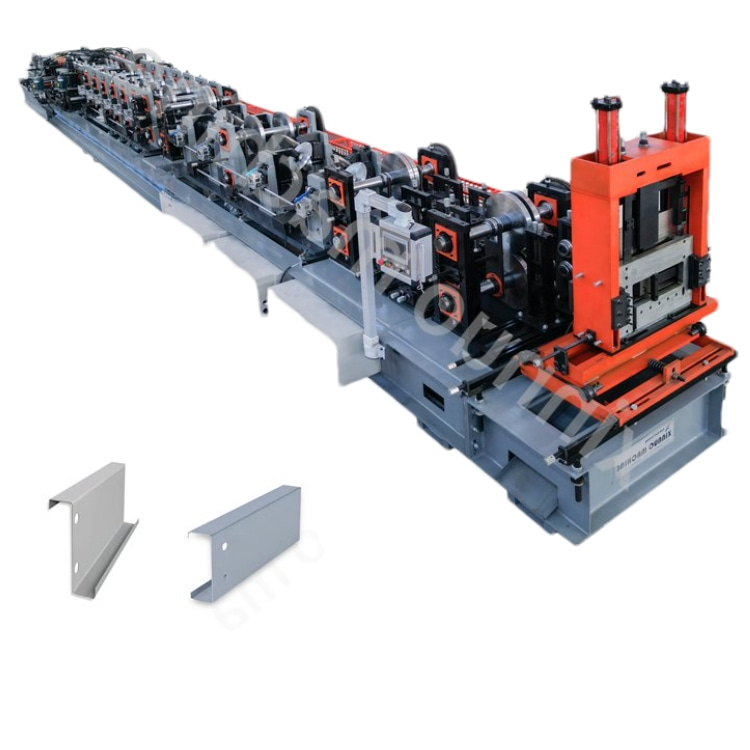

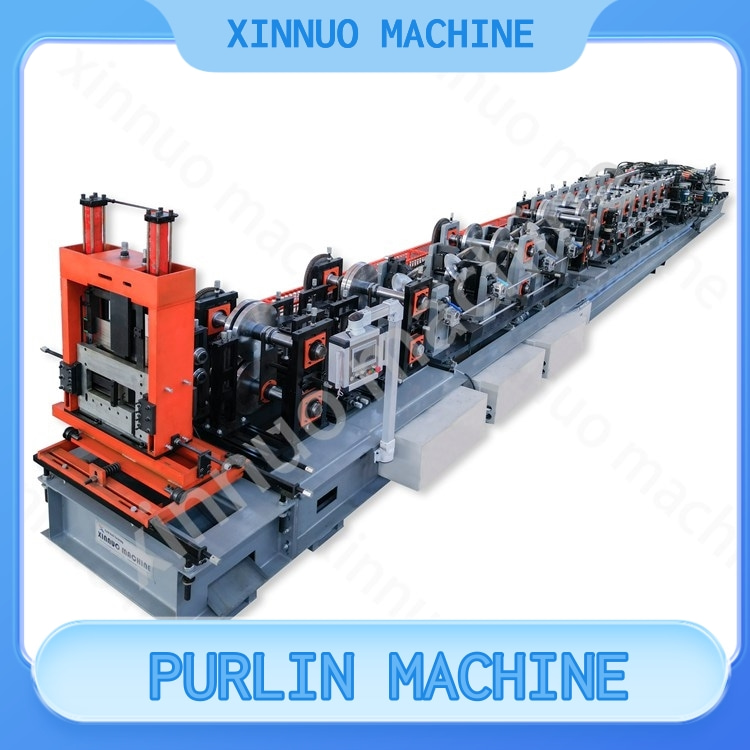

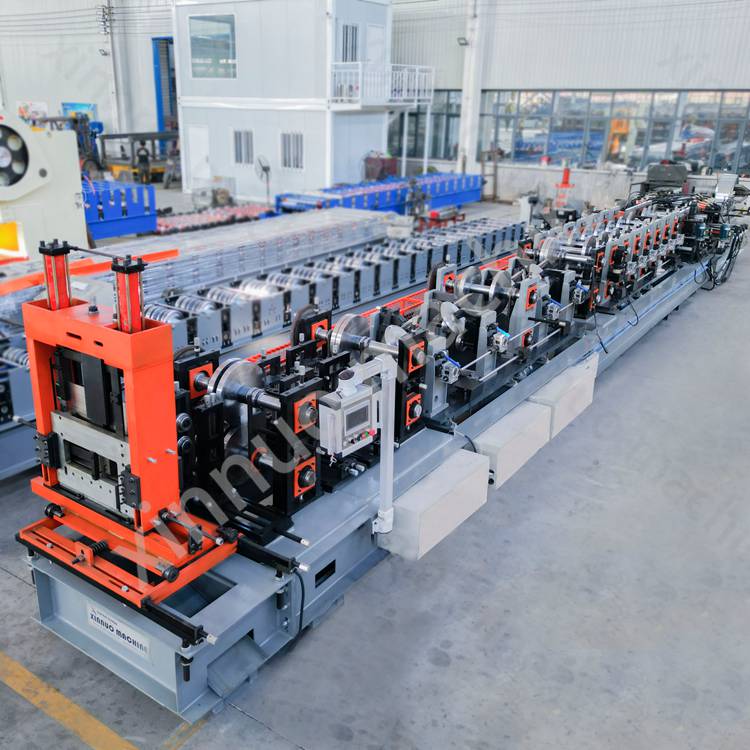

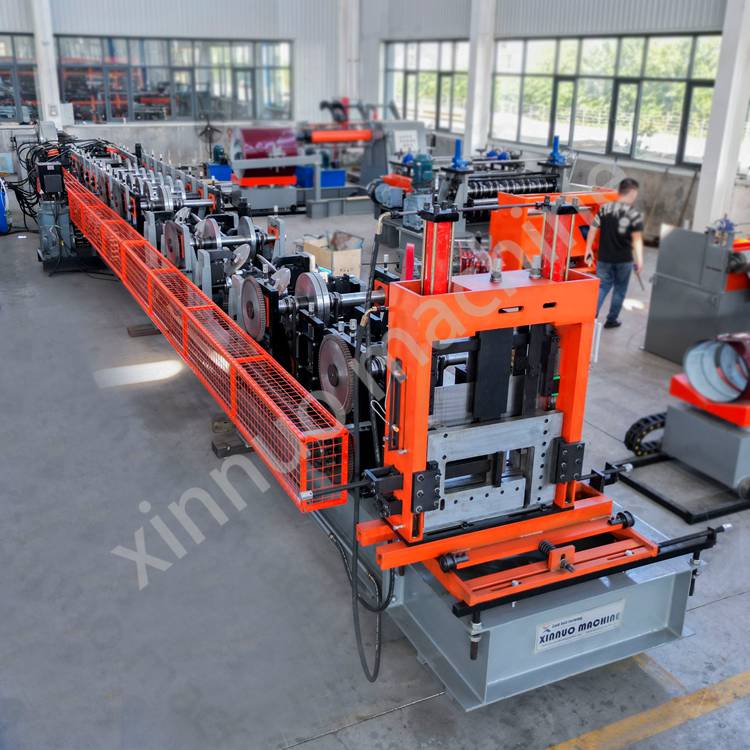

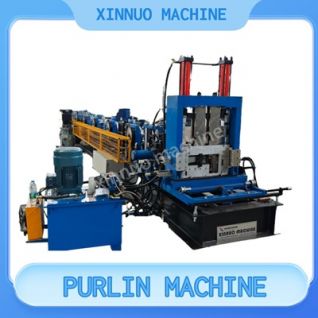

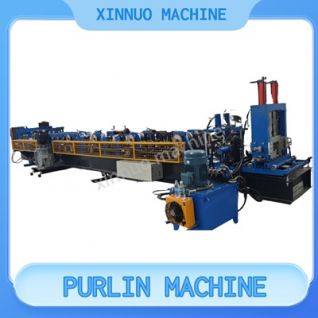

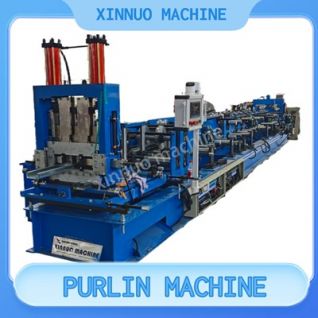

Our CZ purlin machine is a testament to our commitment to excellence.
Engineered with precision and built to last, it seamlessly integrates advanced roll forming technology with adjustable tooling,
allowing for the production of high-quality C and Z-shaped steel purlins.
The machine's versatility makes it suitable for a wide range of applications, from industrial roofing and wall framing to commercial and residential construction projects.
Thanks to its automated processes and intelligent control system, the CZ purlin machine ensures consistent performance, high productivity, and minimal material waste.
It can handle various steel thicknesses and sizes, offering customizable solutions to meet specific project needs.
Whether you're a small-scale fabricator or a large construction company, our CZ purlin machine provides the reliability and efficiency required to stay competitive in today's market.
Trust in our experience, expertise, and innovative solutions to elevate your steel fabrication operations to new heights.
| ♦ Thickness of feeding material | 1.5-3.0mm for G550 and 2-4mm for Q235 |
| ♦ Roller station | 14 rows+11rows |
| ♦ Roller material | Cr12+Gcr15 |
| ♦ Chain size | 2.5 inch |
| ♦ Diameter of shaft | 95mm |
| ♦ Motor power | 35KW |

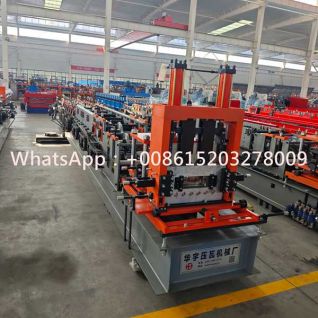

The CZ purlin roll forming machine is designed for high-efficiency manufacturing of both C and Z type steel purlins used in modern steel structure buildings. It is widely applied in roofing systems, industrial warehouses, and prefabricated construction projects requiring strong and precise structural support components.
This machine supports automatic switching between C and Z profiles, allowing manufacturers to respond quickly to different engineering requirements. The adjustment process is optimized for reducing downtime and improving production continuity.
Equipped with a PLC control system, the machine allows operators to easily manage production parameters such as size, speed, and cutting length. Real-time monitoring improves stability and reduces manual intervention.
The machine frame is constructed with reinforced welded steel, ensuring long-term stability during high-speed continuous operation. It is designed for industrial environments requiring consistent output and durability.

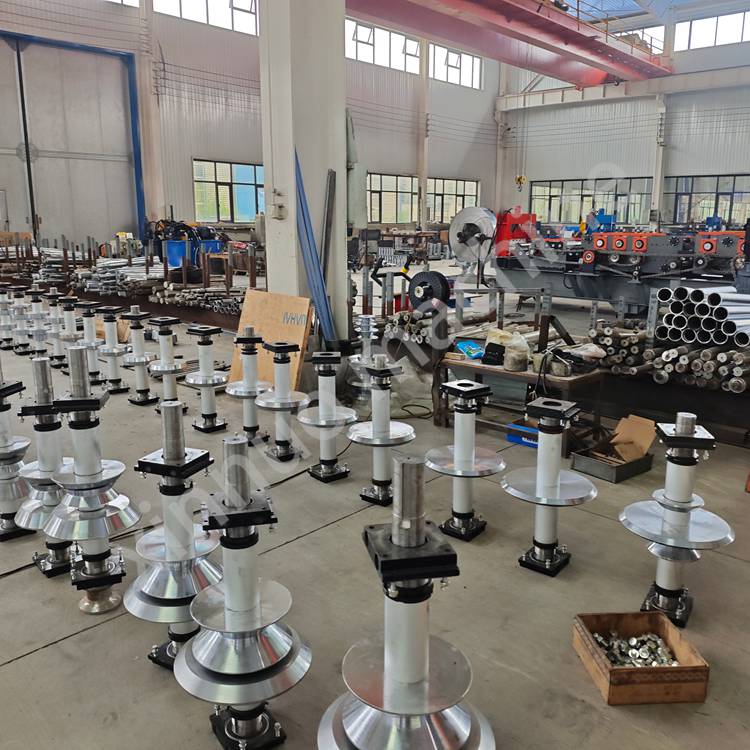

Advanced roller design ensures accurate shaping of steel coils into standardized C and Z sections. The system maintains consistent dimensional accuracy even during long production cycles.

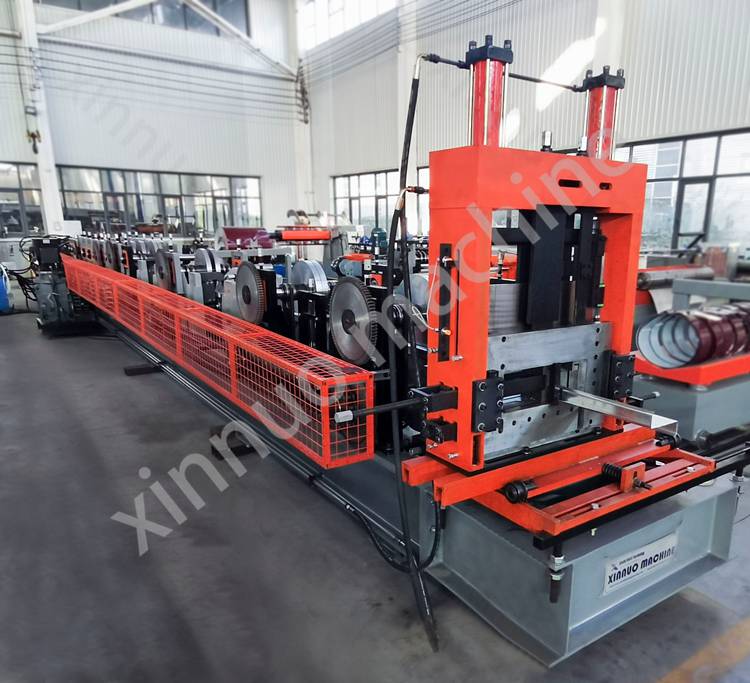

The hydraulic cutting unit provides smooth, burr-free cutting results. It improves product finishing quality and reduces secondary processing requirements.
| Item | Description |
|---|---|
| Material Type | Galvanized / Cold Rolled Steel |
| Profile Type | C & Z Purlin Section |
| Thickness Range | 1.5 – 3.5 mm |
| Production Speed | 10 – 25 m/min |
| Roller Stations | 12 – 20 stations |
| Control System | PLC Automatic Control |
| Cutting System | Hydraulic Servo Cutting |
| Adjustment Mode | Automatic Size Adjustment |
| Shaft Material | 45# High Strength Steel |
| Frame Structure | Heavy Duty Welded Frame |
| Voltage | 380V / 50Hz / 3 Phase |
Steel Coil Feeding → Leveling System → Punching Section → Roll Forming Unit → Size Adjustment → Cutting System → Output Table
