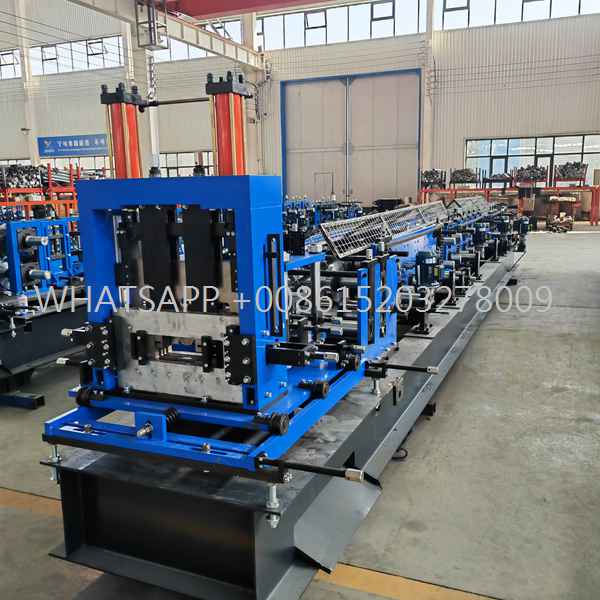

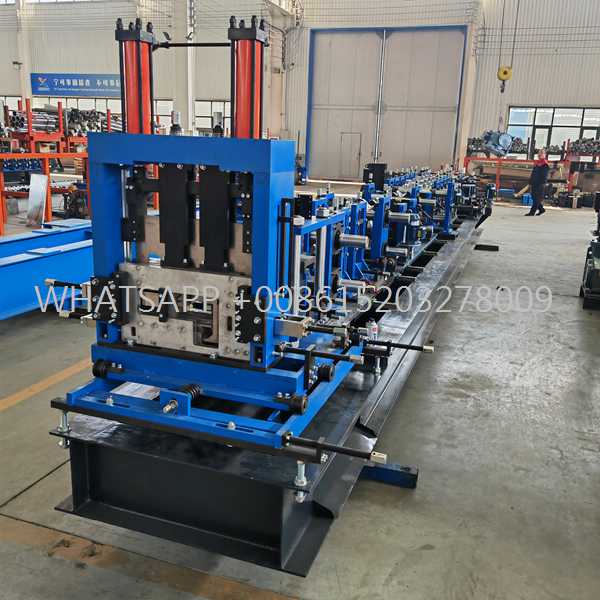

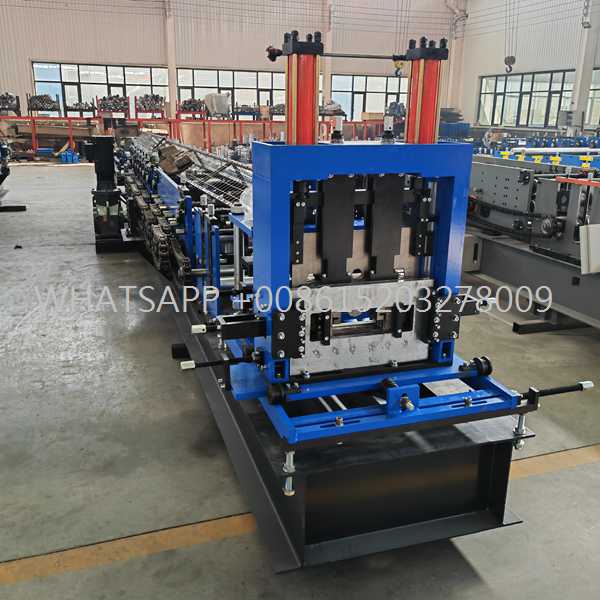

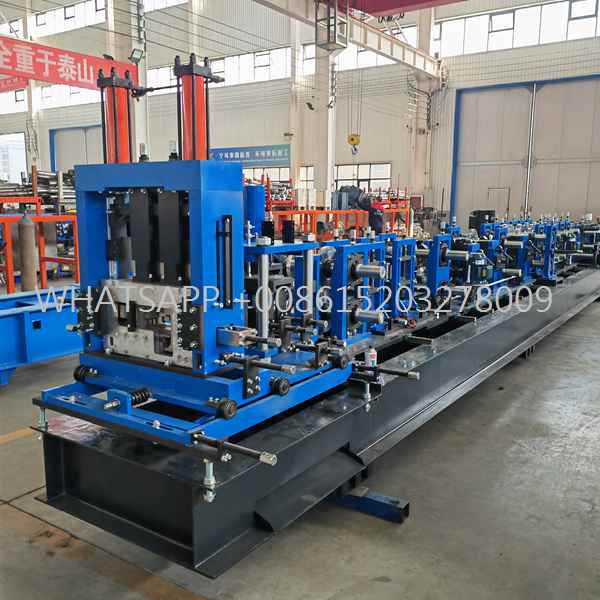

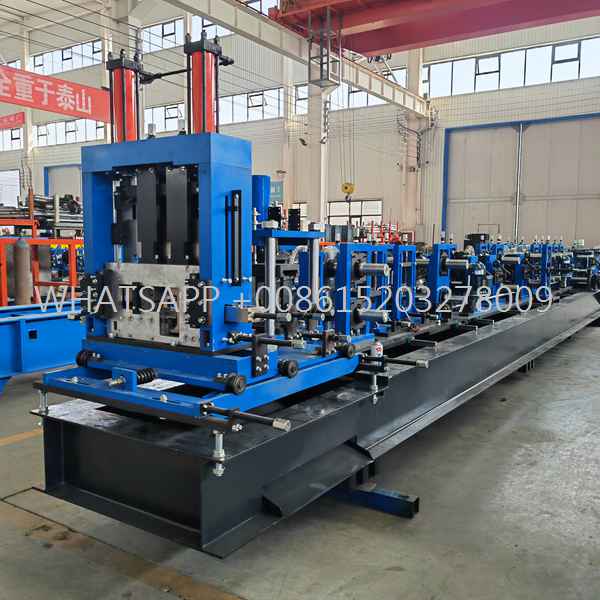

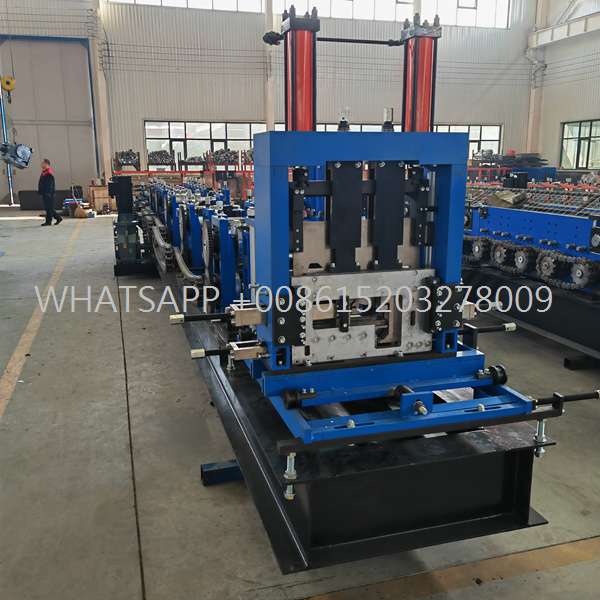

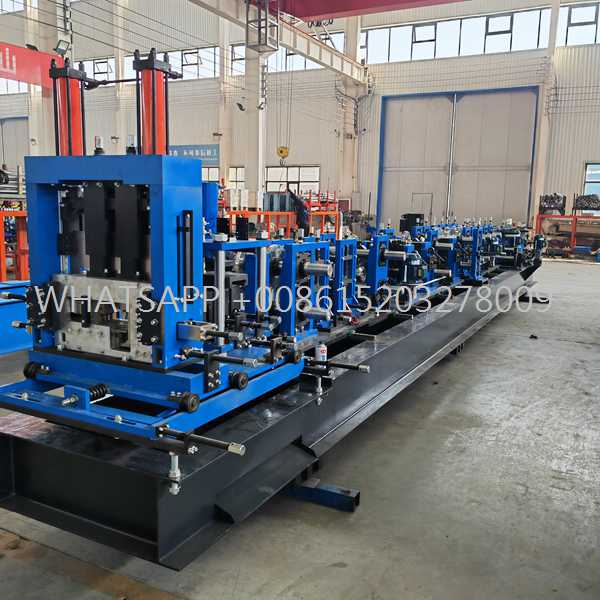

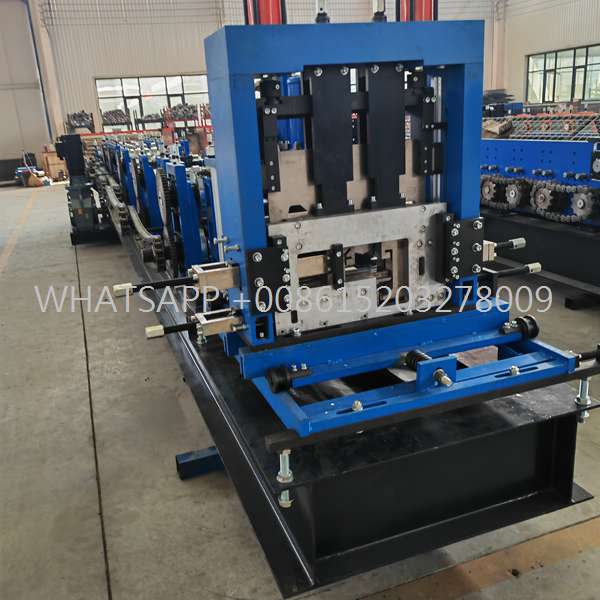

Industrial CNC Multi-Size Purlin Machine

High-Speed Automatic Purlin Machine for Structural Engineering Projects

Looking to scale up your metal fabrication business with superior dimensional accuracy and rapid processing speeds? Our next-generation purlin machine delivers a powerful combination of heavy-duty mechanical engineering, advanced computer automation, and long-term operating durability. This fully automated profiling line is custom-engineered to satisfy the rigid material specifications required by global commercial construction codes, producing high-tensile C and Z structural sections used extensively across modern warehouses, logistic terminals, aviation hangars, and agricultural complexes. Upgrading to this advanced technology enables factories to process complex custom building blueprints rapidly while drastically lowering material scrap rates, manual labor hours, and job crossover delays.

The technical core of this manufacturing machinery centers on its computerized, variable-width layout. Conventional roll forming equipment forces operators to manually drop in heavy spacers or completely slide individual forming tools along shafts to modify product profiles—a tedious process that halts factory output for hours at a time. In contrast, our modern structural line utilizes independent motorized adjusting assemblies governed by a centralized PLC software network. By simply entering the desired technical parameters into the touch HMI panel, the entire rolling structure shifts into its correct configuration automatically. This nimble capability guarantees that custom-length short runs and high-volume wholesale bulk orders can be processed consecutively on a single shop floor without stopping for mechanical layout updates.

Advanced Engineering Characteristics & Fabrication Advantages

• Smart Motorized Size Readouts: Instant adjustments of structural web channels, vertical flanges, and drop lips are managed completely by automated computerized controls, boosting total daily factory yields.
• Solid Monoblock Cast Station Blocks: Manufactured using thick-walled steel plates and a heavy rigid welded foundation to absorb massive mechanical torque, preventing machine frame vibration during thick material runs.
• Premium Vacuum-Quenched Rolling Tools: Machined from high-grade GCr15 or Cr12 alloy tool steel, finished via precision CNC grinding, vacuum hardened to HRC 58-62, and layered with hard chrome to ensure zero scuffing on galvanized sheet coatings.
• Deformation-Free Hydraulic Cut-Off Set: Utilizes a high-force post-forming hydraulic shearing blade configuration that ensures perfectly clean, burr-free cuts while extending tool edge life between scheduled maintenance windows.
• Closed-Loop Microprocessor Automation: Integrated with elite control architectures (such as Siemens or Mitsubishi modules) coupled with high-precision absolute rotary encoders to maintain strict linear length tolerances within ±1.0mm.
• Custom Programmable Pre-Punching Press: Incorporates an inline hydraulic multi-die punching setup to execute diverse slot, round, and custom hole arrangements based on architectural prints before final profiling.

Comprehensive Equipment Parameters & Technical Specifications

Global Architectural & Structural Applications

The cold-formed steel profiles created by this industrial purlin line serve as foundational components in structural architecture. Known for their excellent load-bearing structural efficiency, these shaped beams construct the structural skeletons, roof secondary framework, lateral wall girts, and interior structural assemblies for major global infrastructure investments. They are heavily incorporated into the assembly of deep-span industrial complexes, regional distribution warehouses, transport infrastructure hubs, institutional properties, and modern modular building sectors.

Additionally, with the global scaling of commercial renewable energy infrastructures, these precision-profiled beams are highly valued for constructing durable ground racking, tracker frameworks, and mounting foundations within vast solar fields. This clean energy transition provides a reliable and highly profitable commercial avenue for metal processing facilities worldwide.

Integrated Line Layout & Functional Sub-Systems

This advanced cold-rolling framework combines distinct mechanical sub-systems working in absolute harmony with the central microprocessor unit:

• Hydraulic Expansion Coil Mandrel: Holds and uncoils heavy steel rolls safely, featuring specialized tension arm loops and automatic hydraulic inner expansion mechanisms.
• Precision Sheet Straightening Array: Employs a multi-roller configuration that eliminates internal material memory and coil curvature, creating an absolutely flat strip before forming.
• High-Speed Hydraulic Punch Press: Automatically processes real-time slotting commands from the PLC panel, placing accurate connection holes at engineered structural intervals.
• Progressive Cold Forming Mill: Gradually shapes the metal band through calculated bending steps to form the target profile without stressing outer radiuses or surface coatings.

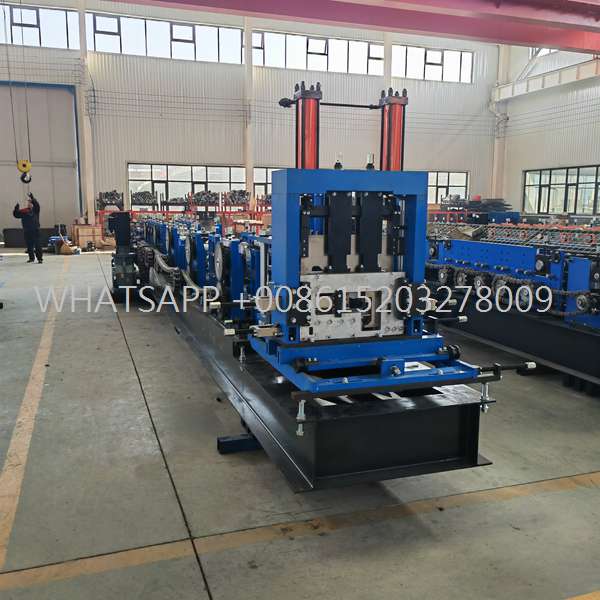

• Hydraulic Guillotine Shearing Unit: Uses custom profile-matching tool dies to perform clean, straight cuts instantly without interrupting line output flow.
• Heavy Stacking Material Racks: Receives finished high-capacity components smoothly, facilitating immediate bundled wrapping and heavy forklift transport to staging yards.

Rigorous Pre-Shipment Quality Testing

Before leaving our machinery construction plant, every single line undergoes rigorous testing under maximum load with real steel materials for several consecutive hours. Our quality control engineers carefully monitor electrical signals, hydraulic heating curves, and linear encoder responsiveness to ensure everything operates flawlessly. This thorough validation process ensures your factory gains a dependable, plug-and-play production asset that achieves high-yield output immediately upon arrival.

Inquire for Technical Specifications & Pricing

As an established manufacturer specializing in heavy-duty cold roll forming technology, we provide flexible customization choices to accommodate specific fabrication drawings, structural thicknesses, and punching plans. Reach out to our engineering team today to secure an immediate, factory-direct wholesale quotation, exhaustive layout footprints, and a tailored business proposal engineered to scale your output capacity!
