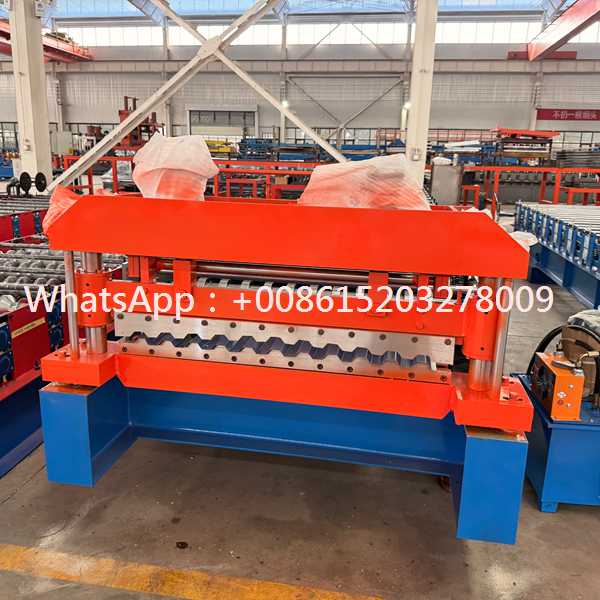

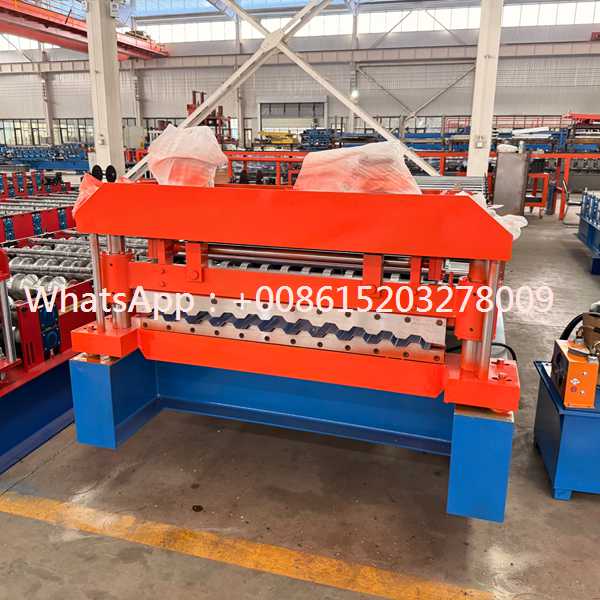

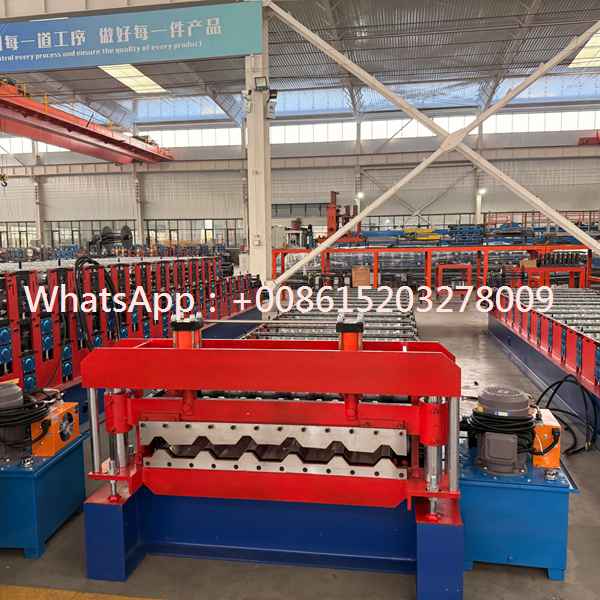

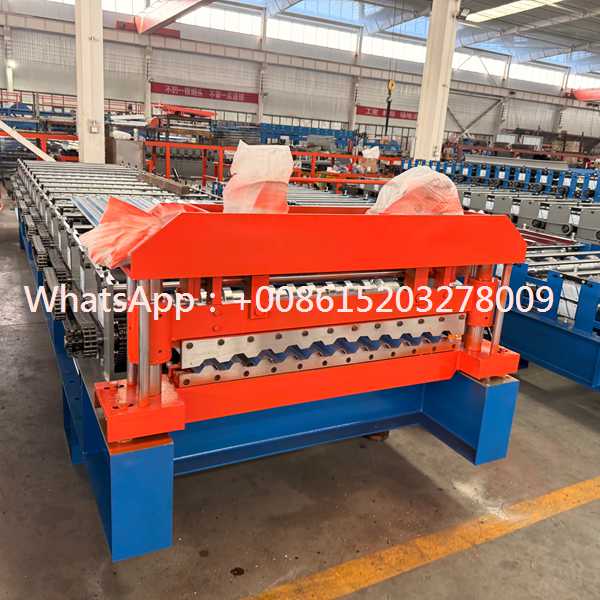

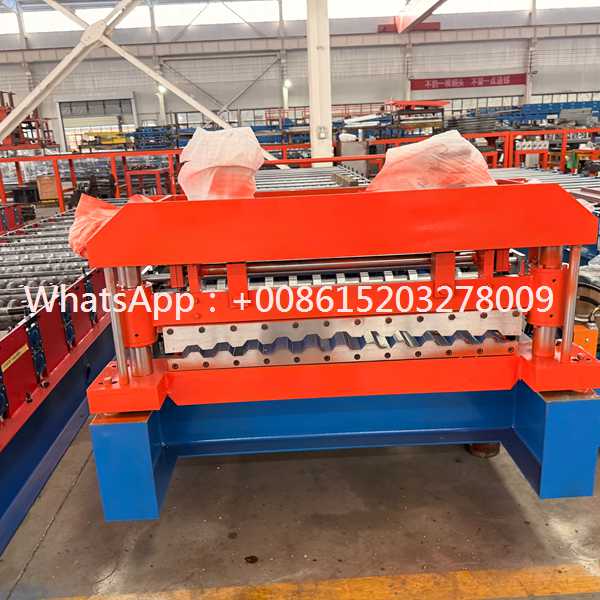

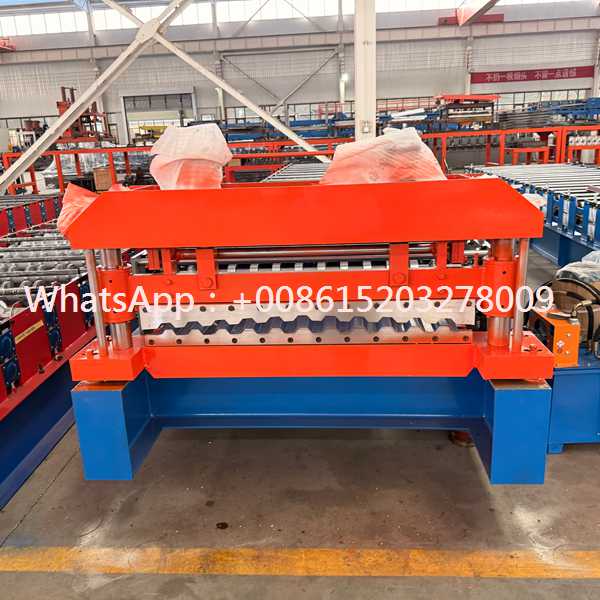

The Automatic Zinc Roof Sheet Making Machine is a professional roll forming system designed for manufacturing durable zinc-coated metal roofing sheets. The machine processes galvanized steel coils, zinc coated steel materials and other suitable metal sheets into finished roofing panels with accurate dimensions, stable profiles and excellent surface quality.
Zinc roof sheets are widely used in industrial buildings, warehouses, workshops, agricultural facilities and residential construction projects. The zinc coating provides improved corrosion resistance, while the formed profile enhances panel strength and drainage performance.
The complete production line combines coil feeding, material guiding, precision roll forming, automatic length measurement and cutting functions. It provides an efficient manufacturing solution for roofing sheet producers who require continuous operation, reliable performance and flexible production capability.
The zinc roof sheet making machine is developed to manufacture different types of metal roofing profiles according to construction requirements. Through a series of forming rollers, the flat metal strip is gradually shaped into a finished roofing sheet with a consistent profile.
The cold roll forming process allows continuous production without heating the material. Multiple forming stations work together to create accurate panel geometry while maintaining smooth material movement and stable product quality.
The machine can be customized according to roofing profile design, material thickness, coil width, production speed and finished sheet requirements. Different roofing patterns can be produced by changing the roller configuration.
| Technical Item | Specification |
|---|---|
| Machine Type | Automatic Zinc Roof Sheet Making Machine |
| Finished Product | Zinc Coated Metal Roofing Sheet |
| Raw Material | Galvanized Steel, Zinc Coated Steel, PPGI |
| Material Thickness | 0.3-0.8 mm Customized |
| Forming Method | Continuous Cold Roll Forming |
| Production Speed | 10-40 m/min Customized |
| Control System | PLC Touch Screen Control |
| Cutting System | Hydraulic Automatic Cutting |
| Production Mode | Fully Automatic Operation |
| Application | Metal Roofing Sheet Manufacturing |
The forming section is the main processing unit of the zinc roof sheet production line. It consists of multiple roller stations designed according to the required roofing profile. Each station performs a controlled forming operation to gradually shape the metal strip.
The progressive forming method helps maintain uniform profile dimensions and reduces unnecessary material deformation. Precision roller positioning ensures stable rib height, sheet width and overall appearance.
The heavy-duty machine frame supports the forming rollers and transmission system, providing reliable operation during continuous industrial production. The stable structure helps improve equipment durability and finished product consistency.
The production process begins with installing the zinc-coated steel coil onto the decoiler. The feeding unit supplies the material smoothly into the forming section at a controlled speed.
The guiding system maintains correct strip alignment before forming. Accurate material positioning helps reduce profile deviation and improves the dimensional accuracy of finished zinc roofing sheets.
For higher production requirements, the machine can be equipped with hydraulic decoilers, coil loading devices and leveling systems to improve automation and reduce manual handling.
The zinc roof sheet making machine adopts an automatic PLC control system for convenient production management. Operators can set panel length, production quantity and operating parameters through the touch screen interface.
During operation, the PLC system automatically controls feeding, forming and cutting procedures. This improves production stability and reduces manual adjustment during long production runs.
The programmable control system allows manufacturers to produce different roofing sheet lengths according to customer orders, providing greater production flexibility.

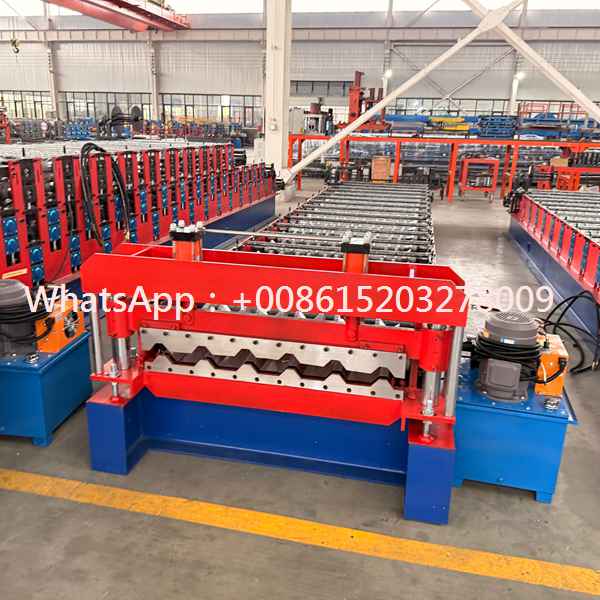

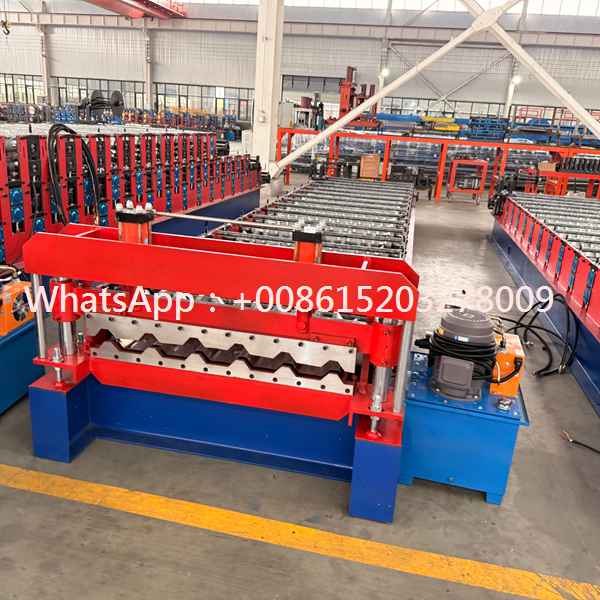

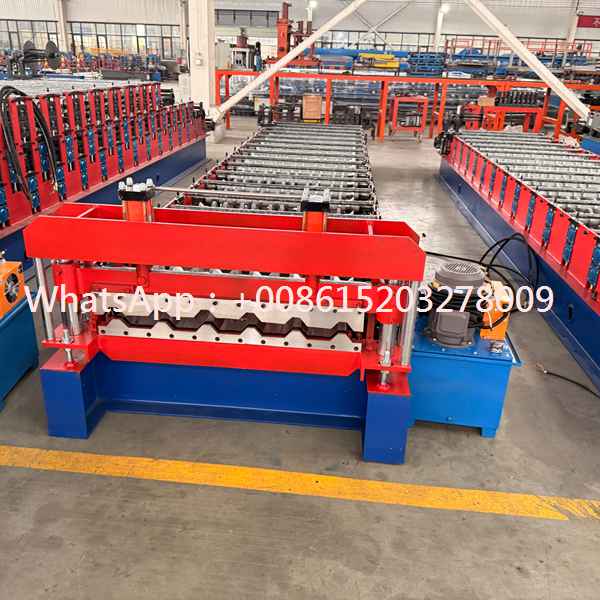

After the zinc roofing profile is completed, the automatic cutting system separates finished sheets according to the preset length. The cutting unit is designed to match the roofing profile and maintain clean edges.
The automatic cutting process improves production efficiency and reduces errors caused by manual measurement. Finished sheets can be collected manually or transferred through optional stacking equipment.
| Production Stage | Process Description |
|---|---|
| Coil Loading | Install zinc coated steel coil |
| Material Feeding | Guide strip into forming system |
| Roll Forming | Create designed roofing profile |
| Length Measurement | Control required sheet size |
| Automatic Cutting | Separate finished roof sheets |
| Product Collection | Prepare sheets for transportation |
Zinc roofing sheets produced by this machine are suitable for various construction applications. Their corrosion resistance, lightweight structure and practical installation features make them a popular roofing solution.
| Optional Equipment | Main Function |
|---|---|
| Hydraulic Decoiler | Automatic coil unwinding |
| Leveling Device | Improves material flatness |
| Servo Cutting Unit | Enhances cutting accuracy |
| Automatic Stacker | Improves finished sheet handling |
| Run-Out Table | Supports panel collection |
| Feature | Production Benefit |
|---|---|
| Customized Rollers | Produces different roofing profiles |
| Automatic Control | Improves operating efficiency |
| Precision Forming | Maintains stable sheet quality |
| Programmable Cutting | Supports different sheet lengths |
| Continuous Production | Suitable for large-scale orders |
| Flexible Configuration | Matches different factory requirements |
The Automatic Zinc Roof Sheet Making Machine provides a complete production solution for manufacturers producing metal roofing panels. With advanced roll forming technology, automatic control and customizable configurations, the equipment supports efficient and stable roofing sheet production.
The machine can be designed according to profile drawings, material specifications and production requirements. It helps manufacturers improve productivity, reduce manual processing and supply durable zinc roofing sheets for different construction applications.
