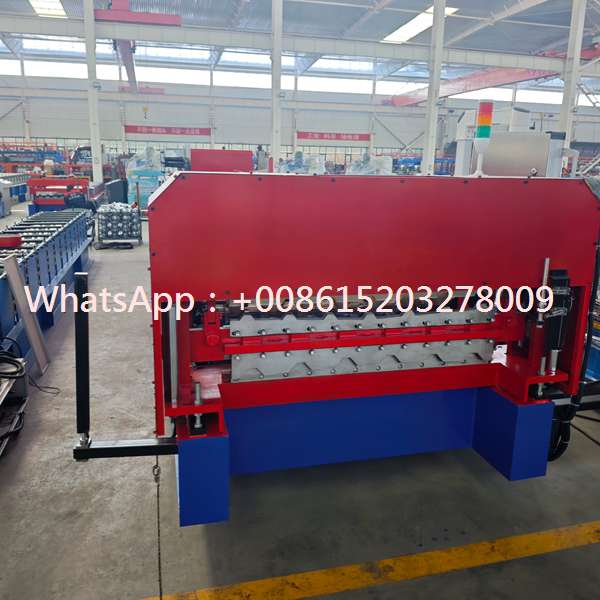

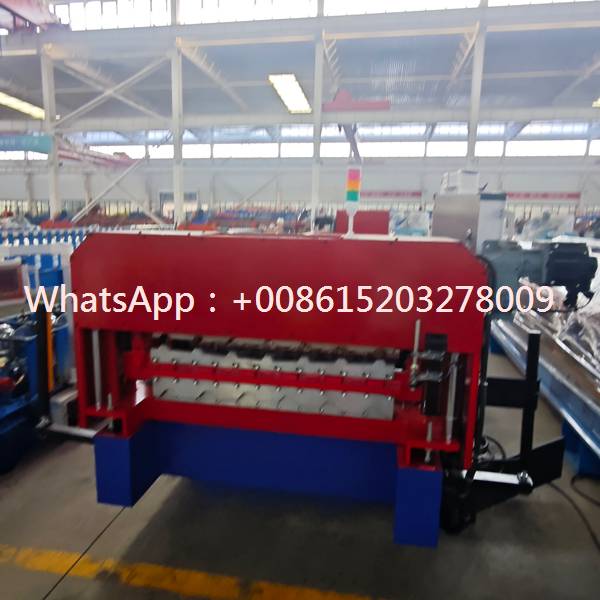

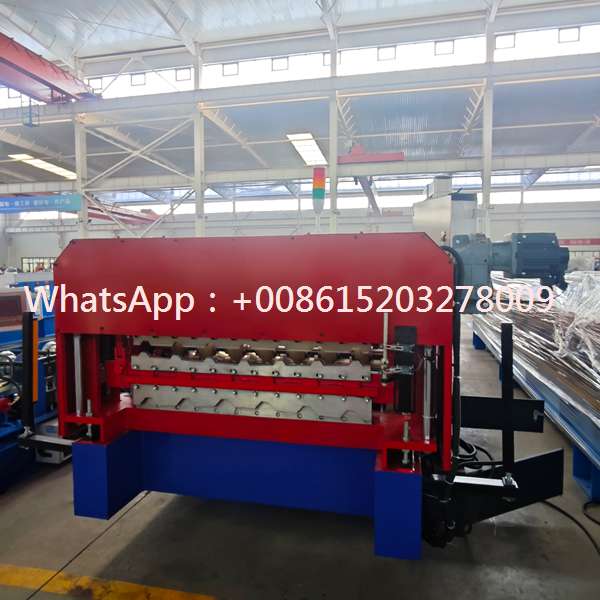

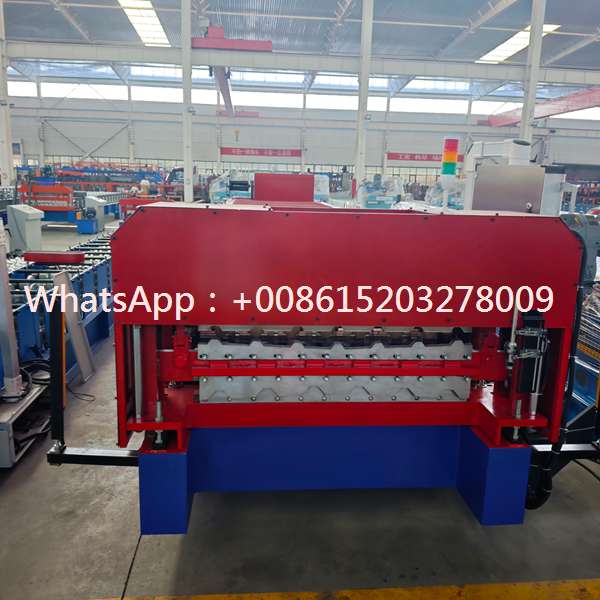

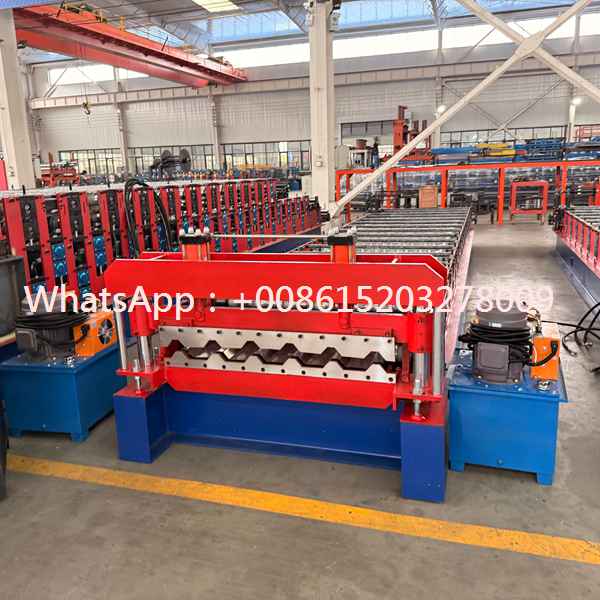

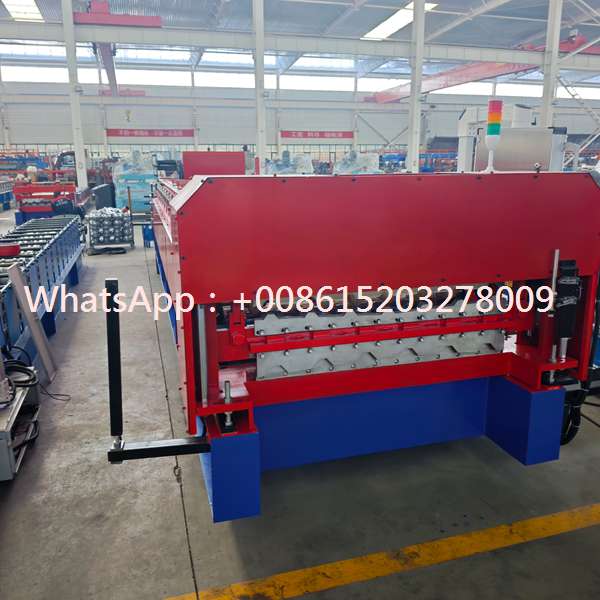

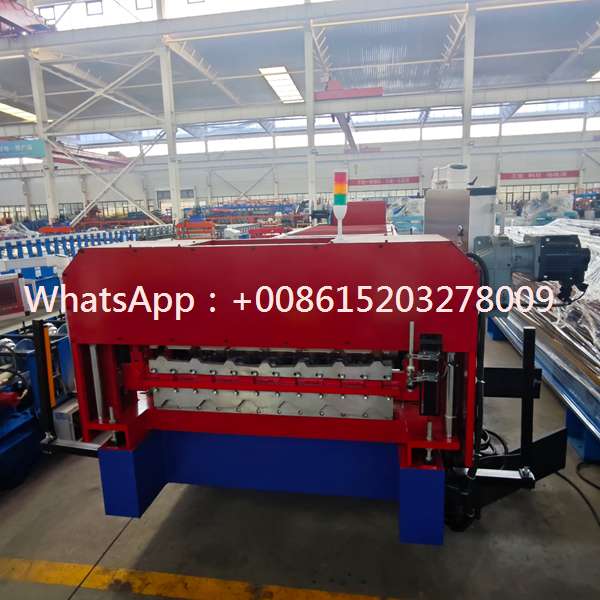

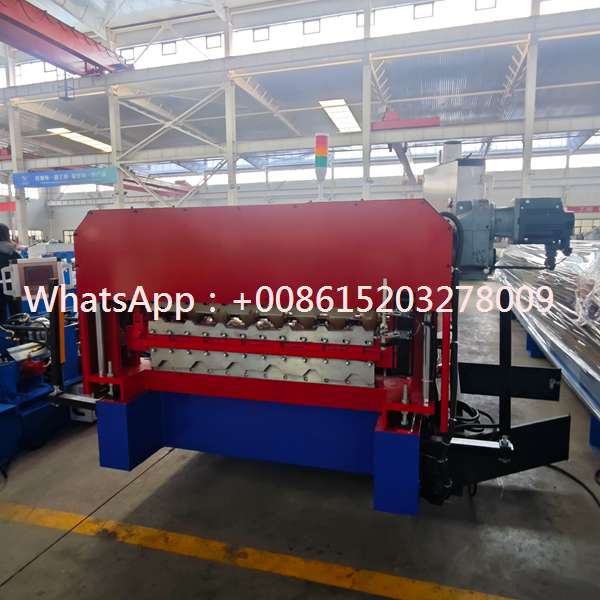

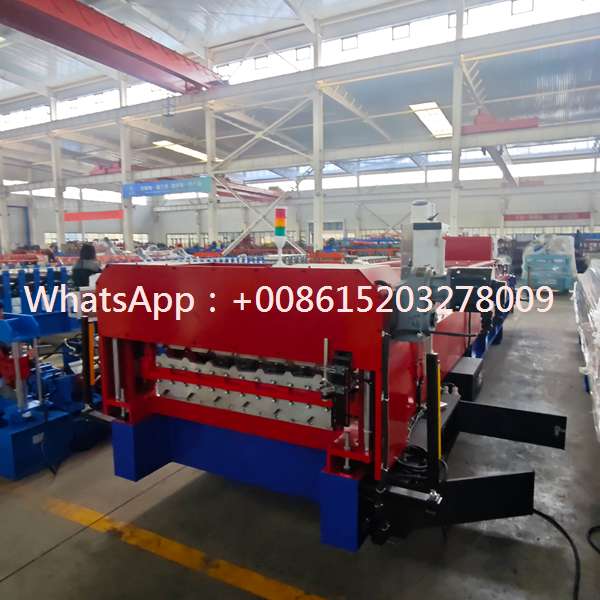

The Automatic TP-40 Metal Roof Panel Machine is a specialized cold roll forming system designed for producing TP-40 trapezoidal metal roofing sheets. It converts galvanized steel, color-coated steel, Aluzinc and other suitable metal coils into finished roof panels with stable profile dimensions, clean surface quality and reliable structural performance.
The TP-40 roofing profile is widely used in industrial buildings, warehouses, workshops, agricultural facilities, commercial structures and residential construction. Its trapezoidal rib design provides an effective combination of panel strength, water drainage performance and efficient roof coverage.
This machine is designed for continuous production and can integrate coil feeding, material guiding, roll forming, automatic length measurement, hydraulic cutting and finished panel collection. The complete production system helps roofing sheet manufacturers improve output consistency while reducing manual processing requirements.
The TP-40 metal roof panel is produced through a progressive forming process. Flat steel coil passes through a series of precisely matched roller stations, and each station gradually develops the required trapezoidal ribs and panel shape.
Instead of applying excessive deformation in a single stage, the multi-step forming design distributes the shaping process across the complete roll forming section. This supports stable material movement and helps maintain consistent profile geometry.
The roller arrangement is designed according to the required TP-40 profile drawing. Machine dimensions, roller quantity, shaft configuration and forming stations can be adjusted according to material specifications and production requirements.
| Technical Item | Typical Specification |
|---|---|
| Machine Type | Automatic TP-40 Metal Roof Panel Machine |
| Finished Product | TP-40 Trapezoidal Roofing Sheet |
| Applicable Material | PPGI, GI, Aluzinc and Color-Coated Steel |
| Material Thickness | 0.3-0.8 mm, Customized |
| Coil Width | According to TP-40 Profile Design |
| Forming Method | Continuous Cold Roll Forming |
| Production Speed | 8-20 m/min, Customized |
| Main Drive | Motor and Chain or Gear Transmission |
| Control System | PLC with Touch Screen |
| Cutting Method | Automatic Hydraulic Profile Cutting |
| Finished Length | Programmable According to Production Order |
Stable coil feeding is important for maintaining accurate panel dimensions. The production line can be equipped with a manual decoiler or hydraulic decoiler according to coil weight, production capacity and automation requirements.
After unwinding, the metal strip enters the guiding section. Adjustable guiding components help maintain correct material alignment before the strip reaches the forming rollers. Proper strip positioning supports consistent panel width and reduces unnecessary deviation during production.
Optional feeding and leveling equipment can be added when required. The final production line configuration can be designed according to the material condition, coil capacity and available factory space.
The roll forming section is the main processing unit of the TP-40 roof panel machine. Multiple roller stations gradually shape the incoming metal strip into the finished trapezoidal roofing profile.
The rollers can be manufactured from suitable high-strength steel and treated according to production requirements. Precision machining supports stable roller contact and consistent profile formation during continuous operation.
The forming stations are mounted on a rigid machine structure that provides reliable support during production. The stable frame helps maintain roller alignment and supports long-term industrial operation.
The machine uses a PLC control system to manage production parameters and coordinate different operating functions. Operators can enter the required panel length, production quantity and operating settings through the touch screen interface.
During production, the control system monitors material movement and coordinates the forming and cutting process. Automatic length management reduces repeated manual measurement and improves consistency between finished roofing sheets.
The user-friendly control interface supports convenient production adjustment for different order requirements. Manual and automatic operating modes can be configured according to the machine design.

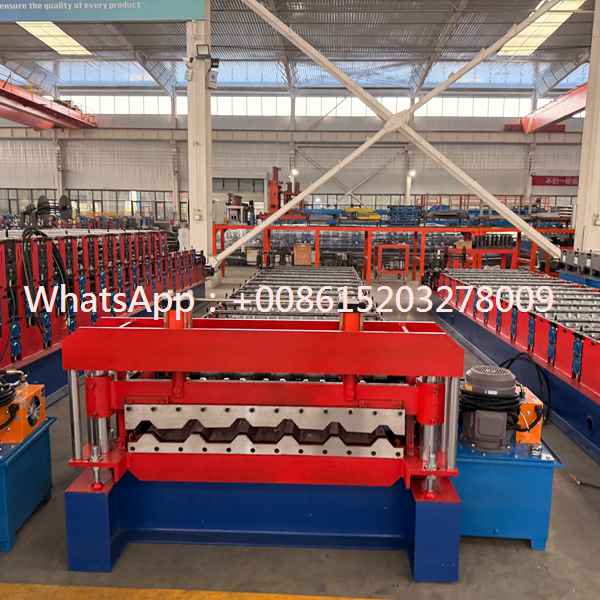

After the TP-40 profile is formed, the panel passes through the length measurement system. The machine monitors panel movement and activates the cutting unit when the programmed length is reached.
The cutting blade is designed to match the finished roofing profile, helping create clean panel ends while maintaining the shape of the trapezoidal ribs.
The cutting system can be configured according to production speed and customer requirements. Finished roof panels are transferred to a run-out table or optional automatic collection system.
| Production Stage | Main Function |
|---|---|
| Coil Loading | Install metal coil on decoiler |
| Controlled Uncoiling | Supply material to the production line |
| Material Guiding | Maintain correct strip alignment |
| Progressive Roll Forming | Create the TP-40 trapezoidal profile |
| Length Measurement | Monitor finished panel dimensions |
| Automatic Profile Cutting | Cut panels to the programmed length |
| Finished Panel Output | Transfer products for collection |
TP-40 trapezoidal roofing sheets are suitable for a wide range of construction projects. The final panel application depends on material grade, coating type, roof design and local building requirements.
| Optional Equipment | Main Function |
|---|---|
| Hydraulic Decoiler | Provides powered coil unwinding |
| Coil Loading Car | Assists heavy coil handling |
| Material Leveling Device | Improves strip flatness |
| Automatic Lubrication System | Supports routine machine maintenance |
| Servo Length Control | Improves panel length management |
| Automatic Stacker | Organizes finished roof panels |
| Machine Feature | Production Benefit |
|---|---|
| TP-40 Profile Design | Produces consistent trapezoidal roof panels |
| Continuous Roll Forming | Supports efficient long-panel production |
| Automatic PLC Control | Simplifies production management |
| Programmable Length Setting | Improves finished panel consistency |
| Profile-Matched Cutting | Creates clean and accurate panel ends |
| Flexible Machine Configuration | Adapts to different production requirements |
The Automatic TP-40 Metal Roof Panel Machine provides an efficient and practical solution for manufacturers producing trapezoidal metal roofing sheets. Its continuous roll forming process, programmable control system and automatic cutting function support stable production for a wide range of roofing applications.
The equipment can be customized according to the TP-40 profile drawing, material thickness, coil width, production speed and factory requirements. With an appropriate machine configuration, manufacturers can produce consistent metal roof panels while improving production capacity and reducing unnecessary manual processing.
