Flexible CZ Profile Manufacturing

The term “perfiladora” is widely used in Spanish-speaking markets for machinery that continuously forms metal profiles from coil. When applied to C and Z structural sections, the equipment provides manufacturers with a practical production method for steel framing components used throughout modern construction.

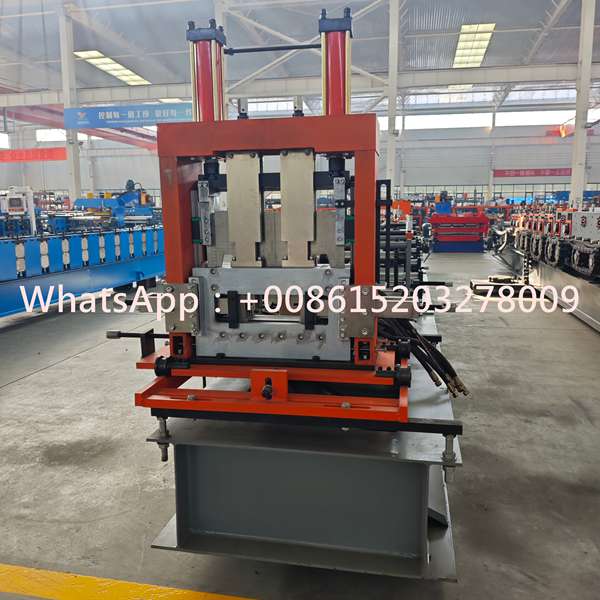

This automatic perfiladora CZ machine is developed for continuous production of C and Z purlins. The steel strip travels through a sequence of forming stations, where controlled bending gradually transforms the flat material into the required structural cross-section.

C and Z profiles can serve different functions within steel building systems. C-shaped members are often selected for straightforward framing arrangements, while Z-shaped members can be useful where overlapping connections between adjacent sections are required.

The final profile, material thickness, steel grade, hole configuration, cutting length, and production requirements should be established before machine engineering. This ensures that the forming system is matched to the intended product rather than based on a generic configuration.

Technical Specifications

Note: Reference specifications are subject to the final approved profile drawing, steel grade, thickness, punching arrangement, required output, and machine configuration.

How the Perfiladora CZ Machine Works

Production starts when the steel coil is placed onto the decoiler. The strip is gradually released and directed toward the feeding section. Proper coil alignment helps maintain a stable material path throughout the production cycle.

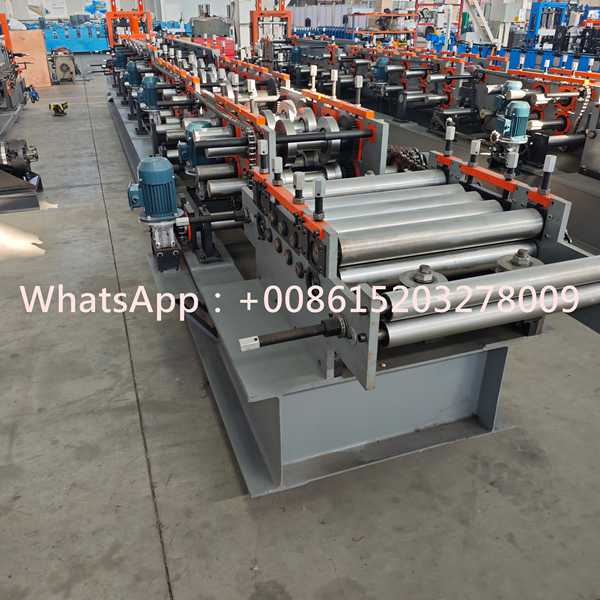

After entering the machine, the strip passes through guide components that position the material before forming. The forming rollers then introduce progressive bends into the strip.

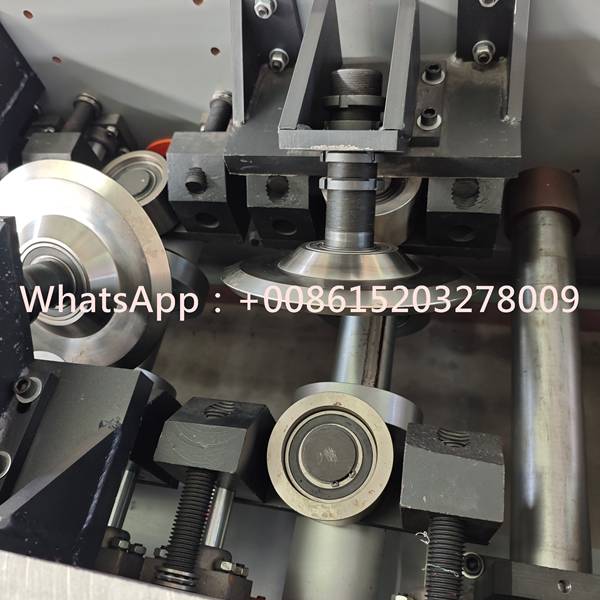

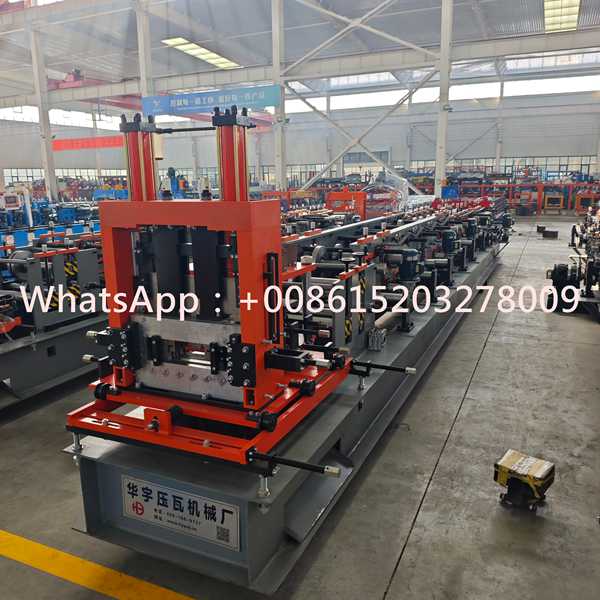

Each roller station performs a specific part of the forming process. Instead of forcing the entire profile into shape in a single operation, the machine distributes deformation across multiple stages.

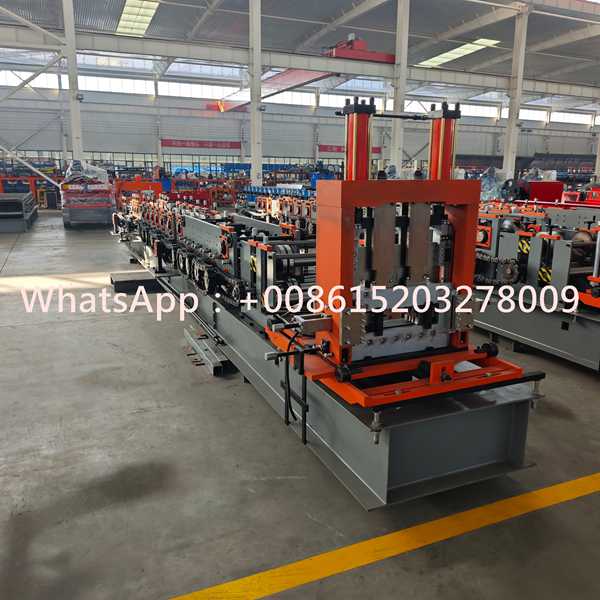

As the strip advances, the web, flanges, and lips are gradually established. The finished cross-section is continuously supported by the forming stations until it reaches the cutting area.

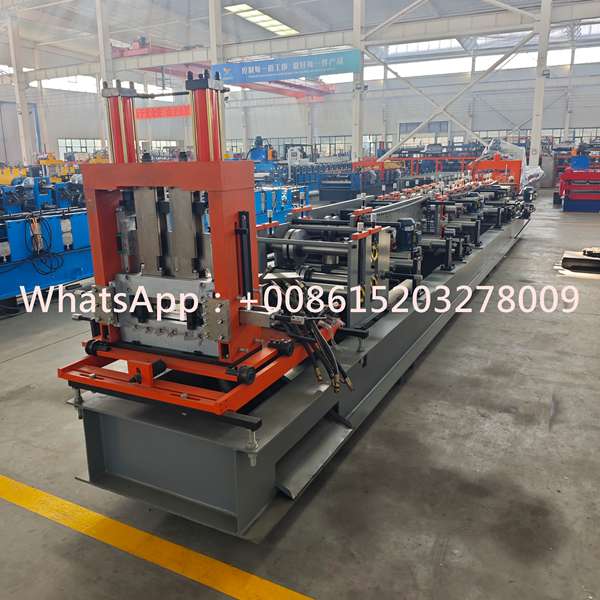

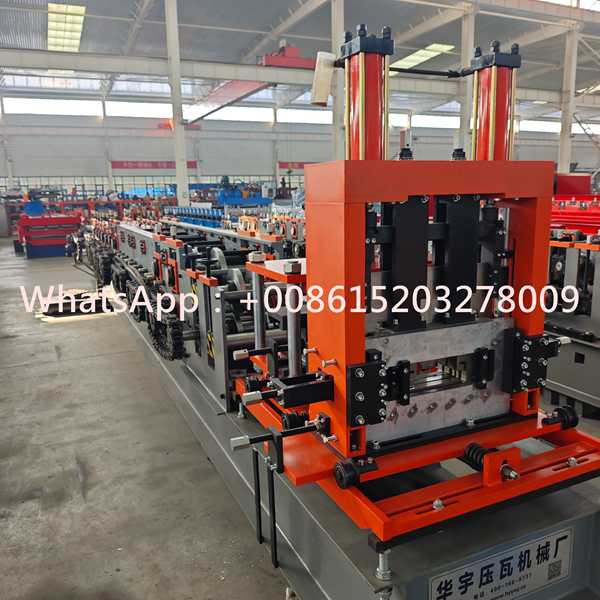

When punching is required, the hole-making unit can operate as part of the production line. After the required profile length is reached, the cutting system separates the continuous section into individual C or Z members.

C Profile and Z Profile Options

The ability to manufacture both C and Z sections can increase the flexibility of a steel fabrication workshop. Different building projects may require different structural arrangements, and profile selection is normally determined by engineering calculations.

A C profile has a channel-shaped cross-section with the web and flanges positioned in a straightforward configuration. It can be used in a variety of roof, wall, and secondary framing applications.

A Z profile uses an offset configuration that allows adjacent members to overlap in selected structural systems. This characteristic can be useful for continuous roof framing where the engineering design specifies overlapping connections.

The machine's roller tooling must correspond precisely to the selected geometry. When multiple sizes are required, the configuration should be designed around the expected range rather than relying on adjustments beyond the machine's intended working limits.

Steel Coil and Material Selection

The machine works with steel coil selected for the required structural profile. Galvanized steel is a common choice for applications where additional surface protection is desired, while other coated or structural steel materials may also be considered according to the machine design.

Material thickness is one of the key parameters used when engineering the forming system. The selected thickness influences forming forces, roller dimensions, shaft loading, transmission capacity, and other mechanical elements.

Steel strength should also be confirmed before production. Higher-strength materials can require different forming conditions from conventional structural steel, so the actual material grade should be provided during the quotation and engineering stage.

Consistent coil width and thickness help the machine maintain predictable forming behavior. Material specifications should therefore be checked against the agreed technical parameters before large-scale production begins.

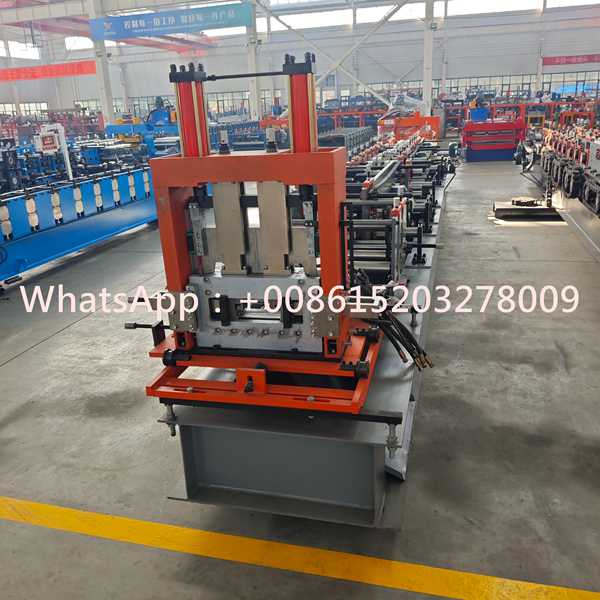

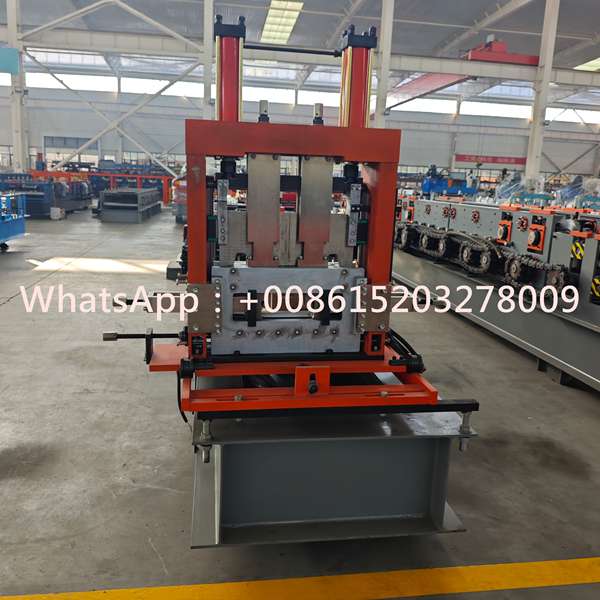

Automatic Punching and Cut-to-Length

Structural C and Z profiles often require connection holes for bolts or other fastening systems. An optional punching section can be incorporated when holes need to be produced during the continuous forming process.

Hole diameter, location, spacing, and quantity should be determined from the approved structural drawing. The punching system can then be configured around these requirements.

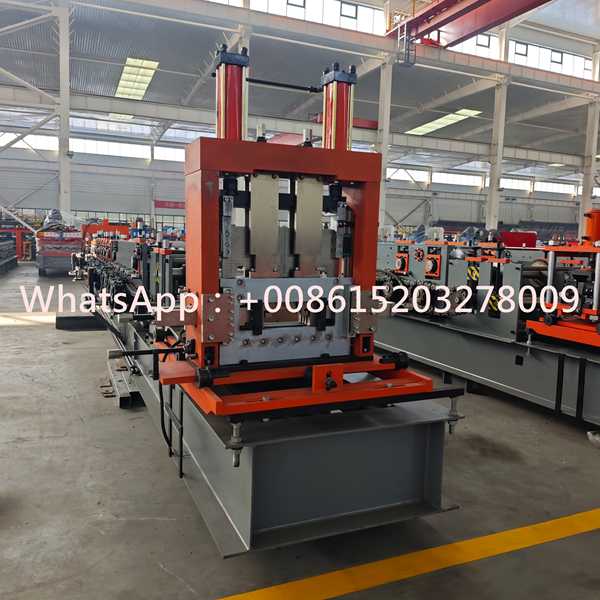

Automatic cutting follows the programmed production length. The control system coordinates the material movement and cutting operation so that individual members can be produced according to the fabrication list.

Combining forming, punching, and cutting in one production sequence can reduce manual handling and eliminate some separate processing steps. This can be especially useful for high-volume steel fabrication operations.

Production Control and Operating Flexibility

The automatic control system allows operators to manage important production parameters through the control interface. Target lengths and quantities can be programmed according to the current production order.

Once the line is configured, continuous operation reduces the need for repeated manual intervention. The operator can monitor material movement, forming conditions, punching performance, and finished-product output during production.

For manufacturers serving different customers, production batches can be organized according to individual project requirements. This provides a practical way to handle different profile dimensions and finished lengths within the machine's designed range.

Actual output depends on material thickness, profile geometry, punching requirements, cutting length, machine configuration, and operating conditions. Production capacity should therefore be evaluated against the specific product requirements.

Applications in Steel Construction

C and Z structural members are widely used as secondary components in steel building systems. The machine can support manufacturers supplying profiles for different types of construction projects.

Customized Perfiladora CZ Machine

Different fabricators have different product ranges, coil specifications, and production targets. The machine can therefore be configured according to the actual profile drawings and manufacturing requirements.

Customization may include C/Z profile dimensions, web width, flange size, lip geometry, material thickness, steel grade, forming stations, punching pattern, cutting method, automation level, and finished-product handling.

Customers should provide a technical drawing showing the finished section. If available, the drawing should also include material thickness, hole locations, hole diameter, required lengths, dimensional tolerances, and other product-specific information.

Factory layout requirements can also be considered. Coil loading direction, machine orientation, operator access, maintenance space, finished-product discharge, foundation requirements, and electrical supply all influence the final installation arrangement.

Profile Accuracy and Quality Inspection

Dimensional consistency is essential when C and Z members are manufactured for prefabricated structures. Finished profiles should be inspected against the approved engineering drawing before they are released for project use.

During commissioning, sample sections can be measured for web width, flange dimensions, lip size, overall geometry, straightness, finished length, and hole position where punching is included.

Roller alignment should be monitored during machine operation. Material tracking problems or changes in profile dimensions may indicate a need for adjustment or may result from variations in incoming coil material.

Regular inspection records can help operators identify production trends and maintain consistent manufacturing conditions. The inspection procedure should be adapted to the customer's internal quality system and applicable construction requirements.

Installation and Operator Training

The production line should be installed on a suitable foundation with enough space for coil loading, material movement, finished-product discharge, maintenance, and safe operation.

Before trial production, the machine's mechanical and electrical components are checked. Forming stations, drive systems, guides, cutting equipment, punching units, control functions, and safety devices should be verified.

Trial production should use the specified steel material and approved profile. Finished samples are inspected to confirm the forming result before regular manufacturing begins.

Operator training can cover machine startup and shutdown, control-panel operation, parameter settings, material feeding, profile adjustment, routine inspection, lubrication, safety procedures, and basic troubleshooting.

Maintenance and Technical Support

Proper maintenance helps keep the forming line operating reliably. Rollers, shafts, bearings, transmission components, cutting tools, punching equipment, electrical connections, and fasteners should be checked according to the recommended maintenance schedule.

Operators should pay attention to abnormal vibration, unusual noise, material deviation, profile deformation, cutting problems, and changes in punching quality. Early inspection can help prevent minor issues from developing into extended production interruptions.

Technical assistance can cover machine operation, profile adjustment, production parameter settings, punching configuration, cutting functions, routine maintenance, and troubleshooting.

Wear parts and replacement components should be selected according to the actual machine configuration. Maintaining suitable spare parts can help support continuous production when the equipment is used for demanding project schedules.
