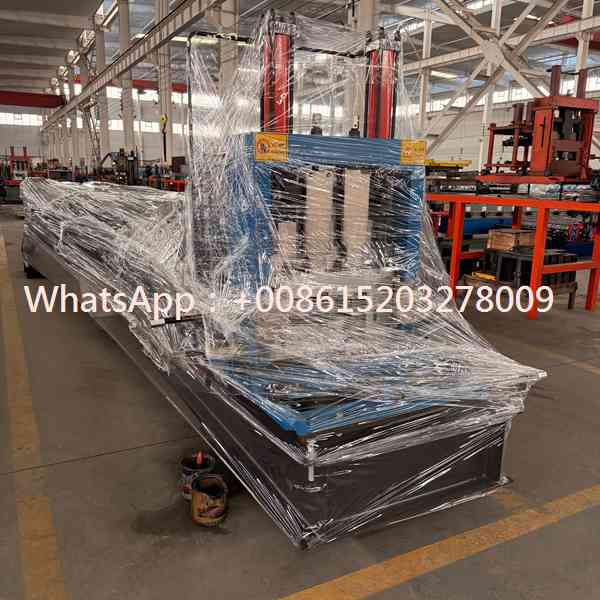

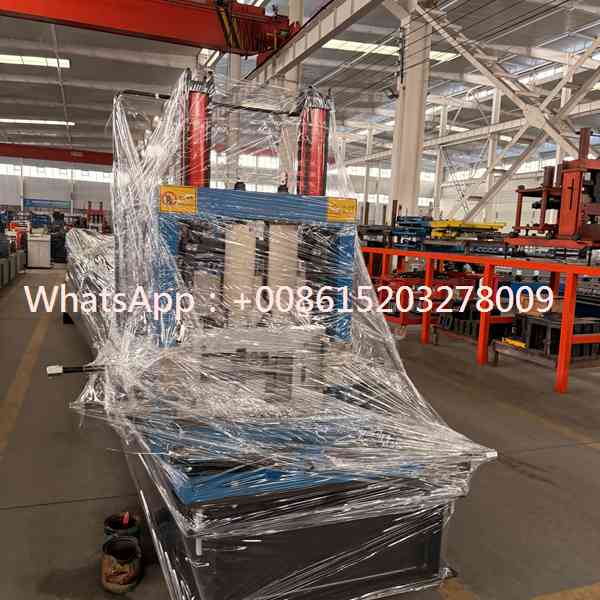

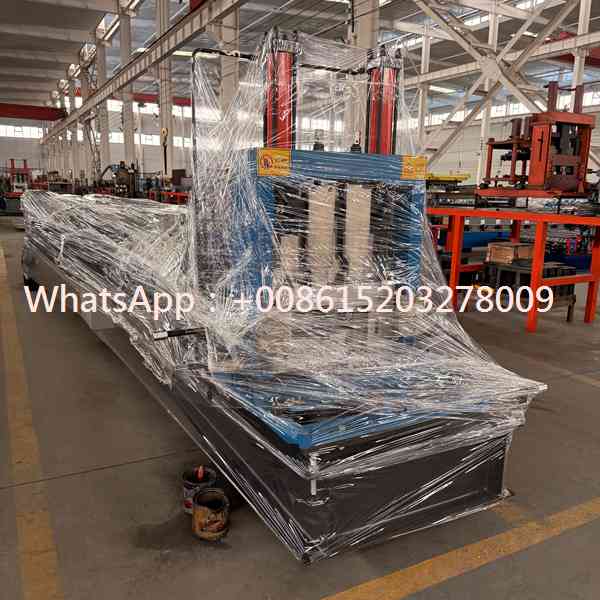

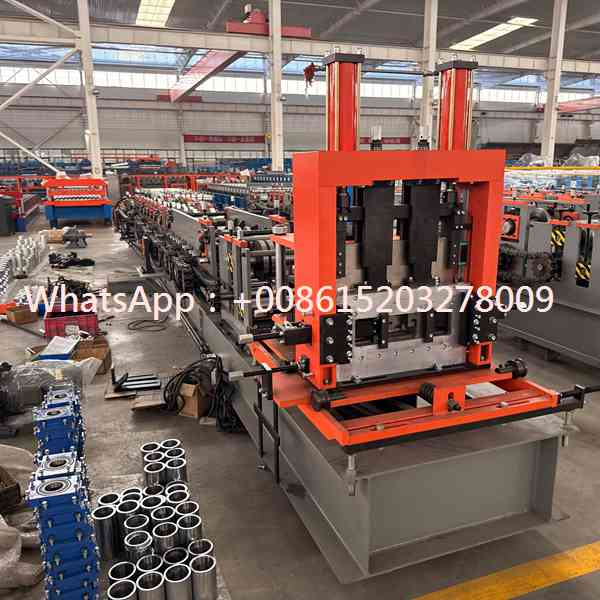

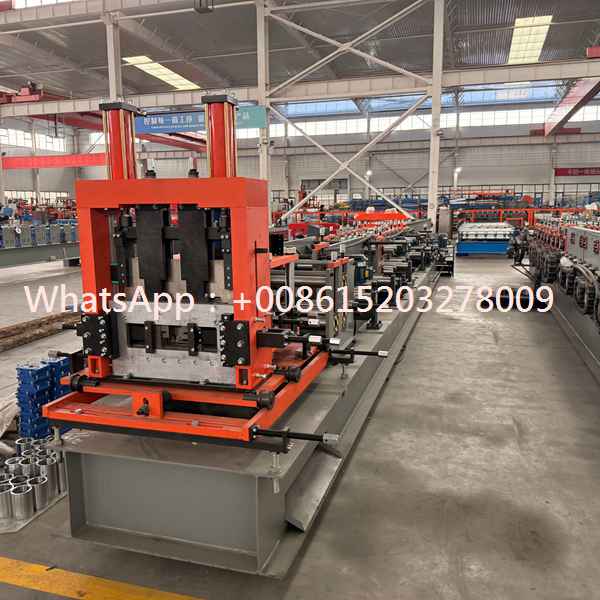

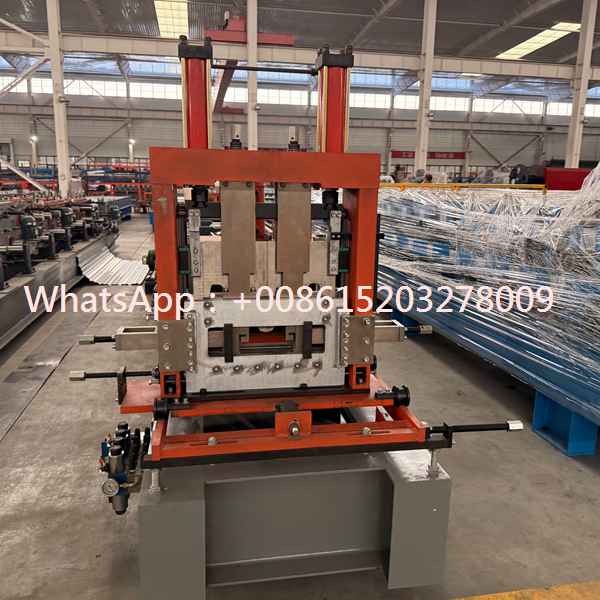

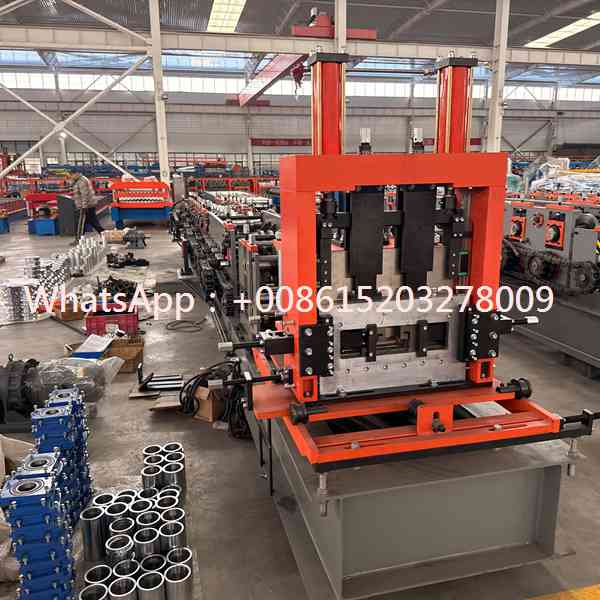

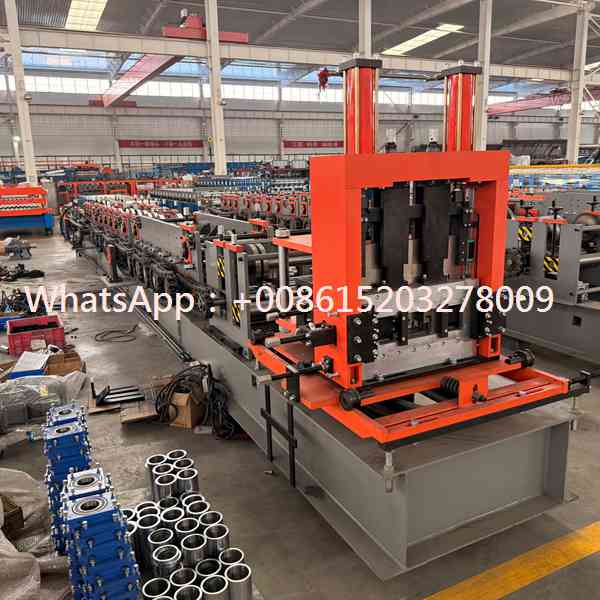

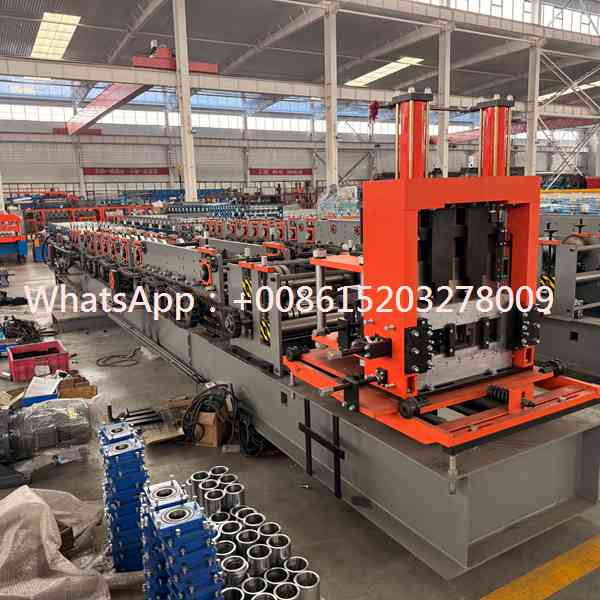

The Automatic CZU Purlin Roll Forming Machine is an advanced steel profile production system designed for manufacturing C, Z and U shaped purlins with high accuracy and stable performance. It is developed for modern steel structure applications where multiple profile types and flexible production capabilities are required.
This machine processes galvanized steel or carbon steel coils into finished structural profiles through continuous cold roll forming technology. The produced CZU purlins are widely used in industrial buildings, warehouses, commercial structures, agricultural facilities and various steel framework projects.
With multifunctional profile production capability, automatic operation and customized configuration options, the equipment helps manufacturers improve production efficiency, reduce equipment investment and provide diversified steel profile solutions.
The machine is designed to manufacture different structural profiles including C purlin, Z purlin and U channel according to production requirements. This multifunctional design allows factories to complete various steel profile orders with one production system.
The automatic control system manages production parameters such as profile dimensions, cutting length, punching position and output quantity. The intelligent operation mode improves production stability and reduces manual adjustment during manufacturing.
Compared with single-purpose equipment, the CZU purlin roll forming machine provides greater flexibility for companies serving different construction markets.
The forming unit adopts multiple roller stations to gradually shape flat steel strips into accurate structural profiles. The progressive forming method ensures smooth material transformation while maintaining the strength and dimensional accuracy of finished products.
The roller design is customized according to different profile shapes and specifications. The optimized forming structure helps achieve consistent quality for various C, Z and U steel sections.
The reinforced frame structure provides stable support during operation, reducing vibration and improving the reliability of continuous production.
| Item | Specification |
|---|---|
| Machine Type | Automatic CZU Purlin Roll Forming Machine |
| Production Profiles | C Profile, Z Profile, U Profile |
| Raw Material | Galvanized Steel, Carbon Steel |
| Material Thickness | 1.5-3.5 mm |
| Production Speed | 15-40 m/min |
| Forming Method | Continuous Cold Roll Forming |
| Control System | PLC Automatic Control |
| Punching System | Optional Automatic Punching |
| Cutting Method | Hydraulic Automatic Cutting |
| Profile Adjustment | Customized According to Requirement |
Flexible Profile Switching CapabilityThe main advantage of the CZU purlin machine is its ability to support multiple profile production requirements. Manufacturers can produce different structural components according to project specifications without using several separate machines.
The flexible design improves factory space utilization and increases production efficiency. It is suitable for companies that need to supply different types of steel framing products to various customers.
| Profile Type | Typical Application |
|---|---|
| C Purlin | Roof and wall support structures |
| Z Purlin | Overlapping steel frame connections |
| U Channel | General structural and support applications |
| Customized Profiles | Special engineering requirements |
Automatic Punching and Cutting FunctionsThe machine can be equipped with an automatic punching system to create installation holes according to engineering drawings. This function improves processing efficiency and reduces secondary operations after profile forming.
The cutting unit is synchronized with the production control system to achieve accurate length cutting. The automatic process improves product consistency and simplifies handling after production.
The feeding system provides smooth transportation of steel coils into the forming section. The guiding device maintains correct material positioning and improves the accuracy of profile production.
Additional equipment such as automatic decoilers, leveling systems and stacking devices can be integrated according to customer production requirements to create a complete automated line.
| Production Step | Main Function |
|---|---|
| Coil Preparation | Install steel coil material |
| Material Feeding | Transfer strip into forming system |
| Leveling Process | Improve material flatness |
| Punching Process | Create required connection holes |
| Roll Forming | Produce C, Z or U profiles |
| Cutting Output | Complete finished profile production |
The structural profiles produced by this machine are widely used in modern construction systems. They provide strong, lightweight and economical solutions for different building applications.
| Feature | Advantage |
|---|---|
| Multi Profile Production | Supports C, Z and U profiles |
| Automatic Operation | Improves manufacturing efficiency |
| Precision Forming | Maintains profile accuracy |
| Flexible Configuration | Meets different market needs |
| Stable Performance | Suitable for continuous production |
The Automatic CZU Purlin Roll Forming Machine provides a comprehensive solution for producing multiple structural steel profiles. Through advanced forming technology, intelligent control and flexible production design, it meets the requirements of modern steel construction manufacturers.
This equipment helps companies improve production flexibility, reduce investment costs and supply high-quality C, Z and U steel profiles for different construction applications.
