Integrated hydraulic punching creates connection holes during profile processing
Reinforced punch tooling handles repeated structural steel fabrication cycles
Programmable hole positioning supports accurate project-specific connection layouts
Synchronized processing minimizes separate drilling operations after profile forming
Automatic cutting produces finished members according to programmed dimensions
Flexible punching layouts accommodate different structural framing requirements
Suitable for warehouses, workshops, factories, and prefabricated steel buildings

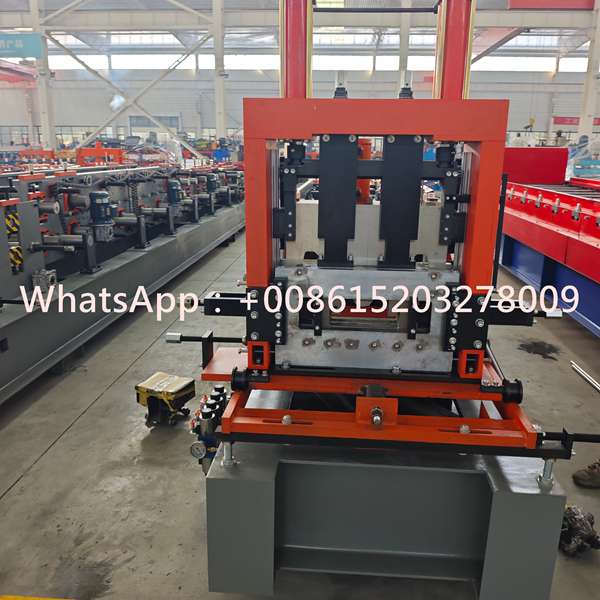

An integrated production system combining purlin forming, hydraulic punching, and automatic cutting for efficient structural steel fabrication.
Structural purlins frequently require accurately positioned holes for bolts, brackets, roof systems, wall cladding, and other steel framing connections. When these holes are produced separately after forming, manufacturers may need additional measuring, marking, drilling, or punching operations. An integrated hydraulic punching purlin machine combines these processes into a coordinated production line.

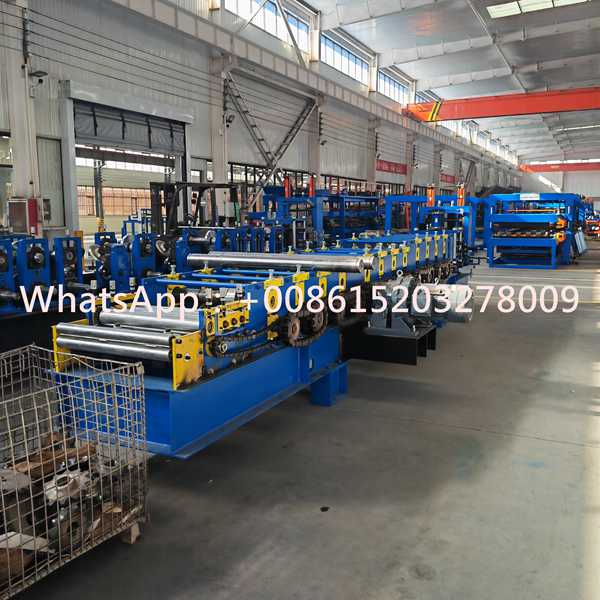

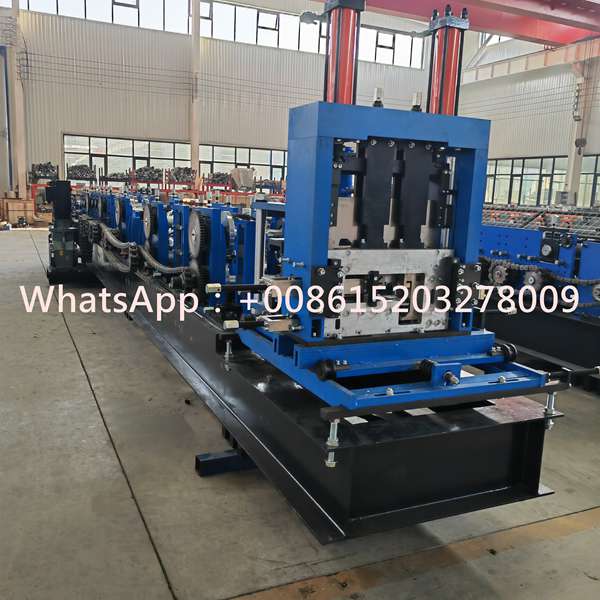

The machine is designed to process steel coil continuously and transform the flat strip into finished C or Z purlins. During production, the material passes through the feeding and forming sections while the hydraulic punching system creates the required holes according to the programmed production parameters.
After forming and punching, the finished profile is cut to the specified length. The combination of these operations reduces repeated manual handling and provides a more organized production workflow for steel structure manufacturers handling regular orders.
The hydraulic punching unit can be configured according to the customer's required hole diameter, hole quantity, hole position, punching sequence, material thickness, and profile geometry. The final punching arrangement is confirmed from the approved profile and connection drawings.
| Parameter | Reference Specification |
|---|---|
| Machine Type | Hydraulic Punching Purlin Roll Forming Machine |
| Production Profiles | C Purlin / Z Purlin |
| Raw Material | Structural Steel Coil |
| Material Thickness | Approximately 1.5–3.2 mm |
| Reference Web Height | Approximately 40–80 mm |
| Reference Lip Dimension | Approximately 10–20 mm |
| Forming Speed | Approximately 10–20 m/min |
| Punching Method | Hydraulic punching |
| Punching Position | Customized according to profile and connection drawings |
| Cutting | Automatic cut-to-length |
| Control System | PLC-based automatic control |
| Production Configuration | Customized to profile, material, hole pattern, and output requirements |
Note: Final specifications are determined according to material grade, thickness, profile dimensions, hole diameter, punching pattern, production speed, and customer requirements.
The hydraulic punching section uses hydraulic power to generate the force required to drive the punch through the steel strip. Compared with a simple manual drilling operation, the integrated system allows hole production to become part of the automated manufacturing sequence.
As the steel strip moves through the production line, the control system determines when the punching operation should occur according to the programmed hole layout. The hydraulic cylinder activates the punch tooling, creating the required opening in the designated location.
The punching system can be configured with different tooling arrangements depending on the required hole pattern. Multiple holes can be processed according to the production design, while the positioning sequence is coordinated with material movement and profile dimensions.
After the punching operation, the material continues through the forming and cutting sequence. The final arrangement depends on the machine design, because punching can be positioned before, during, or after selected forming operations according to the profile and hole requirements.

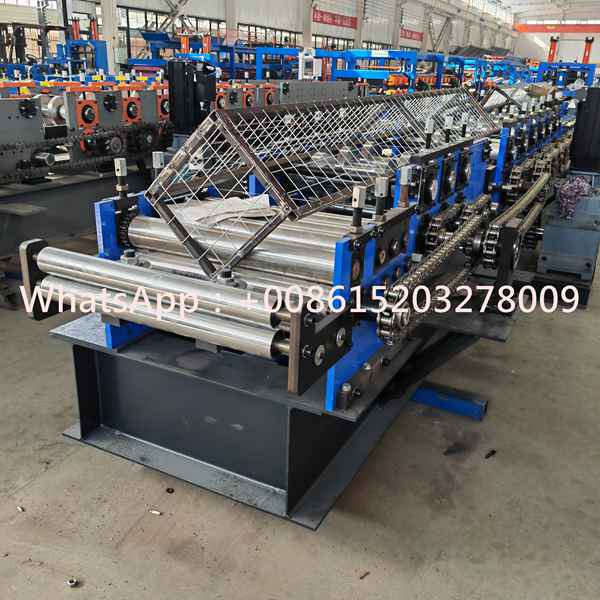

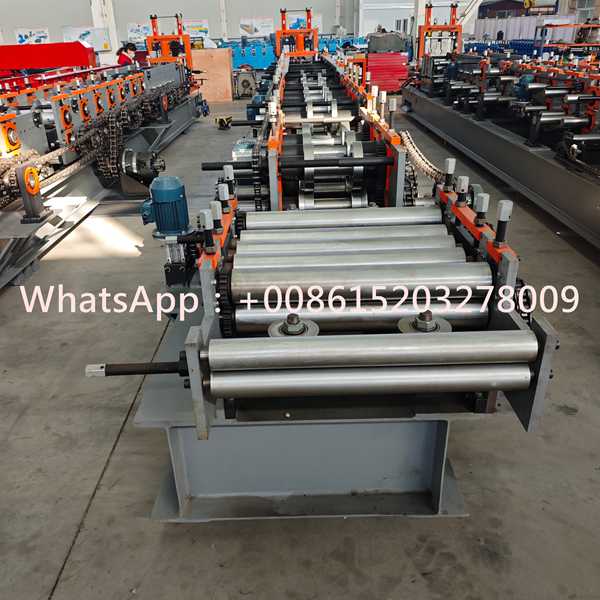

Before the steel becomes a finished purlin, the flat strip passes through multiple roller stations. Each station contributes a controlled bend to the material until the required C or Z cross-section is developed.
Progressive forming distributes the deformation across several stages rather than forcing the complete profile at one point. This approach helps maintain a stable production path and allows the machine to accommodate the geometry specified by the customer.
The forming section can be engineered for selected web heights, flange widths, lip dimensions, and material thicknesses. For machines producing multiple sizes, the adjustment method can be selected according to the required production range and level of automation.
Hole positioning is an important part of purlin fabrication because finished members often need to connect with columns, rafters, braces, brackets, roof panels, or other structural components. Incorrect hole locations can create additional fitting work during installation.
The hydraulic punching system is therefore configured around the actual engineering drawing. Hole diameter, center distance, edge distance, number of holes, and longitudinal position can be established before production begins.
During commissioning, sample profiles can be produced and checked against the approved drawing. This provides an opportunity to verify punching positions and adjust production parameters before regular manufacturing starts.
Actual punching accuracy depends on the machine configuration, material characteristics, tooling condition, production settings, and proper machine adjustment. Regular inspection of punch and die components is recommended to maintain stable results.
Integrating punching into the forming line can simplify the overall fabrication process. Instead of producing a complete purlin first and sending it to another workstation for hole processing, the required openings can be incorporated into the continuous production sequence.
This can reduce intermediate transportation and repeated measurement. It also allows the punching pattern to be coordinated with the finished length, which is useful when large batches contain different purlin lengths or connection configurations.
Hydraulic punching is particularly useful when the material requires substantial punching force. The hydraulic system provides controlled actuation and can be engineered according to the material thickness, hole size, and required production cycle.

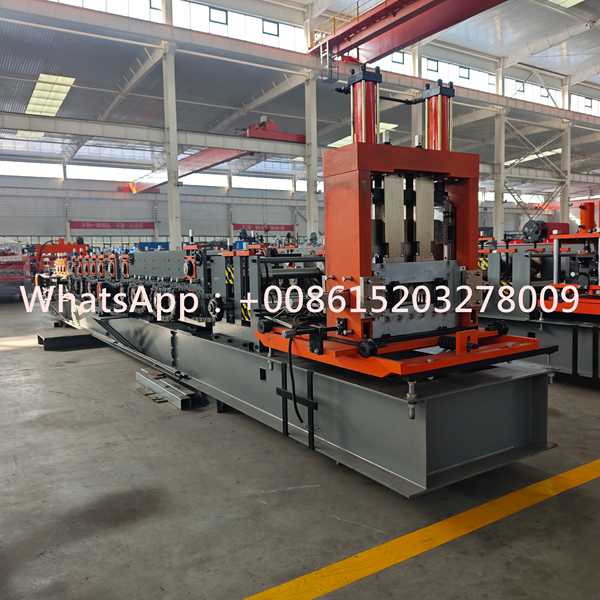

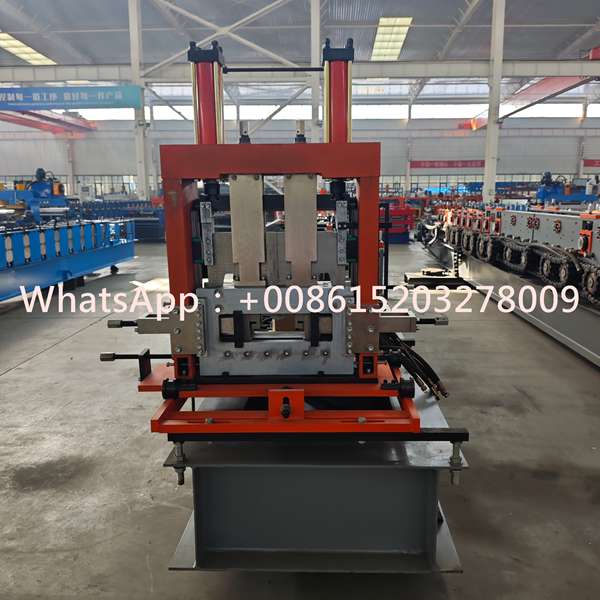

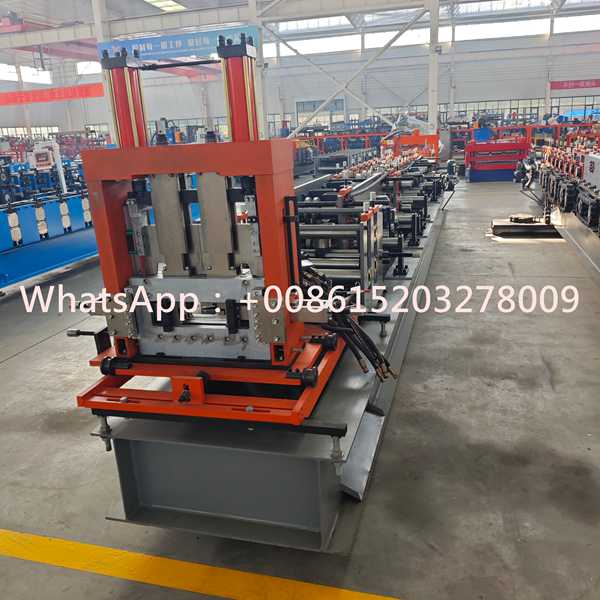

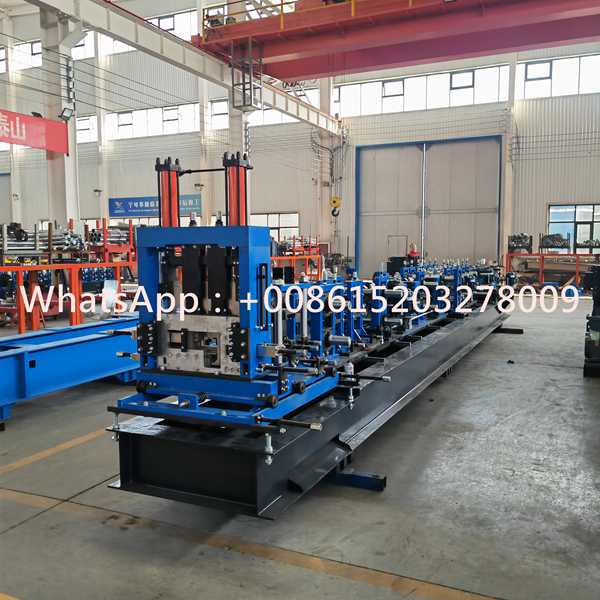

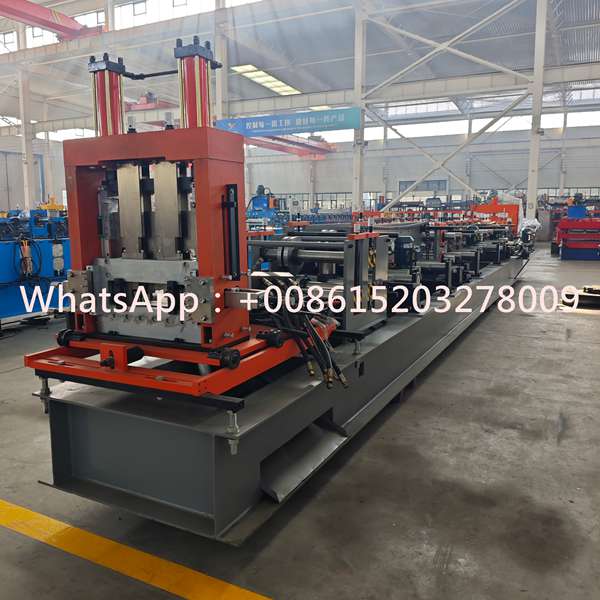

After the required profile and holes have been produced, the finished purlin is cut according to the programmed length. Automatic length control reduces the need for operators to manually measure every member before cutting.
The cutting system can be selected according to material thickness, profile geometry, production speed, and required cutting method. The control system coordinates the cutting sequence with the movement of the formed section.
Producing finished members to repeatable lengths helps simplify subsequent stacking, bundling, transportation, and construction-site installation. For high-volume orders, automated cutting can also improve production organization and reduce repetitive manual work.
Hydraulic punching purlin machines are suitable for manufacturers producing structural members that require repeated connection holes. The integrated production concept can be applied to many types of steel building projects.
Produces punched purlins for roof and wall framing systems in storage and logistics buildings.
Supports continuous fabrication of structural members for factories and industrial facilities.
Provides prepared framing components for selected commercial steel construction projects.
Suitable for production lines manufacturing standardized and project-specific steel framing members.
Every structural steel project can have different connection requirements. The machine can therefore be customized around the customer's profile drawing and punching layout.
Customizable items may include C or Z profile dimensions, material thickness, steel grade, hole diameter, hole quantity, longitudinal hole spacing, transverse hole positioning, finished length, production speed, and output requirements.
The hydraulic punching unit can also be designed with different tooling arrangements when several hole patterns are required. Customers producing multiple profiles may request a configuration that provides convenient profile adjustment or changeover between selected sizes.
Electrical specifications and machine layout can also be adapted to the destination market and available workshop conditions. Customers should provide the required profile drawings, material data, punching drawings, electrical supply, and expected production capacity during the technical discussion.
Quality control covers both the finished purlin geometry and the punching results. Trial-produced members can be inspected for web dimensions, flange geometry, lip dimensions, overall width, hole diameter, hole position, and finished length.
The punching tooling should remain properly aligned and in good working condition. Wear on the punch or die may gradually affect hole quality and should therefore be monitored during regular machine operation.
Production records can also be organized according to profile size and order requirements. Keeping repeatable machine settings for regular products can help operators reduce unnecessary setup time when returning to an established production specification.
The machine should be installed on a suitable foundation according to the final layout. Mechanical sections, electrical connections, hydraulic components, control functions, and safety devices should be inspected before production testing.
During commissioning, the specified steel material is introduced into the line and trial profiles are produced. The forming condition, hydraulic punching sequence, hole locations, cutting length, and finished profile dimensions can then be checked against the approved production drawings.
Operators can be instructed in machine startup, parameter setting, hydraulic system inspection, punch and die maintenance, profile adjustment, cutting operation, and basic troubleshooting. This helps establish consistent operating procedures for everyday production.
Regular inspection is important for maintaining stable hydraulic punching performance. Hydraulic oil condition, hoses, fittings, cylinders, valves, punch tooling, dies, bearings, forming rollers, transmission components, and electrical connections should be checked according to the machine maintenance schedule.
Punch and die components are wear parts and may require replacement after extended production. Keeping replacement tooling available can help reduce downtime when the machine operates continuously or handles large production orders.
Technical support can cover machine operation, hydraulic system adjustment, punching parameter settings, tooling replacement, profile changeover, maintenance procedures, and troubleshooting. Clear communication of the machine model, production material, profile drawing, and observed problem can help technical personnel identify issues more efficiently.
This hydraulic punching purlin machine combines profile forming, connection-hole processing, and automatic cutting within one coordinated production system. Its configurable punching layout, controlled hydraulic operation, automatic length processing, and adaptable profile tooling make it a practical choice for manufacturers producing punched C and Z purlins for modern steel construction.
