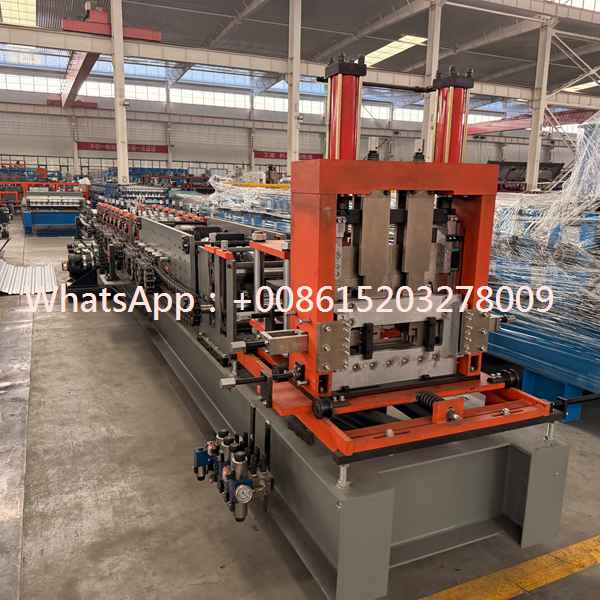

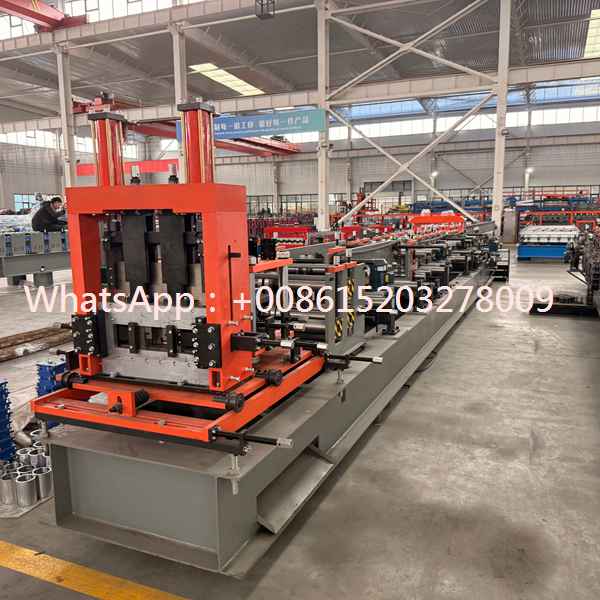

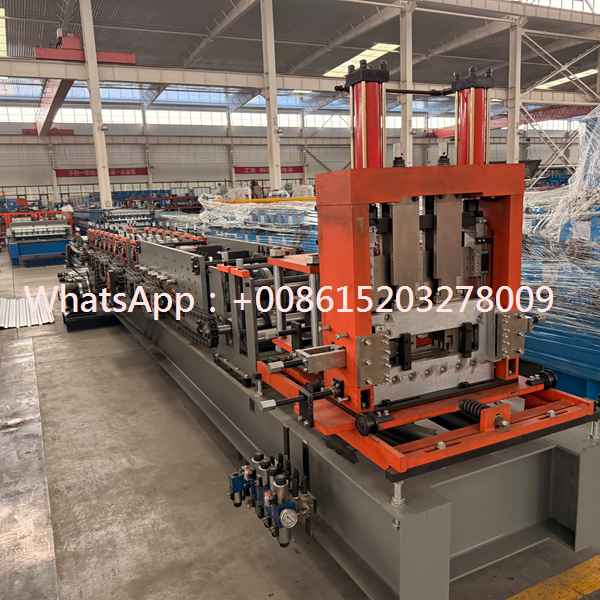

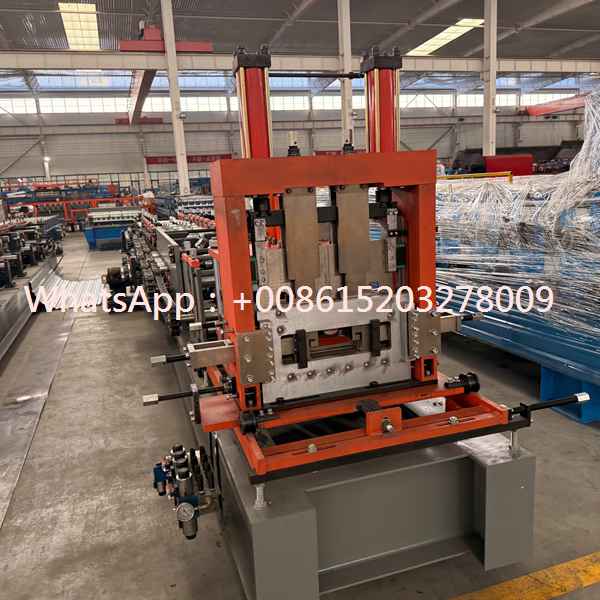

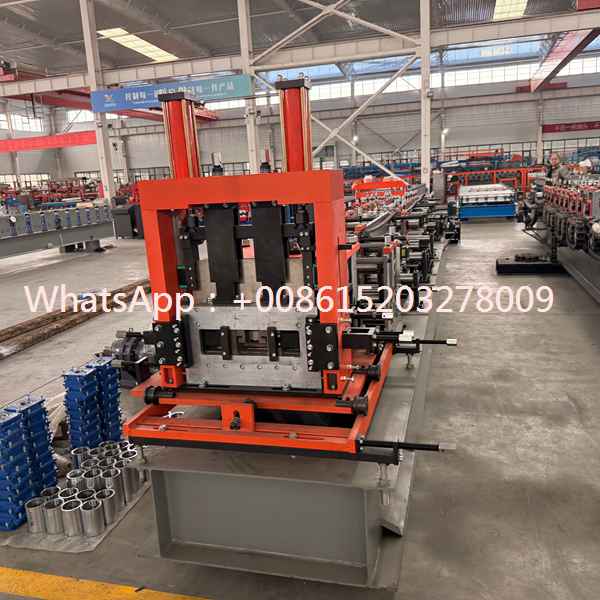

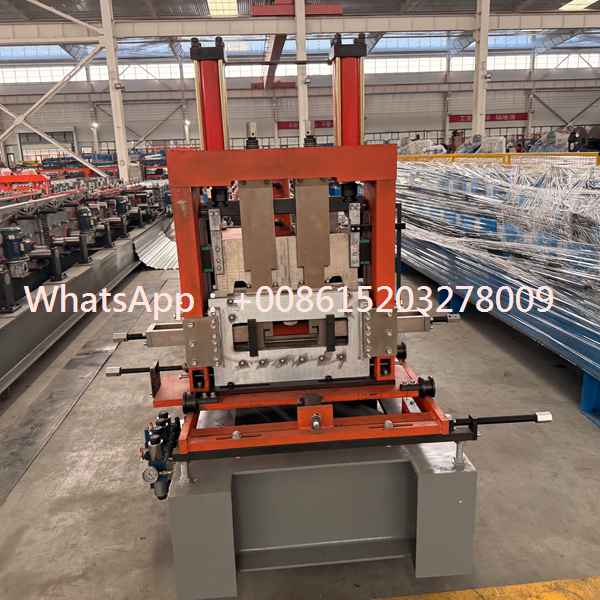

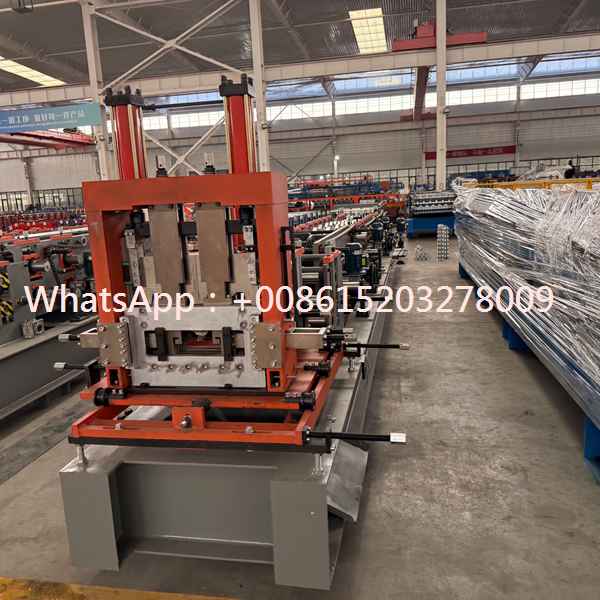

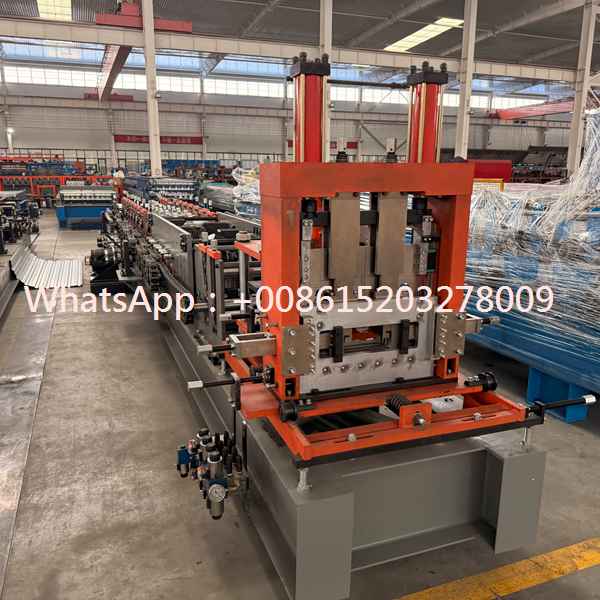

The Automatic CZ Purlin Roll Forming Line is an advanced production system specially designed for manufacturing C and Z shaped steel purlins used in modern steel structure construction. The equipment combines high precision forming technology with automatic control functions to provide an efficient solution for producing various structural steel profiles.
This production line is suitable for processing galvanized steel, carbon steel and other metal materials into C purlins and Z purlins with different specifications. The finished profiles are widely applied in industrial buildings, warehouses, workshops, commercial structures and large-span steel construction projects.
With flexible profile conversion capability, automatic adjustment functions and stable production performance, the CZ purlin machine helps manufacturers improve production efficiency, reduce labor requirements and expand product variety.
The machine is designed as a multifunctional production line capable of producing both C-shaped and Z-shaped steel purlins. Through an optimized mechanical structure, operators can adjust the profile configuration according to different construction requirements.
The automatic control system manages important production parameters such as profile dimensions, punching positions, cutting length and production quantity. This improves production consistency and reduces adjustment time during manufacturing.
The integrated design allows manufacturers to produce different types of structural purlins with one production line, saving factory space and improving equipment utilization.
The forming section adopts multiple precision roller stations to gradually transform flat steel strips into accurate C or Z shaped profiles. The continuous forming method ensures smooth material processing and stable product dimensions.
The roller configuration is designed according to the characteristics of structural purlins. Proper roller arrangement helps maintain profile strength while reducing unnecessary material stress during forming.
The reinforced machine frame provides excellent stability during operation, ensuring reliable performance for long-term industrial production.
| Item | Specification |
|---|---|
| Machine Type | Automatic CZ Purlin Roll Forming Line |
| Product Type | C Purlin and Z Purlin |
| Processing Material | Galvanized Steel, Carbon Steel |
| Material Thickness | 1.5-3.5 mm |
| Production Speed | 15-40 m/min |
| Forming Method | Cold Roll Forming |
| Control System | PLC Automatic Control |
| Punching Function | Automatic Hole Punching System |

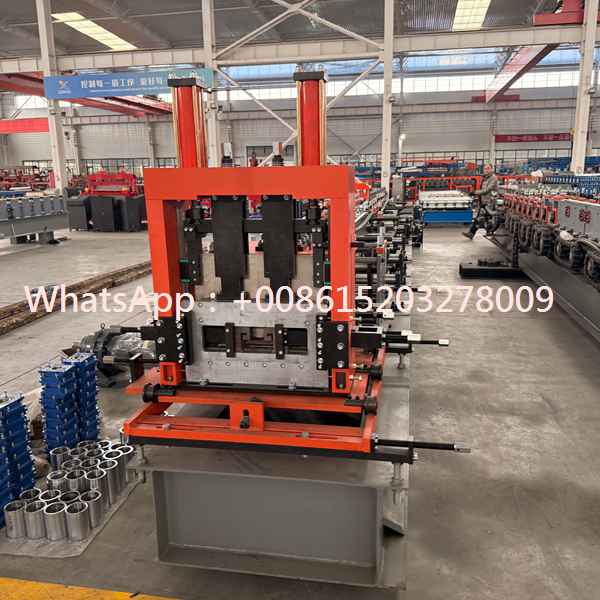

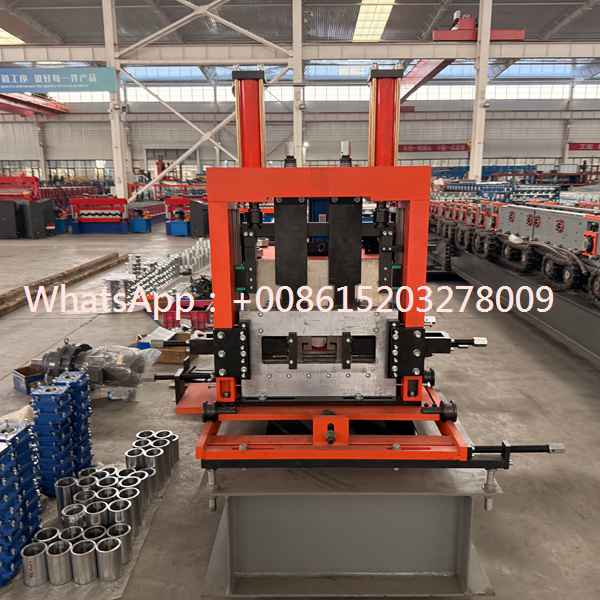

| Cutting System | Hydraulic Automatic Cutting |
| Profile Conversion | Automatic or Manual Adjustment |
One of the main advantages of the CZ purlin production line is its ability to manufacture both C and Z profiles according to project requirements. The flexible design allows manufacturers to quickly change between different structural profiles.
This function improves production flexibility and enables factories to meet different customer orders without purchasing multiple separate machines.
| Production Feature | Application Benefit |
|---|---|
| C Purlin Production | Suitable for various support structures |
| Z Purlin Production | Ideal for overlapping structural connections |
| Size Adjustment | Supports different profile dimensions |
| Punching System | Creates required installation holes |
| Automatic Cutting | Improves finished product accuracy |
The production line can integrate automatic punching equipment to process holes according to engineering drawings. The punching system improves production efficiency and reduces additional processing after forming.
The automatic cutting unit works together with the control system to produce purlins with accurate preset lengths. This ensures convenient transportation and installation at construction sites.
The feeding section provides smooth and accurate coil transportation into the production line. The guiding system helps maintain proper material alignment and improves forming accuracy.
The complete line can be equipped with auxiliary devices such as hydraulic decoilers, leveling equipment and automatic stacking systems to achieve higher automation levels.
| Process | Description |
|---|---|
| Coil Loading | Install raw steel coil material |
| Material Feeding | Transfer steel strip into system |
| Leveling Process | Improve material flatness |
| Punching Operation | Create structural connection holes |
| Roll Forming | Shape C or Z profiles |
| Automatic Cutting | Produce required purlin length |
CZ purlins manufactured by this production line are important structural components in modern steel buildings. They provide reliable support solutions for different construction systems.
| Feature | Benefit |
|---|---|
| Dual Profile Production | Produces both C and Z purlins |
| Automatic Control | Improves production efficiency |
| Precision Forming | Maintains accurate dimensions |
| Flexible Adjustment | Supports different requirements |
| Continuous Operation | Suitable for industrial production |
The Automatic CZ Purlin Roll Forming Line provides manufacturers with a flexible and efficient method for producing C and Z steel purlins. With advanced forming technology, automatic operation and multifunctional design, the equipment meets the needs of modern steel construction industries.
This production line helps enterprises improve manufacturing capacity, reduce production costs and provide reliable structural steel solutions for global building projects.
