Advanced Steel Profile Manufacturing

In Portuguese-speaking markets, the term “perfiladeira” is commonly used to describe a roll forming machine used to manufacture continuous metal profiles. When combined with purlin production, the equipment provides an efficient way to transform steel coil into structural members for modern construction.

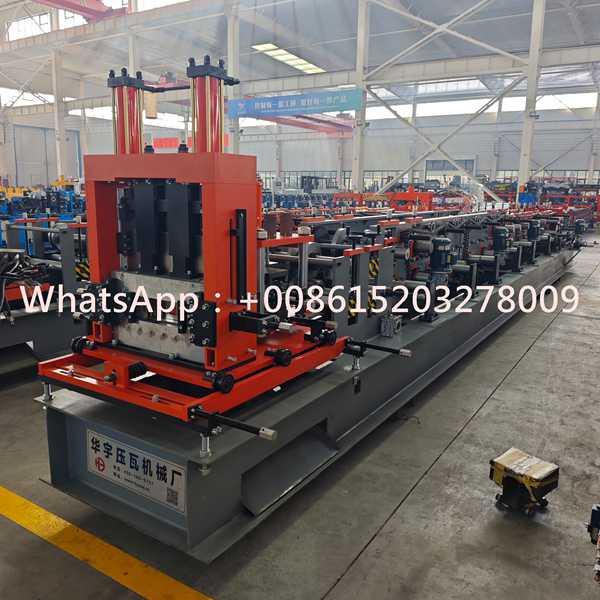

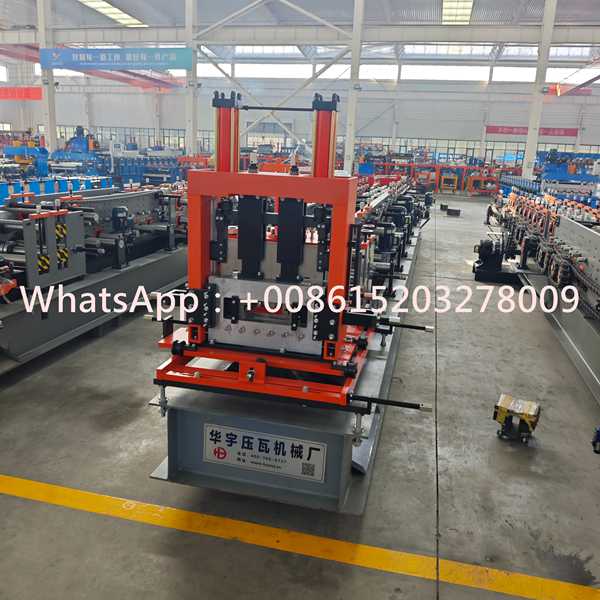

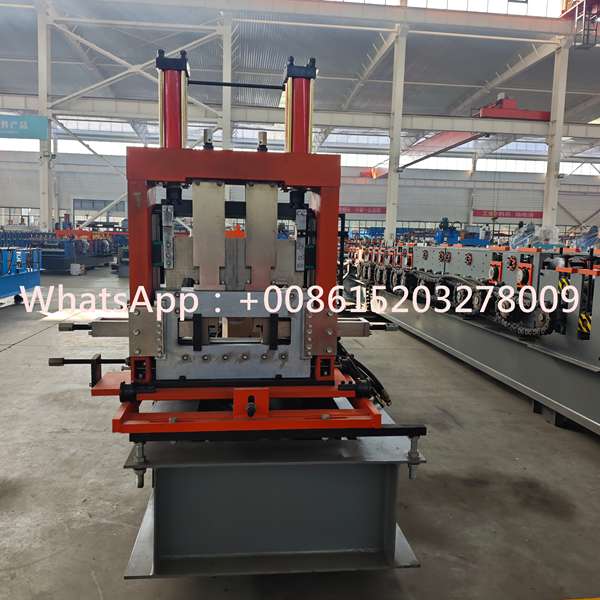

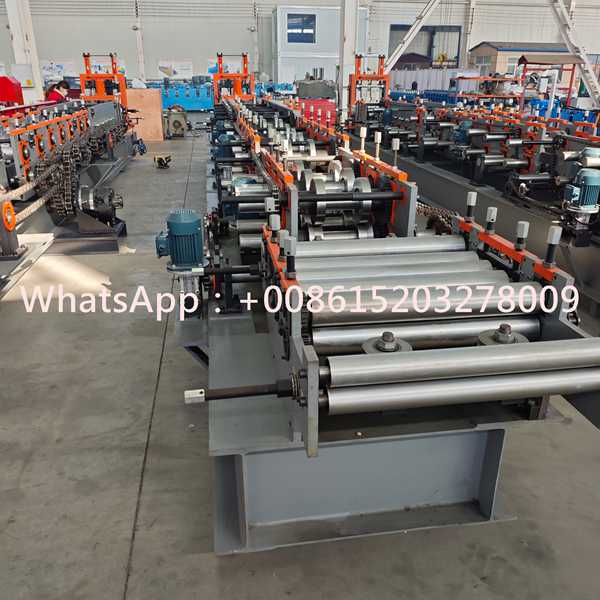

This automatic perfiladeira purlin machine is designed for manufacturers producing cold-formed C and Z purlins. The production line progressively bends the incoming steel strip through multiple forming stations until the required structural section is obtained.

Unlike individual bending operations, continuous forming allows the material to move through the complete process in a coordinated sequence. Decoiling, feeding, forming, optional punching, cutting, and finished-product handling can be integrated into one production workflow.

The equipment can be engineered according to the customer's profile drawing, material specifications, required section dimensions, production capacity, and factory conditions. This allows the machine to serve both standard purlin production and customized structural steel orders.

Technical Specifications

Note: The final configuration should be confirmed according to the profile drawing, steel grade, coil thickness, required speed, punching pattern, finished length, and local electrical requirements.

What Does Perfiladeira Mean?

“Perfiladeira” is a widely used Portuguese term for equipment that forms continuous metal profiles. In international industrial terminology, the same type of equipment is generally described as a roll forming machine or roll former.

The machine creates the finished profile through a sequence of controlled bending operations. Each forming station introduces a specific amount of deformation, allowing the flat strip to gradually develop the required cross-section.

For purlin production, the final section may be a C-shaped or Z-shaped profile. The selected geometry depends on the structural engineering requirements of the building and the connection method used during installation.

Using the Portuguese keyword together with the English technical term can also make the product easier to identify in international markets where buyers search for both “perfiladeira” and “purlin machine.”

Complete Coil-to-Purlin Workflow

The production cycle starts with steel coil loading. The coil is mounted on the decoiler and released toward the feeding section at a controlled rate.

Guide components position the strip before it reaches the forming rollers. Stable feeding is important because the strip must remain aligned with the centerline of the machine throughout production.

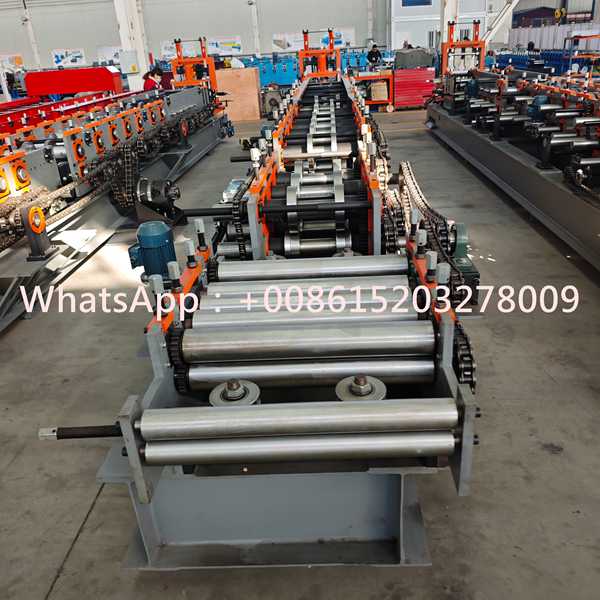

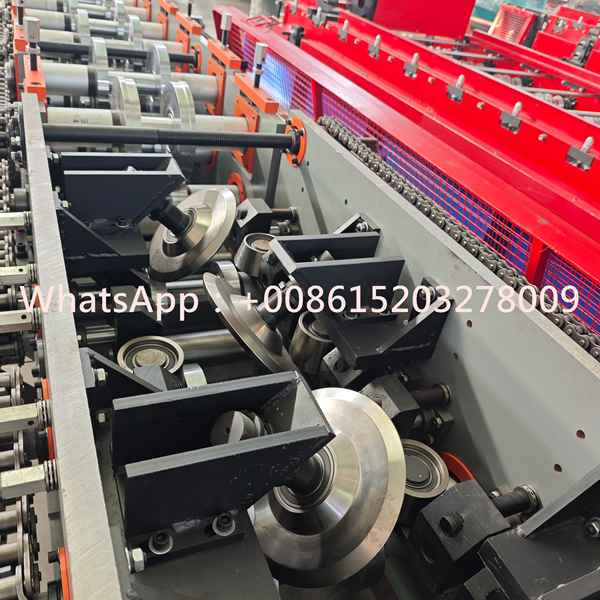

The material then passes through successive roller stations. The rollers gradually create the web, flanges, lips, and other features specified by the profile drawing.

Where connection holes are required, an optional punching unit can be integrated into the line. The punching arrangement is developed according to the customer's approved hole pattern.

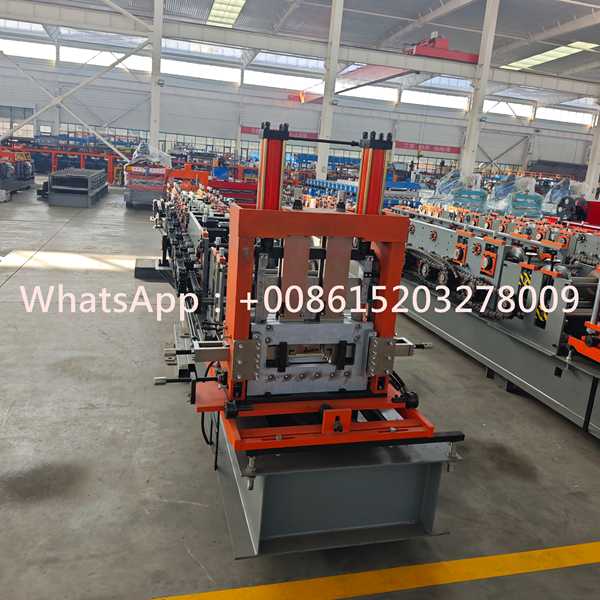

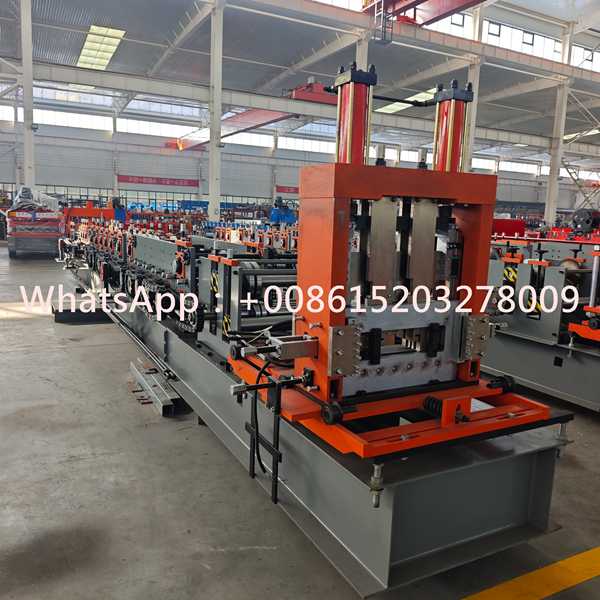

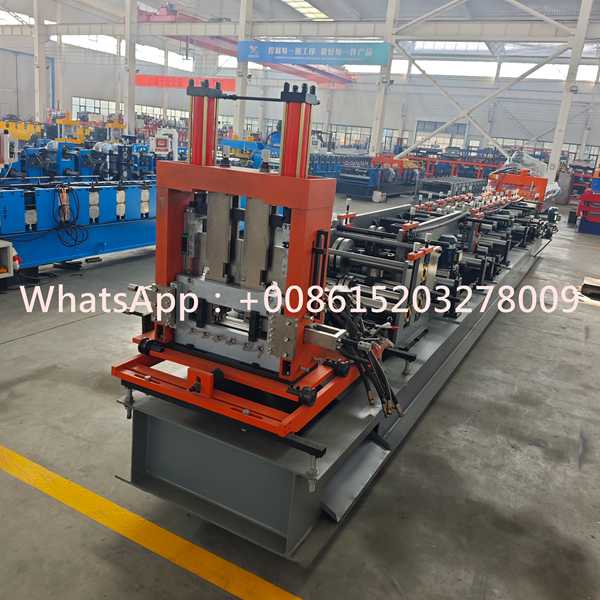

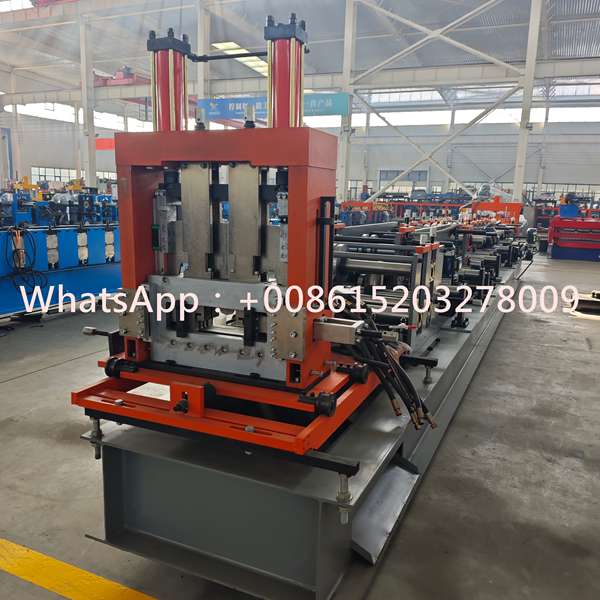

Once the continuous section reaches the required geometry, the automatic cutting system separates the profile into individual pieces. The finished purlins can then be collected, inspected, bundled, and prepared for transportation.

C and Z Purlin Production

C and Z purlins are commonly used as secondary framing members in steel buildings. Although both profiles are manufactured through cold forming, their cross-sectional geometry and installation methods are different.

C purlins have a channel-like cross-section and are frequently used where the project requires a straightforward secondary framing member. Z purlins have an offset configuration that can be useful for overlapping arrangements between adjacent structural members.

The forming tooling is developed according to the selected profile. Roller diameter, station arrangement, shaft configuration, guide positioning, and forming sequence are determined according to the material and finished geometry.

For manufacturers producing several sizes, the machine can be designed with a suitable adjustment or size-change system. The final solution depends on the required dimensional range and expected production volume.

Material Compatibility

The forming line is intended for steel coil selected according to the finished structural profile. Galvanized steel is often considered for applications where surface protection and resistance to atmospheric exposure are important.

Material thickness and mechanical strength should be provided during the machine design stage. These parameters affect forming force, roller design, transmission requirements, and overall machine configuration.

Typical structural applications may use higher-strength galvanized steel grades when required by engineering specifications. However, the exact material should always be determined by the structural design and applicable local standards.

Coil width, thickness tolerance, surface coating, and material consistency should also be considered. Stable incoming material helps reduce unnecessary variation during continuous forming.

Automatic Control and Production Efficiency

A PLC-based control system coordinates the main production functions. Operators can enter parameters such as target length and production quantity through the control interface.

Once the production settings are confirmed, the machine can continuously form the steel strip and execute the programmed cutting sequence. This reduces the amount of repetitive manual measurement required during normal production.

Automatic operation is particularly useful for manufacturers producing large quantities of purlins for steel building projects. Different production batches can be organized according to the fabrication schedule.

The actual production speed depends on profile geometry, material thickness, punching requirements, cutting length, machine configuration, and other operating conditions. The final production target should therefore be confirmed during technical design.

Optional Punching and Connection Preparation

Structural purlins frequently require holes for bolts, screws, or other connection systems. An integrated punching section can prepare these openings before the finished member reaches the cutting stage.

The punching system can be developed around the required hole diameter, quantity, spacing, and position. For projects with standardized connection details, automatic punching can reduce the need for separate processing after forming.

Sample production should be performed before large-scale manufacturing. Operators can verify the hole locations against the approved engineering drawings and make necessary parameter adjustments.

Applications in Steel Building Projects

Purlins are used across many types of steel construction. The machine can provide continuous production capacity for fabricators supplying structural components to different building markets.

Customized Perfiladeira Configuration

A purlin manufacturer may need to produce one profile size, several sizes, or a broad range of structural sections. Machine configuration can therefore be adapted to the intended product portfolio.

Custom options may include profile dimensions, material thickness, roller stations, punching layout, cutting method, production speed, coil handling equipment, automation functions, and finished-product collection.

A profile drawing is the preferred starting point for technical design. The drawing should show the overall dimensions, web height, flange width, lip geometry, hole pattern, material thickness, and other relevant details.

Workshop conditions can also influence the final layout. Coil loading direction, machine length, product discharge, operator access, maintenance space, foundation conditions, and electrical supply can be considered during planning.

Quality Inspection During Production

Consistent profile geometry is important when purlins are produced for prefabricated steel structures. Dimensional inspection helps confirm that finished members remain within the tolerances specified by the approved drawings.

During commissioning, sample pieces can be checked for overall profile dimensions, straightness, finished length, hole position, and other project-specific characteristics.

Operators should also monitor the material path and forming condition during regular operation. Changes in profile dimensions may indicate material variation, roller alignment issues, or the need for adjustment.

The appropriate inspection frequency depends on production volume, material type, customer requirements, and applicable standards. Production records can be maintained to support quality management and project traceability.

Installation, Training, and Commissioning

The machine should be installed according to the approved layout and foundation requirements. Sufficient space should be reserved for coil loading, machine operation, product discharge, maintenance, and safe operator movement.

Before trial production, the mechanical and electrical systems are checked. Forming stations, drive components, control functions, cutting equipment, safety devices, and optional punching systems should be verified.

Trial forming is then performed using the specified steel coil. The resulting purlin section is measured and compared with the approved profile drawing.

Operator training can cover control-panel operation, production parameter settings, machine startup and shutdown, material feeding, routine inspection, lubrication, safety procedures, and basic troubleshooting.

Maintenance and Technical Support

Regular maintenance is important for maintaining stable forming performance. Rollers, shafts, bearings, transmission components, cutting tools, punching components, electrical connections, and fasteners should be inspected according to the operating schedule.

Abnormal vibration, unusual noise, material tracking problems, dimensional changes, or deterioration in punching and cutting performance should be investigated promptly.

Technical assistance can include machine operation guidance, forming adjustment, control parameter support, punching configuration, cutting settings, maintenance procedures, and troubleshooting.

Replacement wear components should be selected according to the actual machine configuration. Maintaining suitable spare parts can help reduce interruptions when the equipment is used for intensive production.
