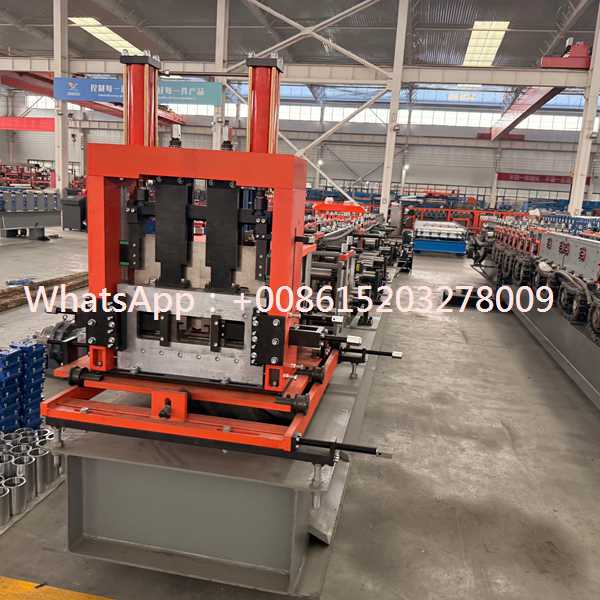

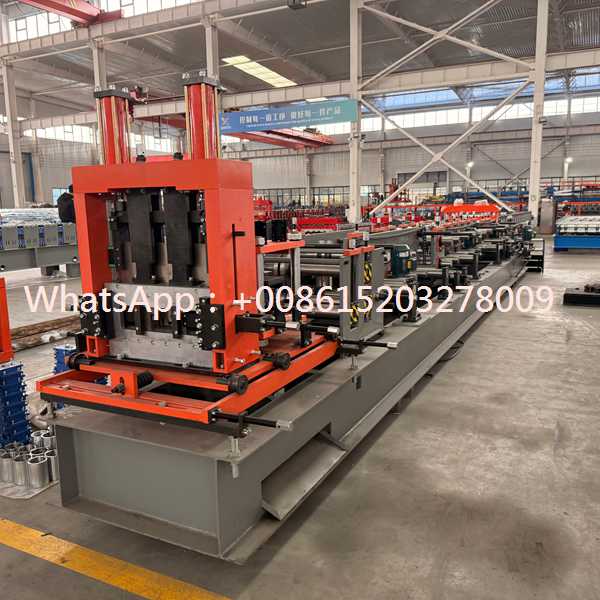

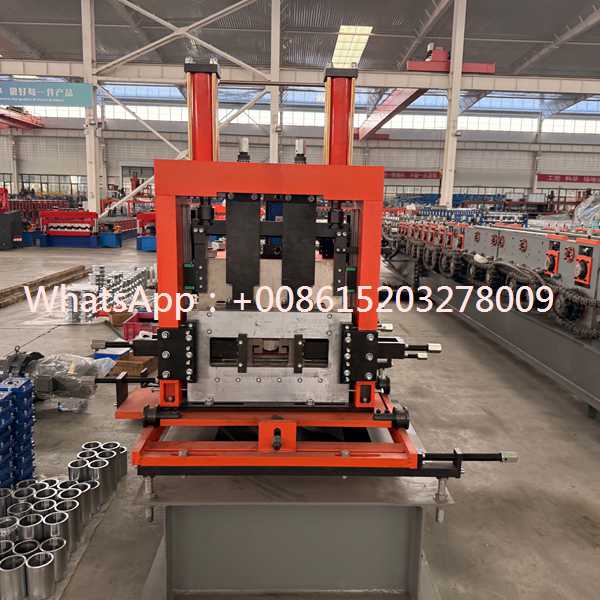

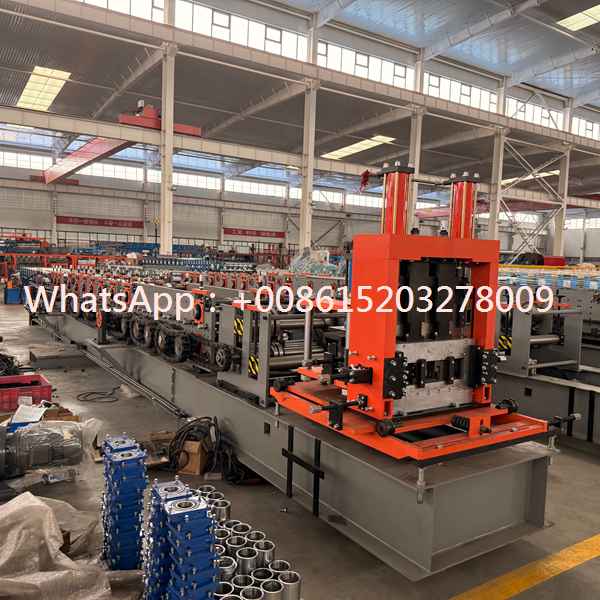

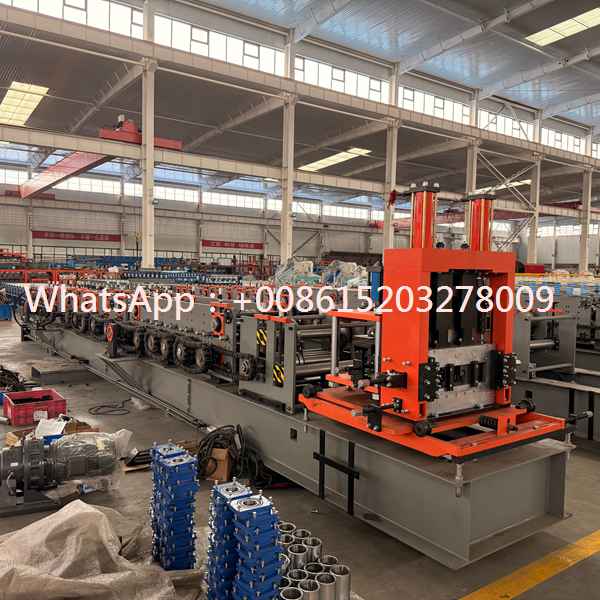

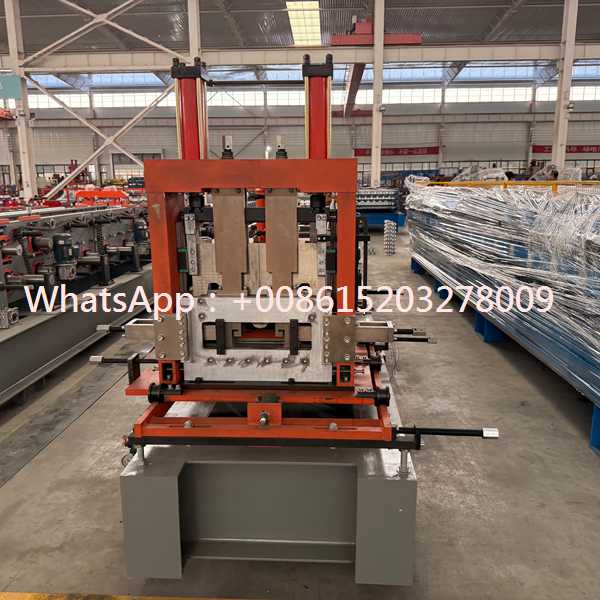

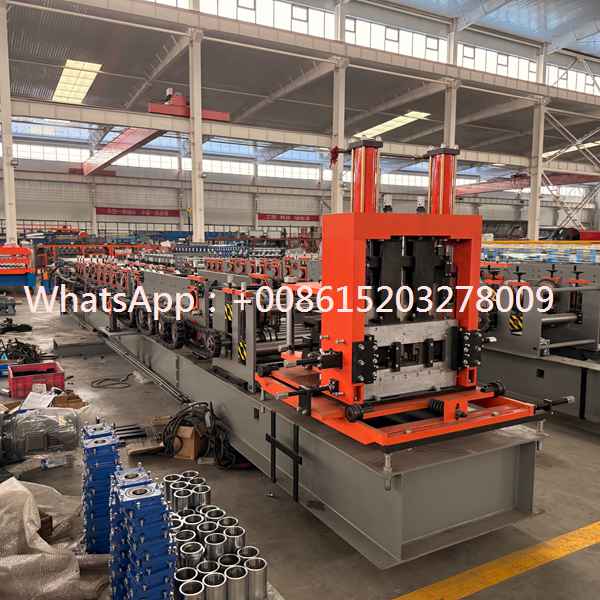

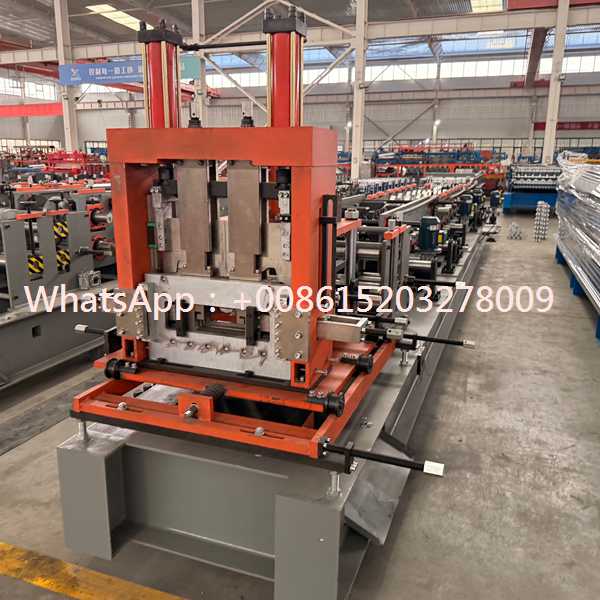

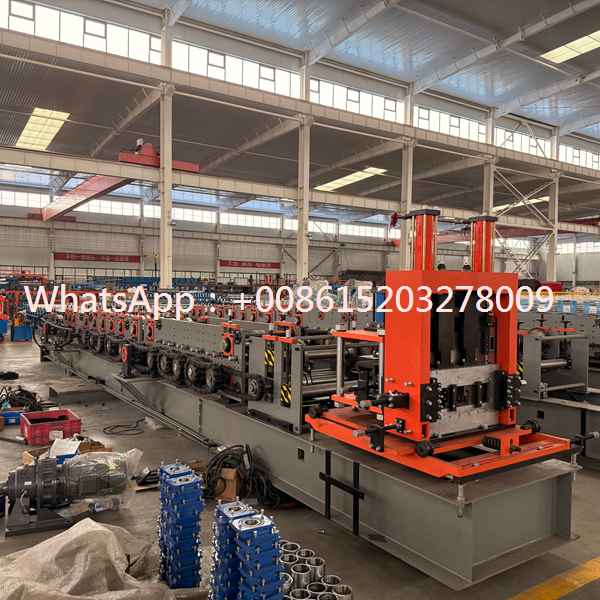

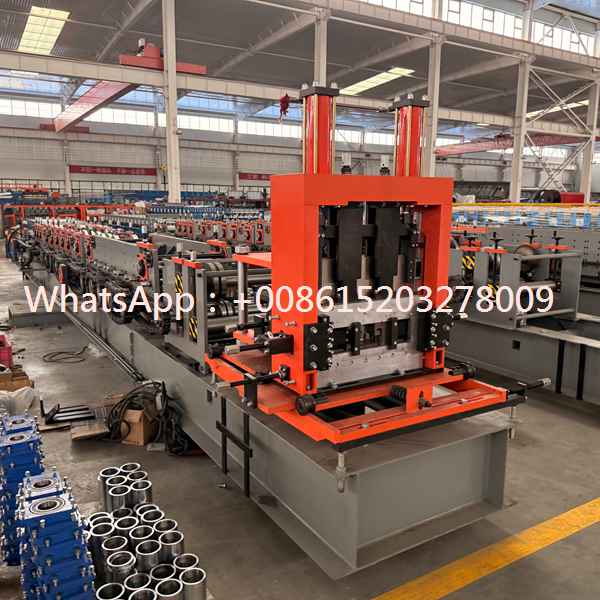

The Automatic C Purlin Roll Forming Machine is a professional production system designed for manufacturing high-quality C-shaped steel purlins with accurate dimensions and excellent structural strength. It is widely used in steel structure buildings, industrial workshops, warehouses, commercial construction and other framing applications.
This equipment uses advanced cold roll forming technology to transform galvanized steel coils or metal strips into finished C purlin profiles through continuous processing. The produced purlins provide reliable support solutions for roof systems, wall structures and lightweight steel construction projects.
With automatic operation, precise forming performance and flexible production adjustment, this machine provides an efficient manufacturing solution for companies requiring stable C purlin output and professional structural steel products.
Efficient C Purlin Production SystemThe machine integrates coil feeding, leveling, profile forming, punching, cutting and product output functions into one complete production line. The automatic design simplifies operation procedures and improves overall production efficiency.
The control system allows operators to set production parameters according to different purlin specifications, including length, quantity and profile requirements. The intelligent management system helps maintain stable production conditions during long working periods.
Compared with traditional steel processing methods, automatic roll forming provides higher production consistency, better material utilization and reduced manual workload.
The forming section adopts multiple precision roller stations to gradually shape flat steel strips into C-shaped purlin profiles. The progressive forming method helps maintain accurate dimensions and improves the overall quality of finished products.
The roller design can be customized according to different C purlin sizes, including web height, flange width, lip size and material thickness. This allows the machine to produce various structural profiles for different construction requirements.
The reinforced machine structure provides stable support for the forming unit. The optimized mechanical design reduces vibration and ensures reliable performance during continuous production.
| Item | Specification |
|---|---|
| Machine Type | Automatic C Purlin Roll Forming Machine |
| Raw Material | Galvanized Steel, Carbon Steel, Pre-painted Steel |
| Material Thickness | 1.5-3.0 mm |
| Production Speed | 15-40 m/min |
| Forming Method | Continuous Cold Roll Forming |
| Control System | PLC Automatic Control |
| Punching System | Optional Automatic Punching |
| Cutting System | Hydraulic Automatic Cutting |
| Profile Type | C Shape Structural Purlin |
| Voltage | Customized According to Requirement |
Flexible C Purlin Size AdjustmentDifferent construction projects require different purlin dimensions. The machine can be customized according to customer drawings, profile samples and technical specifications to produce suitable C-shaped steel components.
The flexible configuration allows manufacturers to produce multiple C purlin sizes for different applications. Size adjustment systems and customized tooling options can help improve production flexibility and reduce equipment replacement time.
| Adjustment Item | Description |
|---|---|
| Web Width | Customized According to Product Design |
| Flange Height | Adjustable Based on Requirement |
| Lip Size | Customized Structural Design |
| Punching Pattern | Optional Hole Layout Design |
| Cutting Length | Automatic Length Control |
Integrated Punching and Cutting FunctionsThe machine can be equipped with an automatic punching system to create required holes and slots according to engineering drawings. This function improves processing efficiency and reduces additional machining procedures.
The cutting unit works together with the control system to produce accurate purlin lengths. Automatic cutting improves production speed and ensures consistent finished products.
The feeding section provides smooth transportation of steel coils into the forming system. The guiding and leveling devices help maintain correct material positioning before profile shaping.
Optional auxiliary equipment such as hydraulic decoilers, leveling units and automatic stacking systems can be integrated according to production requirements, creating a more complete automated production line.
| Production Stage | Main Function |
|---|---|
| Coil Loading | Install steel coil material |
| Material Leveling | Improve strip flatness |
| Punching Process | Create required holes |
| Roll Forming | Shape C purlin profile |
| Automatic Cutting | Produce required length |
| Stacking Output | Prepare finished products |
C purlins produced by this machine are widely used as important structural components in modern construction systems. Their lightweight design and high strength make them suitable for various building applications.
| Feature | Benefit |
|---|---|
| Automatic Production | Improves manufacturing efficiency |
| Precision Forming | Ensures accurate C profiles |
| Flexible Configuration | Supports various applications |
| Stable Structure | Suitable for continuous operation |
| Easy Control | Reduces operation complexity |
The Automatic C Purlin Roll Forming Machine provides an efficient and reliable solution for producing structural C steel profiles. Through precision forming technology, automatic control and flexible customization options, the equipment meets the requirements of modern steel construction industries.
It helps manufacturers improve production capacity, reduce processing costs and provide high-quality C purlin products for global building projects.
