Product Introduction:

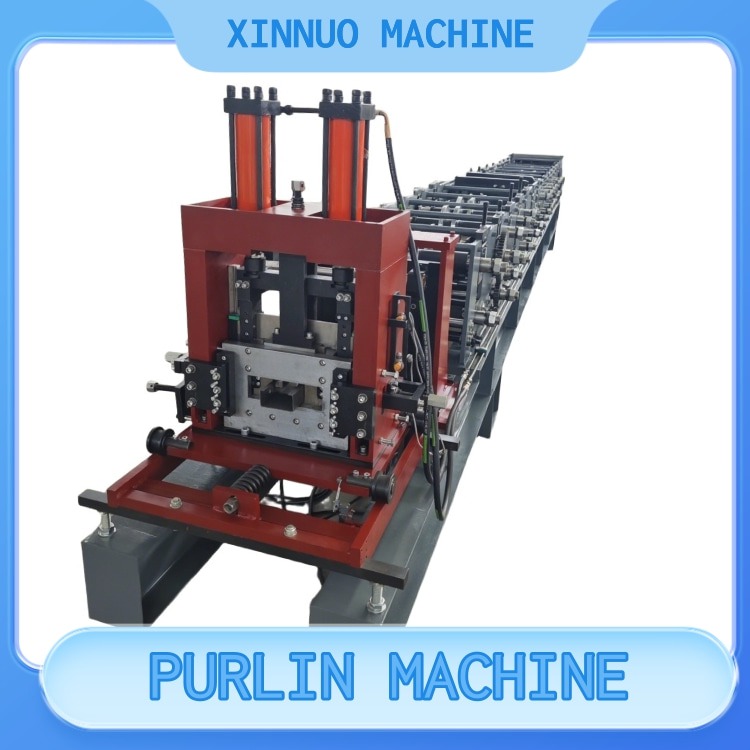

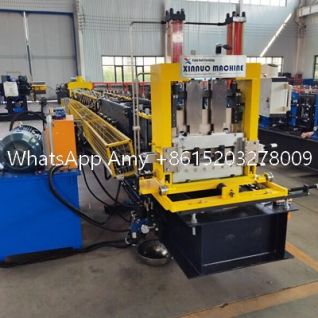

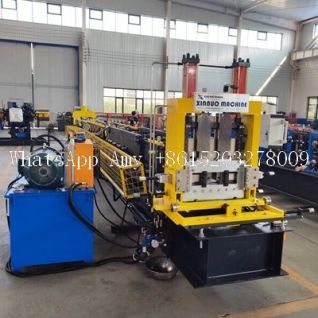

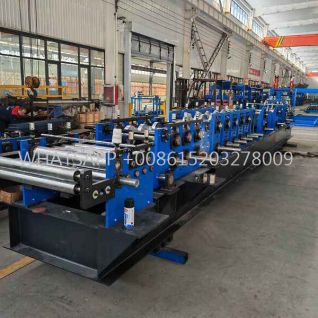

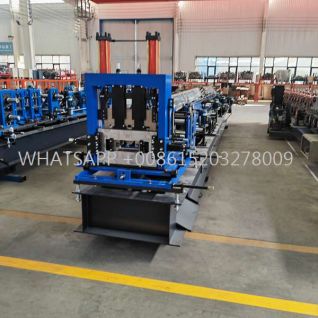

The C purlin roll former is designed for continuous manufacturing of C-shaped steel channels widely used in modern construction frameworks. It delivers stable forming accuracy, high efficiency output, and reliable performance for industrial-scale production.
The machine enables uninterrupted forming of steel coils into C profiles, ensuring smooth production flow and stable speed control suitable for mass manufacturing environments.
Operators can adjust different C channel sizes without replacing the full roller set, reducing downtime and improving adaptability for various construction projects.
The frame is built with heavy-duty welded steel, ensuring long-term stability and resistance to deformation during high-speed continuous operation.

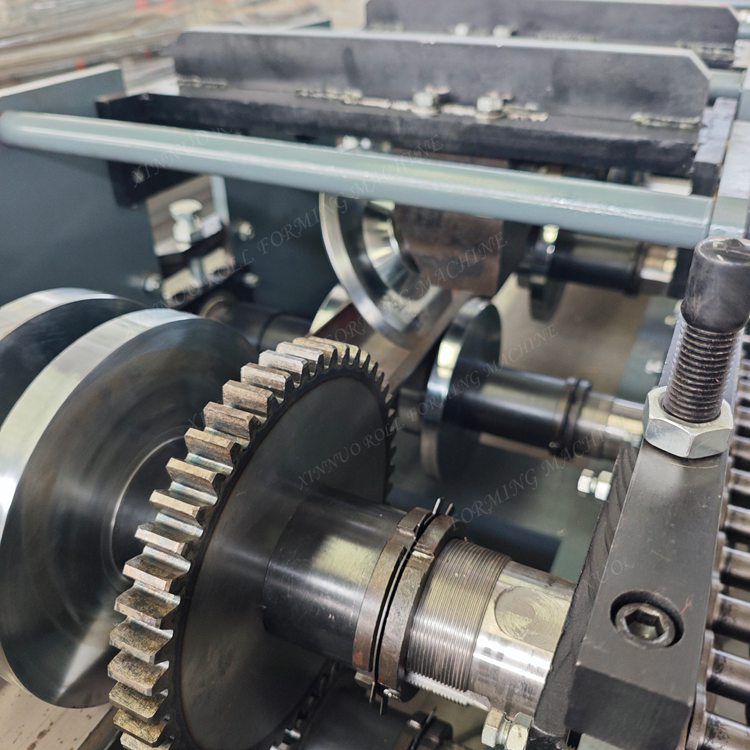

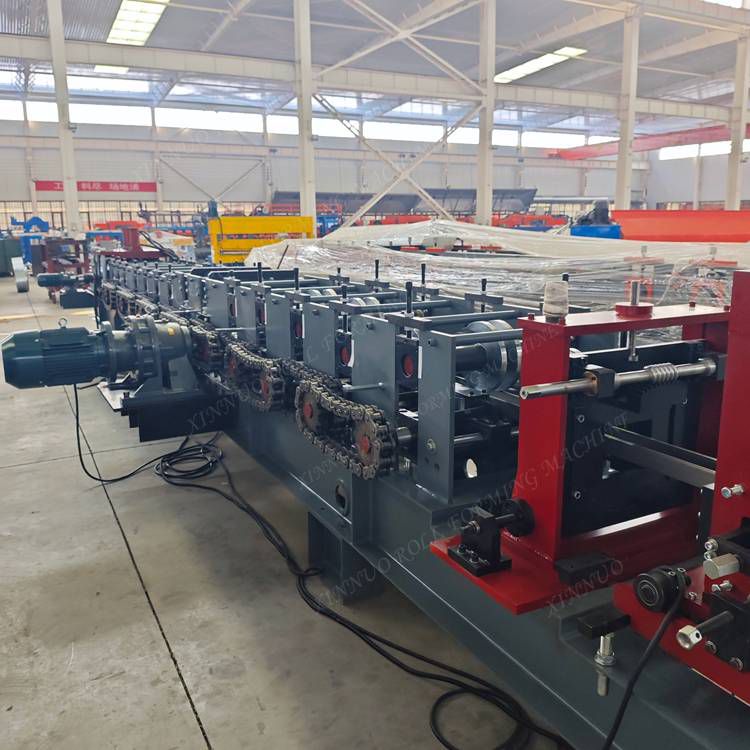

High-quality rollers ensure accurate shaping of steel strips, maintaining consistent dimensional tolerance and smooth surface finishing throughout production cycles.

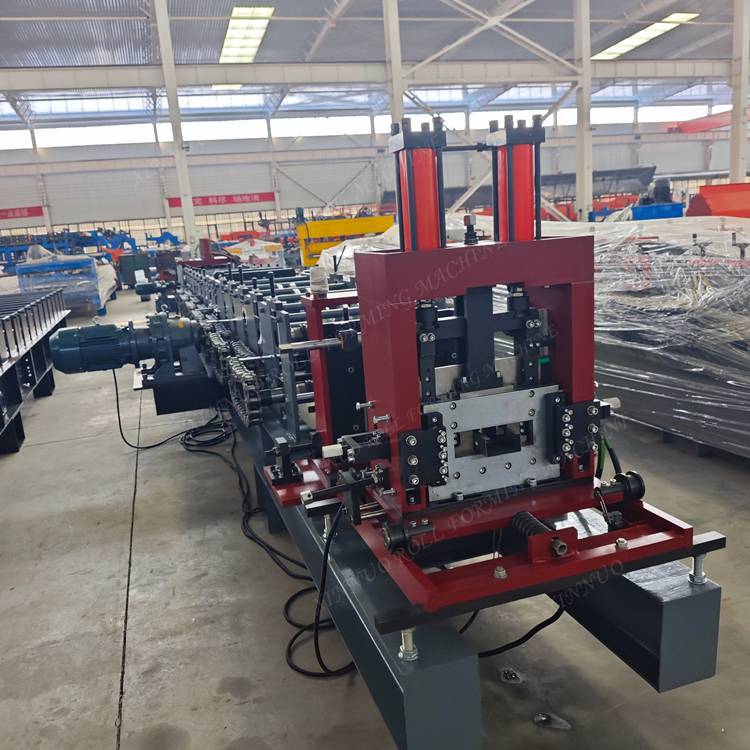

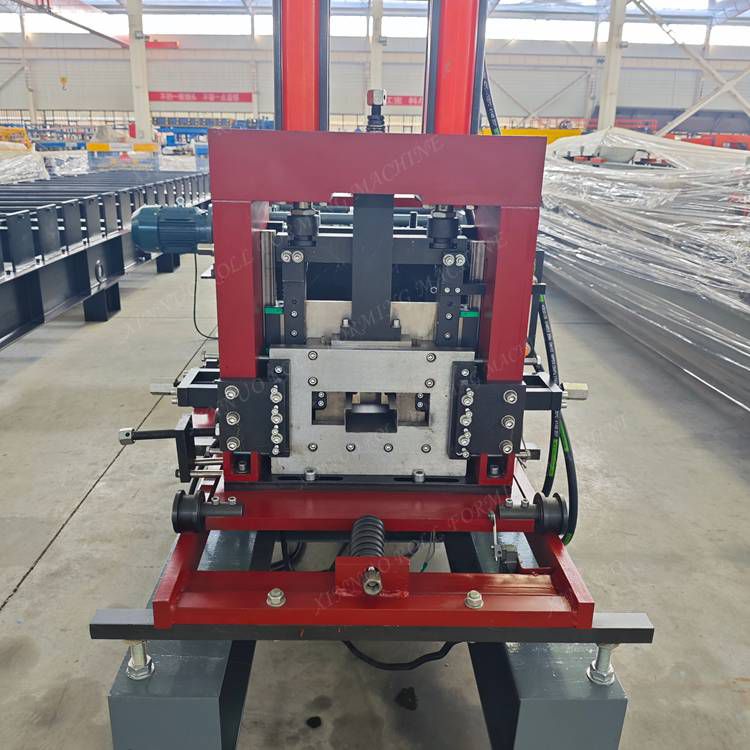

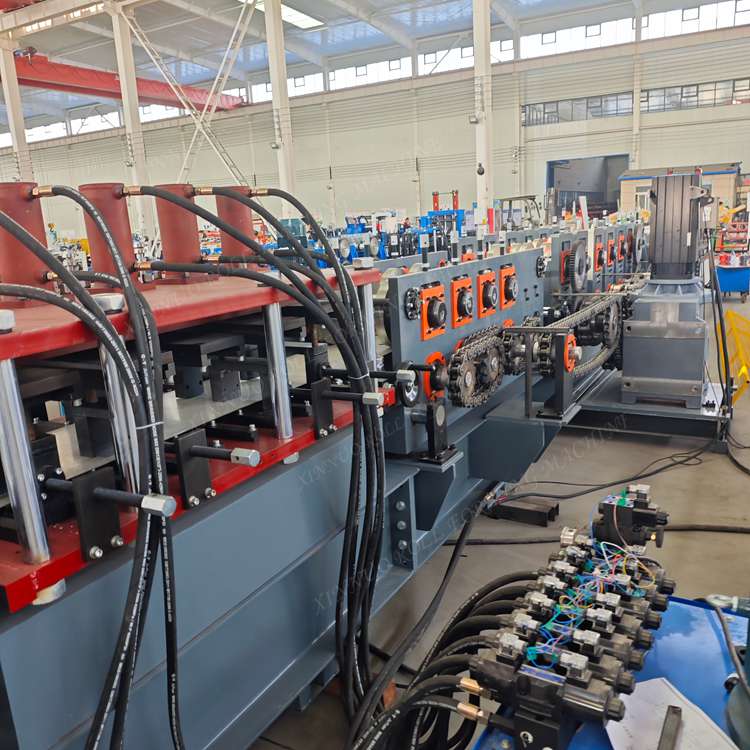

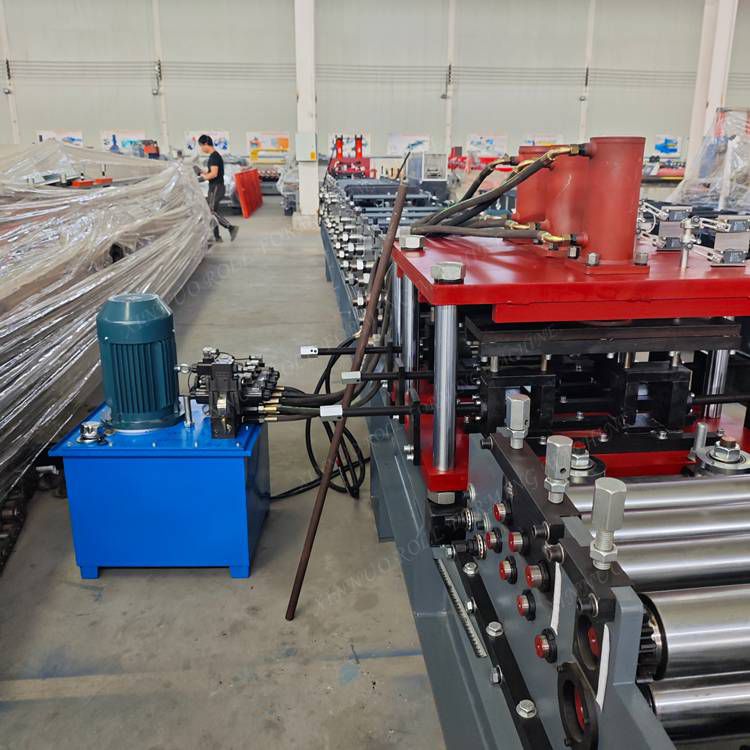

The hydraulic cutting unit provides precise length control with clean, burr-free edges, reducing secondary processing requirements and improving final product quality.
| Item | Description |
|---|---|
| Material Type | Galvanized Steel / Cold Rolled Steel |
| Profile Type | C Channel Section |
| Thickness Range | 1.5 – 3.5 mm |
| Production Speed | 10 – 22 m/min |
| Roller Stations | 12 – 20 stations |
| Control System | PLC Automatic Control |
| Cutting System | Hydraulic Servo Cutting |
| Adjustment Mode | Manual / Automatic Adjustment |
| Shaft Material | 45# High Strength Steel |
| Frame Structure | Heavy Duty Welded Frame |
| Voltage | 380V / 50Hz / 3 Phase |

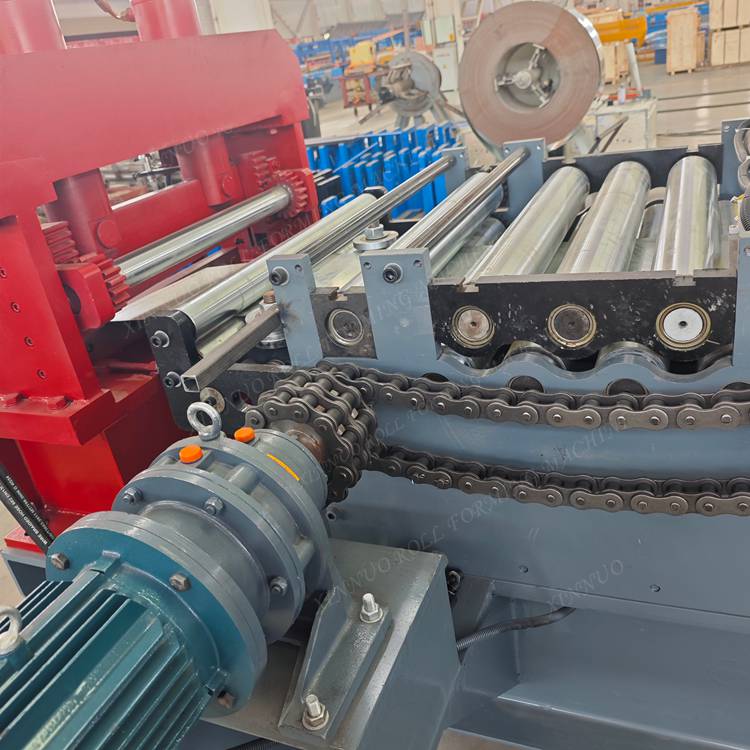

Steel Coil Feeding → Decoiler → Leveling System → Punching Unit → Roll Forming Section → Length Measurement → Hydraulic Cutting → Output Table
