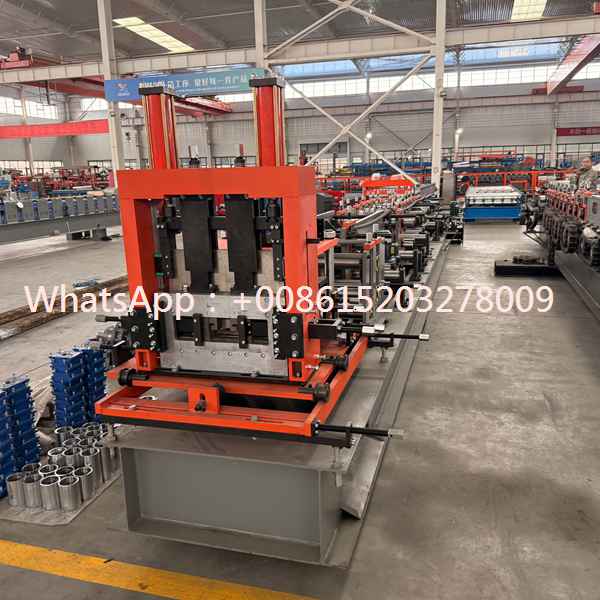

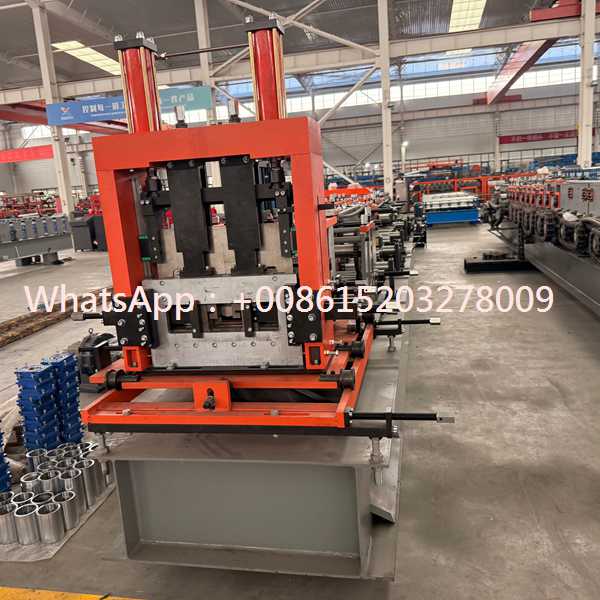

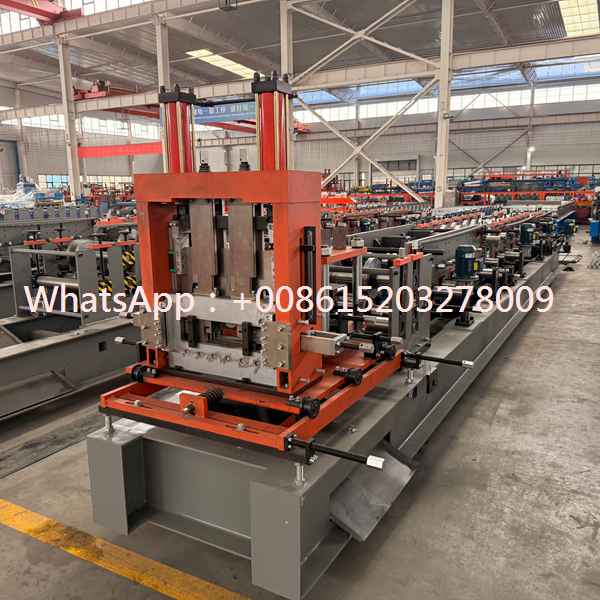

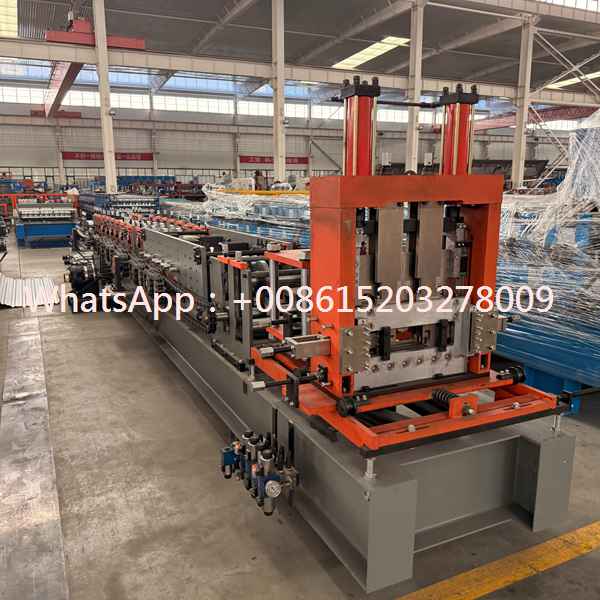

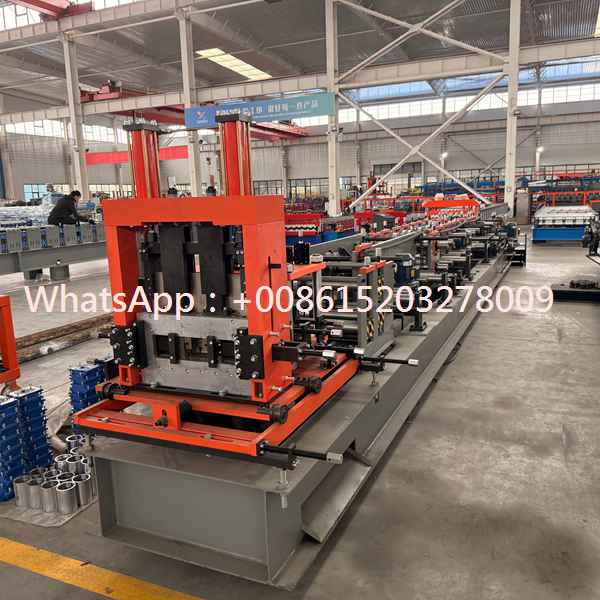

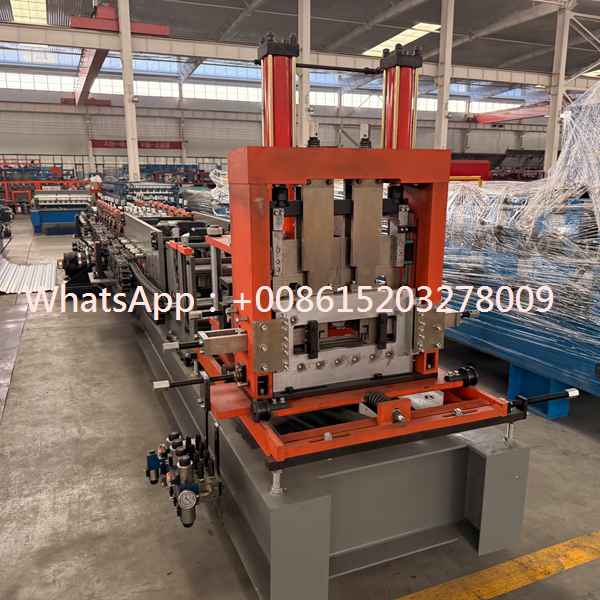

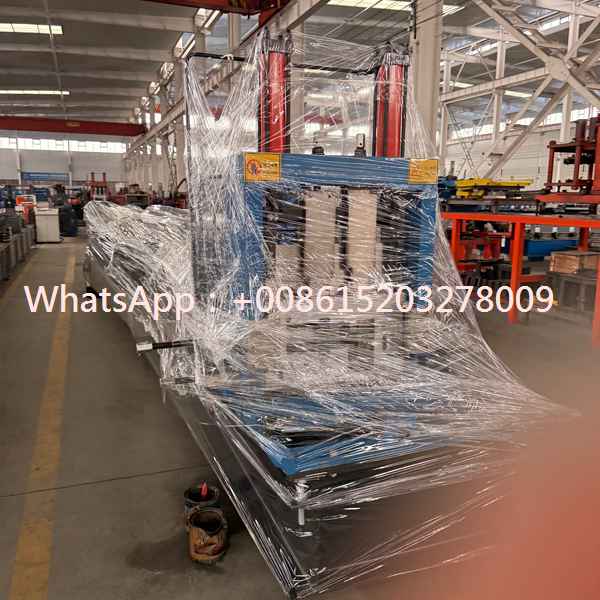

The Automatic Purlin Forming Machine is a professional roll forming equipment designed for producing high-quality steel purlins used in modern steel structure buildings. The machine is capable of manufacturing C-shaped and Z-shaped purlins with accurate dimensions, stable quality and excellent structural performance.
Using advanced cold roll forming technology, the equipment continuously processes steel coils into finished structural components. The produced purlins are widely used for roof support systems, wall frames, warehouses, industrial workshops and various steel construction projects.
The automatic production system integrates material feeding, profile forming, punching, cutting and output functions, providing an efficient solution for manufacturers requiring reliable and continuous purlin production.
The purlin forming machine is developed for companies requiring flexible and high-capacity structural steel component manufacturing. It can produce different purlin specifications according to construction requirements and engineering designs.
The equipment adopts automatic control technology to simplify operation and improve production consistency. Operators can adjust production parameters according to different profile sizes, material thicknesses and project requirements.
With strong adaptability and stable performance, the machine is suitable for both standard purlin production and customized steel structure projects.
The forming section consists of multiple precision roller stations that gradually shape flat steel strips into finished purlin profiles. The progressive forming method ensures smooth processing and accurate profile dimensions.
The roller configuration is designed according to different C and Z purlin specifications. High precision forming technology helps maintain product straightness, strength and consistency during continuous production.
The reinforced machine frame provides stable support during operation, reducing vibration and improving equipment reliability for long-term industrial use.
| Item | Specification |
|---|---|
| Machine Type | Automatic Purlin Forming Machine |
| Production Material | Galvanized Steel, Carbon Steel Coil |
| Profile Type | C Purlin, Z Purlin |
| Material Thickness | 1.5-3.5 mm |
| Production Speed | 15-40 m/min |
| Forming Method | Cold Roll Forming |
| Punching System | Automatic Hydraulic Punching |
| Cutting System | Automatic Hydraulic Cutting |
| Control System | PLC Automatic Control |
| Application | Steel Structure Component Manufacturing |
The machine supports production of different C and Z purlin profiles according to customer requirements. The adjustable design allows manufacturers to produce various sizes without purchasing multiple production lines.
This flexibility improves equipment utilization and helps companies provide more structural steel solutions for different construction markets.
| Purlin Type | Application |
|---|---|
| C Purlin | Roof and wall supporting structures |
| Z Purlin | Large span steel buildings |
| Customized Purlin | Special engineering projects |
| Steel Framing Profile | Industrial construction systems |
The integrated punching system allows holes to be processed automatically according to preset designs. This improves installation accuracy and reduces manual measurement work.
The cutting system provides accurate length control and automatic separation of finished purlins. The combination of punching and cutting functions improves the overall efficiency of structural component production.
The feeding unit ensures smooth transportation of steel coils into the forming section. The guiding mechanism maintains correct material positioning and helps achieve consistent production quality.
Additional equipment such as automatic decoilers, leveling systems and material handling devices can be integrated according to different factory production requirements.
| Production Stage | Description |
|---|---|
| Coil Loading | Install raw steel coil |
| Material Feeding | Transfer steel strip automatically |
| Punching Process | Create required mounting holes |
| Roll Forming | Shape steel into C or Z profile |
| Automatic Cutting | Cut finished purlin length |
| Product Collection | Prepare components for construction |
Steel purlins produced by this machine are widely used as important supporting components in various construction systems.
| Feature | Benefit |
|---|---|
| Automatic Production | Improves manufacturing efficiency |
| C/Z Profile Capability | Supports different products |
| Precision Forming | Ensures accurate dimensions |
| Integrated Processing | Reduces manual operation |
| Flexible Adjustment | Meets different projects |
The Automatic Purlin Forming Machine provides an efficient and reliable production solution for manufacturers of steel structure components. With precision roll forming technology, automatic control and flexible production capability, the equipment meets the requirements of modern construction industries.
It helps enterprises improve production efficiency, reduce manufacturing costs and supply high-quality C and Z purlins for industrial, commercial and large-scale steel building projects.
