Purlin Production for Prefabricated Buildings

Prefabricated buildings are manufactured from prepared structural components before being assembled at the project location. This construction method places greater emphasis on organized fabrication, repeatable dimensions, efficient material utilization, and predictable production schedules.

Purlins are important secondary members within many steel building systems. They can support roof or wall cladding while transferring loads toward the primary structural frame. A dedicated purlin production machine allows fabricators to manufacture these members directly from steel coil.

This machine uses a continuous cold-forming process to transform flat steel strip into the required structural cross-section. The material passes through multiple forming stations, with each station introducing a controlled amount of bending until the final geometry is achieved.

For prefabricated construction, production can be organized around individual building projects. Different finished lengths and quantities can be produced according to fabrication schedules, allowing the completed members to be sorted and prepared for later assembly.

Technical Specifications

Note: Final specifications are established according to the approved profile drawing, steel grade, material thickness, production requirements, punching pattern, finished lengths, and machine configuration.

How the Purlin Production Process Works

Production begins with a steel coil positioned on the decoiler. The strip is released gradually and transferred toward the forming line. The feeding arrangement maintains controlled movement while guiding the material toward the first forming station.

Before forming, the strip must be correctly aligned. Side guides and feeding components help maintain its position as it enters the roller system.

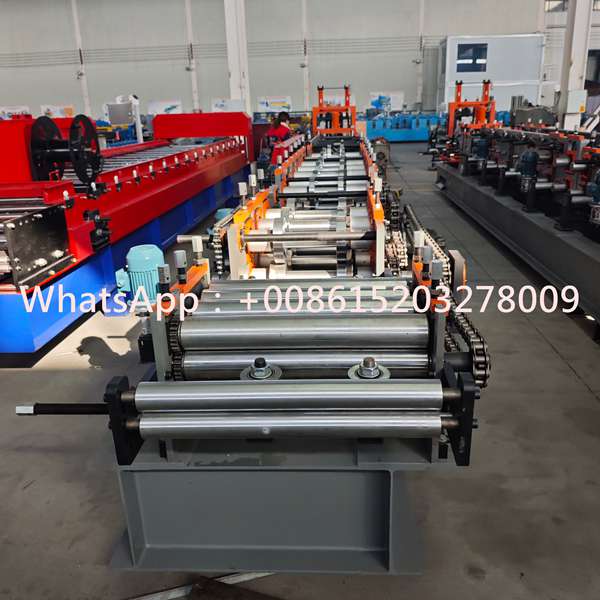

The forming section consists of multiple roller stations. Rather than producing the final cross-section in one operation, the rollers gradually bend the steel into the required web, flange, and lip geometry.

This progressive process distributes the forming work across several stages. The number and design of the stations depend on the profile shape, steel thickness, material strength, and dimensional requirements.

After the section has reached its final geometry, the continuous member moves toward the cutting area. Programmable length control allows individual pieces to be separated according to the required fabrication schedule.

Supporting Modular Construction

Prefabricated construction relies on the accurate preparation of components before they reach the building site. Purlins must be manufactured according to the dimensions shown on the structural drawings so that they can be incorporated into the planned frame.

A dedicated production line can help fabricators establish a consistent workflow for recurring projects. Material can be processed continuously, while finished sections are cut and organized according to the required component schedule.

For modular buildings, transportation and assembly considerations may influence member lengths and packaging. Producing components according to predetermined fabrication lists can simplify identification and preparation before shipment.

The machine can therefore form part of a larger prefabrication workflow that includes coil storage, cutting, punching, profile forming, inspection, bundling, labeling, transportation, and on-site assembly.

Material Selection for Prefab Structures

Steel selection should be based on the engineering requirements of the finished structural member. Galvanized steel is commonly considered for applications where additional surface protection is required.

Structural steel grades with different mechanical properties can require different forming conditions. Yield strength, thickness, strip width, and profile geometry should therefore be considered when designing the roller tooling.

The reference thickness range for this type of machine is approximately 1.5–3.2 mm. Actual processing capability depends on the selected section, material strength, and final equipment configuration.

Material consistency is also important. Variations in coil thickness, width, flatness, or mechanical properties can influence feeding stability and finished-section dimensions.

C and Z Purlin Options

C and Z sections are commonly considered for secondary steel framing. The appropriate profile depends on the structural design, connection arrangement, span requirements, and project specifications.

C sections have a channel-style configuration and can be used in selected roof and wall support systems. Their geometry may be suitable for projects where individual members are connected directly to the primary structure.

Z sections feature an offset shape that can allow overlapping between adjacent members in certain structural arrangements. This configuration can be useful for continuous framing systems when specified by the engineering design.

The production line can be configured around the required section range. Where multiple dimensions are needed, the appropriate profile-change method should be selected according to production frequency and machine design.

Automatic Cutting for Project Components

Prefabricated building projects commonly contain purlins of different lengths. Automatic cutting allows the continuous formed section to be divided into individual members according to programmed dimensions.

The control system coordinates material movement and cutting commands. Once the required length has been reached, the cutting mechanism separates the member while production continues.

Different length requirements can be arranged according to the fabrication list. This is particularly useful when one production batch contains several component sizes for the same building.

The achievable cutting tolerance depends on the equipment configuration, material condition, production speed, measurement system, and customer requirements. Final tolerances should be confirmed during technical design.

Optional Punching for Easy Assembly

Many prefabricated steel structures use pre-positioned holes to simplify connections during assembly. A hydraulic punching system can be integrated into the production line when the project requires factory-prepared connection points.

Hole locations are determined by the structural drawings. The punching tooling can be designed according to hole diameter, spacing, longitudinal position, and transverse position.

Performing punching during the production process can reduce separate drilling operations after the purlin has been formed. This can help create a more integrated component-preparation workflow.

Before mass production, trial members should be inspected to verify that hole positions correspond with the approved fabrication drawings.

Applications of the Machine

The equipment can support manufacturers involved in different types of prefabricated and steel-framed construction. The final application depends on the structural design and approved purlin specification.

Customized Machine Design

Prefabricated building manufacturers may work with their own standardized profile range or produce sections based on project-specific structural drawings. The machine can be engineered according to the required production scope.

Customization may include profile dimensions, material thickness, steel grade, forming-station arrangement, punching layout, cutting method, control functions, production speed, and finished-product handling.

A complete profile drawing is recommended as the starting point for technical design. It provides the dimensions required to determine roller geometry and the progressive forming sequence.

Production volume should also be considered. A workshop producing standardized components every day may require a different configuration from a manufacturer producing occasional project-based batches.

Production Quality Management

Quality control should begin with the incoming steel coil. Material thickness, width, surface condition, and mechanical properties should be checked against the agreed specification before production.

During forming, operators should monitor material tracking and profile geometry. Roller alignment and guide adjustment can influence the stability of the finished section.

Finished members should be checked for web dimensions, flange geometry, lip dimensions, straightness, length, and punching position where applicable.

Sample inspection records can be maintained throughout production. This provides a practical way to monitor dimensional consistency when manufacturing large quantities of components for a prefabricated building project.

Installation and Commissioning Support

The workshop should provide sufficient space for the complete production line, including coil loading, operator access, finished-member discharge, maintenance, and material handling.

Before commissioning, mechanical components, electrical connections, hydraulic equipment, sensors, forming stations, cutting mechanisms, and safety devices should be inspected.

Trial production is performed using the agreed material and profile. Sample members are then measured against the approved drawing before the machine enters routine operation.

Operator training can cover control-panel operation, production parameter settings, material loading, machine startup and shutdown, profile adjustment, punching functions, cutting operations, routine maintenance, and safety procedures.

After-Sales Service and Long-Term Operation

Reliable long-term operation requires regular inspection and maintenance of both mechanical and electrical components. Forming rollers, shafts, bearings, transmission parts, cutting tools, hydraulic components, sensors, and electrical connections should be maintained according to the recommended schedule.

Operators should pay attention to abnormal vibration, unusual noise, material deviation, inconsistent dimensions, cutting problems, or punching errors. Prompt inspection can help prevent small issues from developing into extended production interruptions.

Technical assistance can cover machine operation, parameter adjustment, profile forming, punching configuration, cutting functions, routine maintenance, and troubleshooting.

Recommended spare parts can be prepared according to the actual machine configuration. Maintaining appropriate replacement components can help support continuous production during long-term use.
