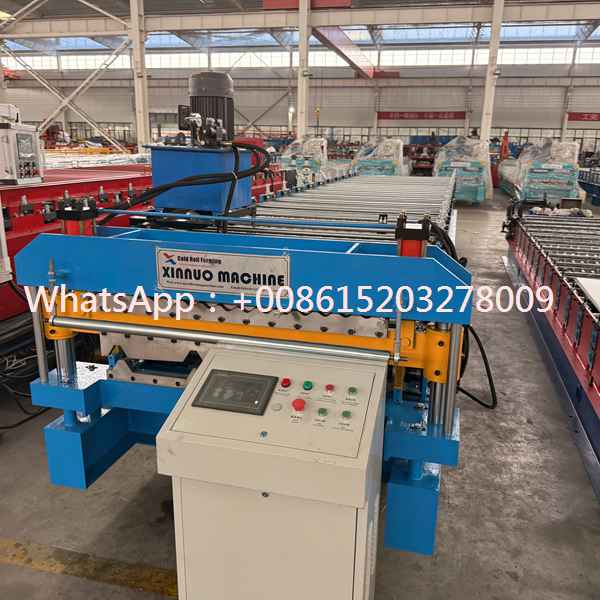

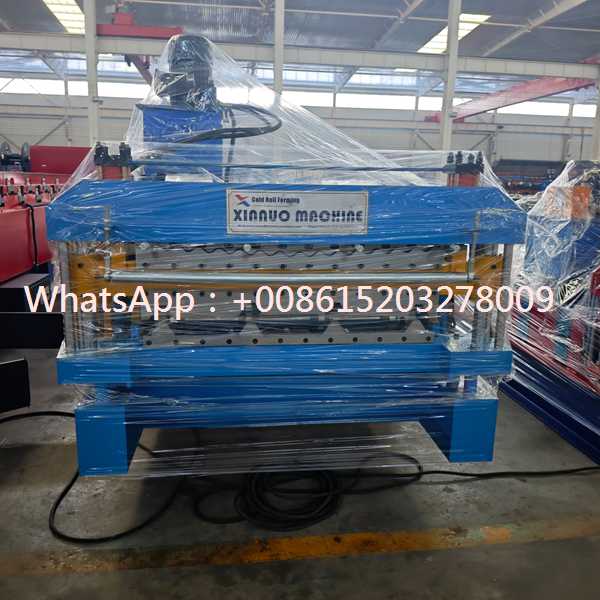

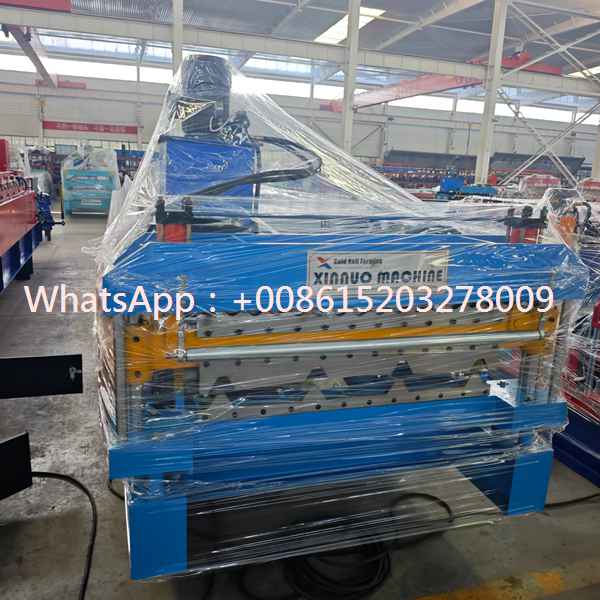

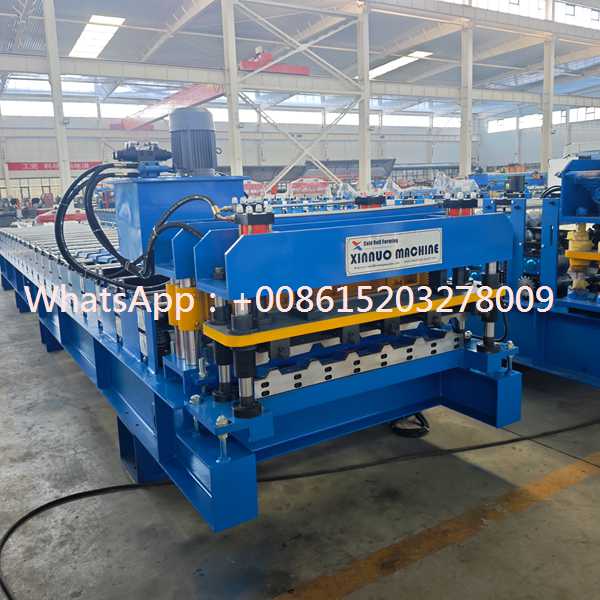

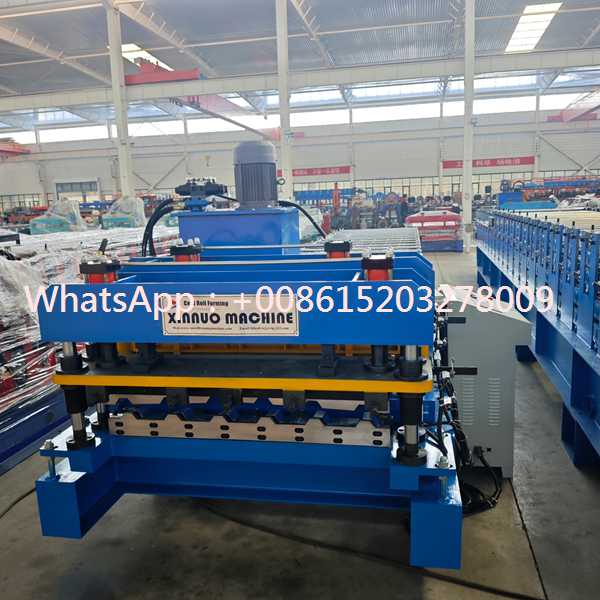

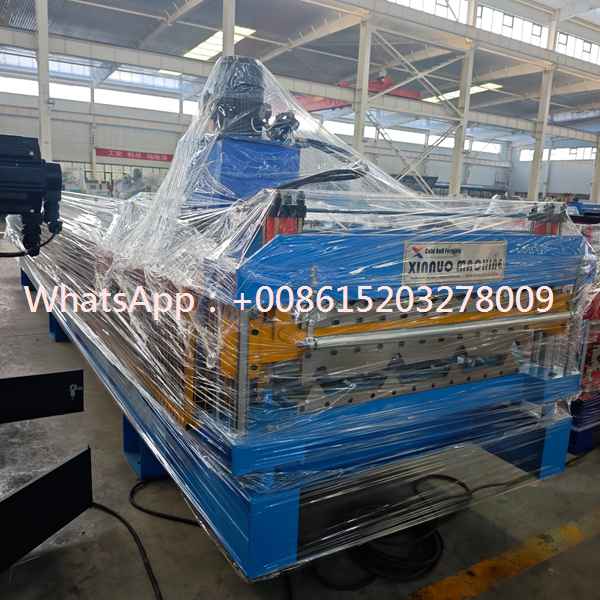

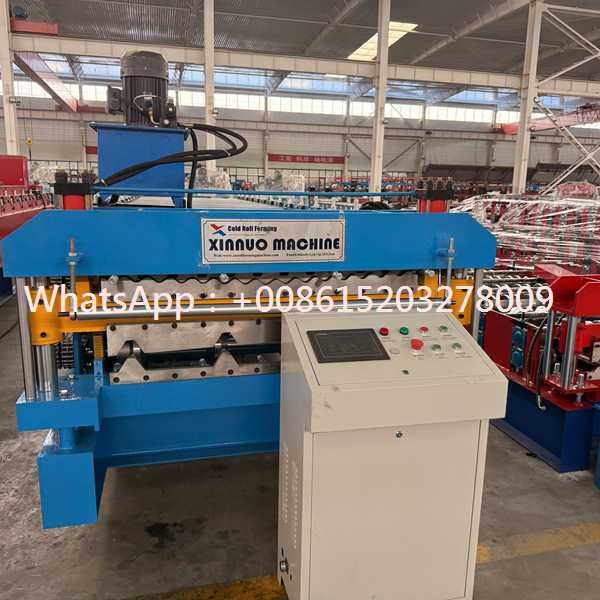

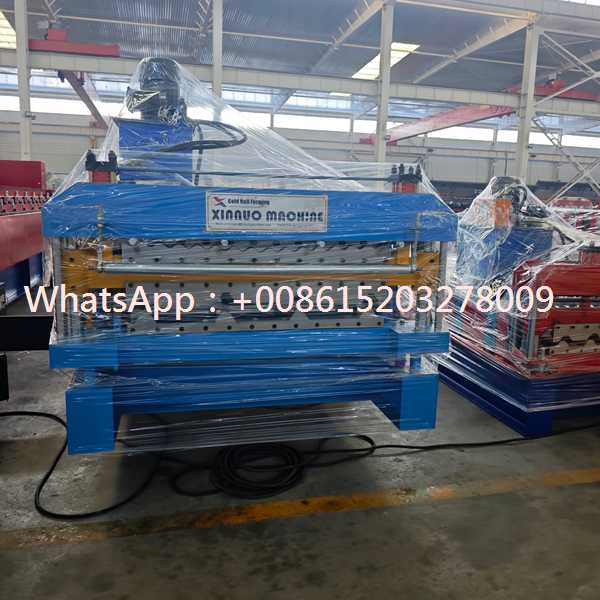

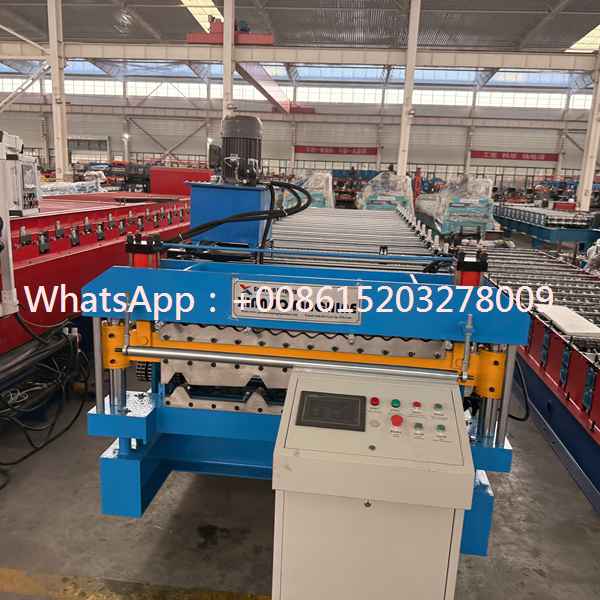

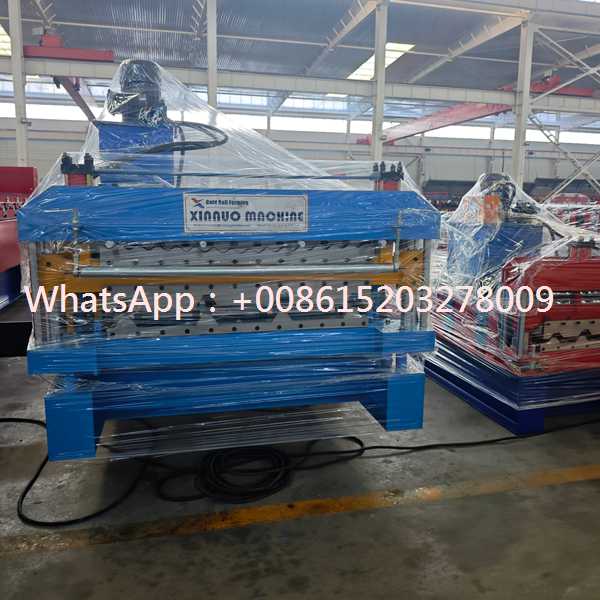

The Automatic Metal Roof Panel Making Machine is a professional roll forming equipment system designed for manufacturing high-quality metal roofing panels with accurate dimensions and reliable performance. The machine is widely used for producing trapezoidal roof sheets, corrugated panels, wall cladding sheets and customized metal building panels for different construction applications.
Using advanced cold roll forming technology, this equipment continuously processes steel coils into finished roof panels with excellent surface quality, stable structure and convenient installation characteristics. It provides an efficient production solution for roofing material manufacturers, steel structure companies and construction material suppliers.
The automatic production system integrates coil feeding, sheet forming, length measurement and cutting functions, helping manufacturers achieve continuous operation, reduce manual labor requirements and improve overall production efficiency.
The metal roof panel making machine is developed for companies requiring stable and flexible roofing panel manufacturing capability. The equipment can produce different panel profiles according to customer requirements, including various wave shapes, widths and thickness specifications.
The automatic control system allows operators to set production parameters easily and maintain consistent output quality. The intelligent operation mode improves production management efficiency and reduces production adjustment time.
With a compact structure and reliable performance, the machine is suitable for both large-scale industrial production and customized roofing panel manufacturing projects.
The forming section adopts multiple precision roller stations to gradually shape flat steel strips into finished roofing panels. The continuous forming process ensures smooth material transformation and accurate profile dimensions.
The roller design is customized according to different roof panel structures, material thickness and application requirements. This helps maintain stable forming quality while protecting the surface of coated metal materials.
The reinforced frame structure provides strong support during operation, improving machine stability and ensuring reliable performance for long-term production.
| Item | Specification |
|---|---|
| Machine Type | Automatic Metal Roof Panel Making Machine |
| Processing Material | PPGI, Galvanized Steel, Color Steel |
| Material Thickness | 0.3-0.8 mm |
| Production Speed | 10-35 m/min |
| Forming Method | Continuous Cold Roll Forming |
| Control System | PLC Automatic Control |
| Cutting System | Hydraulic Automatic Cutting |
| Panel Type | Trapezoidal, Corrugated, Customized |
| Operation Mode | Automatic Continuous Production |
| Production Application | Metal Roofing Panel Manufacturing |
Different construction projects require different roofing designs and specifications. The machine can be customized according to customer drawings, samples and technical requirements to produce suitable metal roof panels.
Manufacturers can select different roller systems to produce various roofing profiles, allowing them to expand product categories and meet different market demands.
| Panel Type | Application |
|---|---|
| Trapezoidal Roof Panel | Industrial and commercial buildings |
| Corrugated Roof Panel | General construction roofing |
| Wall Cladding Panel | Building exterior systems |
| Customized Metal Panel | Special construction projects |
The feeding system ensures smooth transportation of steel coils into the forming unit. The guiding mechanism maintains correct material positioning and improves panel production accuracy.
According to production requirements, the machine can be combined with automatic decoilers, leveling devices and material handling systems to create a complete roofing panel manufacturing line.
The cutting system works together with the PLC control unit to achieve accurate length setting and automatic sheet separation. This improves production efficiency and reduces manual operation during the manufacturing process.
The automatic cutting function provides clean panel edges and consistent dimensions, making finished roof panels easier to transport and install.
| Production Step | Description |
|---|---|
| Coil Loading | Install raw metal coil |
| Material Feeding | Transfer steel strip into machine |
| Roll Forming | Create designed roof panel shape |
| Length Setting | Control finished panel size |
| Automatic Cutting | Cut panels according to requirement |
| Product Collection | Prepare finished sheets for use |
Metal roof panels produced by this machine are widely used in modern construction because of their lightweight structure, durability and excellent weather resistance.
| Feature | Benefit |
|---|---|
| Automatic Production | Improves manufacturing efficiency |
| Precision Forming | Ensures accurate panel quality |
| Flexible Configuration | Supports customized products |
| Stable Operation | Suitable for continuous production |
| Wide Application | Meets different construction needs |
The Automatic Metal Roof Panel Making Machine provides an efficient and reliable solution for manufacturers producing metal roofing products. With advanced forming technology, automatic control and flexible customization capability, the equipment meets the requirements of modern building material production.
It helps companies improve production capacity, reduce operating costs and provide durable roof panel solutions for industrial, commercial and residential construction markets.
