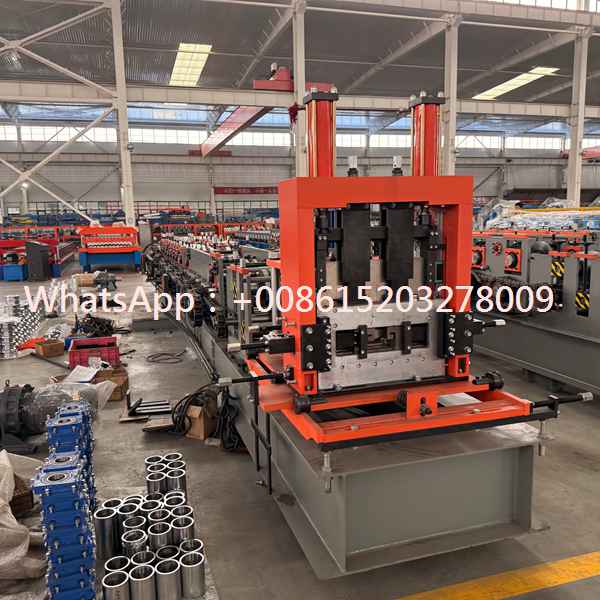

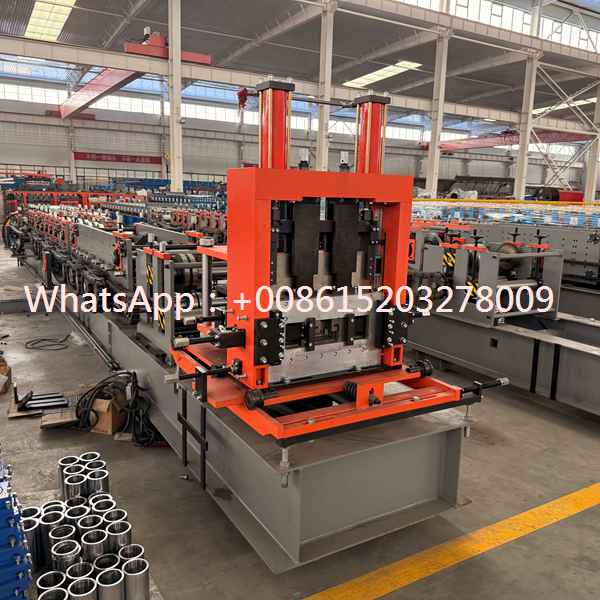

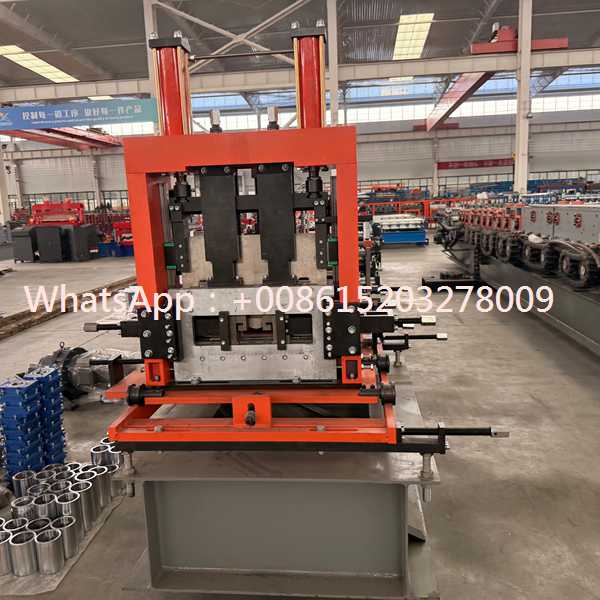

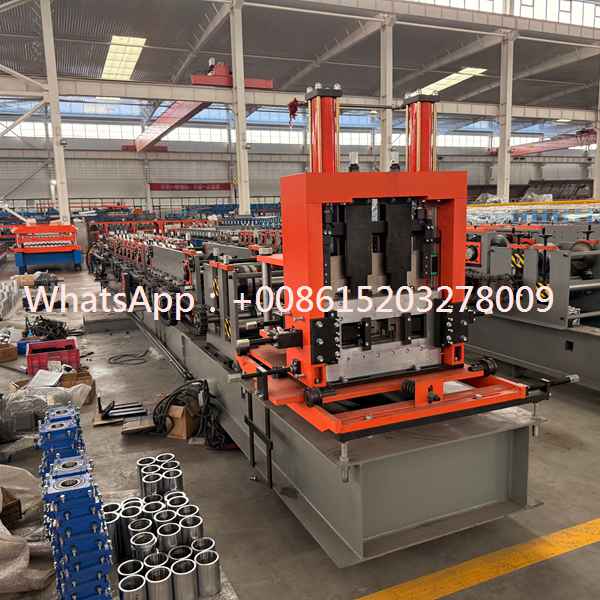

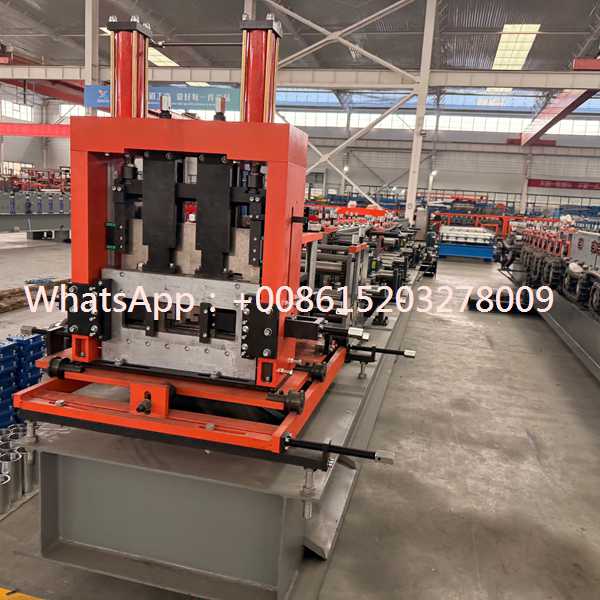

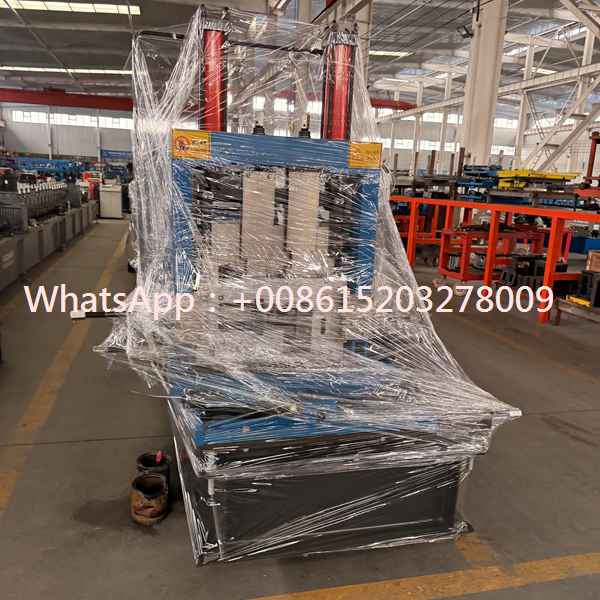

The Automatic Pre-Cut CZ Purlin Machine is a professional roll forming system designed for manufacturing high-quality C and Z shaped steel purlins used in steel structure buildings, industrial workshops and construction projects. The machine combines automatic forming technology with pre-cutting functions, allowing manufacturers to produce structural purlins with accurate lengths and efficient production performance.
Unlike traditional post-cutting equipment, the pre-cut design allows steel materials to be cut according to preset lengths before entering the forming section. This production method improves material utilization, reduces waste and provides greater flexibility for different construction requirements.
The equipment is widely used by steel structure manufacturers, building system suppliers and construction material producers who require accurate, efficient and flexible purlin production solutions.
The pre-cut CZ purlin machine is developed to manufacture both C purlins and Z purlins within one production system. By adjusting machine settings, operators can produce different structural profiles according to project requirements.
The automatic conversion capability reduces equipment investment and improves production efficiency. One machine can support multiple purlin specifications, helping manufacturers respond quickly to different customer orders.
The integrated production system includes material feeding, punching, cutting, roll forming and output processes, providing a complete solution for modern steel structure manufacturing.

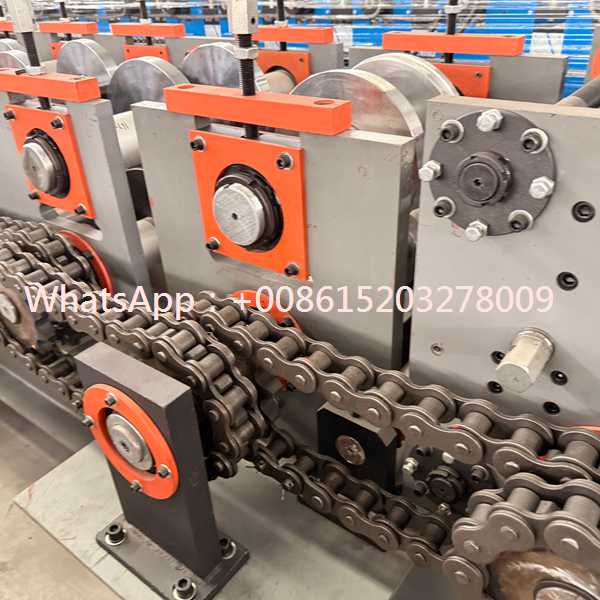

The forming unit adopts multiple roller stations to gradually shape steel strips into accurate C and Z profiles. The progressive forming process ensures stable deformation and maintains consistent product dimensions.
The roller arrangement is optimized according to different thicknesses, widths and profile requirements. Precision forming technology helps produce purlins with excellent straightness and reliable structural performance.
The strong machine frame provides stable support during operation, making the equipment suitable for continuous industrial production environments.
| Item | Specification |
|---|---|
| Machine Type | Automatic Pre-Cut CZ Purlin Machine |
| Production Material | Galvanized Steel, Carbon Steel Coil |
| Profile Type | C Purlin, Z Purlin |
| Material Thickness | 1.5-3.0 mm |
| Production Speed | 15-40 m/min |
| Cutting Method | Pre-Cut Before Forming |
| Punching System | Automatic Hydraulic Punching |
| Control System | PLC Automatic Control |
| Operation Mode | Automatic Continuous Production |
| Application | Steel Structure Frame Manufacturing |
The pre-cut system provides better control over finished purlin lengths and improves production flexibility. It is especially suitable for projects requiring different structural components with various dimensions.
By cutting raw material before forming, the machine can reduce unnecessary material consumption and improve production efficiency compared with conventional cutting methods.
| Feature | Production Benefit |
|---|---|
| Pre-Cut Function | Improves material utilization |
| C/Z Interchangeable Design | Produces multiple profiles |
| Automatic Punching | Improves processing efficiency |
| Digital Length Control | Ensures accurate dimensions |
The machine can produce different C and Z purlin sizes according to building design requirements. Adjustable components allow manufacturers to change profile specifications efficiently.
This flexibility makes the equipment suitable for various steel structure applications, including warehouses, factories and large-span buildings.
| Purlin Type | Application |
|---|---|
| C Purlin | Roof and wall support structures |
| Z Purlin | Large span steel buildings |
| Customized Purlin | Special construction projects |
The punching system allows holes to be processed automatically according to preset positions and dimensions. This reduces manual measurement errors and improves production consistency.
The integrated punching and forming functions provide an efficient manufacturing process for structural steel components.
| Process Stage | Description |
|---|---|
| Coil Loading | Install steel coil material |
| Pre-Cutting | Cut material according to length |
| Punching | Create required holes |
| Roll Forming | Shape C or Z profile |
| Profile Adjustment | Set final dimensions |
| Product Collection | Prepare purlins for use |
CZ purlins produced by this machine are widely used as important structural components in modern steel buildings.
| Feature | Advantage |
|---|---|
| C/Z Profile Production | One machine for multiple products |
| Pre-Cut Technology | Reduces material waste |
| Automatic Control | Improves production efficiency |
| Precision Forming | Ensures structural accuracy |
| Flexible Adjustment | Meets different projects |
The Automatic Pre-Cut CZ Purlin Machine provides an efficient and flexible solution for steel structure component manufacturers. With automatic punching, pre-cut technology and precision roll forming capability, the equipment delivers stable production performance for different construction requirements.
It helps companies improve material efficiency, expand product capabilities and manufacture high-quality C and Z purlins for industrial, commercial and large-scale steel building projects.
