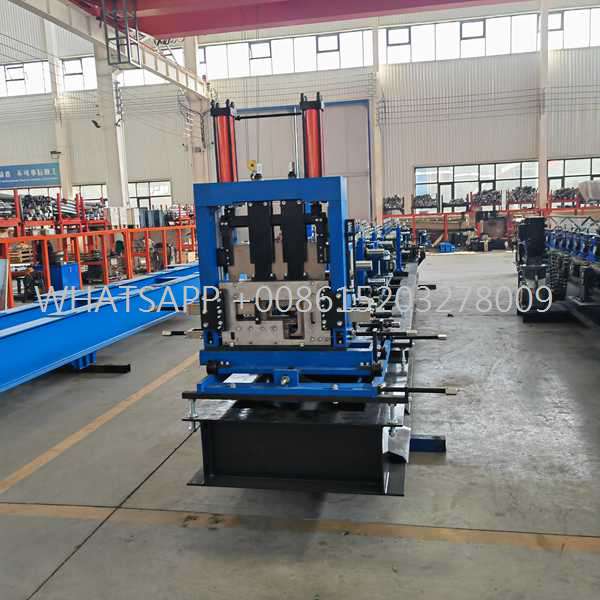

Our high-performance Z Purlin Roll Forming Machine is engineered to deliver exceptional precision and efficiency for modern steel construction and pre-engineered metal buildings. Designed for heavy-duty industrial applications, this fully automatic machine effortlessly processes galvanized steel and hot-rolled steel coils into high-strength Z-shaped structural purlins. Equipped with an advanced PLC automatic control system, it allows operators to seamlessly modify web widths, flange heights, and lip sizes via an intuitive touchscreen interface within minutes, eliminating the need for tedious manual roller adjustments or spacer changes.

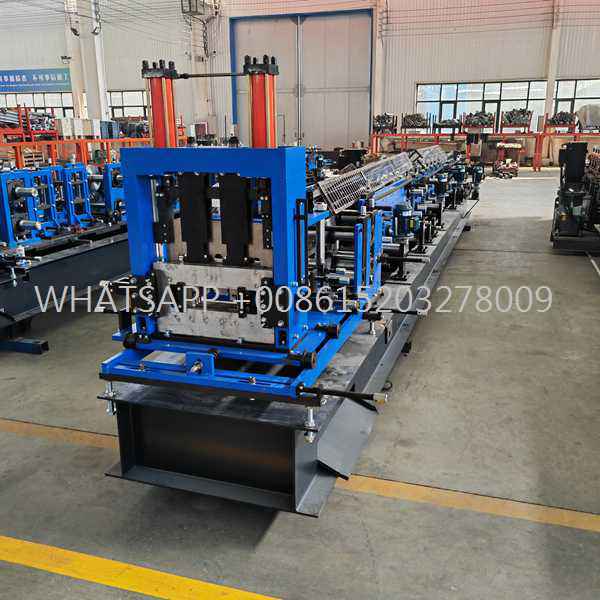

Are you looking for a highly reliable, precise, and durable manufacturing solution for structural steel framing? Our state-of-the-art Z purlin roll forming machine offers industrial-grade engineering, high-speed output, and unmatched mechanical stability. This automated production line is specifically built to handle the rigorous demands of manufacturing Z-shaped steel profiles used extensively in industrial warehouses, aircraft hangars, commercial complexes, and agricultural metal buildings. By upgrading to this advanced system, your factory can achieve seamless roll forming accuracy while significantly reducing labor costs, material waste, and operational downtime.

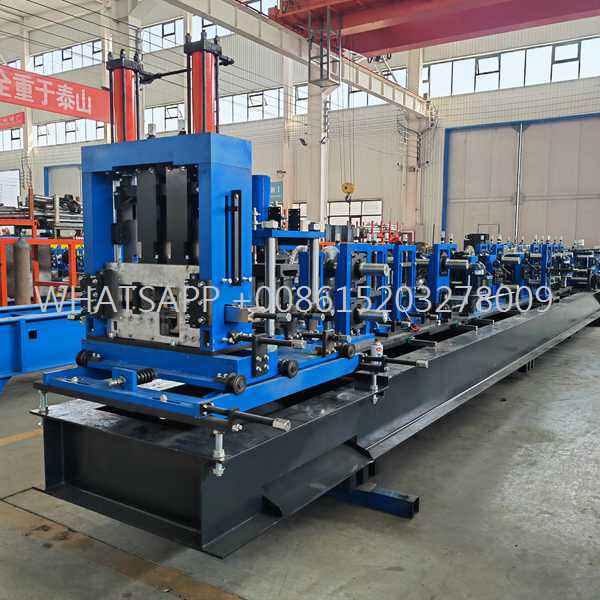

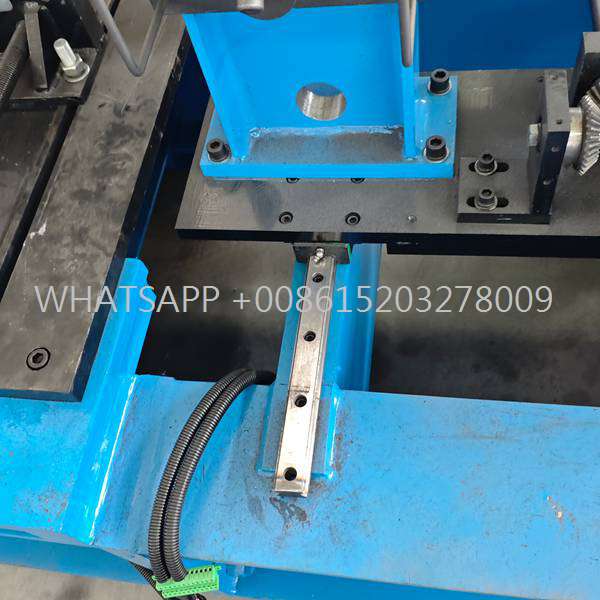

Our machine utilizes an advanced technological design that allows for rapid size switching. Traditional machines require operators to manually change rollers or insert spacers, a process that can take hours. With our modern automatic size-changing system, the width and height modifications are handled entirely through computerized motorized systems. This ensures that you can shift between different production orders smoothly, optimizing factory uptime and increasing overall efficiency. Every forming station is precisely adjusted to maintain absolute symmetry, ensuring that the structural integrity of the Z-purlin is never compromised during high-volume manufacturing runs.

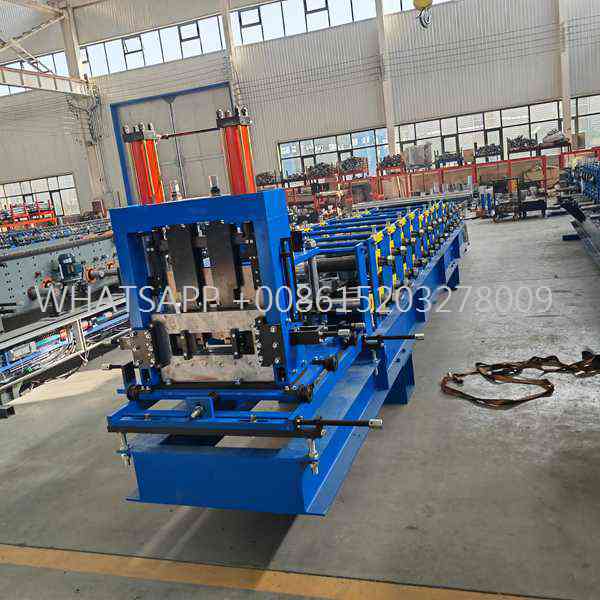

Key Features & Technological Advantages

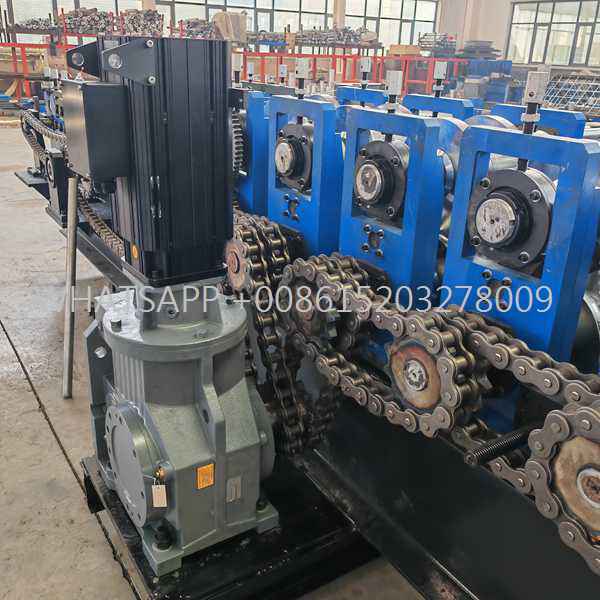

Technical Parameters & Detailed Specifications| Parameter Item | Technical Data / Specifications |
|---|---|
| Applicable Raw Material | Galvanized Steel Coils, Cold Rolled Steel, Hot Rolled Steel |
| Material Yield Strength | Q235 to Q355 / G350 to G550 MPa |
| Material Thickness Range | 1.5 mm – 3.0 mm (Customizable up to 3.5mm) |
| Web Width Range (H) | 100 mm – 300 mm (Automatic Adjustable via PLC) |
| Flange Height Range (B) | 40 mm – 80 mm (Automatic Adjustable via PLC) |
| Lip Size Range (C) | 10 mm – 20 mm (Automatic Adjustable via PLC) |
| Forming Production Speed | 15 – 25 m/min (Excluding cutting and punching time) |
| Roll Forming Stations | 16 – 20 Roller Stations (Depending on final profile design) |
| Roller Material & Treatment | GCr15 Bearing Steel, Quenched HRC 58-62, Hard Chrome Plated |
| Shaft Material & Diameter | 40Cr Steel, Quenched and Tempered, Diameter 80mm / 90mm |
| Transmission System | Heavy Duty Chain Drive or Gimbal Gearbox Transmission |
| Control System Type | PLC Touch Screen System (Siemens / Mitsubishi / Panasonic) |
| Cutting & Punching Mechanism | Hydraulic Pre-punching & Flying Hydraulic Post-cutting |
| Cutting Length Tolerance | Within ±1.0 mm |
| Main Motor Power | 15 KW / 18.5 KW (Based on material thickness requirements) |
| Hydraulic Station Power | 5.5 KW / 7.5 KW |
| Voltage Requirements | 380V, 50Hz, 3 Phase (Customizable to local standards) |
The high-quality Z-shaped steel structural profiles manufactured by this machine are widely used as crucial load-bearing roof purlins and wall girts. Due to their excellent structural strength and cost-effectiveness, they provide the fundamental structural support framework for industrial factories, large-scale commercial storage facilities, logistical warehouses, railway stations, exhibition centers, airports, and modern commercial steel infrastructure projects.
Additionally, they are highly demanded in the renewable energy sector for assembling heavy-duty solar panel mounting ground racks. The precise overlapping capability of Z-purlins makes them perfect for continuous span beams in heavy-duty architectural design, making this machinery an essential asset for steel processing factories and infrastructure contractors worldwide.

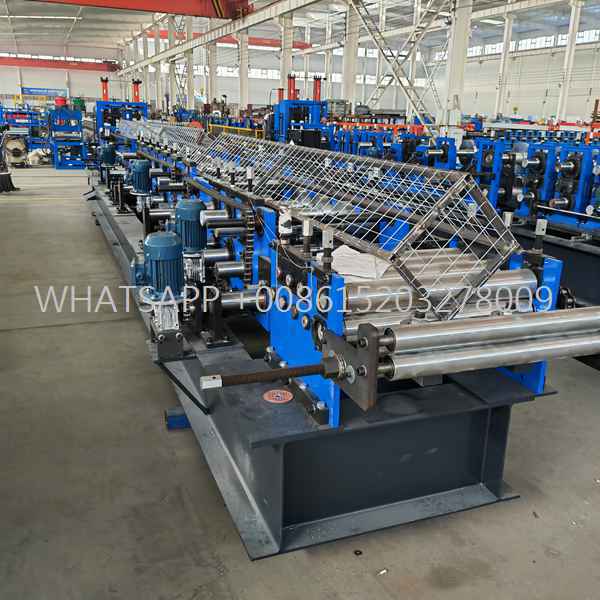

A complete production line consists of several high-performance modules designed to work in perfect synchronization:

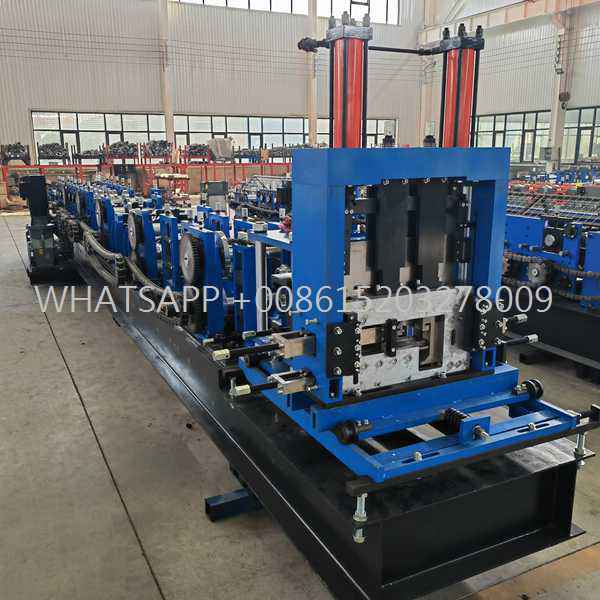

Every unit undergoes a rigorous multi-hour testing phase prior to shipment. We ensure that all electrical systems, hydraulic pressures, and PLC automatic dimension-changing modules perform perfectly under real load conditions. Our strict tolerance monitoring guarantees that the final outputs meet International Standards for metal structural building components, giving you total peace of mind for heavy industrial projects.

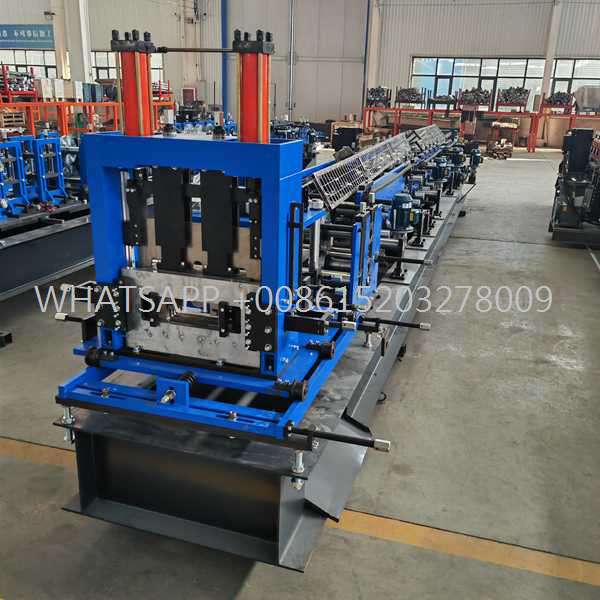

As an experienced and professional roll forming machine manufacturer, we offer fully customized engineering designs to perfectly match your specific profile drawings, punching patterns, and production capacities. Contact us today to receive a factory-direct wholesale price, detailed technical specifications, and a customized machinery layout proposal to elevate your steel manufacturing business!
