Please provide:
• Coil thickness and width
• IBR profile drawing
• Required production speed
• Country voltage standard
We will provide a detailed technical proposal and quotation within 24 hours.

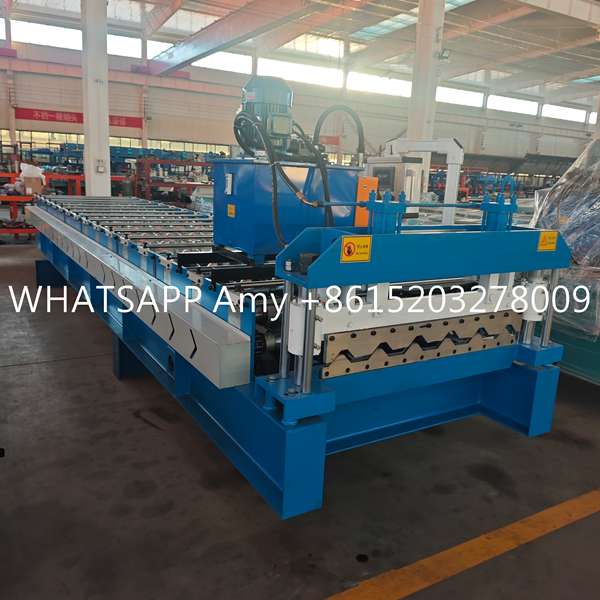

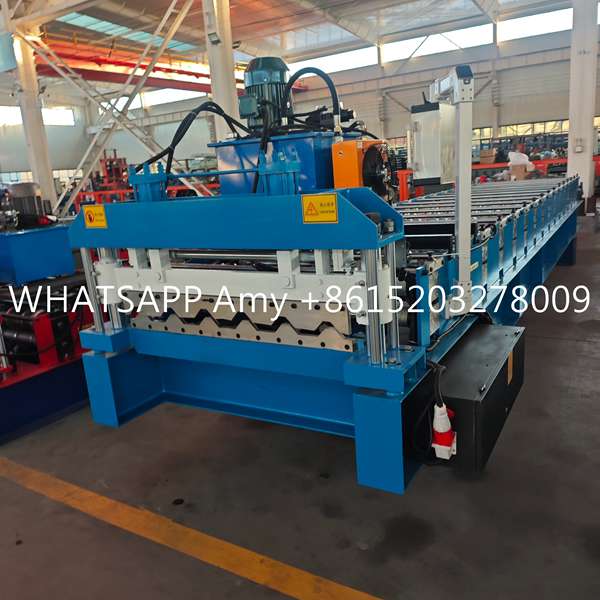

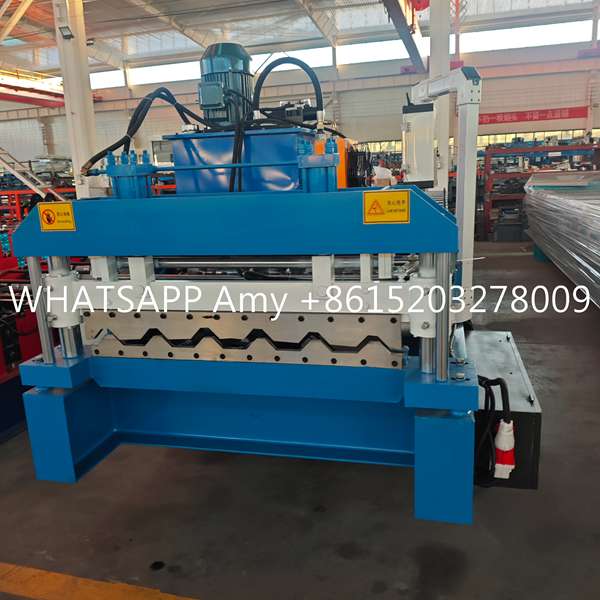

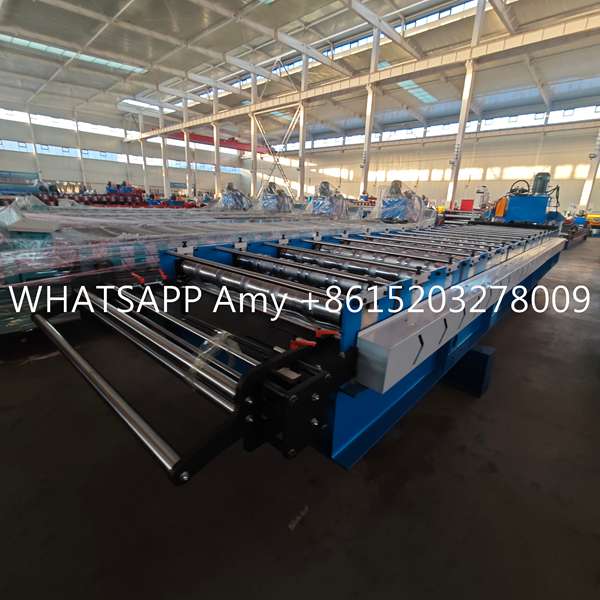

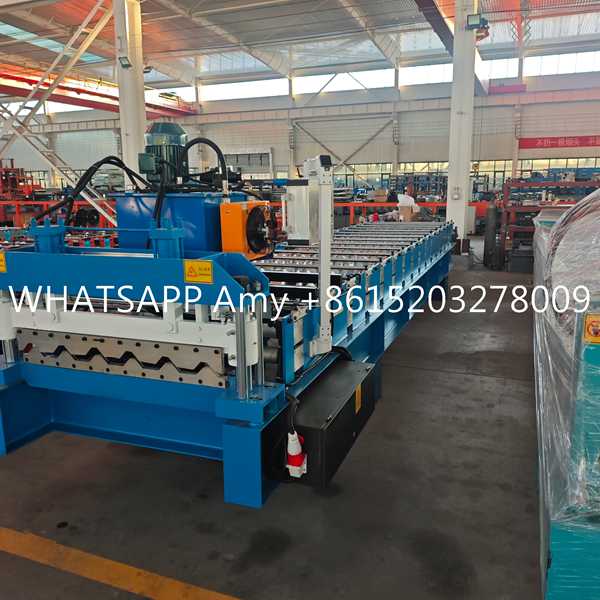

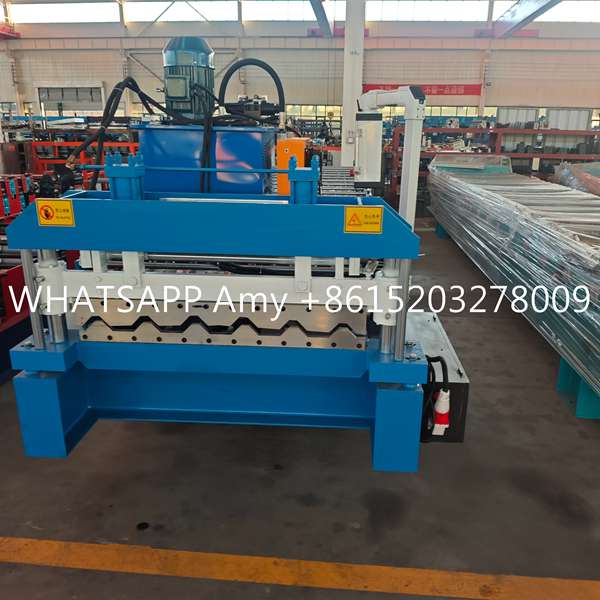

The IBR roll forming machine is specialized equipment for producing Inverted Box Rib (IBR) metal roofing sheets from steel coils. It converts flat metal strips into strong structural roofing panels through a continuous cold roll forming process.
IBR roofing sheets are widely used in industrial buildings, warehouses, commercial structures and residential roofing projects due to their excellent load capacity, water drainage performance and wind resistance.
Our roll forming system integrates decoiling, guiding, forming, cutting and discharge into a fully synchronized production line. The machine ensures stable operation, accurate rib formation and consistent sheet length.
Hydraulic decoiler (5T–10T optional)
Feeding and leveling system
Roll forming section (multiple forming stations)
Servo tracking hydraulic cutting
Finished sheet output table
The entire line is controlled by PLC with touch screen interface for easy parameter adjustment.
• Suitable material: GI / PPGI / Aluminum
• Thickness range: 0.3 – 0.8 mm
• Forming stations: 16–24 stations
• Forming speed: 15–30 m/min
• Cutting accuracy: ±1 mm
• Drive system: Chain drive or gearbox drive
• Roller material: 45# steel with chrome coating
• Voltage: Customized
Each roller station is precisely machined to ensure consistent rib height and smooth profile shape.
Optimized transmission structure increases production efficiency for large-scale roofing projects.
The machine frame is made of heavy welded steel structure for long-term industrial use.
We can design roller molds according to your local IBR drawing or provide standard IBR profiles.
Stable hydraulic cutting system reduces downtime and improves production continuity.
IBR roof sheets produced by this machine are widely applied in:
Steel structure factories
Logistics warehouses
Agricultural buildings
Shopping centers
Residential housing projects
Industrial workshops
• Experienced manufacturing team
• Strict quality control system
• Global export experience
• Installation and training support
• Spare parts long-term supply
• Fast delivery time
