The working procedure includes:

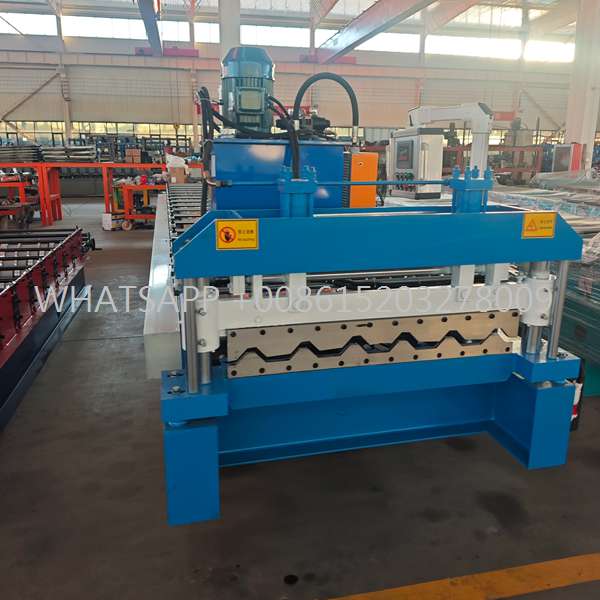

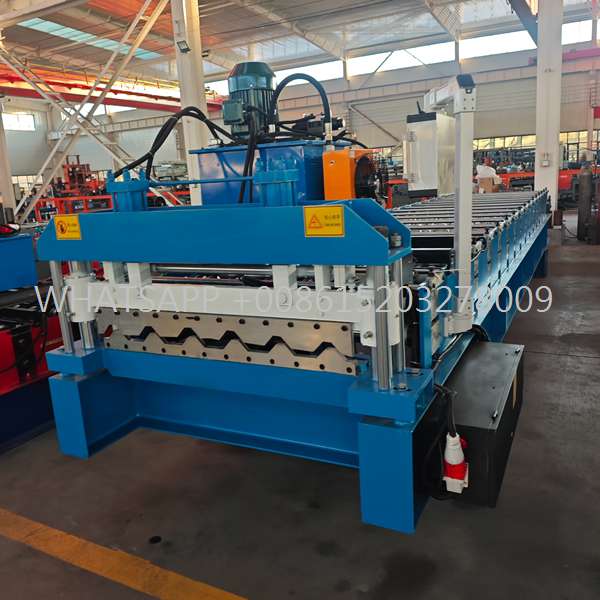

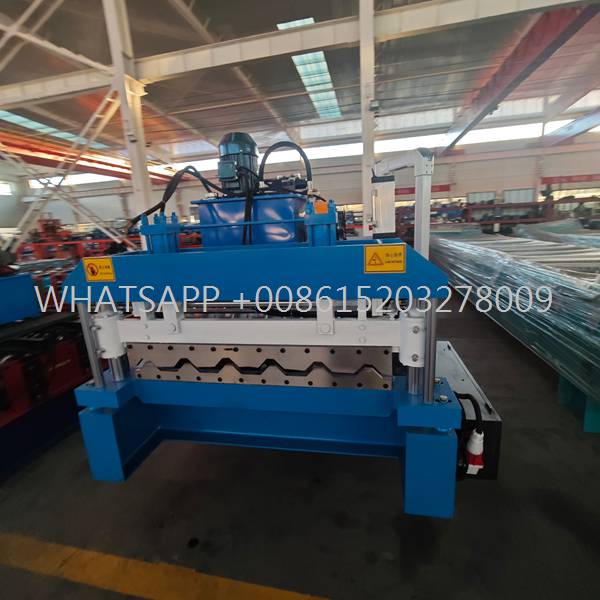

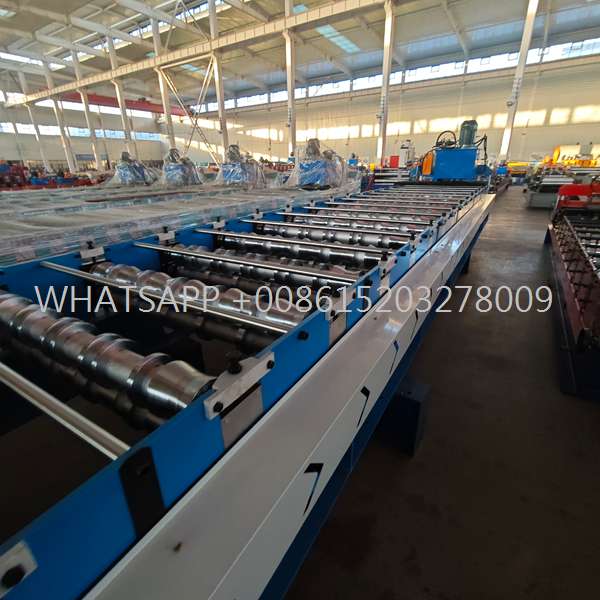

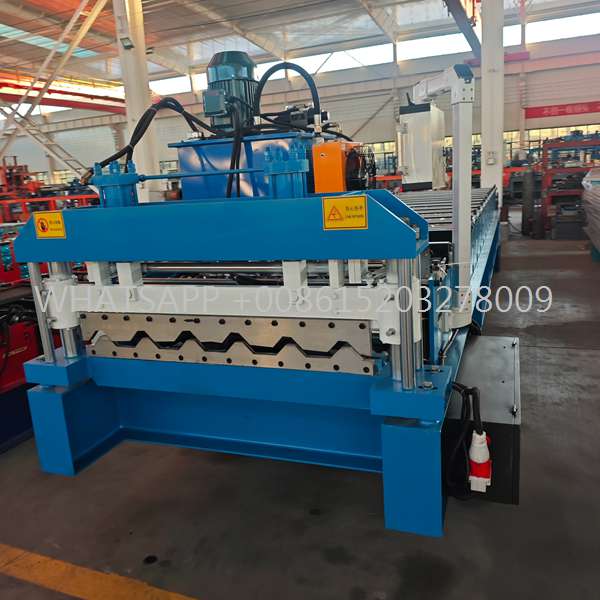

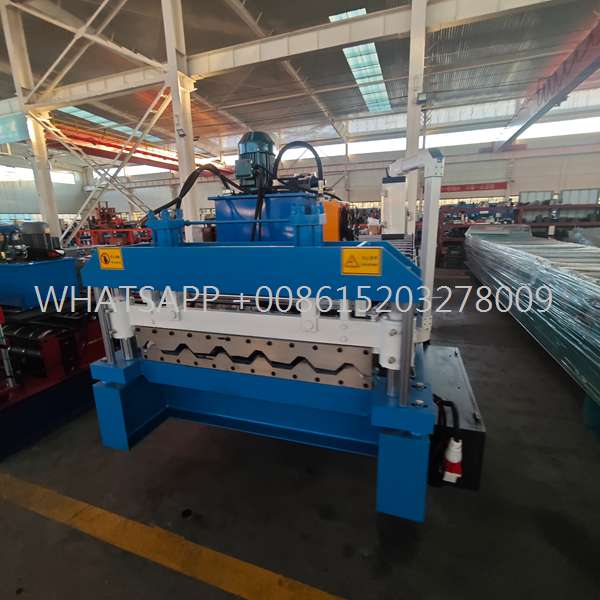

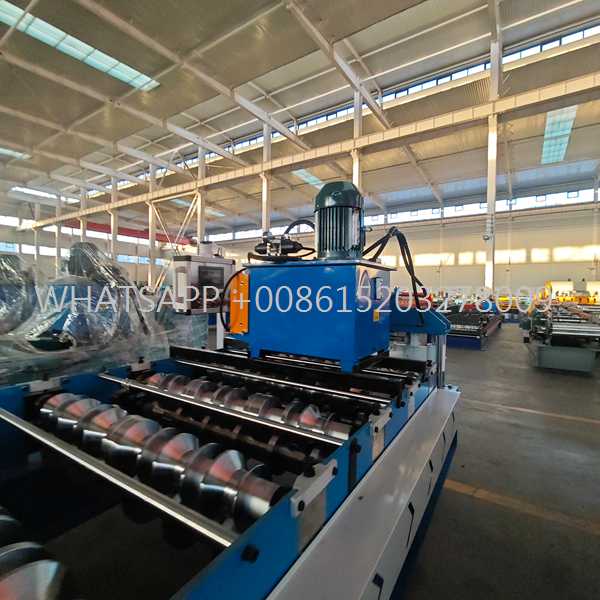

The IBR rolling machine is a specialized forming system developed for producing metal roof panels with high strength and consistent shape. It is widely applied in construction projects such as factories, warehouses, and residential buildings.
This IBR rolling machine is designed to transform metal coils into finished roofing panels through a continuous forming process. It supports materials such as GI, PPGI, and aluminum, ensuring flexibility for different applications.
The working procedure includes:
The machine is controlled by a digital PLC system, allowing operators to adjust production settings quickly. The automated process improves efficiency while ensuring stable and repeatable output quality.
| Item | Specification |
|---|---|
| Material | GI / PPGI / Aluminum |
| Thickness | 0.3 – 0.8 mm |
| Feeding Width | 1000 – 1250 mm |
| Production Speed | 10 – 25 m/min |
| Forming Stations | 16 – 20 |
| Roller Material | 45# Steel, Chrome Coated |
| Shaft Size | 70–80 mm |
| Cutting System | Hydraulic |
| Length Accuracy | ±1.5 mm |
| Control System | PLC |
| Power Supply | 380V / 50Hz / 3 Phase |
The finished panels produced by this IBR rolling machine are commonly used in:
We offer reliable transaction options and complete after-sales support:
Payment Terms
Service & Support
