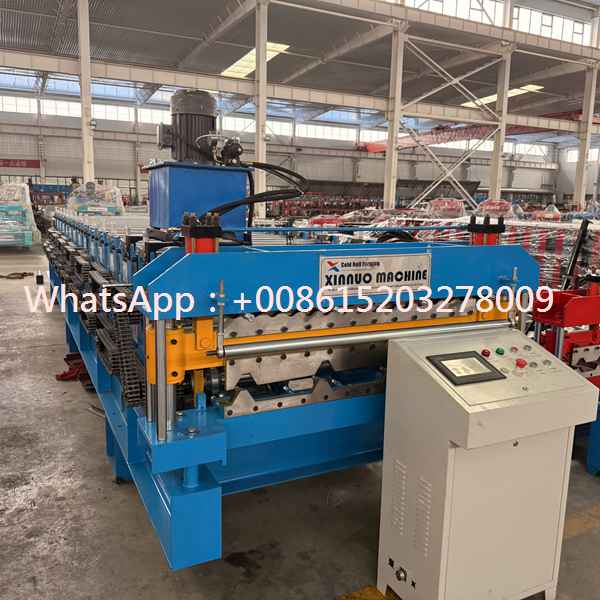

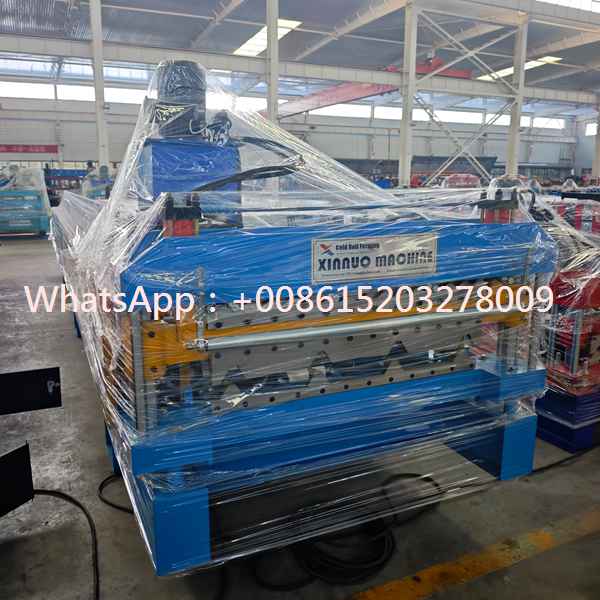

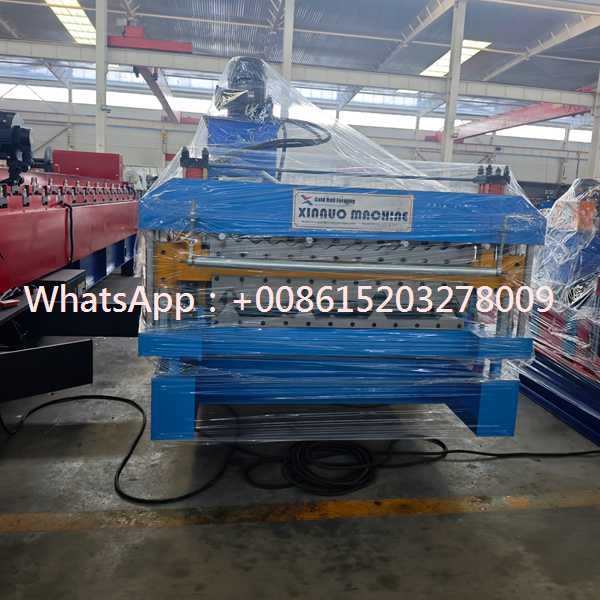

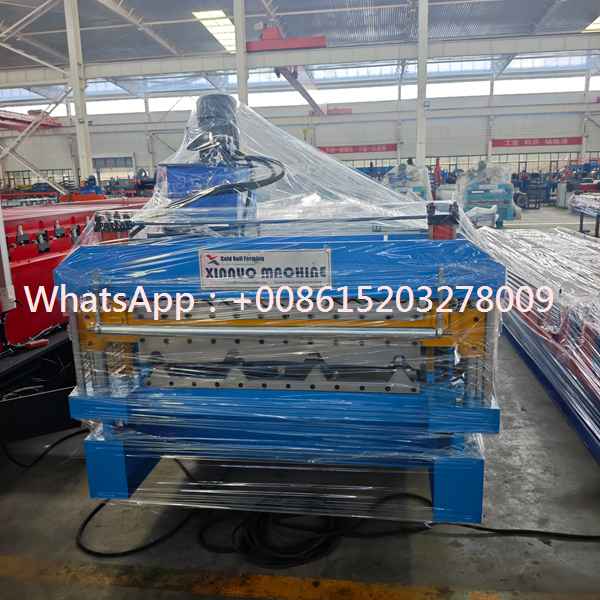

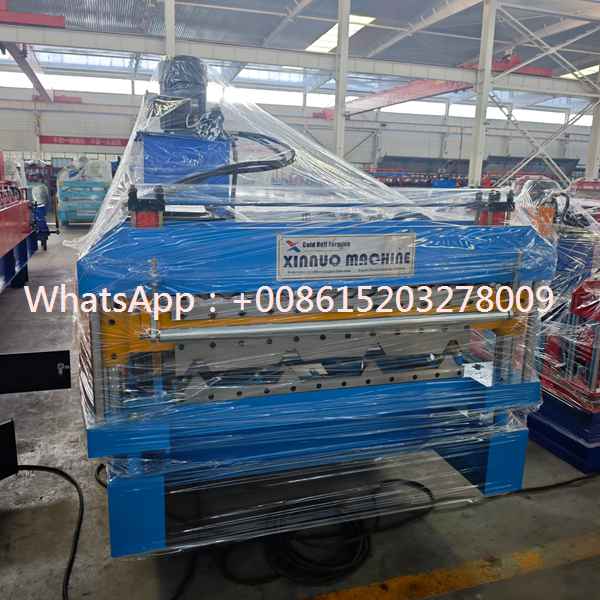

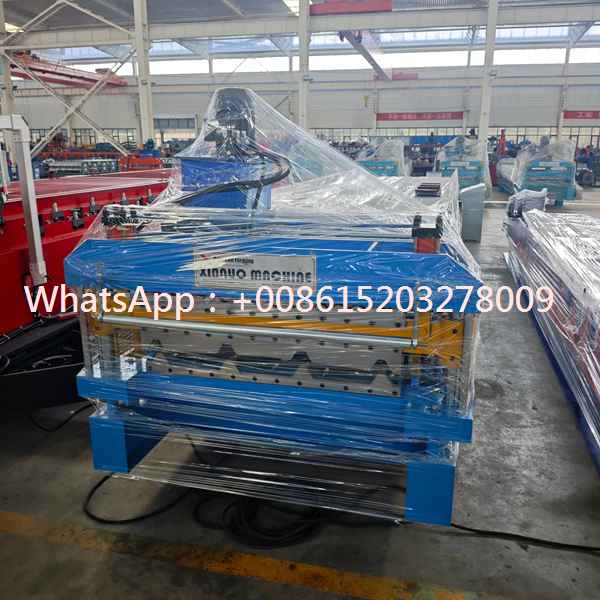

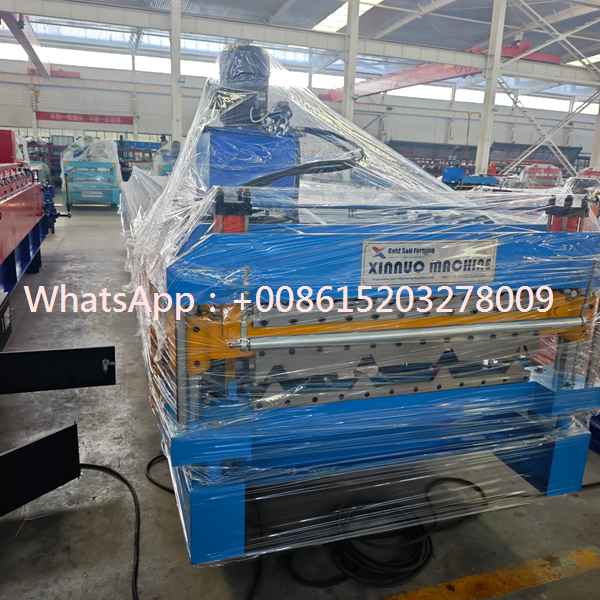

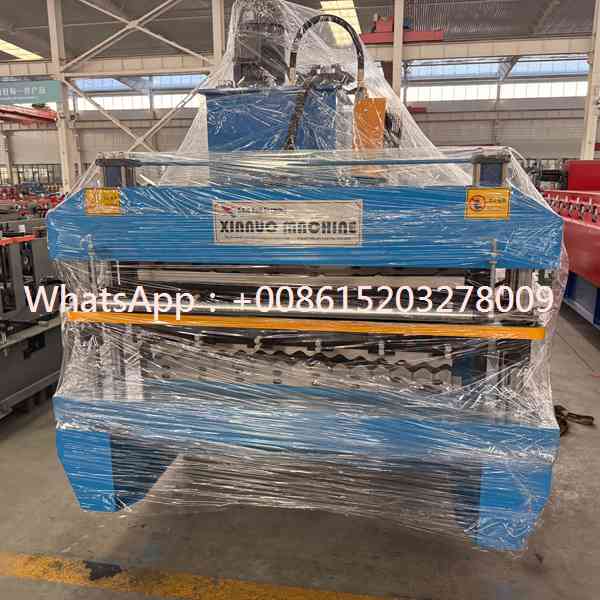

The Automatic Colored Steel Roofing Sheet Machine is a professional roll forming system designed for producing high-quality colored steel roofing panels with excellent appearance, accurate dimensions and stable performance. It is widely used in construction material manufacturing, steel structure projects, industrial buildings, warehouses, commercial facilities and residential roofing applications.
The machine processes color-coated steel coils into finished roofing sheets through continuous forming technology. It can manufacture different types of roofing profiles according to customer requirements, including trapezoidal roof panels, corrugated sheets, ribbed roofing sheets and customized metal building panels.
With automatic operation, precise forming technology and flexible production configuration, this equipment provides an efficient solution for roofing sheet manufacturers who need reliable production capacity and consistent product quality.
The machine integrates coil feeding, profile forming, automatic length control and cutting functions into a complete production line. Through the intelligent control system, operators can easily set production parameters according to different roofing sheet specifications.
The automatic working mode reduces manual operation requirements and improves production efficiency. During continuous manufacturing, the system maintains stable running conditions and ensures uniform quality of finished roofing panels.
The equipment is suitable for both standard roofing sheet production and customized orders, allowing manufacturers to quickly respond to different market demands.

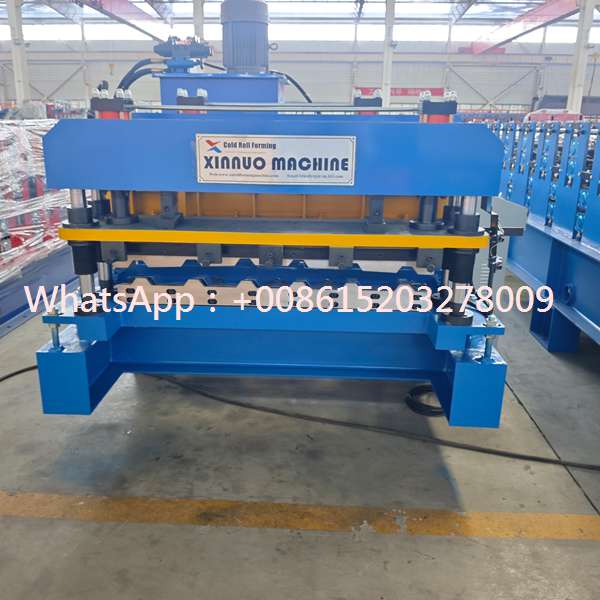

The forming section uses multiple roller stations to gradually shape flat color-coated steel strips into the required roofing profile. The progressive forming method helps maintain smooth surfaces and accurate panel dimensions.
The forming rollers are designed according to different roof panel structures, material thicknesses and profile requirements. Proper roller arrangement ensures reliable shaping performance and reduces deformation during production.
The strong machine frame provides stable support for the forming system, helping maintain alignment accuracy and improving equipment durability during long-term operation.
| Item | Specification |
|---|---|
| Machine Type | Automatic Colored Steel Roofing Sheet Machine |
| Processing Material | Color Coated Steel, PPGI, Galvanized Steel |
| Material Thickness | 0.25-0.8 mm |
| Production Speed | 10-30 m/min |
| Forming Method | Continuous Cold Roll Forming |
| Control System | PLC Automatic Control |
| Cutting System | Automatic Hydraulic Cutting |
| Roofing Type | Trapezoidal, Corrugated, Customized Profiles |
| Operation Mode | Automatic Continuous Production |
| Voltage | Customized According to Customer Standard |
Customized Color Steel Roofing Panel ProductionDifferent regions and construction markets require different roofing styles, panel dimensions and installation methods. The machine can be customized according to customer drawings, samples or technical requirements.
Manufacturers can produce various roofing profiles by changing the forming design and roller configuration. This flexibility allows the equipment to meet different building applications and market requirements.
| Customization Option | Description |
|---|---|
| Roof Profile | Trapezoidal, Corrugated and Ribbed Designs |
| Panel Width | Customized According to Requirement |
| Material Thickness | Selected Based on Production Needs |
| Panel Length | Adjustable Automatic Cutting Length |
| Automation Level | Semi Automatic or Fully Automatic Options |
The feeding system ensures smooth movement of colored steel coils into the forming section. Accurate material guidance helps prevent deviation and improves the dimensional stability of finished roofing sheets.
The machine can be equipped with optional auxiliary equipment such as automatic decoilers, leveling devices and feeding systems. These additional components help improve production efficiency and reduce manual handling work.
The automatic cutting unit works together with the control system to cut roofing sheets according to preset lengths. The synchronized cutting process improves production efficiency and ensures consistent panel dimensions.
The cutting system is designed according to the roofing profile, providing clean edges and reducing unnecessary deformation during product separation.
| Production Stage | Function |
|---|---|
| Coil Loading | Prepare color steel coil material |
| Material Feeding | Guide steel strip into machine |
| Profile Forming | Create roofing sheet shape |
| Length Control | Measure panel size automatically |
| Cutting | Separate finished roofing sheets |
| Collection | Prepare panels for transportation |
The roofing sheets produced by this machine are widely used in modern construction projects. They provide lightweight, durable and attractive roofing solutions for different building types.
| Feature | Benefit |
|---|---|
| Automatic Operation | Improves production efficiency |
| Precision Forming | Ensures consistent roofing quality |
| Flexible Profile Design | Supports different market requirements |
| Stable Structure | Suitable for long-term operation |
| Easy Control | Reduces operation difficulty |
The Automatic Colored Steel Roofing Sheet Machine provides an efficient manufacturing solution for producing metal roof panels with high accuracy and stable performance. Through automatic control, customized production capability and reliable forming technology, the machine meets the needs of different construction markets.
It is an ideal choice for companies looking to improve roofing sheet production capacity, expand product types and establish efficient metal building material production systems.
