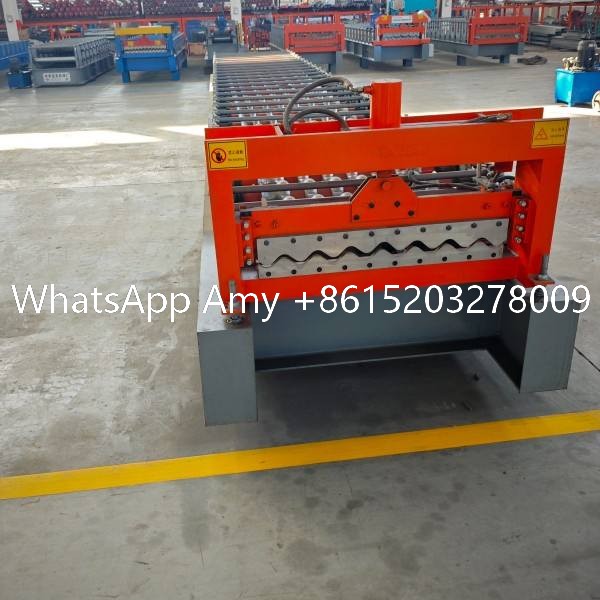

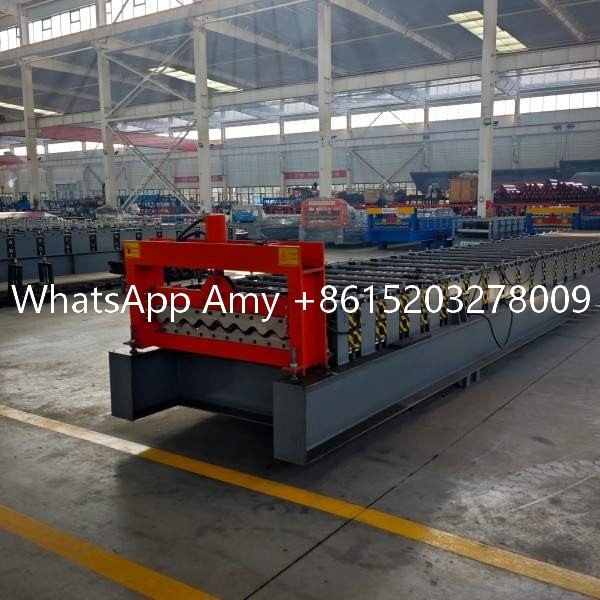

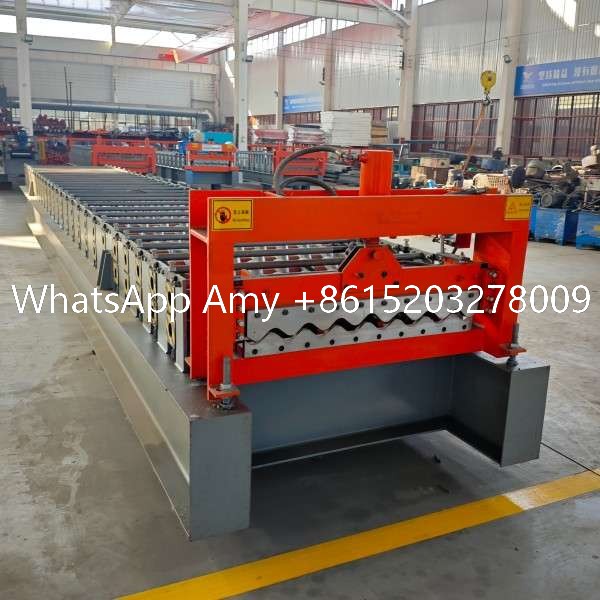

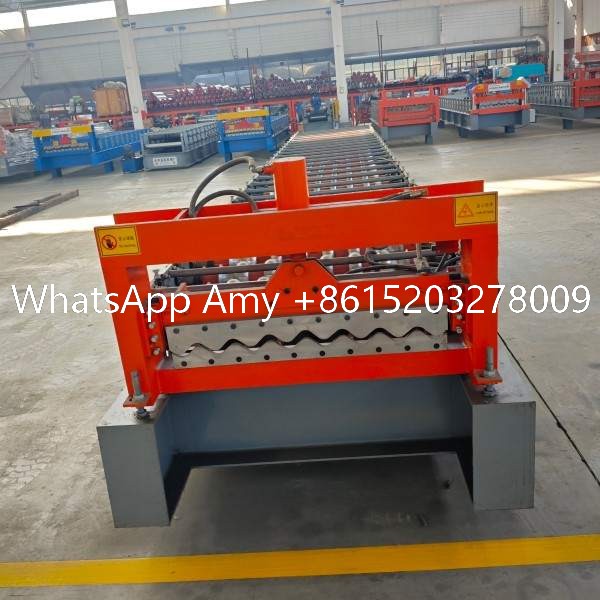

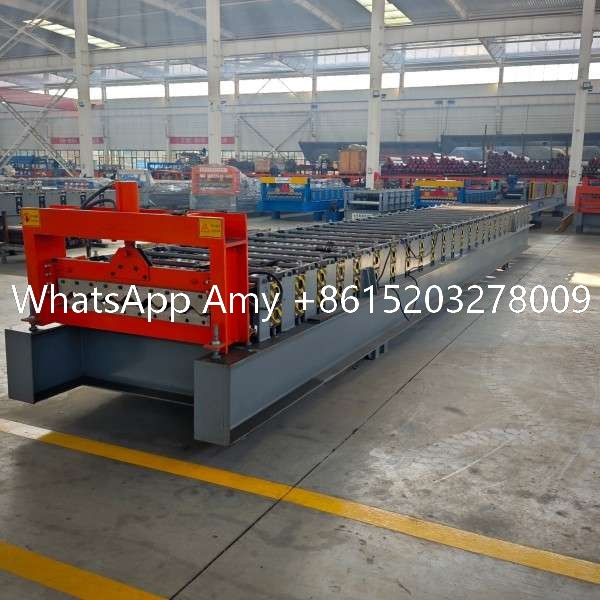

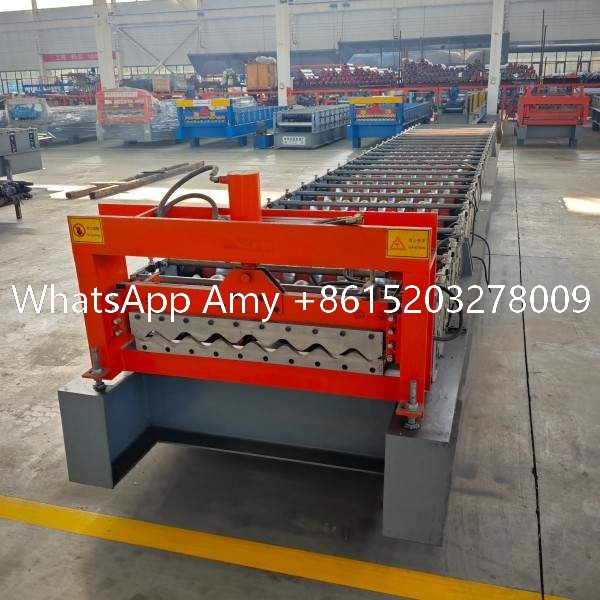

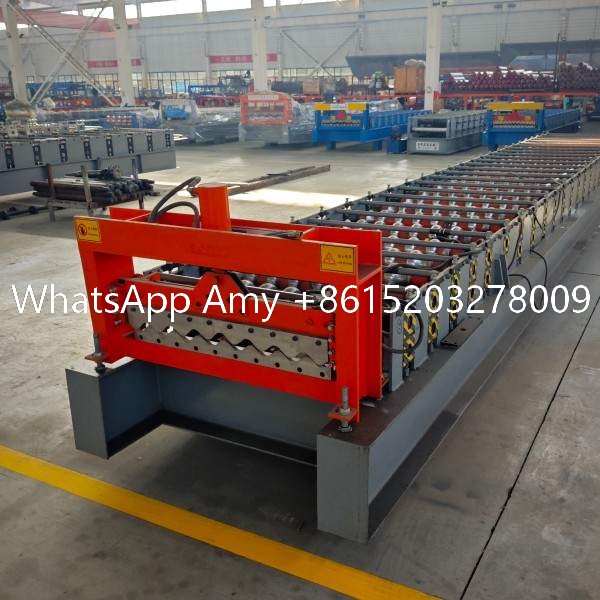

The corrugated roll forming machine is a state-of-the-art automated piece of equipment that lies at the heart of the metal building materials industry, designed to convert flat metal coils into durable, structurally robust corrugated sheets through a continuous, precision-driven rolling process. These corrugated sheets are a staple in construction projects worldwide, valued for their excellent load-bearing capacity, corrosion resistance, and cost-effectiveness, making them ideal for roof and wall cladding, industrial workshop enclosures, logistics warehouse partitions, agricultural greenhouse frames, and temporary disaster relief shelters. As such, the machine is an indispensable asset for manufacturers aiming to meet the growing demand for reliable, affordable building materials.
The working mechanism of the corrugated roll forming machine is a seamless, four-stage modular process that combines automation with precision engineering to ensure consistent product quality. The first stage is uncoiling: metal coils—typically galvanized steel, cold-rolled steel, or aluminum alloy—are loaded onto an uncoiling unit, which feeds the material steadily into the system while preventing tangling and ensuring a uniform supply speed. Next comes leveling: the metal sheet passes through a set of leveling rollers that eliminate internal stress and surface irregularities caused by long-term coil storage. This step is critical, as uneven sheets can lead to distorted wave patterns and compromised structural integrity in the final product.

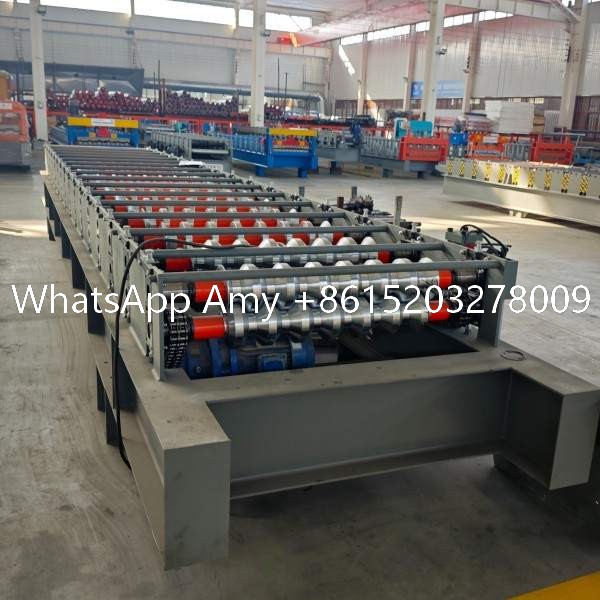

The third and core stage is roll forming, where the flattened sheet enters a series of precision-calibrated upper and lower alloy steel rollers. Each roller set applies a specific amount of pressure and bending angle, gradually shaping the flat metal into regular, evenly spaced waves through progressive plastic deformation. The wave height and spacing can be easily adjusted by modifying roller parameters, allowing the machine to produce corrugated sheets of different specifications—ranging from 20mm to 100mm in wave height—to suit diverse project requirements. Unlike traditional stamping methods, this continuous rolling process avoids material cracking or deformation, preserving the sheet’s mechanical properties. The final stage is cutting: a PLC-controlled fixed-length cutting system trims the formed corrugated sheet to preset lengths (from 1m to 12m), with high cutting accuracy ensuring that every piece meets strict engineering installation standards.
The corrugated roll forming machine boasts a range of performance advantages that set it apart in the market. First, its forming precision is exceptional: the synergy between calibrated alloy steel rollers and intelligent PLC control keeps wave spacing and height variations within ±0.2mm, ensuring consistent product quality across large production batches. Second, it delivers outstanding production efficiency: a single fully automated production line can process 10–15 meters of corrugated sheet per minute, far outpacing manual or semi-automatic alternatives and enabling manufacturers to meet tight project deadlines. Third, it maximizes material utilization: the optimized roller path and minimal edge trimming design reduce raw material waste to less than 3%, significantly lowering operational costs for users.
Beyond efficiency and precision, the machine excels in flexibility and durability, making it suitable for both large-scale factories and small-and-medium-sized processing workshops. Operators can switch between different sheet specifications in minutes via a user-friendly touch control interface, without the need for complex mechanical disassembly or roller replacement. The machine’s frame is constructed from thickened steel plates, ensuring stable operation even during 24-hour continuous production shifts. Additionally, the corrugating rollers are coated with hard chrome, enhancing wear resistance and extending the equipment’s service life to over 10 years. The machine also adheres to modern environmental standards, featuring a low-noise gearbox and energy-efficient motor that reduce power consumption by 15% compared to conventional models, aligning with global green manufacturing trends.
As the global construction industry shifts toward sustainable, cost-effective building solutions, the corrugated roll forming machine continues to play a pivotal role in supplying high-quality corrugated sheets at scale. Its versatility, efficiency, and reliability make it a cornerstone of modern metal building materials production, supporting the development of industrial infrastructure, affordable housing, and agricultural facilities across the globe.
