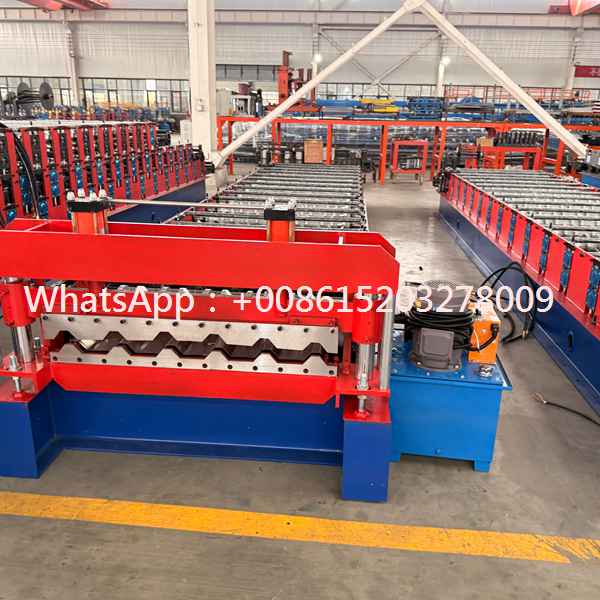

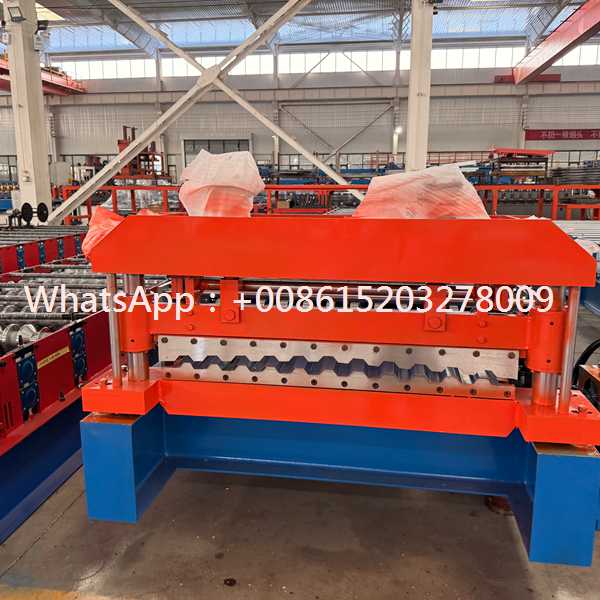

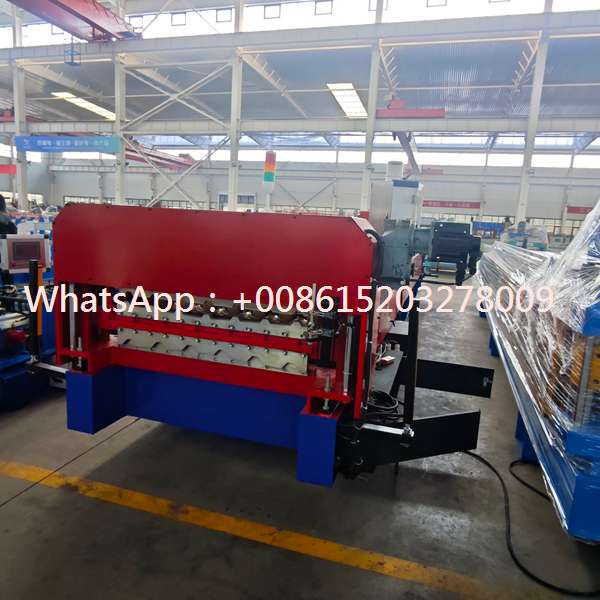

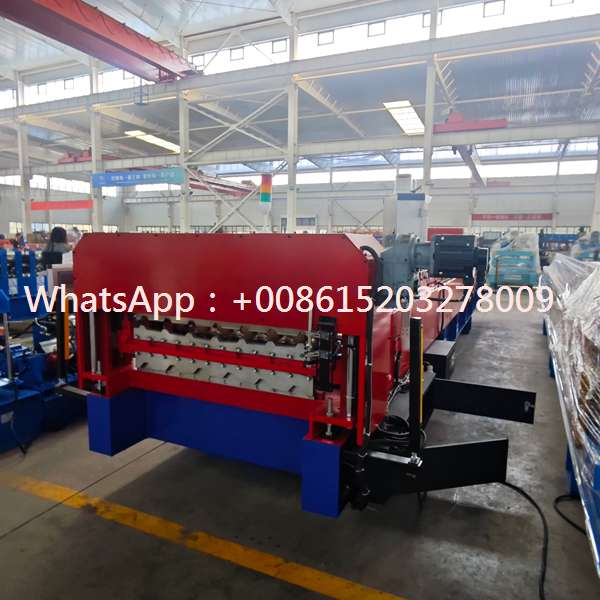

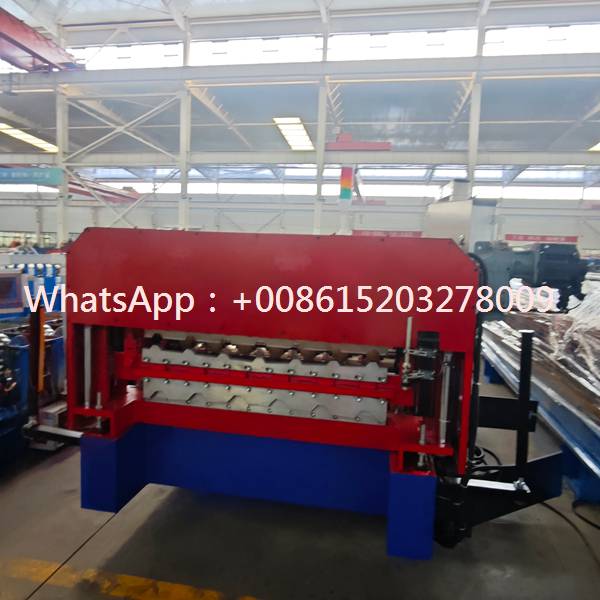

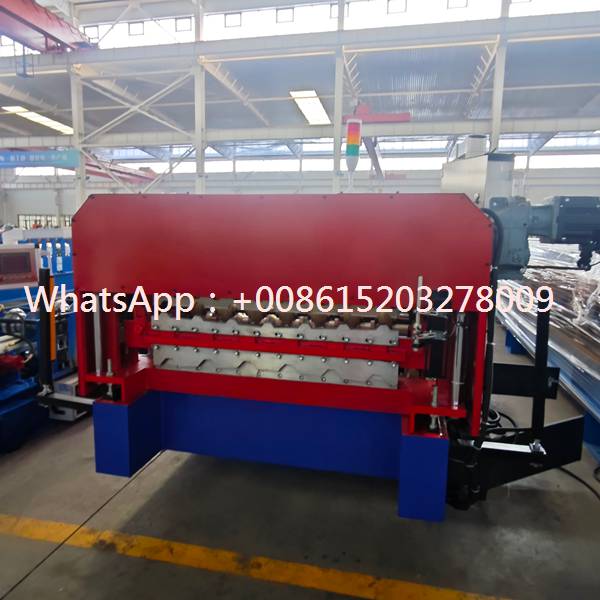

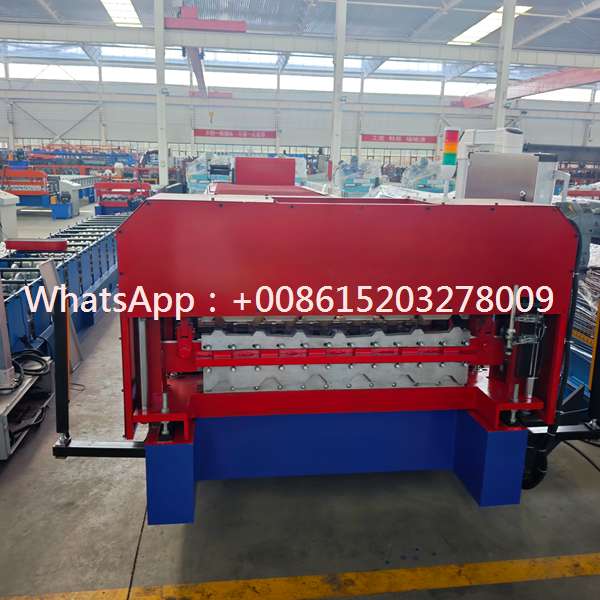

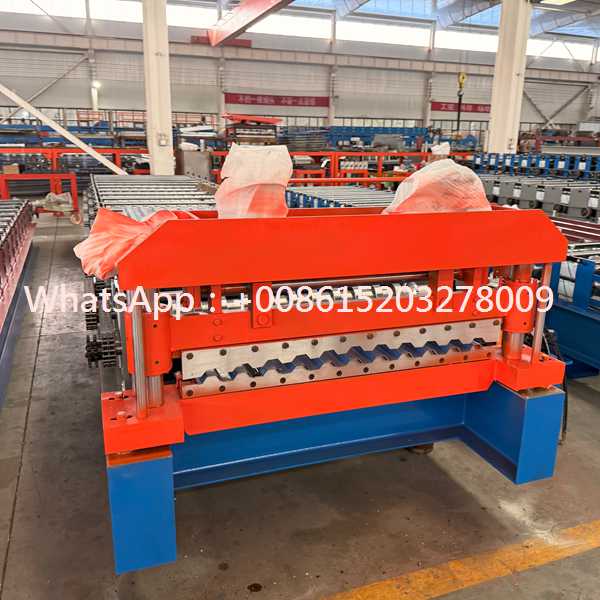

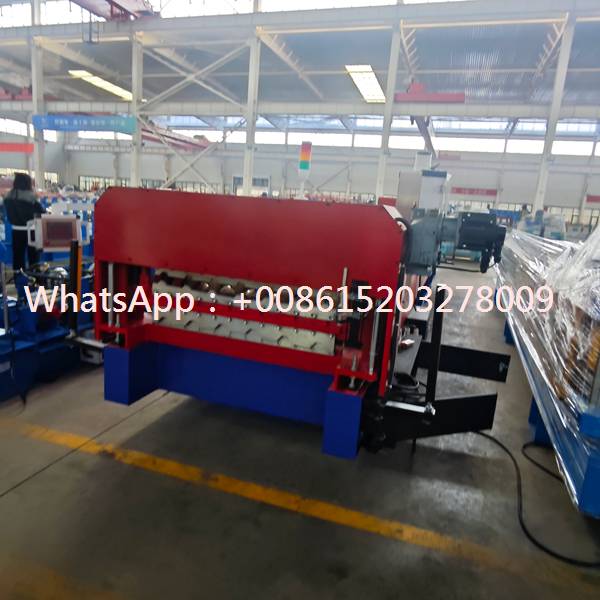

The Automatic Corrugated Metal Roofing Sheet Machine is a professional roll forming solution designed for manufacturing durable corrugated roofing panels with accurate dimensions and excellent structural performance. It is widely applied in industrial buildings, warehouses, agricultural facilities, commercial constructions and steel structure projects.
The machine is specially developed to process metal coils into corrugated roofing sheets through continuous forming technology. The finished panels feature strong rigidity, lightweight structure and convenient installation characteristics, making them suitable for various modern building applications.
With automatic production control, stable mechanical structure and flexible configuration options, this equipment helps manufacturers achieve efficient roofing sheet production while maintaining consistent product quality and production accuracy.
The equipment combines several production functions into one complete system, including coil feeding, profile forming, automatic measurement and cutting. The integrated design improves workflow efficiency and reduces the need for manual operation.
Operators can adjust production parameters through the control interface according to different order requirements. The automatic system helps maintain stable production speed and ensures uniform corrugated roofing sheets during continuous operation.
The machine is suitable for both large-scale roofing material factories and businesses requiring flexible production capacity for different construction projects.

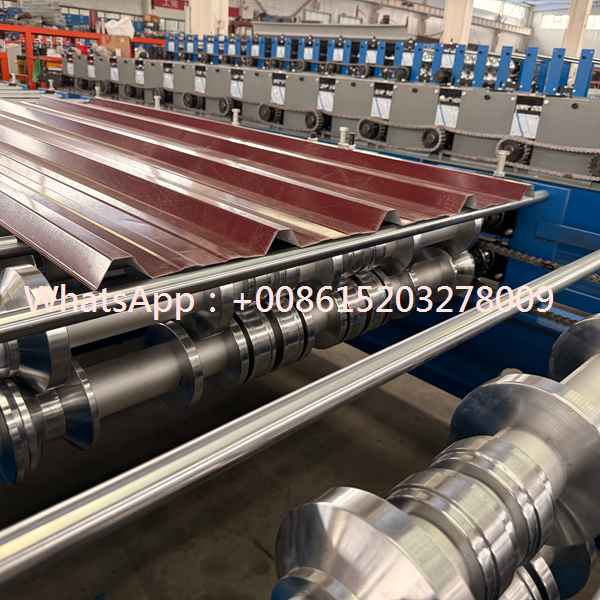

The forming section adopts a multi-stage roller arrangement to gradually shape flat metal strips into corrugated roofing profiles. This forming method improves profile accuracy while protecting the surface quality of the material.
The roller design can be customized according to wave height, sheet width and material thickness requirements. Different corrugated patterns can be produced to meet various architectural styles and regional market demands.
The reinforced machine structure provides stable support for the forming process, helping maintain accurate roller positioning and reliable operation during long production periods.
| Item | Specification |
|---|---|
| Machine Type | Automatic Corrugated Metal Roofing Sheet Machine |
| Raw Material | Galvanized Steel, Color Steel, PPGI, Aluminum |
| Material Thickness | 0.25-0.8 mm |
| Production Speed | 10-30 m/min |
| Forming Method | Cold Roll Forming Technology |
| Control System | PLC Automatic Control |
| Cutting Type | Automatic Hydraulic Cutting |
| Profile Shape | Corrugated Roofing Sheet |
| Operation Mode | Fully Automatic Production |
| Power Requirement | Customized Electrical Standard |
Customized Corrugated Roofing Sheet SolutionDifferent construction projects require different corrugated sheet specifications. The machine can be customized according to customer drawings, samples or technical requirements to produce suitable roofing panels.
The flexible design allows manufacturers to adjust production parameters according to market demand. Different sheet widths, thicknesses and corrugated structures can be achieved through customized tooling and machine configuration.
| Customization Item | Description |
|---|---|
| Wave Design | Different Corrugated Patterns Available |
| Sheet Width | Customized According to Requirement |
| Material Thickness | Selected Based on Application |
| Cutting Length | Automatic Length Setting Function |
| Production Layout | Designed According to Factory Conditions |
The feeding unit provides smooth and accurate transportation of metal coils into the forming section. The guiding structure helps keep the material aligned and reduces production deviation.
Additional equipment such as automatic decoilers, leveling systems and material storage devices can be integrated to improve production automation and simplify operation procedures.
The cutting system is synchronized with the forming process to achieve accurate panel separation according to preset lengths. This improves production efficiency and ensures consistent dimensions of finished roofing sheets.
The automatic cutting design provides clean cutting performance and helps prepare finished panels for transportation, storage and installation.
| Process Step | Working Function |
|---|---|
| Coil Preparation | Install metal coil material |
| Automatic Feeding | Transfer sheet into forming unit |
| Corrugation Forming | Create wave-shaped roof profile |
| Length Measurement | Control panel dimensions |
| Automatic Cutting | Cut finished roofing sheets |
| Product Collection | Prepare finished panels |
Corrugated metal roofing sheets produced by this machine are widely used because of their strength, lightweight structure and weather resistance. They are suitable for many construction environments.
| Feature | Benefit |
|---|---|
| Automatic Control | Improves production efficiency |
| Precision Forming | Maintains accurate sheet dimensions |
| Flexible Configuration | Supports different roofing designs |
| Stable Structure | Suitable for continuous operation |
| Easy Operation | Reduces production management difficulty |
The Automatic Corrugated Metal Roofing Sheet Machine provides manufacturers with an efficient solution for producing high-quality corrugated roof panels. Through advanced forming technology, automatic operation and customized production options, the equipment meets the requirements of different construction markets.
It helps companies improve production efficiency, expand roofing product categories and establish reliable manufacturing capabilities for modern metal building applications.
