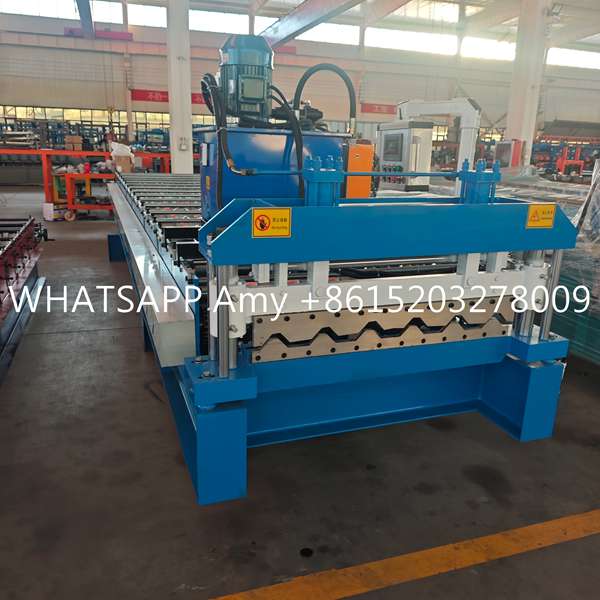

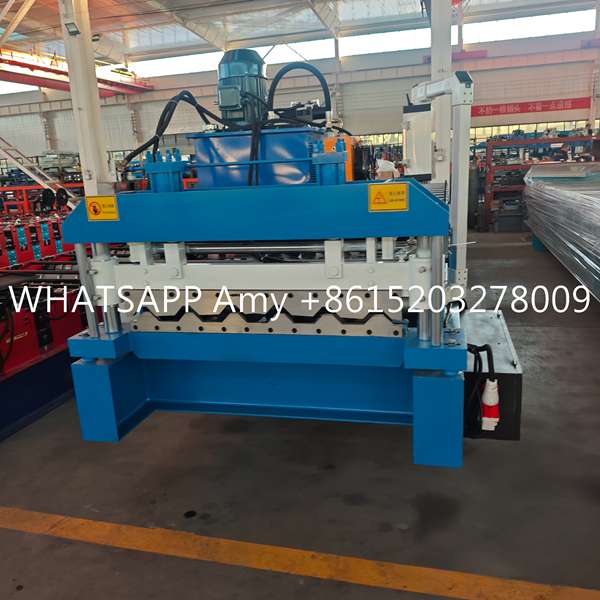

The IBR making machine is designed for manufacturing IBR profile roofing sheets from galvanized steel, pre-painted steel (PPGI), and aluminum coils. IBR (Inverted Box Rib) roofing sheets are widely used in industrial buildings, warehouses, commercial structures and residential roofing systems due to their strong load-bearing capacity and excellent water drainage performance.
This machine forms metal coils into accurate IBR profiles through a continuous roll forming process. It integrates decoiling, feeding, roll forming, hydraulic cutting and automatic stacking into a complete production line.
With advanced PLC control and servo tracking cutting system, the machine ensures high forming precision, smooth surface finish and consistent sheet length.
Manual or hydraulic decoiler
Feeding and guiding system
Roll forming section
Hydraulic or servo cutting system
Output table or automatic stacker
The entire production line operates automatically, reducing labor cost and improving production efficiency.
• Material thickness: 0.3 – 0.8 mm
• Material type: GI / PPGI / Aluminum
• Effective width: Customized (based on IBR profile)
• Roller stations: 16–22 stations
• Forming speed: 15–25 meters per minute
• Cutting type: Hydraulic or flying saw
• Control system: PLC with touch screen
• Voltage: Customized according to country
Precision rollers ensure uniform rib height and consistent sheet shape.
Chain or gearbox drive guarantees smooth operation.
Rollers are made of high-grade steel with chrome coating for long service life.
We can manufacture roller molds according to your local IBR drawing.
User-friendly PLC interface allows quick parameter adjustment.
IBR roofing sheets produced by this machine are widely used in:
Industrial factory buildings
Steel structure warehouses
Shopping malls
Agricultural storage buildings
Commercial roofing systems
Residential houses
• 30+ years manufacturing experience
• Exported to Africa, Middle East and Southeast Asia
• Professional installation support
• Spare parts available
• Competitive factory price
• Fast production and delivery
