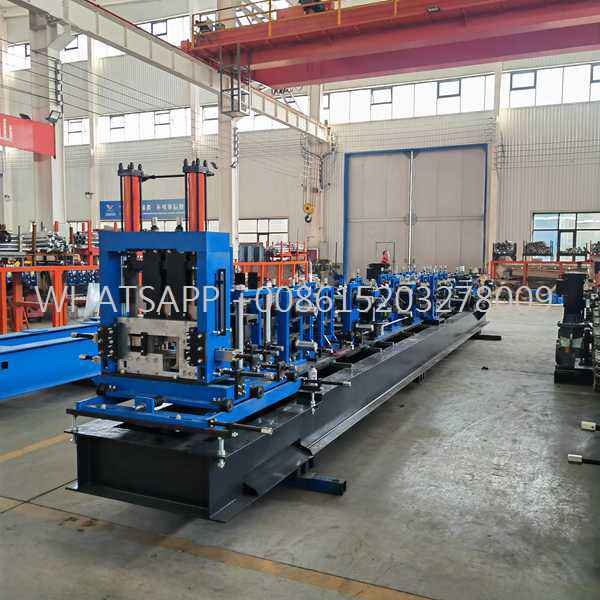

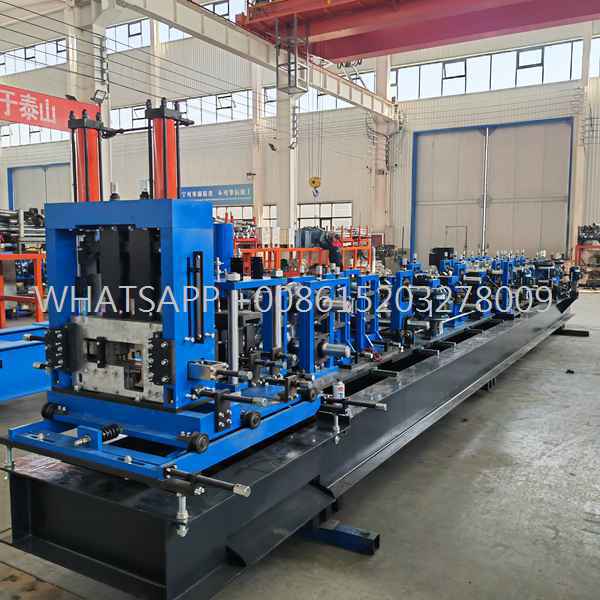

Industrial Automatic Purlin Making Machine

Heavy-Duty Purlin Making Machine for Structural Metal Buildings

Are you looking to enhance your structural steel processing facility with faster changeover speeds and impeccable geometric accuracy? Our state-of-the-art purlin making machine offers an ideal combination of rugged mechanical engineering, advanced automation software, and high-speed production capability. This automated fabrication line is custom-engineered to meet the strict technical profiles required by international engineering standards, reliably turning out heavy-gauge steel framing components used across modern commercial storage spaces, manufacturing facilities, transport centers, and civil infrastructure developments. Implementing this advanced machinery allows factories to handle custom building layouts rapidly while lowering overhead expenses, material scrap rates, and setting times.

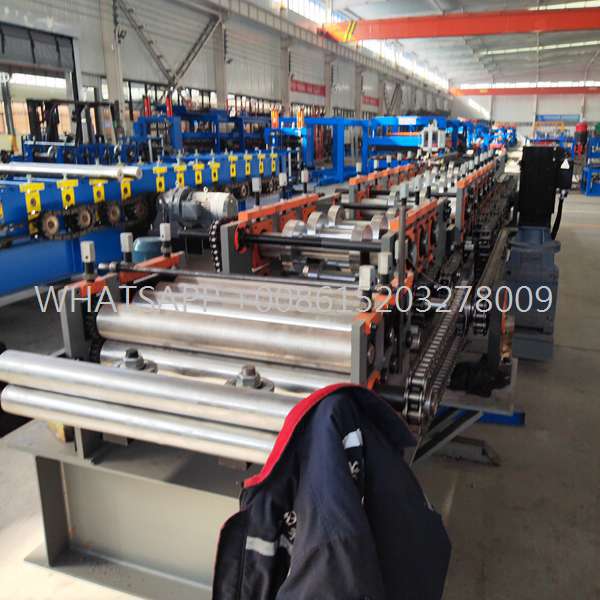

The operational centerpiece of this equipment is its automated variable-width roll forming system. Traditional purlin lines rely heavily on manual spacer positioning or complex mechanical teardowns to change product dimensions, stalling production schedules for several hours. In contrast, our modern roll former utilizes independent motorized drive shafts controlled directly via custom PLC software. With a quick entry of blueprint dimensions on the touch terminal screen, the entire roller network relocates to its new configuration automatically. This setup guarantees that small-batch custom orders and large-scale bulk runs can be processed sequentially on a single factory line without long cross-over delays.

Advanced Design Characteristics & Structural Advantages

• Smart Motorized Dimension Switching: Instantaneous adjustments of channel web sizes, flange profiles, and return lips are managed entirely via digital PLC automation, optimizing daily factory throughput.
• Solid Rigid Cast-Iron Stand Blocks: Constructed utilizing heavy-wall welded steel base sections and thick individual station plates to absorb torsional stress, mitigating machine harmonic distortion during high-tensile material tracking.
• Superior Metalworking Roller Profiles: Formed using premium GCr15 or specialized Cr12 tool steel alloys, precision CNC machined, vacuum oil quenched to HRC 58-62 hardness, and finished with thick hard-chrome plating to eliminate surface degradation on pre-finished galvanized coatings.
• Non-Deforming Hydraulic Cut-Off Array: Features a high-pressure post-forming hydraulic cutting tool that delivers perfectly perpendicular sheared ends, eliminates deformation, and maximizes tool life between maintenance routines.
• Closed-Loop Microprocessor Control: Integrated with premier automation components (such as Siemens or Mitsubishi processors) coupled with absolute rotary encoders to maintain strict length tolerances within ±1.0mm at full velocity.
• Flexible Programmable Hole Punching: Incorporates a multi-press hydraulic inline punching apparatus to execute diverse slot, round, and custom punch configurations according to blueprints before final shearing.

Detailed Machinery Parameters & Technical Specifications

Global Architectural & Structural Applications

The structural steel profiles generated by this advanced rolling line serve as critical elements in structural engineering frameworks. Due to their optimized weight-to-load ratios, these components compose primary structural skeletons, roof purlins, wall girts, and internal floor joists for large commercial ventures. They are heavily incorporated into the assembly of deep-span industrial complexes, regional distribution warehouses, transport infrastructure hubs, institutional properties, and modern modular building sectors.

Furthermore, with the exponential expansion of utility-scale renewable energy systems worldwide, these precision-formed profiles are vital for manufacturing structural support rails, long-span trackers, and ground-mount arrays within massive solar photovoltaic fields, creating a highly lucrative and steady product demand for steel processing firms globally.

Integrated Line Layout & Functional Sub-Systems

This state-of-the-art manufacturing cell incorporates several coordinated sub-assemblies functioning as a cohesive automated production group:

• Hydraulic Expansion Decoiler: Seamlessly manages heavy steel master coils, offering smooth decoiling via integrated loop arms and automatic hydraulic mandrel expansion.
• Precision Leveling & Flattening Station: Features a multi-roller configuration that eradicates internal material memory and coil set curvature, delivering a perfectly uniform sheet before forming.
• High-Force Hydraulic Punching Array: Manages online pre-punching commands from the master console, placing perfect bolt-hole configurations at designated structural intervals.

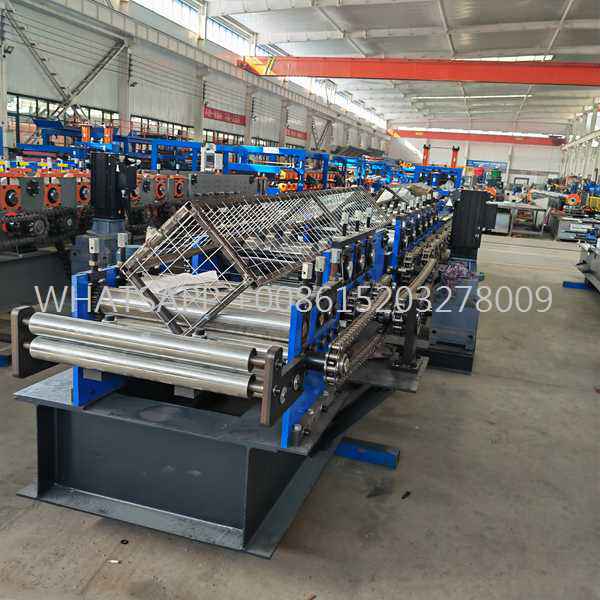

• Progressive Forming Mill: Gradually rolls the structural strip through sequentially calculated metal bending phases to form exact geometry without straining outer corners.

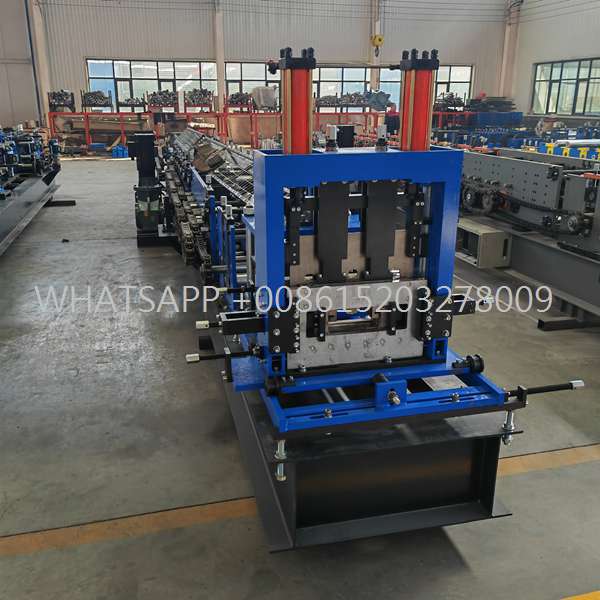

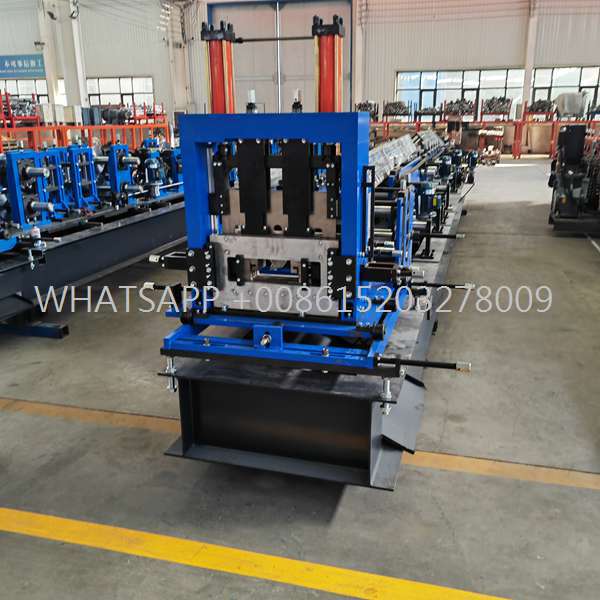

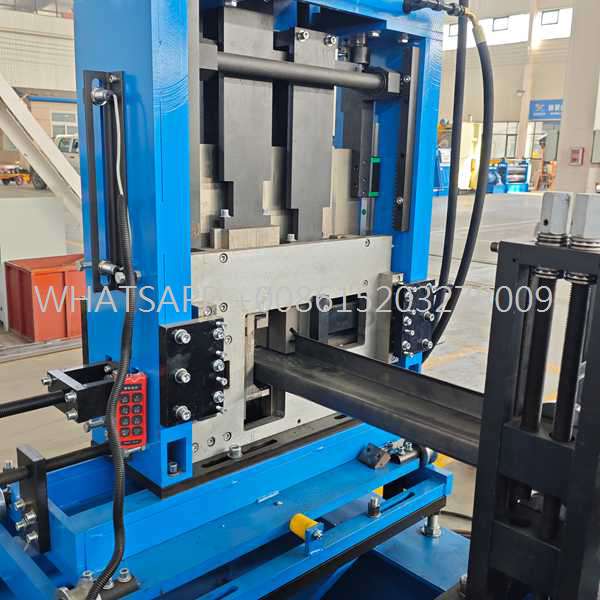

• Hydraulic Profile Shear Unit: Utilizes a flying or stationary close-tolerance profile die set to execute crisp, clean cuts on the fly without halting line pacing.
• Heavy Stacking Material Racks: Receives finished high-capacity components smoothly, facilitating immediate bundled wrapping and heavy forklift transport to staging yards.

Strict Testing Prototypes & Quality Assurance

Prior to leaving our assembly facilities, every machine undergoes intensive mechanical testing under full capacity and real material loads. Our quality inspectors meticulously track hydraulic thermal coefficients, encoder communication responsiveness, and dimensional precision over consecutive test batches. This detailed vetting guarantees that every machine delivers consistent tolerances conforming to strict international structural standards, ensuring your operations achieve seamless deployment and instant high-yield output upon installation.

Inquire for Technical Specifications & Pricing

As an established manufacturer specializing in heavy-duty cold roll forming technology, we provide flexible customization choices to accommodate specific fabrication drawings, structural thicknesses, and punching plans. Reach out to our engineering team today to secure an immediate, factory-direct wholesale quotation, exhaustive layout footprints, and a tailored business proposal engineered to scale your output capacity!
