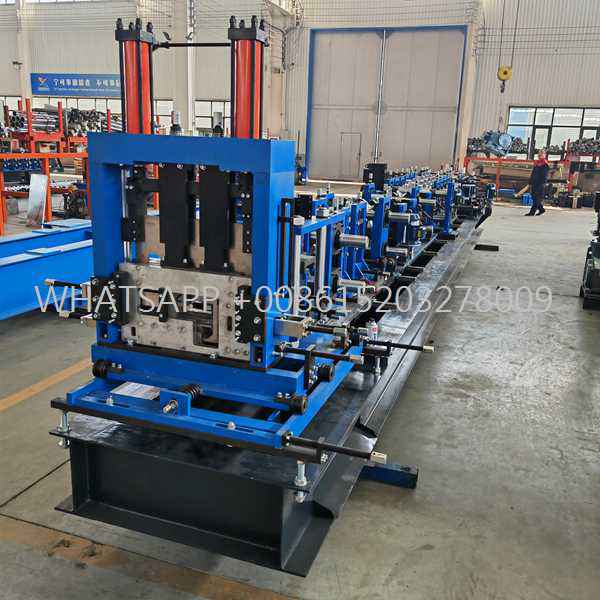

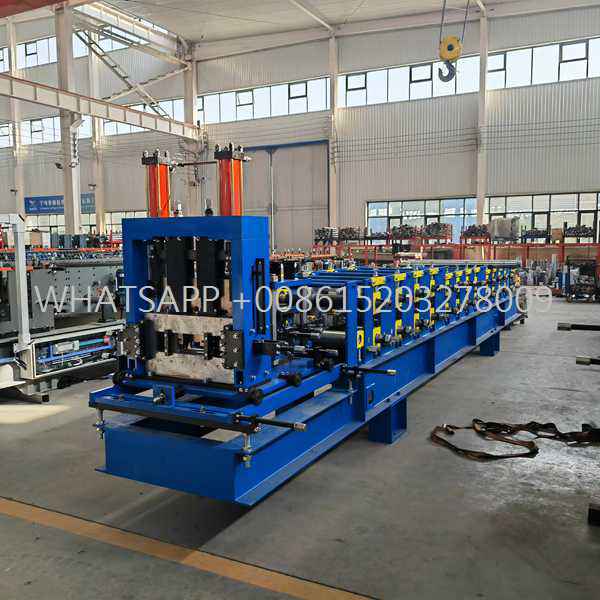

High-Precision Heavy-Duty Industrial CNC Variable CZ Purlin Forming Machine

Automated Dual-Profile CZ Purlin Forming Line for Structural Steel Engineering

Are you searching for a reliable way to boost your factory's production capabilities while minimizing the time spent resetting machinery? Our state-of-the-art cz purlin forming machine delivers a high-speed, integrated solution built to completely automate the fabrication of heavy-duty secondary framing components. This industrial roll former masterfully handles the workloads of two individual production lines within a single, space-saving floor layout. It enables structural suppliers to produce highly accurate C-channels and Z-channels from the same base machine. Built to comply with strict international construction codes, these finished structural sections provide essential load-bearing support for industrial manufacturing plants, massive logistics centers, commercial complexes, and regional transit hubs worldwide.

The core engineering benefit of this production machinery centers on its advanced, automated interchangeable tooling configuration. On conventional roll formers, changing production from a C-profile to a Z-profile requires hours of manual labor, as operators must dismantle tooling setups, swap heavy spacer rings, and manually realign the main drive spindles. Our automated system eliminates this workshop bottleneck by using a motorized turning assembly governed by centralized microprocessor software. With a quick entry on the control terminal screen, the key forming modules rotate 180 degrees automatically into the correct structural tracking positions within a few minutes. This nimble capability guarantees that custom short-run orders and high-volume wholesale bulk shipments run sequentially on the same work shift without halting production for mechanical rebuilding.

Advanced Engineering Characteristics & Fabrication Advantages

• Smart Motorized Dimension Switching: Instantaneous adjustments of structural web channels, vertical flanges, and drop lips are managed completely by automated computerized controls, boosting total daily factory yields.
• Solid Monoblock Cast Station Blocks: Manufactured using thick-walled steel plates and a heavy rigid welded foundation to absorb massive mechanical torque, preventing machine frame vibration during thick material runs.
• Premium Vacuum-Quenched Rolling Tools: Machined from high-grade alloy tool steel, finished via precision CNC grinding, vacuum hardened to high structural thresholds, and layered with hard chrome to ensure zero scuffing on galvanized sheet coatings.
• Deformation-Free Hydraulic Cut-Off Set: Utilizes a high-force post-forming hydraulic shearing blade configuration that ensures perfectly clean, burr-free cuts while extending tool edge life between scheduled maintenance windows.
• Closed-Loop Microprocessor Automation: Integrated with elite control architectures coupled with high-precision absolute rotary encoders to maintain strict linear length tolerances.
• Custom Programmable Pre-Punching Press: Incorporates an inline hydraulic multi-die punching setup to execute diverse slot, round, and custom hole arrangements based on architectural prints before final profiling.

Comprehensive Equipment Parameters & Technical Specifications

Global Architectural & Structural Applications

The cold-rolled steel framing sections generated by this advanced processing line act as critical load-bearing foundations within global civil engineering sectors. Renowned for their high strength-to-weight performance ratios, these shaped beams provide primary structural roof purlins, support columns, structural trusses, and internal wall girts for multi-span construction layouts. They are heavily incorporated into the assembly of deep-span industrial complexes, regional distribution warehouses, transport infrastructure hubs, institutional properties, and modern modular building sectors.

Furthermore, with the ongoing expansion of utility-scale renewable energy networks worldwide, these precision-profiled beams are highly valued for constructing durable ground racking, tracker frameworks, and mounting foundations within vast solar fields. This clean energy transition provides a reliable and highly profitable commercial avenue for metal processing facilities worldwide.

Rigorous Pre-Shipment Quality Testing

Prior to leaving our machinery development center, each manufacturing unit undergoes strict validation testing under full continuous structural loads using real material coils. Our quality engineers thoroughly inspect electronic sensor processing, hydraulic pressure curves, and motorized size change mechanics to guarantee everything matches factory requirements. This rigorous validation check ensures your operation gains an exceptionally dependable, plug-and-play production asset that functions flawlessly from day one.

Inquire for Technical Specifications & Pricing

As an established manufacturer specializing in heavy-duty cold roll forming technology, we provide flexible customization choices to accommodate specific fabrication drawings, structural thicknesses, and punching plans. Reach out to our engineering team today to secure an immediate, factory-direct wholesale quotation, exhaustive layout footprints, and a tailored business proposal engineered to scale your output capacity!
