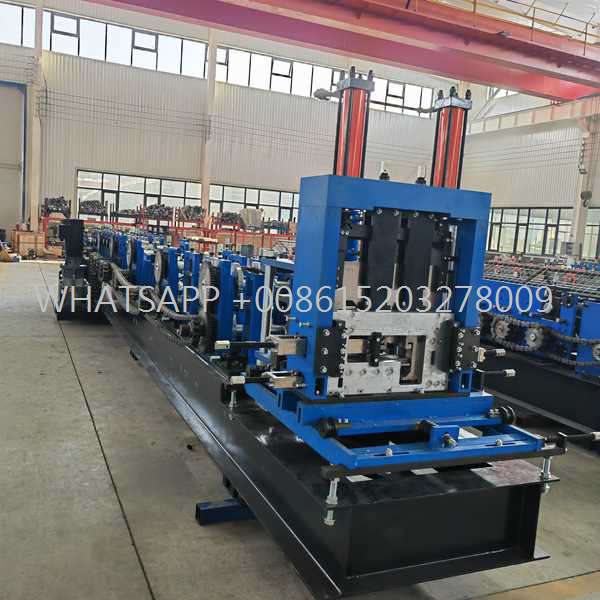

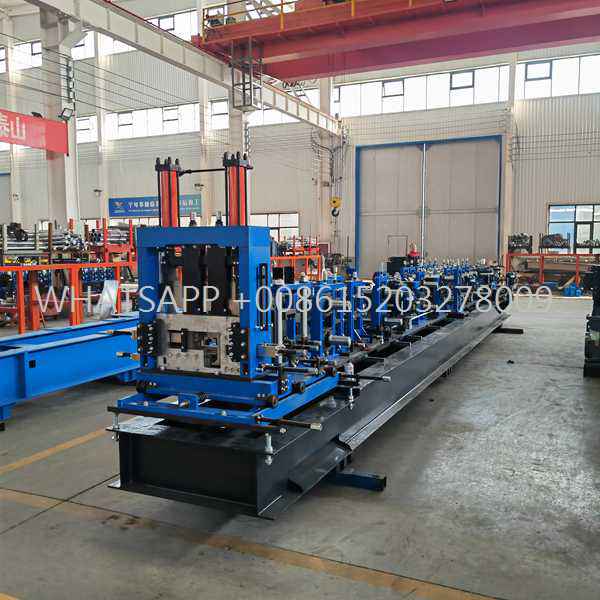

High-Capacity Industrial CNC Interchangeable Automatic C&Z Purlin Forming Machine

Automated Dual-Profile C&Z Channel Cold Rolling Line for Structural Steel Engineering

Are you looking to optimize your metal processing facility with a highly flexible mechanical asset that reduces downtime? Our next-generation c&z purlin forming machine provides an exceptionally engineered, high-speed solution developed for high-capacity structural framing fabrication. This modern cold roll former masterfully handles the individual workloads of two separate manufacturing mills within a single, compact shop floor footprint. It enables steel suppliers to turn out highly precise C-channels and Z-channels from the same base line. Built to comply with strict international architecture and civil engineering criteria, these finished structural elements form the load-bearing support skeletons for modern warehouses, massive logistics depots, aviation hangars, and commercial complexes globally.

The true operational breakthrough of this machinery centers on its software-driven interchangeable design. Conventional profiling lines force technicians to endure hours of tedious manual labor unbolting tooling setups, swapping heavy spacer rings, and re-measuring drive spindle clearances to shift production from a C-shape to a Z-shape profile. Our advanced turning station configuration completely removes this workshop bottleneck. Managed by an intelligent digital touchscreen interface, the key forming modules rotate 180 degrees via precise motorized controls into perfect structural tracking alignment within a few minutes. This nimble processing capability guarantees that short-run customized orders and high-volume wholesale shipments run sequentially on the same work shift without halting production for physical mechanical rebuilding.

Advanced Engineering Characteristics & Fabrication Advantages

• Smart Motorized Dimension Switching: Instantaneous adjustments of structural web channels, vertical flanges, and drop lips are managed completely by automated computerized controls, boosting total daily factory yields.
• Solid Monoblock Cast Station Blocks: Manufactured using thick-walled steel plates and a heavy rigid welded foundation to absorb massive mechanical torque, preventing machine frame vibration during thick material runs.
• Premium Vacuum-Quenched Rolling Tools: Machined from high-grade alloy tool steel, finished via precision CNC grinding, vacuum hardened to high structural thresholds, and layered with hard chrome to ensure zero scuffing on galvanized sheet coatings.
• Deformation-Free Hydraulic Cut-Off Set: Utilizes a high-force post-forming hydraulic shearing blade configuration that ensures perfectly clean, burr-free cuts while extending tool edge life between scheduled maintenance windows.
• Closed-Loop Microprocessor Automation: Integrated with elite control architectures coupled with high-precision absolute rotary encoders to maintain strict linear length tolerances.
• Custom Programmable Pre-Punching Press: Incorporates an inline hydraulic multi-die punching setup to execute diverse slot, round, and custom hole arrangements based on architectural prints before final profiling.

Comprehensive Equipment Parameters & Technical Specifications

Global Architectural & Structural Applications

The cold-rolled steel framing sections generated by this advanced processing line act as critical load-bearing foundations within global civil engineering sectors. Renowned for their high strength-to-weight performance ratios, these shaped beams provide primary structural roof purlins, support columns, structural trusses, and internal wall girts for multi-span construction layouts. They are heavily incorporated into the assembly of deep-span industrial complexes, regional distribution warehouses, transport infrastructure hubs, institutional properties, and modern modular building sectors.

Furthermore, with the ongoing expansion of utility-scale renewable energy networks worldwide, these precision-profiled beams are highly valued for constructing durable ground racking, tracker frameworks, and mounting foundations within vast solar fields. This clean energy transition provides a reliable and highly profitable commercial avenue for metal processing facilities worldwide.

Rigorous Pre-Shipment Quality Testing

Prior to leaving our machinery development center, each manufacturing unit undergoes strict validation testing under full continuous structural loads using real material coils. Our quality engineers thoroughly inspect electronic sensor processing, hydraulic pressure curves, and motorized size change mechanics to guarantee everything matches factory requirements. This rigorous validation check ensures your operation gains an exceptionally dependable, plug-and-play production asset that functions flawlessly from day one.

Inquire for Technical Specifications & Pricing

As an established manufacturer specializing in heavy-duty cold roll forming technology, we provide flexible customization choices to accommodate specific fabrication drawings, structural thicknesses, and punching plans. Reach out to our engineering team today to secure an immediate, factory-direct wholesale quotation, exhaustive layout footprints, and a tailored business proposal engineered to scale your output capacity!
