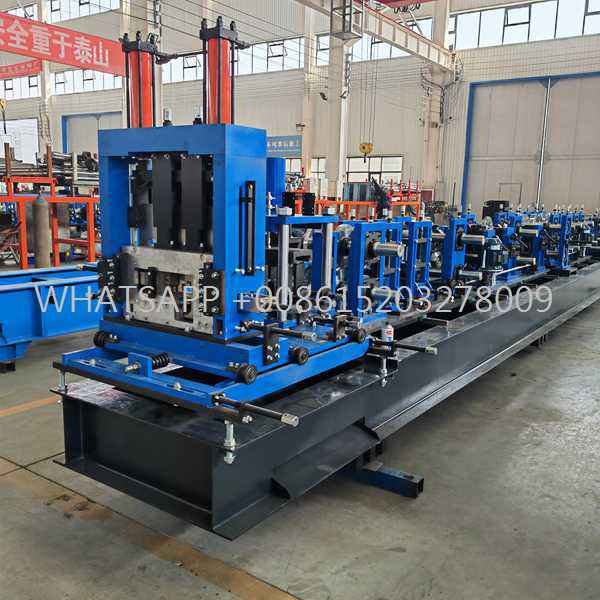

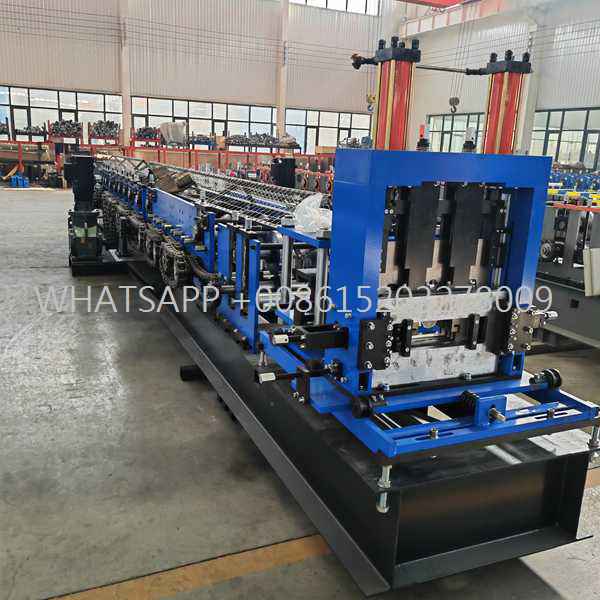

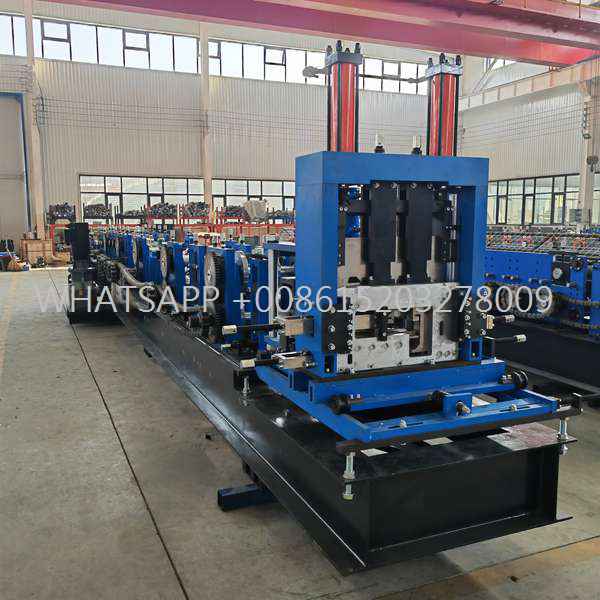

Our high-performance Z Purlin Roll Forming Machine is designed to produce premium quality steel Z purlins for pre-engineered steel buildings. Equipped with a fully automatic PLC control system, it allows seamless cutting and sizing width/height variations within minutes without changing rollers.
Key Capabilities: Handles thickness from 1.5mm to 3.0mm, with a production speed up to 25m/min.
Why Choose Us: Factory-direct price, heavy-duty frame design, and lifetime technical support.
Are you looking for a reliable and durable solution for steel structural projects? Our industrial-grade Z purlin roll forming machine offers precision engineering, high-speed output, and unmatched stability. Whether it is for roofing, industrial warehouses, or solar mounting systems, this machine guarantees high-accuracy roll forming with minimal labor costs.
Key Features & Advantages
Technical Parameters Specification| Parameter Item | Technical Data / Specifications |
|---|---|
| Raw Material | Galvanized Steel, Hot Rolled Steel Coils |
| Material Thickness | 1.5 mm – 3.0 mm (Customizable) |
| Forming Speed | 15 – 25 m/min (Excluding cutting time) |
| Forming Stations | 16 – 20 Roller Stations (Based on profile design) |

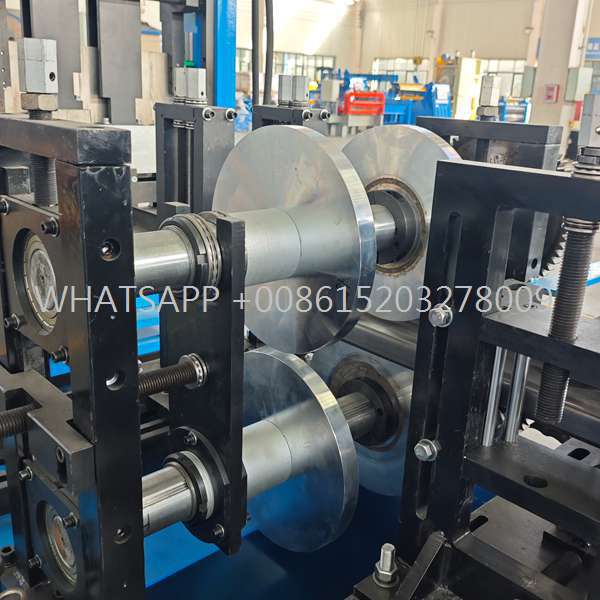

| Roller Material | GCr15 Steel with quenched treatment, Hard Chrome Plated |
| Control System | PLC Touch Screen (Siemens / Mitsubishi / Panasonic) |
| Cutting Type | Hydraulic Flying Pre-cutting or Post-cutting |
| Main Power | 15 KW / 18.5 KW (Depend on thickness) |
The finished Z-shaped steel profiles are widely used as the structural support framework for industrial buildings, large warehouses, railway stations, exhibition centers, and commercial steel infrastructure projects.
As a professional roll forming machine manufacturer, we provide customized designs to meet your specific profile drawings. Contact us now to get a factory-direct price and a detailed technical solution for your business!
