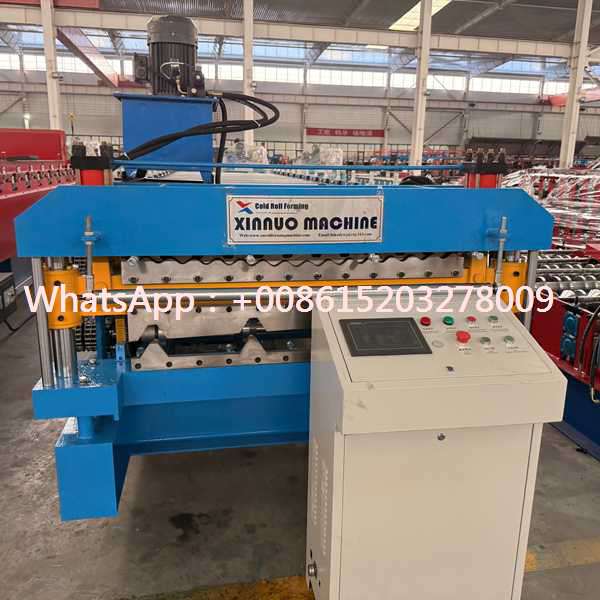

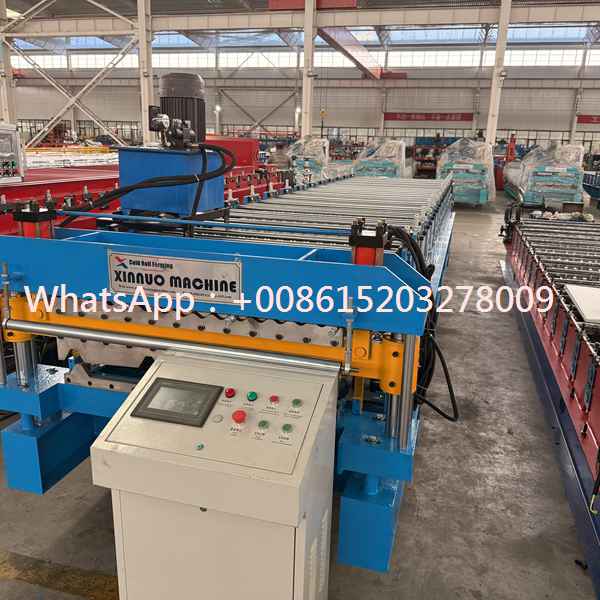

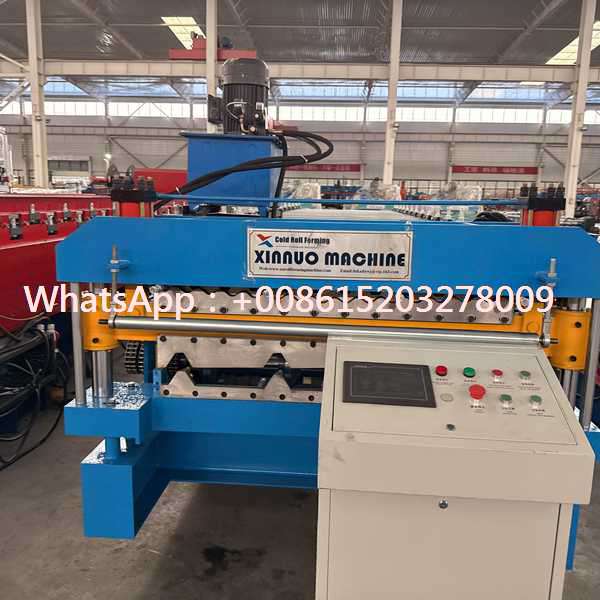

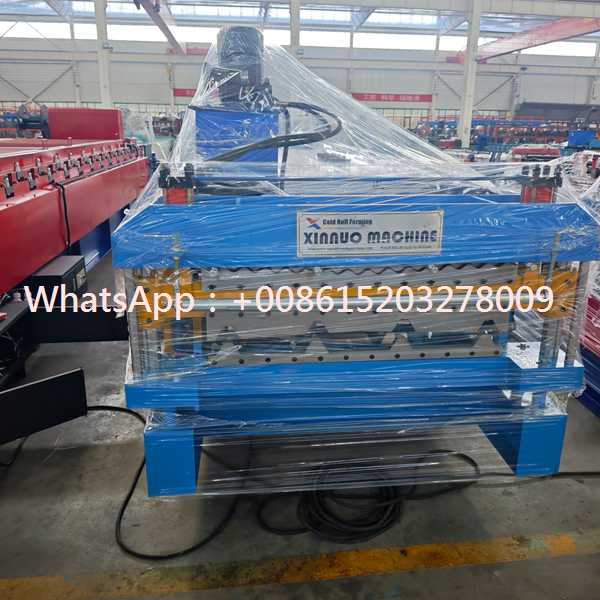

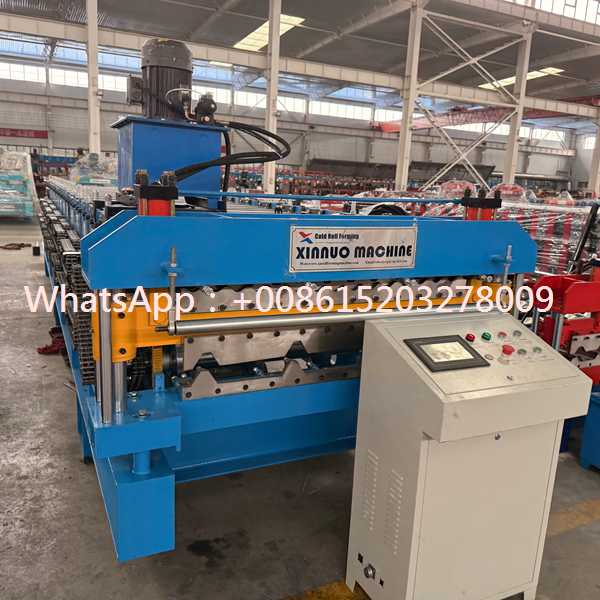

The Automatic Wave Profile Metal Roofing Machine is a professional roll forming system designed for producing high-quality wave-shaped metal roofing sheets. The machine processes galvanized steel, pre-painted steel, Aluzinc and other suitable metal coils into finished roofing panels with uniform wave patterns, accurate dimensions and excellent surface appearance.
Wave profile metal roofing sheets are widely used in industrial buildings, warehouses, agricultural structures, commercial facilities and residential construction projects. The curved wave design provides good structural strength, effective water drainage performance and an attractive architectural appearance.
The complete production line integrates coil feeding, material guiding, profile forming, automatic length measurement and cutting functions. It provides manufacturers with a reliable solution for continuous production of durable roofing panels with consistent quality and efficient operation.
The wave profile metal roofing machine is specially developed for producing sinusoidal and curved roofing panels according to different market requirements. The machine forms flat metal strips into finished wave-shaped profiles through multiple precision roller stations.
During the forming process, each roller station performs a controlled shaping operation. The gradual forming method helps maintain smooth wave curves, stable panel dimensions and reduced material stress.
The equipment can be customized according to profile design, wave height, pitch distance, material thickness and production capacity. Different roofing sheet specifications can be produced by adjusting the forming roller configuration.
| Technical Item | Specification |
|---|---|
| Machine Type | Automatic Wave Profile Metal Roofing Machine |
| Finished Product | Wave Shape Metal Roofing Sheet |
| Raw Material | PPGI, GI, PPGL, Color Coated Steel |
| Material Thickness | 0.3-0.8 mm Customized |
| Forming Method | Continuous Cold Roll Forming |
| Production Speed | 10-30 m/min Customized |
| Control System | PLC Touch Screen Control |
| Cutting System | Hydraulic Automatic Cutting |
| Panel Length | Programmable According to Requirement |
| Application | Metal Roofing Sheet Production |
The forming section is the main working part of the wave roofing machine. Multiple forming rollers are arranged according to the wave profile design to gradually transform the flat steel strip into a finished curved roofing panel.
The specially designed rollers ensure smooth material movement and accurate wave shape formation. The forming system helps maintain consistent wave spacing, panel width and surface quality during continuous production.
The machine structure provides strong support for the forming stations and transmission system. Stable mechanical performance helps reduce vibration and improves reliability during long-term operation.
The production process starts with loading the metal coil onto the decoiler. The feeding system supplies the steel strip continuously into the forming section with controlled speed and stable movement.
The guiding unit keeps the material correctly positioned before entering the rollers. Proper alignment helps prevent profile deviation and improves the accuracy of finished wave roofing sheets.
According to production requirements, the machine can be equipped with hydraulic decoilers, leveling devices and automatic loading systems to improve production efficiency.
The wave profile roofing machine adopts an intelligent PLC control system for convenient operation management. Operators can set production length, quantity and machine parameters through the touch screen interface.
The control system automatically coordinates material feeding, forming speed and cutting operation. This reduces manual adjustment and improves production consistency.
The programmable system allows manufacturers to produce roofing panels with different lengths according to customer orders, improving production flexibility.
After the wave profile is formed, the cutting unit separates finished roofing sheets according to the preset length. The cutting system is designed according to the panel shape to maintain clean edges and accurate dimensions.
Automatic length control improves production efficiency and reduces errors caused by manual measurement. Finished panels can be collected manually or connected with optional stacking equipment.
| Production Stage | Processing Function |
|---|---|
| Coil Installation | Load steel coil material |
| Material Feeding | Guide strip into forming unit |
| Wave Forming | Create curved roofing profile |
| Length Measurement | Control finished panel size |
| Automatic Cutting | Separate completed roof sheets |
| Panel Collection | Prepare products for packaging |
Wave profile roofing sheets produced by this machine are widely used in construction projects requiring durable and economical roofing solutions. Their classic appearance and practical performance make them suitable for various applications.
| Optional Equipment | Main Function |
|---|---|
| Hydraulic Decoiler | Automatic coil unwinding |
| Leveling Device | Improves material flatness |
| Servo Cutting System | Improves cutting accuracy |
| Automatic Stacker | Organizes finished sheets |
| Run-Out Table | Supports panel collection |
| Feature | Production Benefit |
|---|---|
| Customized Forming Rollers | Produces different wave profiles |
| Automatic Operation | Improves manufacturing efficiency |
| Precision Profile Forming | Maintains stable product quality |
| Programmable Cutting | Supports flexible panel lengths |
| Continuous Production | Suitable for large orders |
| Flexible Configuration | Matches different factory requirements |
The Automatic Wave Profile Metal Roofing Machine provides an efficient manufacturing solution for producing curved metal roofing sheets. With precision roll forming technology, automatic control and customizable production options, the equipment supports stable output for roofing material manufacturers.
The machine can be designed according to profile drawings, material specifications and production requirements. It helps manufacturers improve productivity, maintain consistent quality and supply durable wave roofing panels for modern construction projects.
