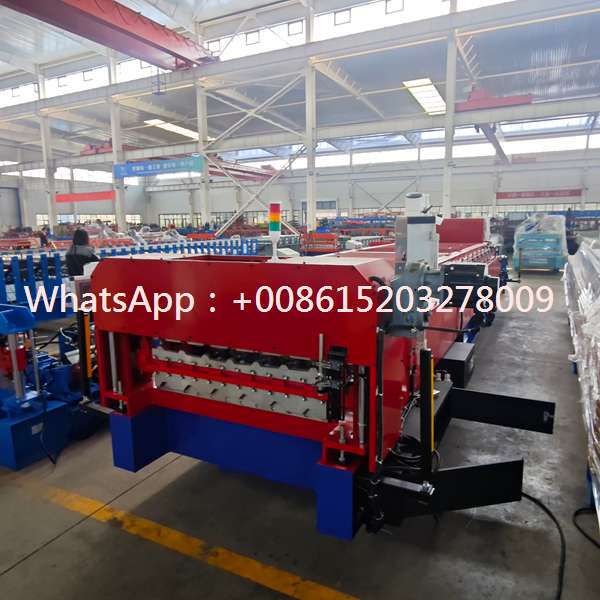

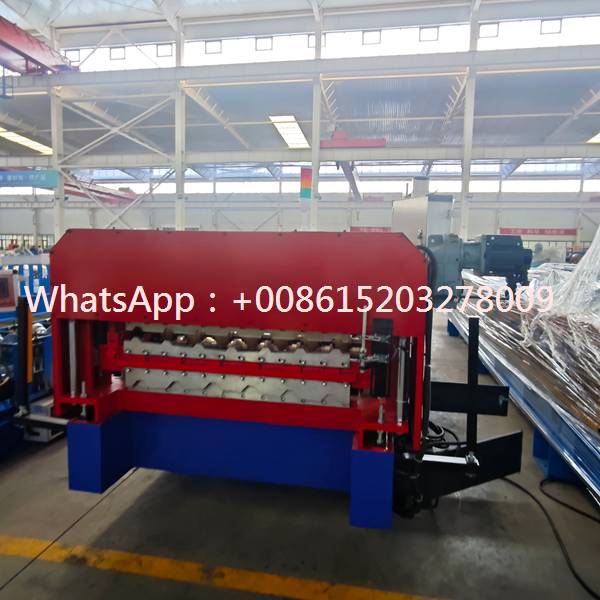

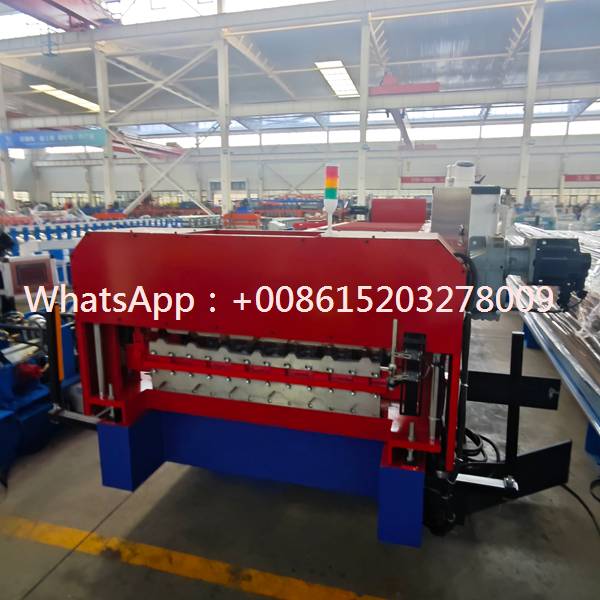

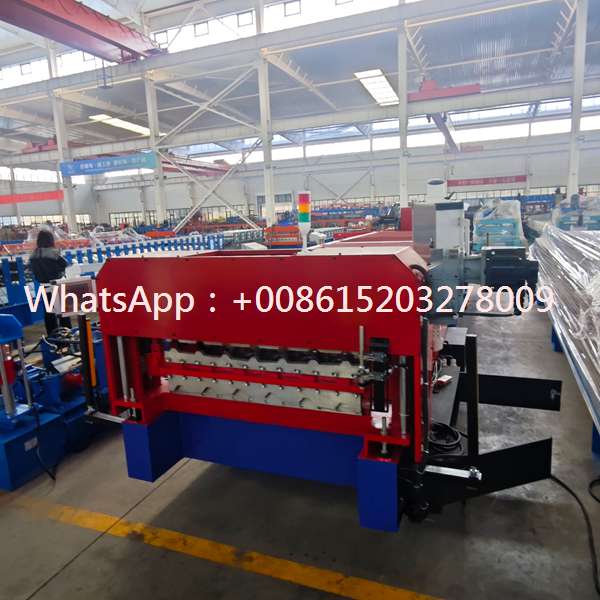

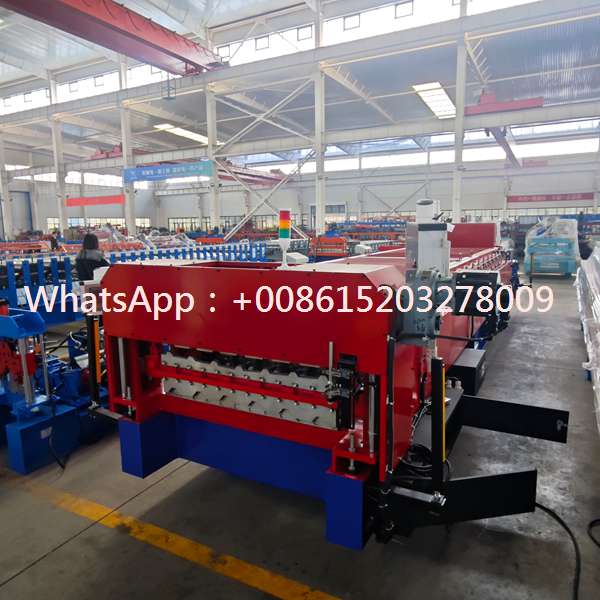

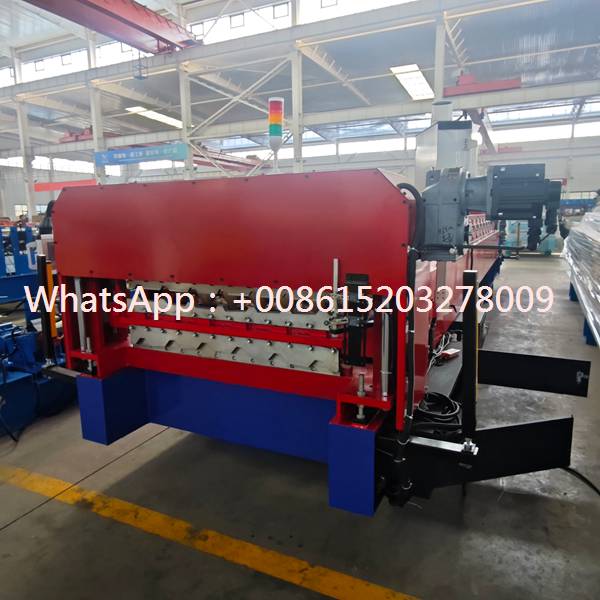

The Automatic Roofing Sheet Manufacturing Machine is a professional roll forming system designed for producing high-quality metal roofing sheets with accurate dimensions, smooth surfaces and stable structural performance. The machine is widely used for manufacturing trapezoidal roofing sheets, corrugated panels, wall cladding sheets and customized metal profiles for modern construction projects.
By using advanced cold roll forming technology, this equipment continuously transforms steel coils into finished roofing sheets through a series of precision forming processes. The production method ensures excellent profile accuracy, consistent quality and reliable performance for long-term building applications.
The machine integrates coil feeding, sheet forming, automatic measurement and cutting functions, providing an efficient solution for roofing material manufacturers, steel structure companies and construction product suppliers.
The roofing sheet manufacturing machine is developed for enterprises requiring continuous and efficient production of metal roof panels. The complete system provides stable operation and flexible configuration according to different product requirements.
Manufacturers can produce various roofing profiles by changing forming rollers and adjusting production parameters. This allows companies to expand their product range and meet different construction market demands.
The automatic operating mode reduces manual intervention, improves production efficiency and helps maintain consistent product quality during large-scale manufacturing.
The forming section adopts multiple precision roller stations to gradually shape flat steel coils into finished roofing sheets. The progressive forming process reduces material deformation and ensures smooth profile transformation.
The roller design is customized according to different roof sheet shapes, thickness ranges and application requirements. Precision manufacturing of rollers helps improve product accuracy and surface quality.
The strong machine structure provides excellent stability during operation, making the equipment suitable for continuous industrial production environments.
| Item | Specification |
|---|---|
| Machine Type | Automatic Roofing Sheet Manufacturing Machine |
| Raw Material | PPGI, Galvanized Steel, Color Steel Coil |
| Material Thickness | 0.3-0.8 mm |
| Production Speed | 10-40 m/min |
| Forming Method | Continuous Cold Roll Forming |
| Control System | PLC Automatic Control |
| Cutting Method | Hydraulic Automatic Cutting |
| Profile Type | Trapezoidal, Corrugated, Customized |
| Operation Mode | Automatic Continuous Production |
| Application | Metal Roofing Sheet Manufacturing |
The machine supports production of different metal roofing sheet designs according to customer requirements. Various profiles can be produced for different building structures, weather conditions and installation methods.
The flexible configuration allows manufacturers to provide customized roofing solutions while maintaining high production efficiency and product consistency.
| Roof Sheet Type | Application Area |
|---|---|
| Trapezoidal Roofing Sheet | Industrial and commercial buildings |
| Corrugated Roofing Sheet | General construction projects |
| Wall Cladding Sheet | Exterior building protection |
| Customized Metal Panel | Special engineering requirements |
The feeding unit ensures smooth and stable transportation of steel coils into the forming section. The guiding mechanism maintains correct material alignment and improves finished sheet accuracy.
The production line can be equipped with additional devices such as hydraulic decoilers, leveling machines and automatic handling systems to create a complete roofing sheet production solution.
The automatic cutting system works together with the PLC control unit to achieve accurate length measurement and efficient sheet separation. The synchronized process improves production speed and reduces manual operation.
The cutting mechanism provides clean edges and accurate dimensions, making finished roofing sheets convenient for transportation, stacking and installation.
| Production Stage | Description |
|---|---|
| Coil Preparation | Install metal coil material |
| Material Feeding | Guide steel strip into machine |
| Roll Forming | Create required roofing profile |
| Length Setting | Control finished sheet size |
| Automatic Cutting | Separate finished roofing panels |
| Product Collection | Prepare sheets for delivery |
Roofing sheets produced by this machine are widely used in modern construction because of their durability, lightweight structure and excellent weather resistance.
| Feature | Benefit |
|---|---|
| Automatic Operation | Improves production efficiency |
| Precision Forming | Ensures stable sheet quality |
| Flexible Profile Design | Supports various products |
| Continuous Production | Suitable for large orders |
| Customized Configuration | Meets different requirements |
The Automatic Roofing Sheet Manufacturing Machine provides a complete and efficient solution for companies producing metal roofing products. With advanced forming technology, automatic control and flexible customization options, the equipment meets the needs of modern construction material manufacturers.
It helps enterprises improve production capacity, reduce manufacturing costs and supply durable roofing sheets for industrial, commercial and residential building projects.
