To provide the correct configuration, please share:
• Coil thickness
• Coil width
• IBR profile drawing
• Required production speed
• Country voltage standard
Our engineers will respond with a customized technical proposal within 24 hours.
The IBR roof sheeting machine is designed to manufacture IBR profile metal roofing sheets from steel or aluminum coils. Through a precision cold roll forming process, flat metal strips are gradually shaped into rigid roofing panels with reinforced ribs.
IBR (Inverted Box Rib) sheets are widely recognized for their structural strength, efficient rainwater drainage and wind resistance. These characteristics make them highly suitable for industrial roofing and large-span building structures.
Our IBR roof sheeting system provides continuous and automated production, ensuring consistent sheet dimensions and excellent surface quality.
The complete roofing line generally includes:
• Coil decoiler (manual or hydraulic type)

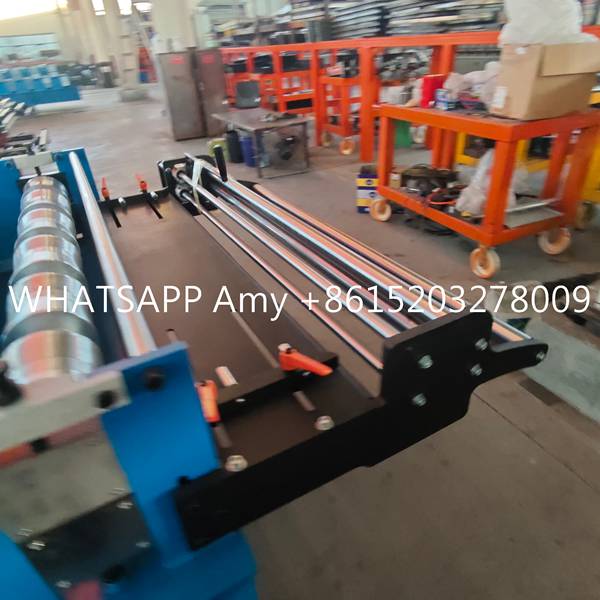

• Feeding and alignment section
• Multi-station roll forming unit

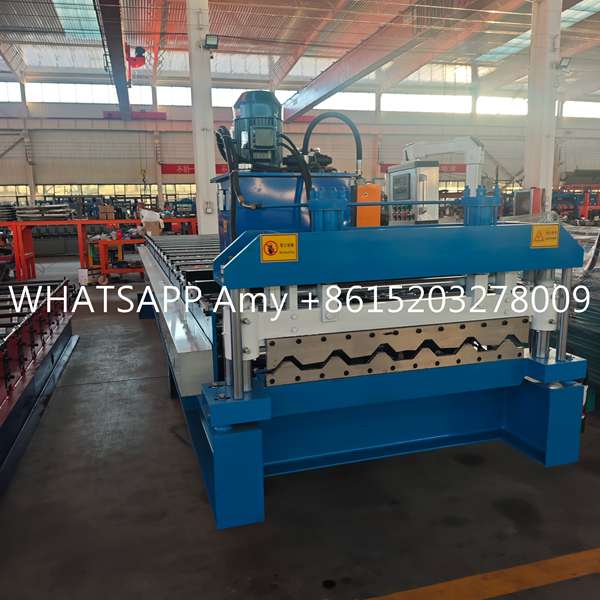

• Automatic hydraulic cutting device
• Finished sheet run-out table
All sections are synchronized through a PLC control system with digital interface for simple operation and accurate length adjustment.
• Applicable materials: Galvanized steel, pre-painted steel, aluminum
• Processing thickness: 0.3 – 0.8 mm
• Forming stations: 18–24
• Line speed: 15–30 m/min
• Length tolerance: ±1 mm
• Drive type: Chain transmission / Gearbox drive
• Roller material: Hardened steel with chrome plating
• Power supply: Customized according to country
Roll forming stations are precisely aligned to maintain uniform rib height and panel width.
Welded steel base enhances machine rigidity and reduces vibration.
Hydraulic tracking cutting ensures clean edges and precise panel sizing.
Machine can be configured for different IBR sheet widths and rib specifications.
Wear-resistant rollers and quality electrical components ensure stable long-term operation.
IBR roofing panels produced by this equipment are commonly installed in:
Industrial factories
Storage warehouses
Commercial complexes
Agricultural buildings
Steel structure workshops
Residential housing developments
• Professional roll forming equipment manufacturer
• Strong export experience
• Engineering support for layout planning
• Installation and training assistance
• Spare parts available
• Efficient production lead time
