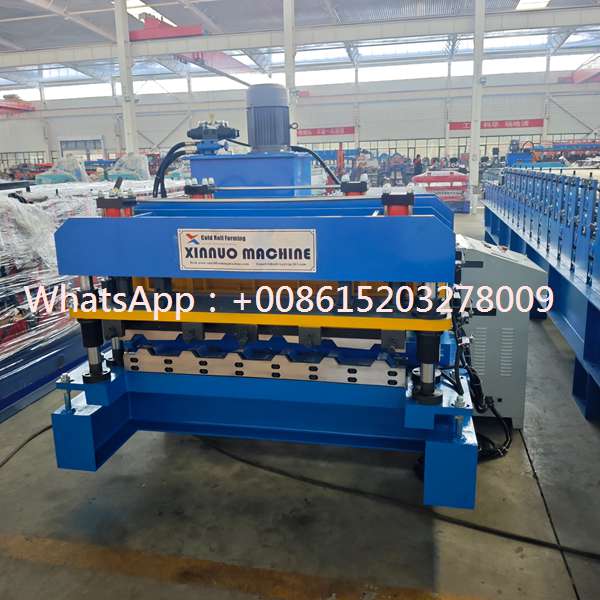

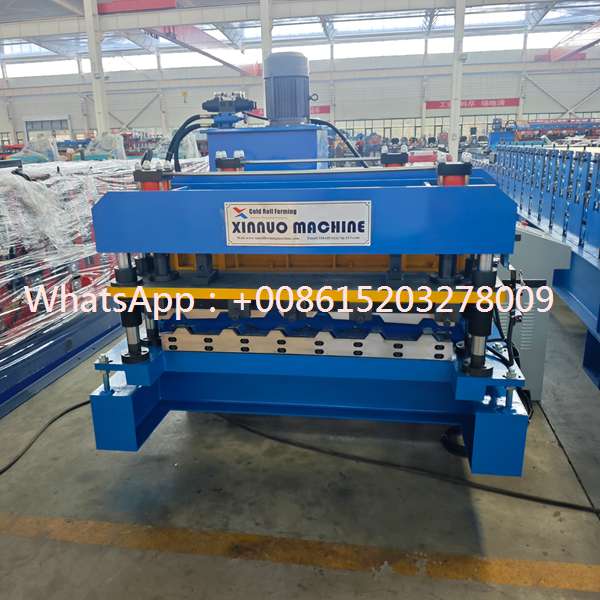

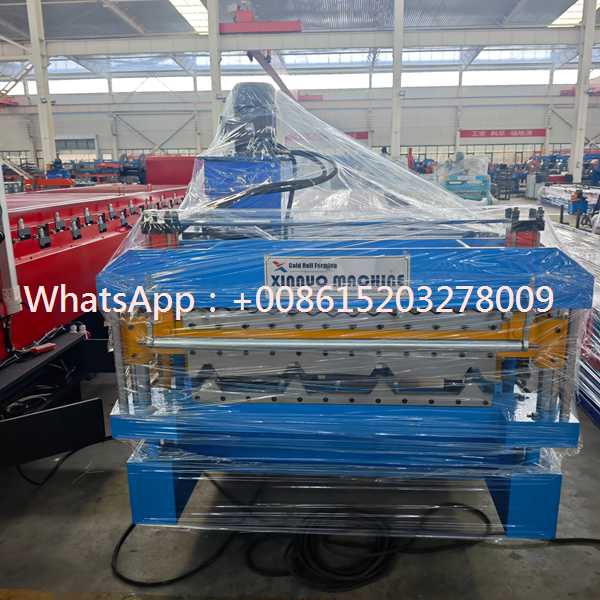

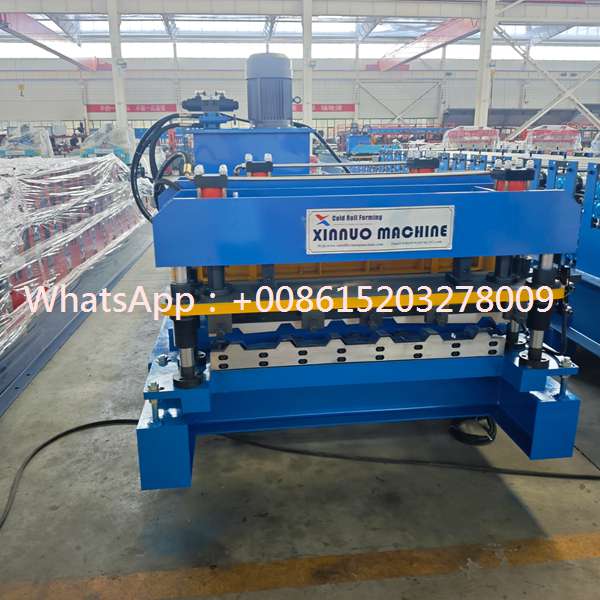

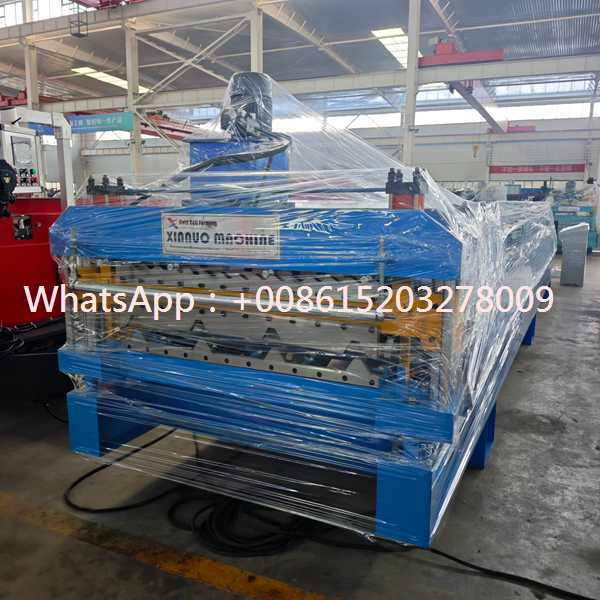

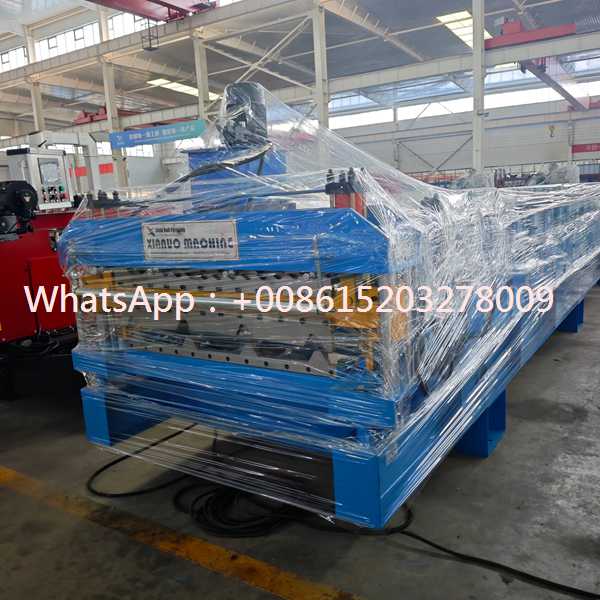

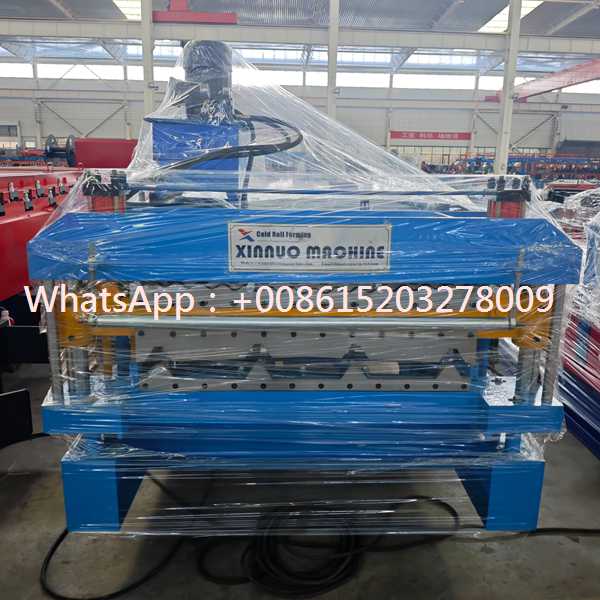

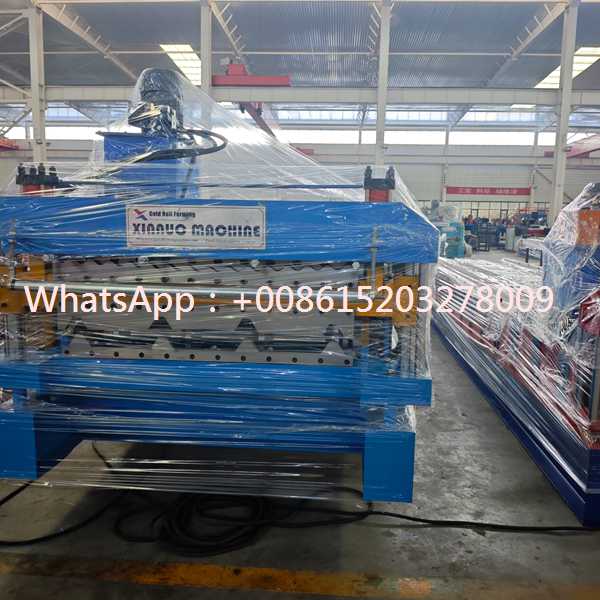

The Automatic Double Deck Roll Forming Machine is an advanced metal forming solution designed for producing two different types of roofing sheets with one compact production system. By combining two independent forming layers into a single machine structure, it helps manufacturers save factory space while improving production efficiency.
This equipment is widely used for manufacturing metal roofing panels, wall cladding sheets, corrugated sheets and trapezoidal roof panels. It is suitable for construction material factories, steel structure companies, roofing contractors and building system suppliers.
The double deck design allows operators to select different profile production modes according to market requirements. The upper and lower forming units can be configured with different roller systems, enabling flexible production of multiple roofing sheet designs.
The main feature of the double deck roll forming machine is its vertical integrated structure. Compared with installing two separate roll forming machines, this design significantly reduces equipment installation space and improves factory utilization.
Each forming layer operates independently and can produce different roofing profiles. Manufacturers can select suitable production layers according to order requirements, improving production flexibility and reducing production preparation time.
The compact structure makes this machine especially suitable for factories with limited workshop space but requiring multiple roofing sheet production capabilities.
The machine adopts continuous cold roll forming technology to gradually shape metal coils into finished roofing panels. Multiple forming stations ensure smooth material deformation and maintain accurate profile dimensions.
The roller design is customized according to different roofing profiles, material thicknesses and application requirements. Proper roller arrangement helps improve product appearance and structural strength.
The reinforced frame structure provides stable support for both forming levels, ensuring reliable operation during continuous production conditions.
| Item | Specification |
|---|---|
| Machine Type | Automatic Double Deck Roll Forming Machine |
| Production Type | Two Layer Roofing Sheet Production |
| Processing Material | Color Steel, Galvanized Steel, PPGI |
| Material Thickness | 0.3-0.8 mm |
| Production Speed | 10-30 m/min |
| Forming Method | Cold Roll Forming Process |
| Control System | PLC Automatic Control |
| Cutting System | Hydraulic Automatic Cutting |
| Profile Type | Customized Roofing Profiles |
| Operation Mode | Automatic Continuous Production |
Flexible Double Layer Profile ConfigurationThe double deck roll forming machine can be configured with different profile combinations according to customer requirements. One machine can produce two different roofing products, helping manufacturers increase product diversity.
The flexible design allows companies to adjust production plans according to seasonal demand, construction trends and customer orders.
| Upper Layer | Lower Layer |
|---|---|
| Trapezoidal Roofing Sheet | Corrugated Roofing Sheet |
| Standing Seam Panel | Metal Wall Panel |
| Customized Roof Profile | Customized Roof Profile |
The feeding system provides stable transportation of steel coils into the forming unit. The guiding device keeps the material aligned and reduces production deviation during processing.
Optional equipment such as automatic decoilers, leveling systems and coil handling devices can be integrated according to production requirements, creating a more complete roofing panel production line.
The automatic cutting system works together with the control system to produce roofing panels with accurate preset lengths. The synchronized operation improves production efficiency and reduces manual measurement errors.
The cutting unit is designed according to different roofing profiles, providing clean cutting performance and convenient finished product handling.
| Production Stage | Main Function |
|---|---|
| Coil Installation | Prepare metal coil material |
| Material Feeding | Guide coil into forming unit |
| Profile Forming | Create selected roofing shape |
| Length Measurement | Control panel size |
| Automatic Cutting | Separate finished sheets |
| Product Collection | Prepare panels for application |
Double deck roll forming machines are widely used in industries requiring efficient production of different metal roofing products. The produced panels are suitable for various construction environments.
| Feature | Benefit |
|---|---|
| Dual Production Layers | Produces two profiles in one machine |
| Compact Structure | Saves factory installation space |
| Flexible Configuration | Supports different roofing products |
| Automatic Control | Improves production efficiency |
| Stable Performance | Suitable for continuous operation |
The Automatic Double Deck Roll Forming Machine provides an efficient and economical solution for manufacturers requiring multiple roofing sheet production capabilities. Through compact design, flexible profile configuration and automatic operation, the equipment improves production efficiency while reducing factory space requirements.
It is an ideal choice for companies seeking reliable metal roofing production equipment with high flexibility, stable performance and strong market adaptability.
