♦ Thickness of feeding material: 1.5-3.5mm for G550 and 2.5-4mm for Q235
♦ Roller station: 15 rows+11rows
♦ Roller material: Cr12
♦ Diameter of shaft: 90mm
♦ Motor power : 32KW
♦Speed of forming 6-25 m/min (according to punching)
♦automatic change C to Z
Product Introduction:

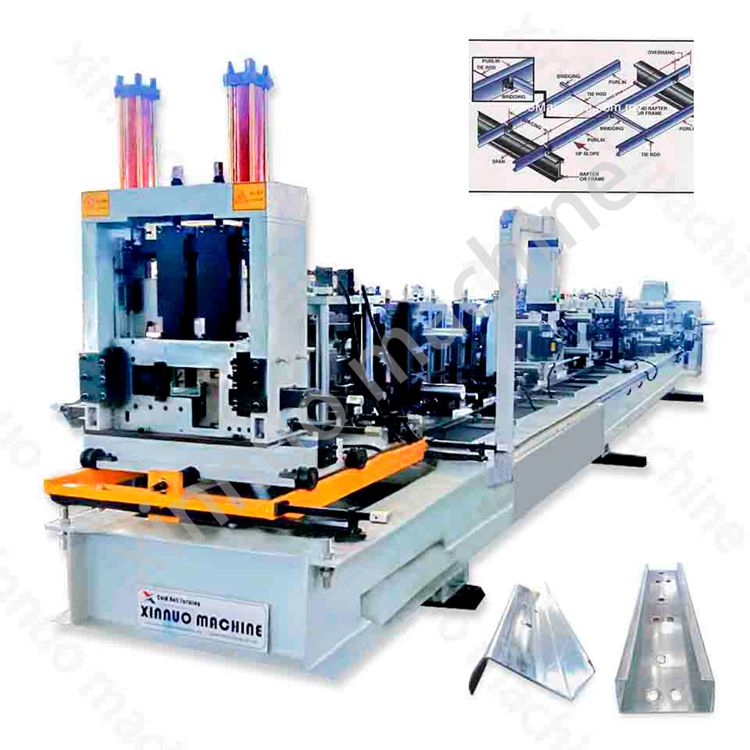

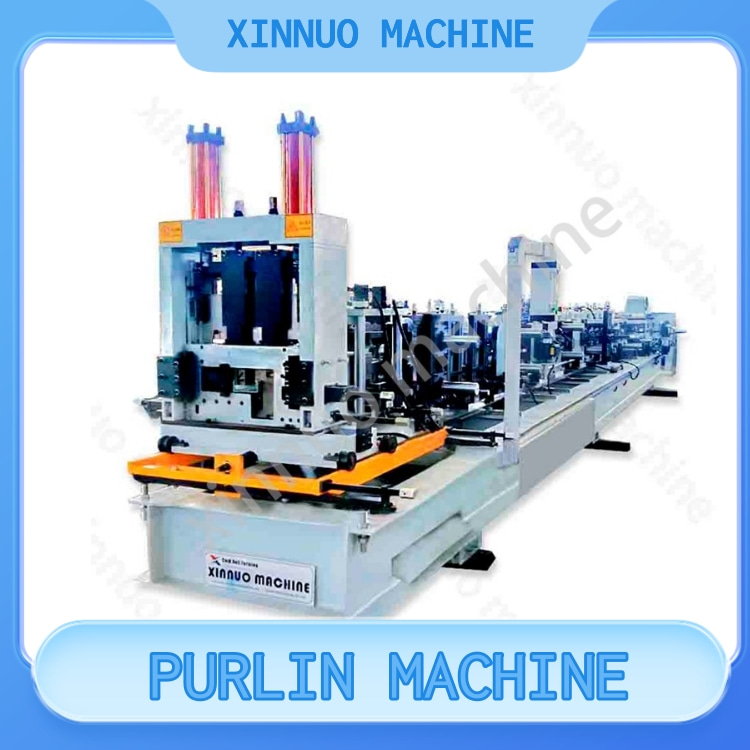

High precision CZ purlin roll forming machine for automatic C and Z steel channel production, adjustable size, stable performance, and efficient hydraulic cutting system.
Product Introduction (Detailed Content):
The CZ purlin roll forming machine is engineered for manufacturing both C and Z type steel purlins used in modern steel structure buildings. It is widely applied in industrial workshops, warehouses, roofing systems, and prefabricated construction projects.
This production line is designed with advanced automatic switching capability, allowing fast transition between C and Z profiles without complex mechanical replacement. It significantly improves production efficiency and reduces downtime during operation.
The machine integrates multiple functions into one continuous system, including coil feeding, leveling, roll forming, punching, and hydraulic cutting. This ensures stable production flow and high-quality output consistency.
Its adjustable forming system supports various size specifications, making it suitable for different engineering requirements. Operators can easily adjust parameters through the PLC control panel, improving flexibility and operational convenience.
The heavy-duty machine frame is built for long-term industrial use, ensuring stable operation even under high-speed production conditions. The cutting system adopts hydraulic control for precise and clean section finishing.
Technical Specification Table:
| Item | Description |
|---|---|
| Material Type | Galvanized Steel / Cold Rolled Steel |
| Profile Type | C Purlin / Z Purlin |
| Thickness Range | 1.5 – 3.5 mm |
| Production Speed | 10 – 25 m/min |
| Roller Stations | 12 – 20 stations |
| Control System | PLC Automatic Control |
| Cutting System | Hydraulic Servo Cutting |
| Adjustment Mode | Automatic Size Adjustment |
| Shaft Material | High Strength 45# Steel |
| Frame Structure | Heavy Duty Welded Steel Frame |
| Voltage | 380V / 50Hz / 3 Phase |
Workflow Process:
Steel Coil Loading → Decoiling System → Straightening Unit → Punching System → Roll Forming Section → Size Adjustment System → Hydraulic Cutting → Output Table
Key Advantages:
Application Fields:
High-quality steel structure purlin forming machines represent the pinnacle of modern construction manufacturing technology, designed to meet the growing demands for efficient and precise production of purlins.
These machines utilize state-of-the-art roll-forming technology, which involves a series of consecutive rolling operations to gradually shape steel coils into the desired purlin profiles. By leveraging computer numerical control (CNC) systems, operators can input specific dimensions and specifications, ensuring that each purlin produced adheres to exacting standards.
One of the key advantages of these advanced machines is their ability to achieve high production speeds without compromising on quality.
The automated nature of the process minimizes human error, resulting in consistent and uniform purlins with accurate dimensions.
This precision is crucial for industrial building applications, as purlins serve as essential horizontal supports for roofs and walls.
Properly manufactured purlins enhance the structural integrity of buildings, enabling them to withstand heavy loads, extreme weather conditions, and seismic activity.
In addition to precision and speed, high-quality purlin forming machines also offer flexibility.
They can be easily adjusted to produce different types of purlins, including C-shaped, Z-shaped, and hat-shaped profiles, catering to the diverse needs of various construction projects.
The machines are also equipped with features such as automatic length measurement and cutting, ensuring that each purlin is cut to the exact required length, reducing material waste and saving costs. Furthermore, modern purlin forming machines prioritize operator safety and ease of use.
They come with safety guards, emergency stop buttons, and intuitive control interfaces, making them accessible to operators of varying skill levels.
Maintenance is also simplified, with modular designs that allow for quick and easy replacement of components, minimizing downtime and maximizing productivity.
Overall, high-quality steel structure purlin forming machines play an indispensable role in the construction industry, driving efficiency, quality, and innovation in the production of essential building components.
