Production speed 8-15m/min
Raw material max thickness 0.2-0.6mm
Row number 20
Under frame 350mm H Steel
Roller material 45# steel
Shaft diameter 85mm solid shaft
Transfer method 1.0 inch double chain drive
Structure 14mm Steel Plate
Main motor power 11 KW
Cutter motor power 4 KW
Cutter type Non-tracking hydraulic cutting

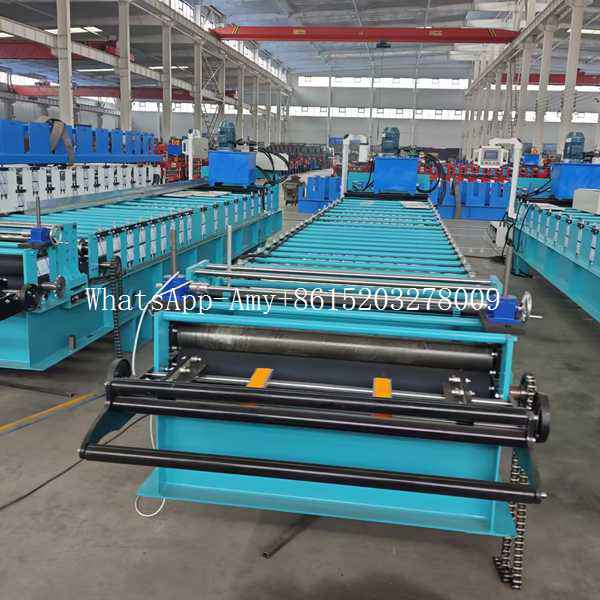

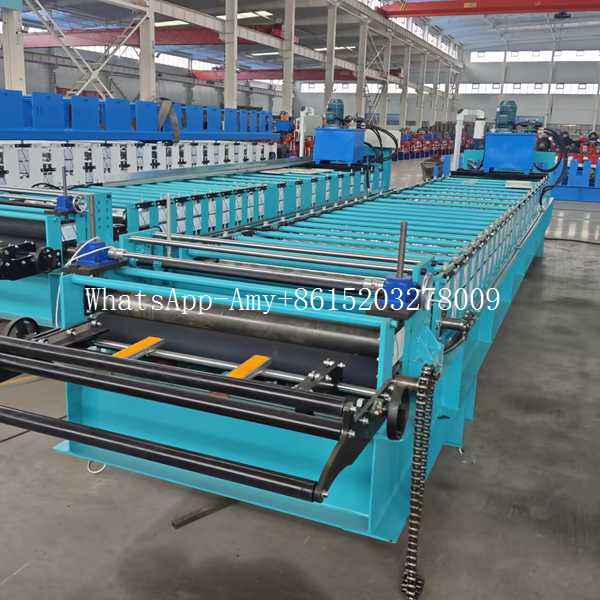

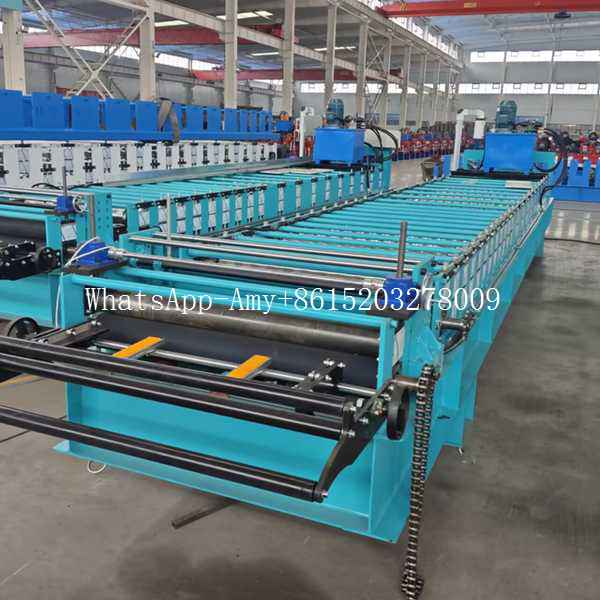

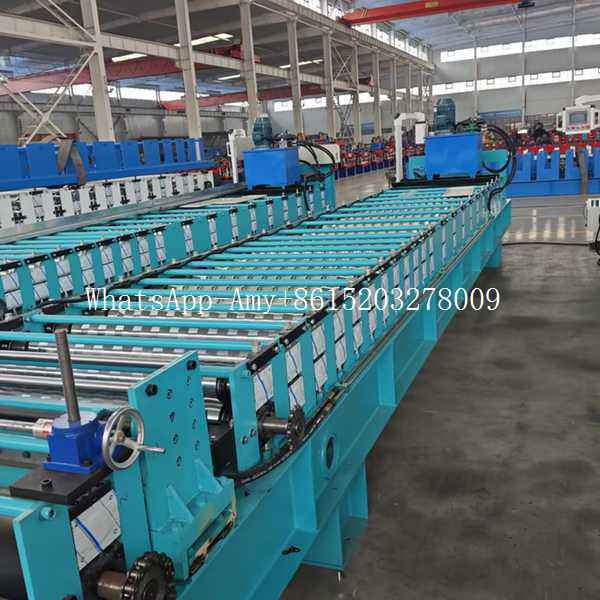

The Corrugated Roof Roll Forming Machine is a professional roll forming system designed for the continuous production of corrugated metal roofing sheets. It is widely used in industrial, commercial, and residential construction for manufacturing galvanized steel, pre-painted steel (PPGI), aluminum, and other metal coils commonly applied in roofing.

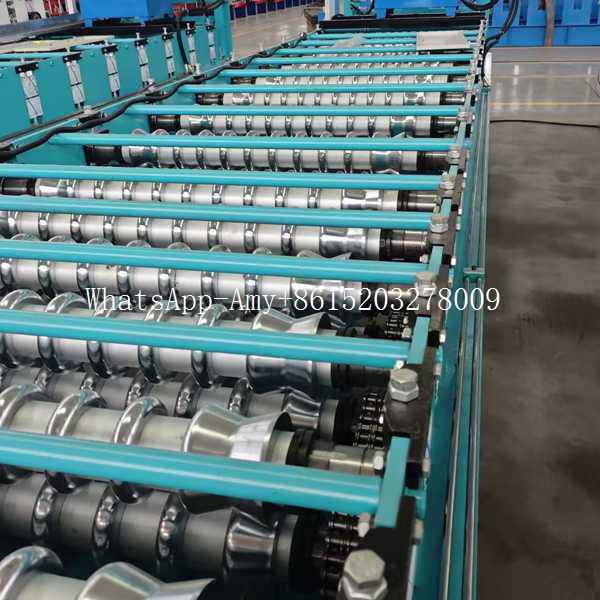

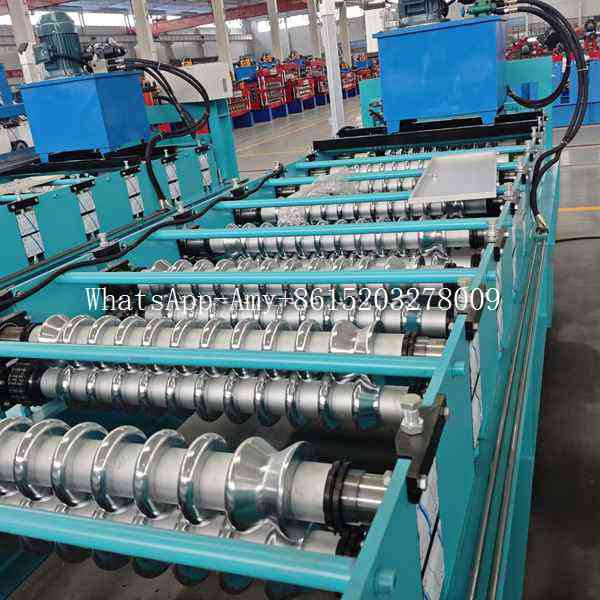

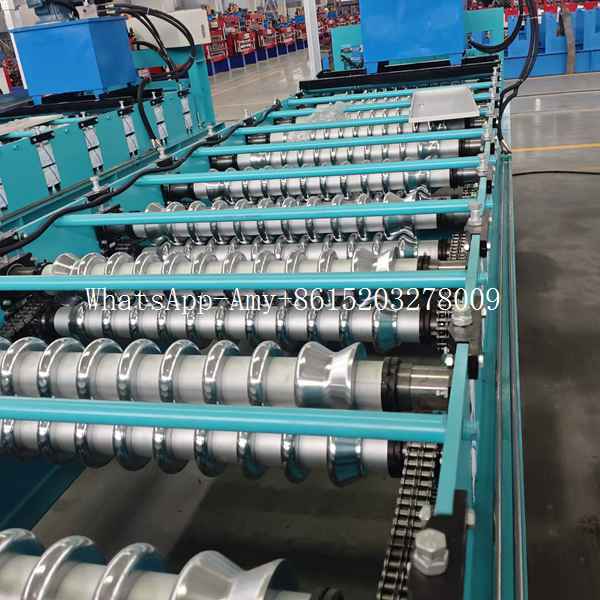

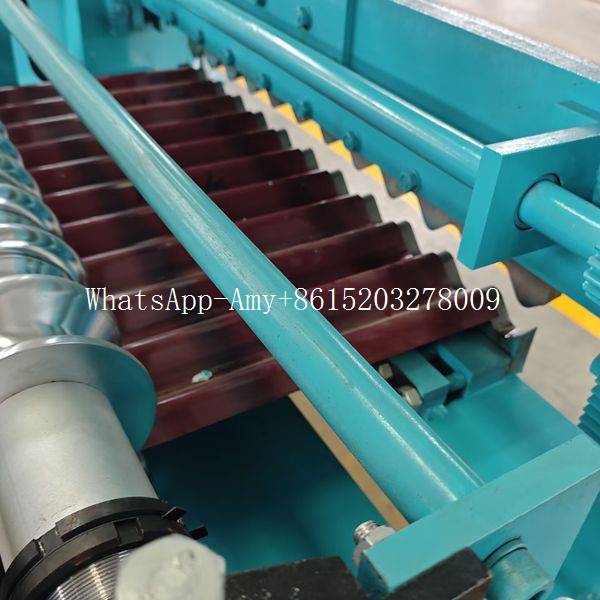

This machine features a reinforced frame and precision-engineered forming rollers to ensure uniform thickness, accurate profiles, and smooth surface finishes. Multiple forming stations gradually shape the metal strip into corrugated roof patterns, reducing material stress and enhancing the strength and durability of the finished sheets. The forming rollers are made of high-quality alloy steel and precisely machined for long-term stability and reliable operation.

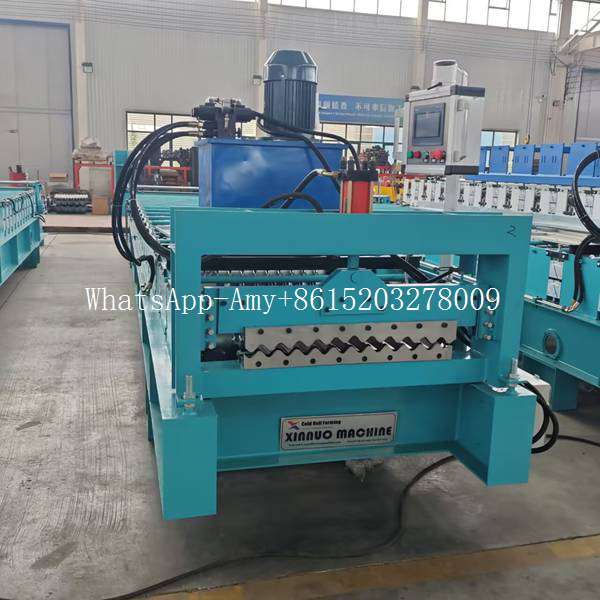

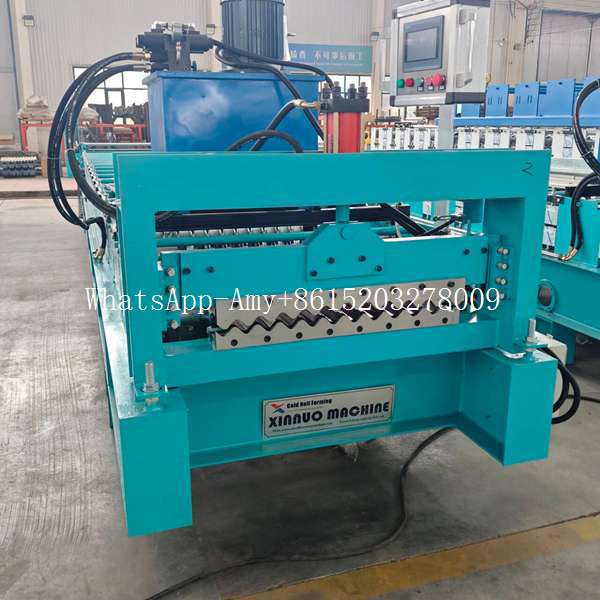

Equipped with an automated control system, the machine allows operators to easily set production parameters such as sheet length, batch size, and line speed. The integrated cutting system synchronizes with the forming line, providing clean and precise cuts without stopping production, which maximizes efficiency and output.
The corrugated roof roll forming machine supports a variety of corrugated sheet profiles and can be customized according to market or regional requirements. Optional accessories include manual or hydraulic decoilers, guiding systems, embossing devices, and automatic stacking units, enabling manufacturers to build fully automated production lines tailored to their needs.
Designed for industrial use, this machine requires minimal maintenance and ensures reliable operation. Its reinforced frame, premium electrical components, and modular design enable low downtime and easy servicing. With flexible configuration options, consistent output quality, and durable construction, this corrugated roof roll forming machine is ideal for manufacturers seeking to improve productivity, reduce operational costs, and remain competitive in the global metal roofing market.
