The corrugated iron rolling machine is an essential piece of automated equipment in the metal processing and construction sectors, specially designed to transform flat metal coils into sturdy, wavy corrugated iron sheets through a continuous rolling process. These corrugated sheets are prized for their excellent structural strength, corrosion resistance, and cost-effectiveness, making them a go-to material for roof and wall cladding, industrial workshop enclosures, logistics warehouse partitions, agricultural greenhouse frames, and temporary construction shelters. As such, the machine serves as a backbone for both large-scale infrastructure projects and small-scale building needs worldwide.
At its core, the machine operates through a streamlined, four-stage modular workflow that ensures seamless, high-quality production from raw material to finished product. The process starts with the uncoiling unit, which steadily feeds metal coils—typically galvanized steel, cold-rolled steel, or aluminum alloy—into the system, preventing tangling and ensuring a consistent material supply. Next, the leveling module flattens the metal sheet, eliminating internal stress and surface irregularities caused by coil storage; this step is critical for avoiding uneven wave formation and ensuring the final product’s structural integrity.

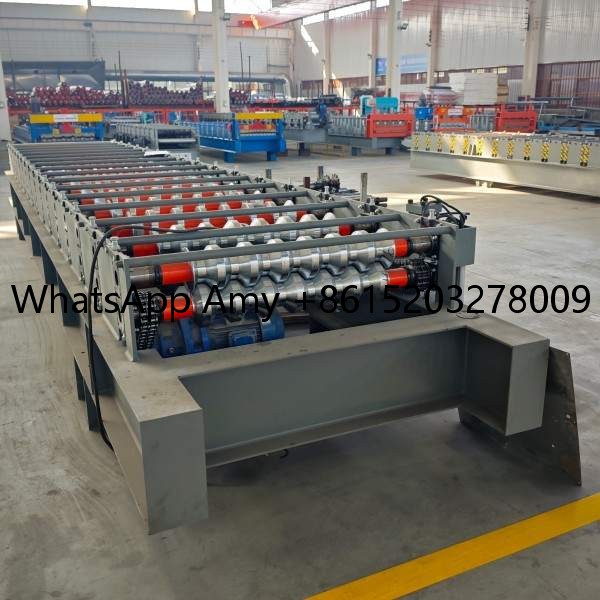

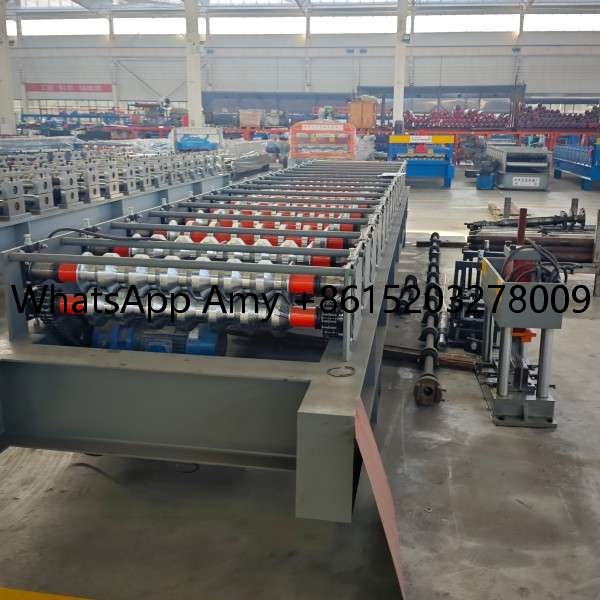

The flattened sheet then moves to the core corrugating unit, where a set of precision-engineered upper and lower rollers exert synchronized pressure to bend the metal into regular, evenly spaced waves. The roller spacing and wave depth can be easily adjusted to produce corrugated sheets of different specifications, ranging from 20mm to 100mm in wave height, to meet diverse project requirements. Finally, the PLC-controlled fixed-length cutting system trims the formed corrugated iron to preset lengths—from 1m to 12m—enabling quick integration into construction workflows.
The machine’s performance advantages make it a top choice for manufacturers and construction enterprises. First, its forming precision is exceptional: the calibrated corrugating rollers and intelligent control system keep wave spacing and height variations within ±0.2mm, ensuring each sheet meets strict engineering standards. Second, it delivers remarkable production efficiency—a single production line can process 10–15 meters of corrugated iron per minute, far outpacing traditional manual bending methods and enabling large-batch production to meet tight project deadlines. Third, it maximizes material utilization: the optimized roller path and minimal edge trimming design reduce raw material waste to less than 3%, significantly lowering operational costs for users.
Beyond efficiency and precision, the corrugated iron rolling machine excels in flexibility and durability, catering to the needs of both large-scale factories and small-and-medium-sized processing workshops. Operators can switch between different corrugated sheet specifications in minutes via a user-friendly touch control interface, without the need for complex mechanical disassembly or roller replacement. The machine’s frame is constructed from thickened steel plates, ensuring stable operation even during 24-hour continuous production shifts. Additionally, the corrugating rollers are made from wear-resistant alloy steel with a hard chrome-plated surface, extending the equipment’s service life to over 10 years and reducing maintenance frequency and downtime. The machine also adheres to modern environmental and energy-saving standards, featuring a low-noise gearbox and energy-efficient motor that cut power consumption by 15% compared to conventional models, while keeping operational noise within workplace regulatory limits.
As the global construction industry shifts toward cost-effective, sustainable building solutions, the corrugated iron rolling machine continues to gain traction for its ability to produce high-quality, durable corrugated sheets at scale. Its versatility, efficiency, and reliability make it an indispensable tool for supporting affordable housing, industrial infrastructure, and agricultural facilities, driving the development of the building materials sector worldwide.
