Under frame 400 mm H Steel
Roller material Cr12
Shaft diameter 85mm
Transfer method 2.5 inch chain drive
Structure"Independent cast iron archway.
more stable and very strong."

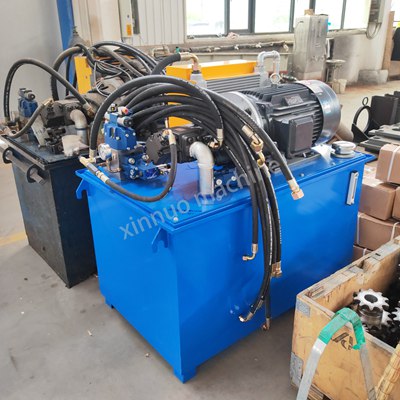

Main motor power Hydraulic motor
Cutter material Cr12Mov

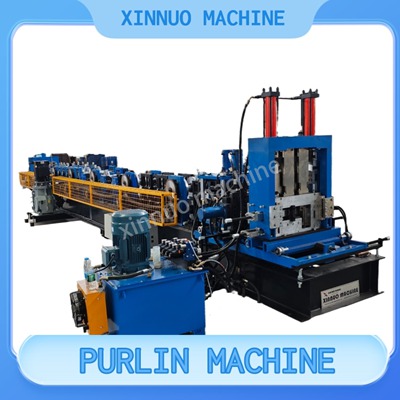

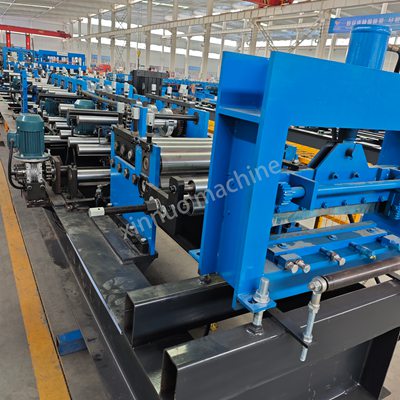

The C purlin machine manufacturers category represents advanced industrial solutions for producing high-precision steel C channels used in modern construction structures. These machines are engineered for continuous production, high efficiency output, and stable long-term performance in steel fabrication industries.
The equipment is designed for large-scale steel channel production, ensuring stable forming accuracy and consistent output quality for construction and industrial applications.

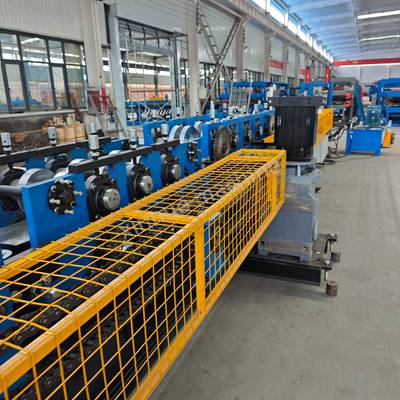

The production line supports uninterrupted forming of steel coils into C purlins, improving productivity and reducing downtime in manufacturing environments.
The system allows quick adjustment of different C purlin dimensions, enabling manufacturers to produce multiple specifications without complex mechanical replacement.

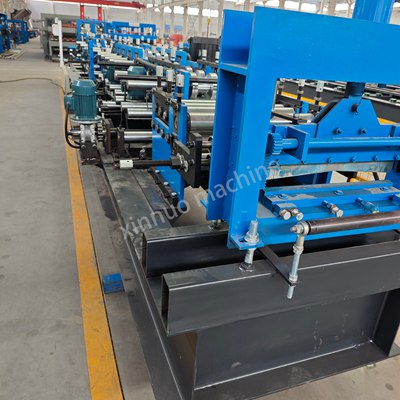

Built with heavy-duty welded steel frames, the machine ensures stability during long-term high-load operation and reduces vibration during continuous production.
The PLC system enables automatic operation control, parameter adjustment, and real-time monitoring to ensure efficient and stable production performance.
| Item | Description |
|---|---|
| Material Type | Galvanized Steel / Cold Rolled Steel |
| Profile Type | C Channel Section |
| Thickness Range | 1.5 – 3.5 mm |
| Production Speed | 10 – 25 m/min |
| Roller Stations | 12 – 20 stations |
| Control System | PLC Automatic Control |
| Cutting System | Hydraulic Servo Cutting |
| Adjustment Mode | Manual / Automatic Adjustment |
| Shaft Material | 45# High Strength Steel |
| Frame Structure | Heavy Duty Welded Frame |
| Voltage | 380V / 50Hz / 3 Phase |
Steel Coil Loading → Decoiler → Leveling System → Punching Unit → Roll Forming Section → Length Measurement → Hydraulic Cutting → Output Table
Purlin roll-forming machines are key equipment in the production of steel structural building materials. They can process galvanized steel sheets, color-coated steel sheets, and other metal sheets into C-, Z-, and U-shaped purlins, providing support for building roofs and walls.

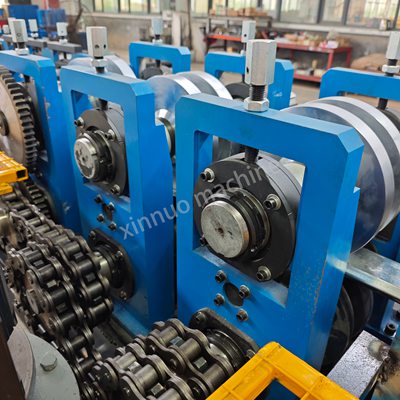

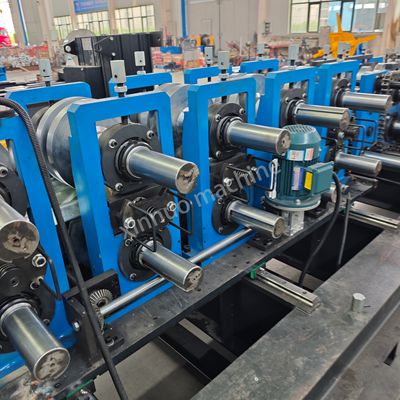

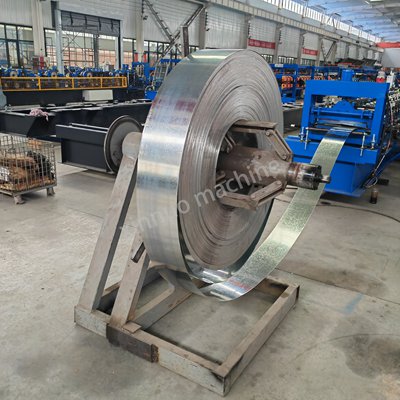

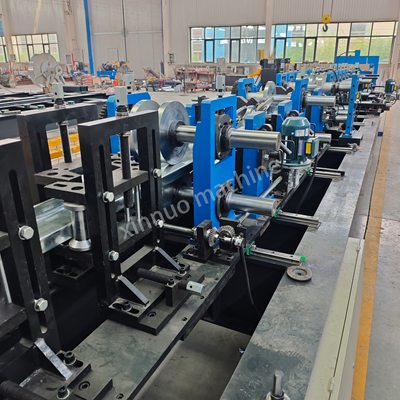

Based on cold roll-forming technology, the machine uses 15-25 sets of sequentially arranged rollers to gradually shape the sheet material without preheating it. Each set of rollers is responsible for a specific bending angle, and through multiple steps, a standard cross-section is achieved while preserving the sheet material's original mechanical properties. The entire process is fully automated, from coil unwinding and guide correction to roll-forming, cut-to-length cutting, and finished product stacking—all precisely controlled by a PLC system, minimizing manual intervention.
The machine's core components offer exceptional performance: a hydraulically tensioned unwinding frame securely grips the coil material to prevent conveying deviation; a guide mechanism uses straightening wheels to adjust the sheet material's position in real time; forming rollers are constructed from alloy steel with a hardness of HRC55 or higher, ensuring long-term, high-precision processing; and a hydraulic flying saw cutting system achieves ±1mm cutting accuracy without affecting continuous production.
This equipment offers significant advantages: high efficiency, with continuous processing speeds reaching 10-30 meters per minute and a single-shift production capacity of 15,000 meters, 5-8 times that of traditional processes. High precision, with a cross-sectional dimension error of ±0.5mm and a straightness error of ≤1mm/m, ensures precise installation. Material utilization exceeds 95%, reducing waste. High flexibility, with adjustable dimensions, allows for accommodating plates 0.8-3mm thick and 100-300mm wide, and produces purlins 1-12 meters long. Energy consumption is 60% lower than hot rolling, and the roll life exceeds 500,000 meters, resulting in low maintenance costs.
This equipment is widely used in steel structures such as industrial plants, warehouses, and stadiums, driving the trend toward lightweight and modular construction. It is a vital piece of equipment for modern industrialized construction.
Xinnuo Roll Forming Machine Co., Ltd., established in 1995, is a leading enterprise specializing in the design, development, manufacturing, and sales of various cold roll forming equipment.
Located in Botou Economic Development Zone, the company benefits from a well-developed electromechanical manufacturing industry and a complete industrial chain...[ Read More >>]
