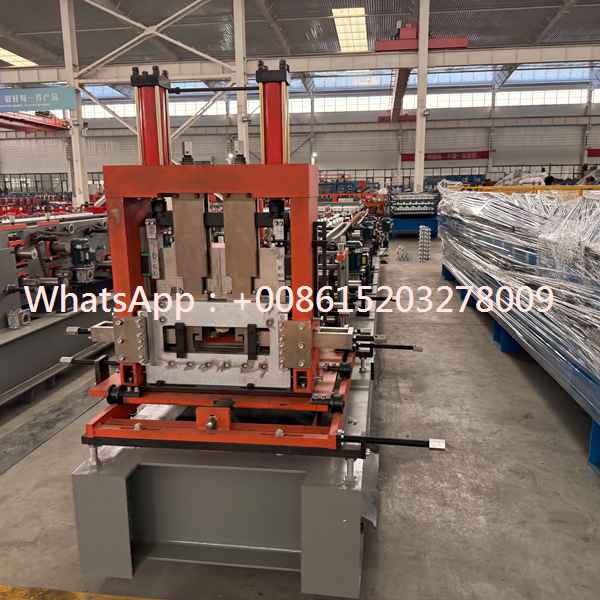

The Automatic C Channel Roll Forming Machine is a professional metal forming equipment designed for producing high-quality C-shaped steel profiles with accurate dimensions and excellent structural performance. It is widely used in steel structure construction, industrial buildings, warehouse systems, solar mounting structures and various engineering projects.
This machine uses continuous cold roll forming technology to transform steel coils into finished C channels through a series of precision forming processes. The equipment can manufacture different C profile sizes according to customer requirements, including various web heights, flange widths and material thicknesses.
With automatic operation, stable forming capability and flexible configuration, this machine provides an efficient production solution for manufacturers who require large-volume C channel production with consistent quality and reliable performance.
The automatic production system integrates material feeding, profile forming, length measurement and cutting functions. Operators can complete the production preparation by setting basic parameters through the control panel.
The intelligent control system improves production efficiency by reducing manual adjustment during operation. It allows manufacturers to maintain stable output and quickly change production requirements according to different project demands.
The machine is suitable for both standard C channel production and customized steel profile manufacturing, helping factories improve productivity and expand product application fields.
The forming section adopts multiple roller stations to gradually shape the metal strip into the required C channel profile. The progressive forming method helps reduce material deformation stress and improves the overall accuracy of finished products.
Each roller station is precisely arranged according to the profile design. The forming rollers provide stable guidance during production and ensure uniform dimensions along the entire length of the steel channel.
The optimized forming structure allows the equipment to maintain reliable operation under continuous working conditions while providing smooth surface quality and accurate structural dimensions.
| Parameter | Specification |
|---|---|
| Equipment Type | Automatic C Channel Roll Forming Machine |
| Processing Material | Galvanized Steel, Carbon Steel, Pre-painted Steel |
| Material Thickness | 0.8-3.0 mm |
| Production Speed | 10-40 m/min |
| Forming Technology | Continuous Cold Roll Forming |
| Control System | PLC Automatic Control |
| Cutting Method | Hydraulic Cutting System |
| Profile Type | C Channel / C Section Steel |
| Drive Mode | Motor Transmission System |
| Electrical Standard | Customized According to Requirement |
Customized C Channel Production CapabilityDifferent industries require different steel channel specifications. The machine can be customized according to customer drawings, sample profiles or technical requirements to produce suitable C-shaped steel products.
The flexible production design enables manufacturers to provide multiple structural steel solutions. Different roller tooling, punching systems and cutting configurations can be selected according to the final application.
| Customization Item | Available Solution |
|---|---|
| C Channel Size | Customized Width and Height Design |
| Material Thickness | Adjusted According to Product Requirement |
| Punching Function | Optional Automatic Hole Punching |
| Cutting System | Hydraulic or Customized Cutting |
| Production Layout | Designed According to Factory Space |
Reliable Feeding and Material Positioning SystemThe feeding section ensures smooth transportation of steel coils into the forming area. The guiding device keeps the material correctly positioned before entering the roller stations, improving production stability.
Optional equipment such as decoilers, leveling units and automatic feeding devices can be integrated to create a more complete production line. These additional systems help reduce preparation time and improve overall working efficiency.
The cutting system operates together with the control unit to achieve accurate length cutting according to preset production parameters. This improves product consistency and reduces measurement errors during manufacturing.
The automatic cutting process provides clean separation of finished C channels, making the products easier to transport, store and install in construction projects.
| Process | Description |
|---|---|
| Steel Coil Preparation | Load raw material for production |
| Material Feeding | Guide steel strip into forming unit |
| Roll Forming | Create accurate C channel profile |
| Automatic Measurement | Control profile length precisely |
| Profile Cutting | Cut finished steel channels |
| Collection | Prepare products for application |
The C channel profiles produced by this equipment are widely used in modern construction and industrial fields where strong and lightweight structural components are required.
| Feature | Production Benefit |
|---|---|
| Automatic Control | Improves operation efficiency |
| Precision Forming | Ensures accurate steel profiles |
| Flexible Design | Supports customized products |
| Stable Structure | Suitable for continuous production |
| Easy Operation | Reduces training requirements |
The Automatic C Channel Roll Forming Machine provides manufacturers with a reliable and efficient method for producing structural steel channels. With advanced forming technology, automatic operation and customized production options, it meets the requirements of different construction and industrial applications.
This equipment helps companies improve manufacturing efficiency, expand product categories and provide high-quality C channel profiles for global steel structure markets.
