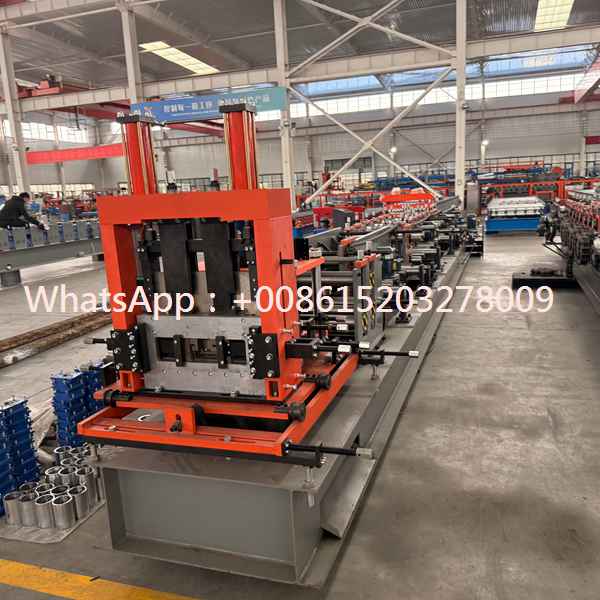

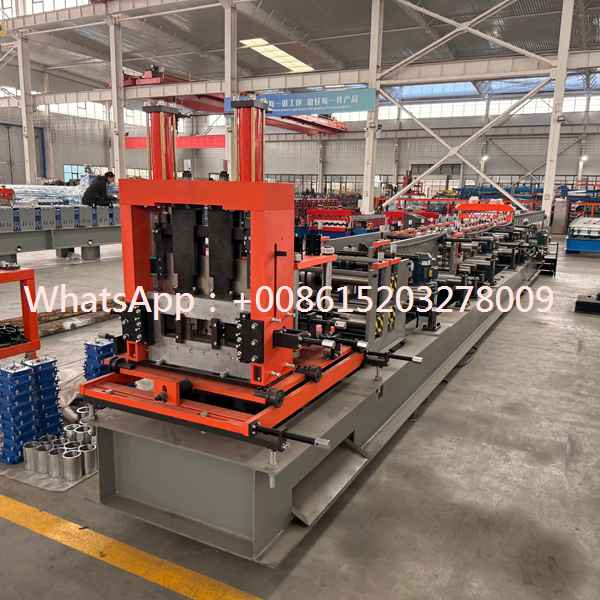

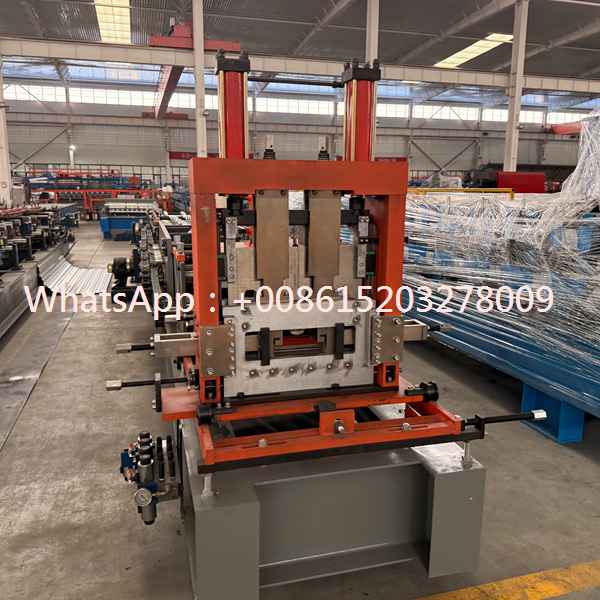

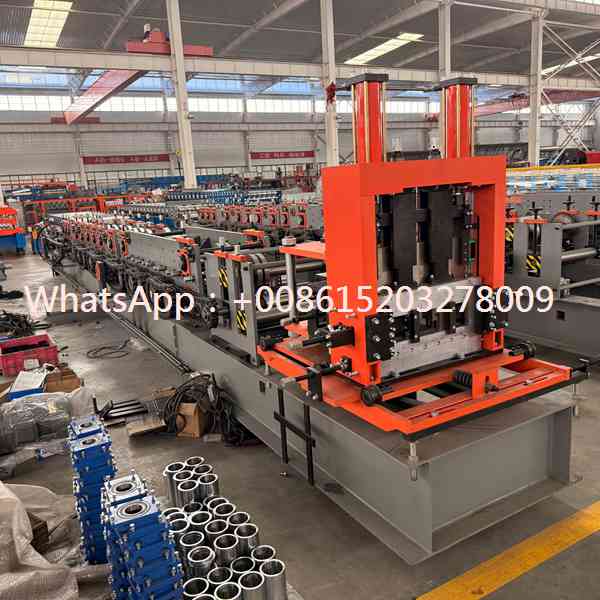

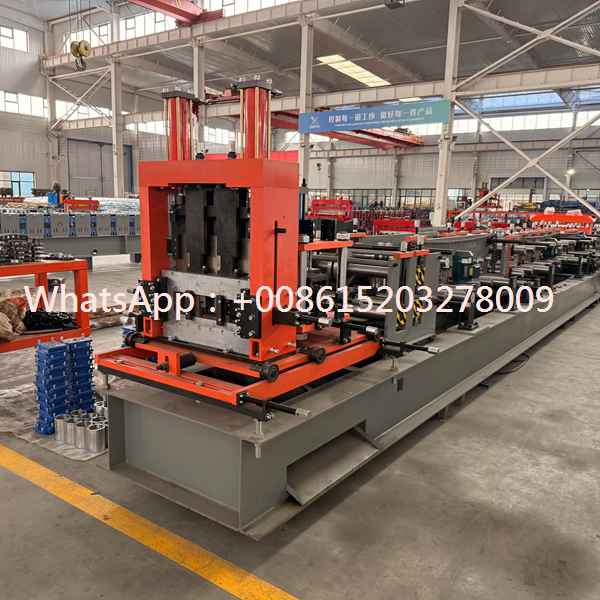

The Automatic C Channel Roll Forming Machine is a professional production solution designed for manufacturing high-quality C-shaped steel profiles used in construction, industrial structures and engineering projects. The equipment adopts continuous cold roll forming technology to transform metal coils into accurate C channel products with stable dimensions and reliable performance.
This machine is widely applied in steel structure buildings, warehouse frameworks, solar mounting systems, industrial equipment supports and other structural applications. It is suitable for processing galvanized steel, carbon steel and other metal materials according to different project requirements.
With automatic operation, precise forming control and flexible production configuration, the machine helps manufacturers improve productivity, reduce processing costs and produce consistent C channel profiles for various markets.
The machine is designed to simplify the C channel manufacturing process through integrated automatic control. The operator can set production parameters through the control panel, including profile length, production quantity and operating speed.
After parameter setting, the equipment can complete the production process automatically, reducing manual adjustment and improving working efficiency. The automatic system is suitable for both standard production requirements and customized orders with different specifications.
The intelligent control method helps maintain stable production conditions and improves the consistency of finished C channels during long-term operation.

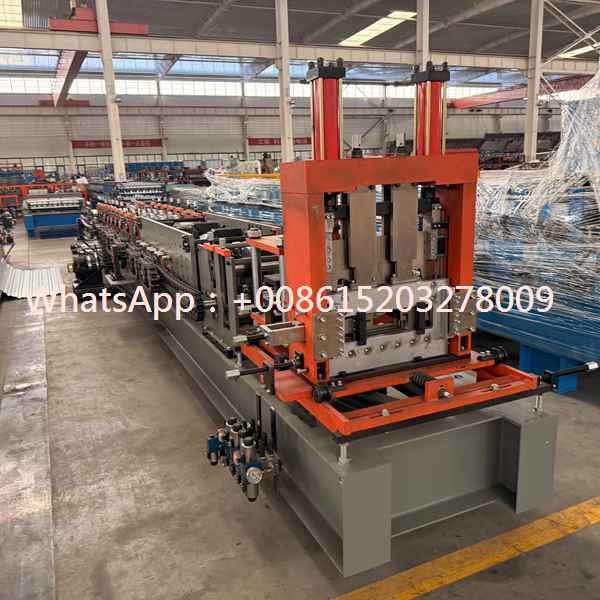

The forming section adopts multiple roller stations to gradually shape the flat metal strip into a C-shaped profile. The progressive forming method provides smooth material deformation and helps maintain accurate profile dimensions.
The roller design is customized according to the required C channel size, including web height, flange width, thickness and overall profile structure. This allows the machine to produce different specifications for various construction applications.
The strong machine frame ensures stable support for the forming system. The optimized structure reduces vibration and improves forming accuracy during continuous production.
| Item | Specification |
|---|---|
| Machine Type | Automatic C Channel Roll Forming Machine |
| Material Type | Galvanized Steel, Carbon Steel, Pre-painted Steel |
| Material Thickness | 0.8-3.0 mm |
| Production Speed | 10-40 m/min |
| Forming Method | Cold Roll Forming Process |
| Control System | PLC Automatic Control |
| Cutting Method | Hydraulic Automatic Cutting |
| Profile Type | C Section Steel Channel |
| Drive System | Motor Transmission System |
| Voltage | Customized According to Customer Standard |
Customized C Profile Manufacturing SolutionDifferent industries require different C channel dimensions and structural designs. This machine can be customized according to customer drawings, samples or technical specifications to meet specific production needs.
The flexible configuration allows manufacturers to produce various C profiles for different applications. Additional functions such as punching, embossing or special cutting systems can be integrated according to production requirements.
| Customization Item | Available Options |
|---|---|
| Channel Dimension | Customized Web and Flange Size |
| Material Thickness | Selected According to Application |
| Punching Function | Optional Hole Punching System |
| Cutting Mode | Hydraulic or Flying Cutting |
| Automation Level | Standard or Fully Automatic Configuration |
Stable Coil Feeding and Guiding SystemThe feeding system ensures smooth transportation of steel coils into the forming section. Accurate guiding devices keep the material positioned correctly and help improve the dimensional stability of finished products.
Optional auxiliary equipment such as automatic decoilers, leveling units and material storage devices can be added to improve production efficiency and reduce manual handling during operation.

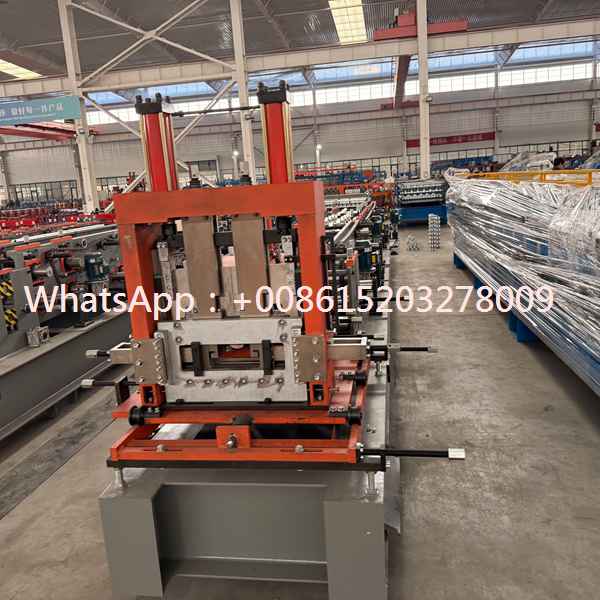

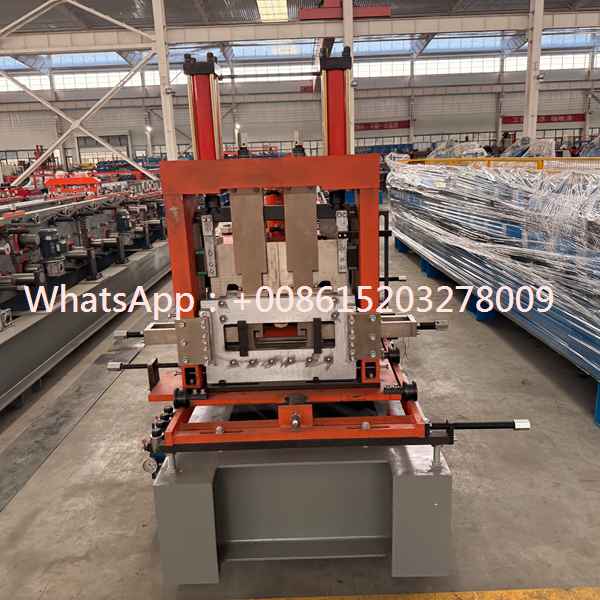

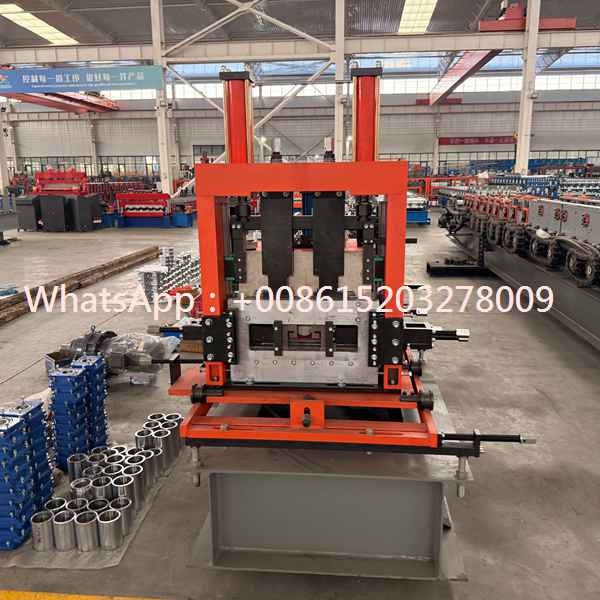

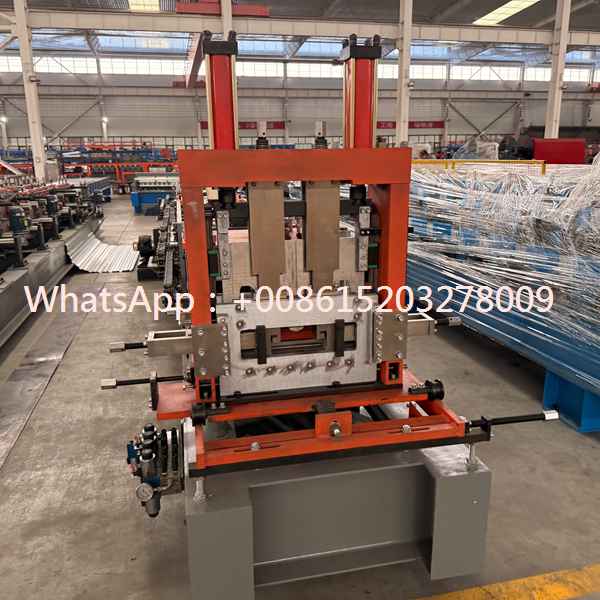

The cutting unit works together with the control system to produce C channels with accurate preset lengths. The automatic cutting process improves production efficiency and reduces errors caused by traditional manual measurement methods.
The cutting structure is designed according to the profile characteristics, ensuring clean cutting performance and convenient transportation or installation of finished products.
| Production Stage | Main Function |
|---|---|
| Material Loading | Prepare steel coil for processing |
| Coil Feeding | Transfer material into forming system |
| Profile Forming | Create accurate C channel shape |
| Size Control | Monitor production dimensions |
| Automatic Cutting | Separate finished steel channels |
| Product Collection | Prepare profiles for application |
The C channels produced by this machine are widely used in different industries where lightweight, durable and accurate structural components are required.
| Feature | Benefit |
|---|---|
| Automatic Operation | Improves production efficiency |
| Precision Forming | Maintains accurate profile size |
| Flexible Adjustment | Supports different C channel designs |
| Stable Structure | Suitable for continuous production |
| Easy Management | Reduces operation difficulty |
The Automatic C Channel Roll Forming Machine provides an efficient and reliable solution for producing structural C profiles. Through advanced forming technology, automatic control and customized production options, the equipment can meet the requirements of different industries and construction markets.
It is an ideal choice for manufacturers who need stable output, accurate steel profiles and flexible production capability for modern structural steel applications.
