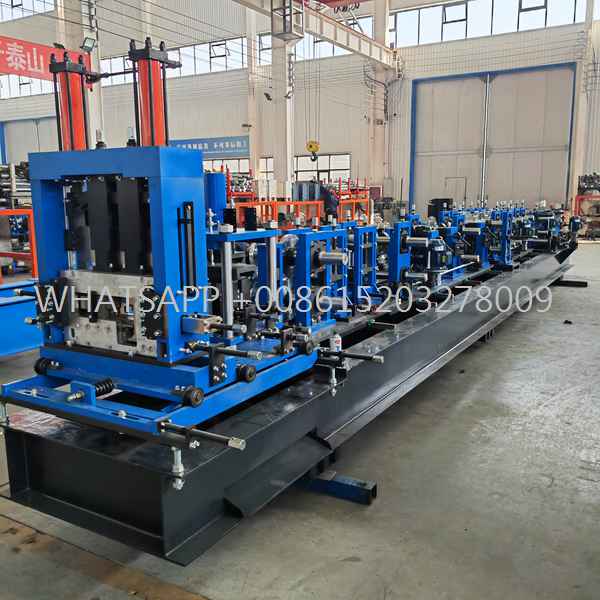

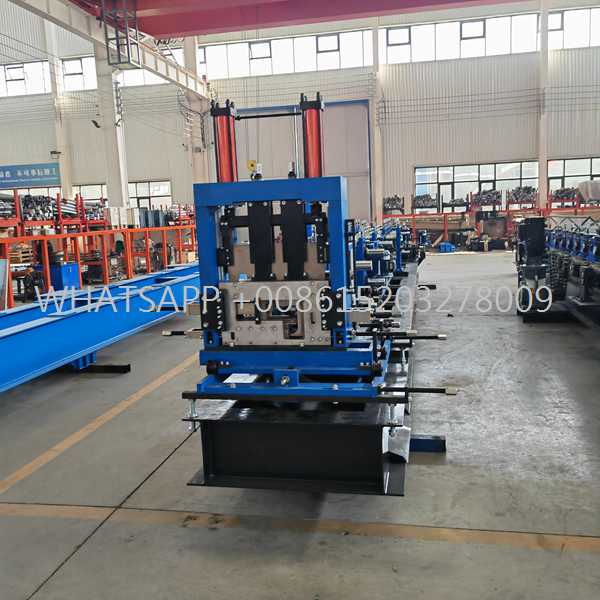

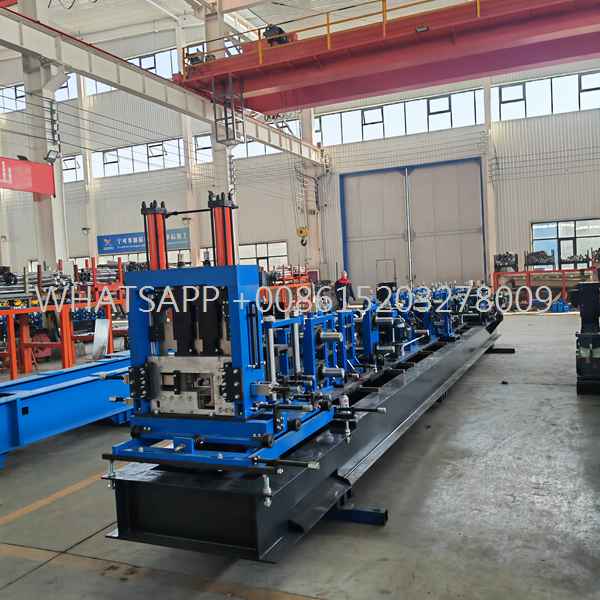

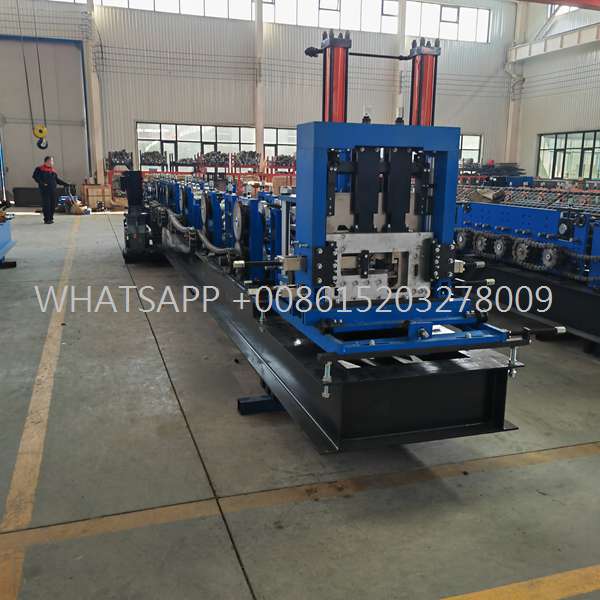

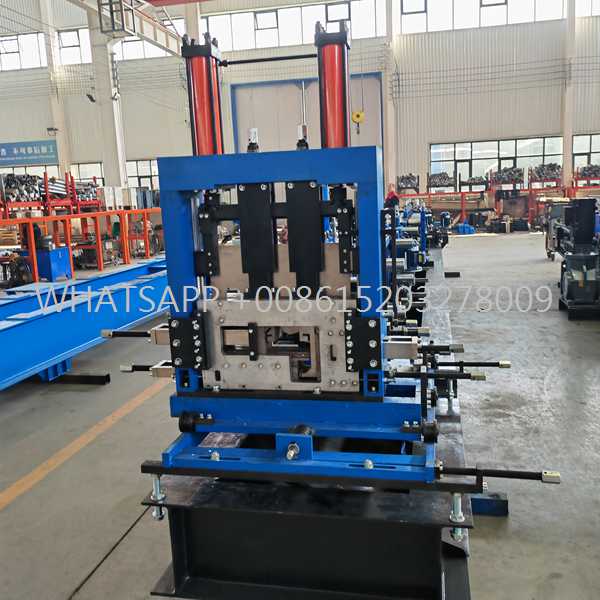

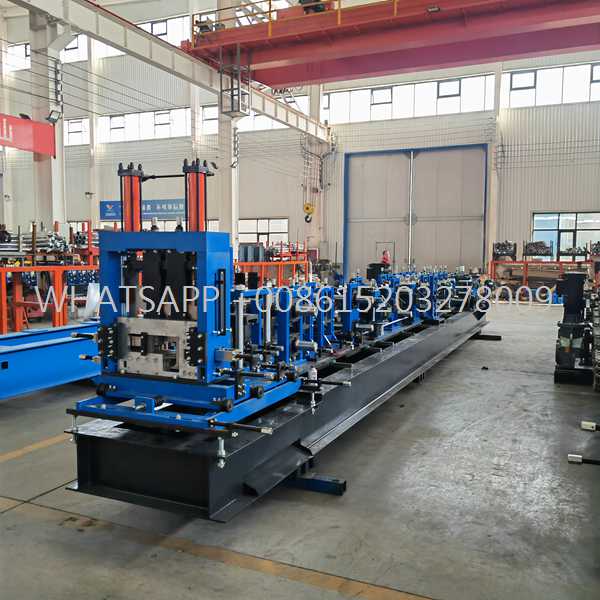

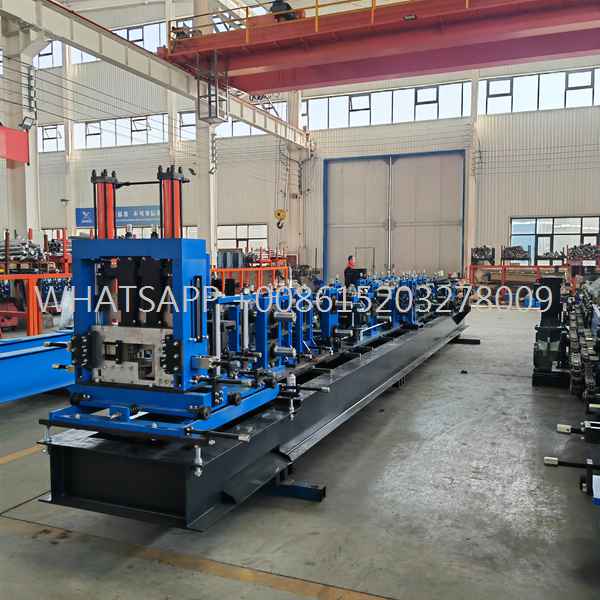

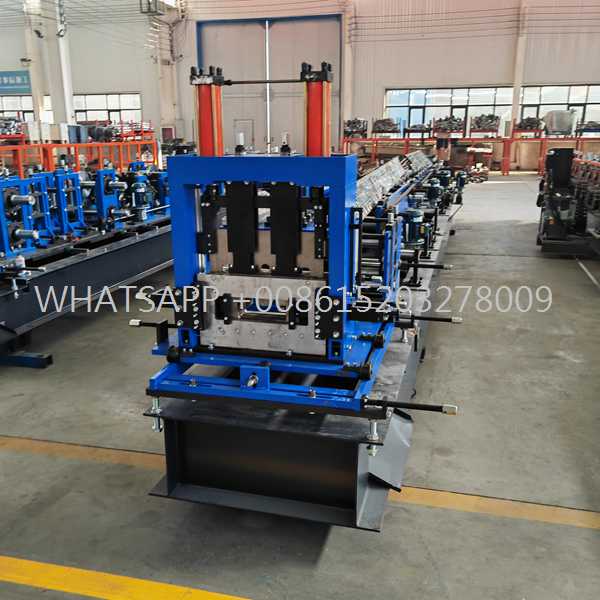

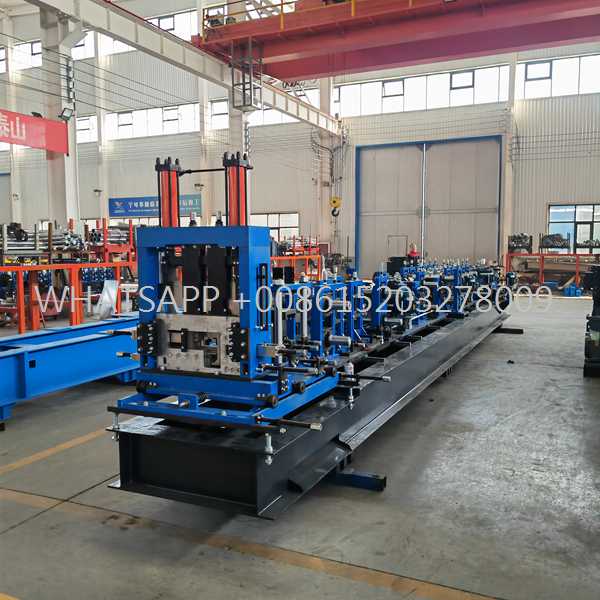

Automatic & Size-Adjustable Purlin Rolling Machine

Heavy-Duty Purlin Rolling Machine for Industrial Steel Construction

Are you looking for a highly reliable, precise, and durable manufacturing solution for structural steel framing? Our state-of-the-art purlin rolling machine offers industrial-grade engineering, high-speed output, and unmatched mechanical stability. This automated production line is specifically built to handle the rigorous demands of manufacturing high-strength steel profiles used extensively in industrial warehouses, aircraft hangars, commercial complexes, and agricultural metal buildings. By upgrading to this advanced system, your factory can achieve seamless roll forming accuracy while significantly reducing labor costs, material waste, and operational downtime.

Our machine utilizes an advanced technological design that allows for rapid size switching. Traditional machines require operators to manually change rollers or insert spacers, a process that can take hours. With our modern automatic size-changing system, the width and height modifications are handled entirely through computerized motorized systems. This ensures that you can shift between different production orders smoothly, optimizing factory uptime and increasing overall efficiency. Every forming station is precisely adjusted to maintain absolute symmetry, ensuring that the structural integrity of the steel purlin is never compromised during high-volume manufacturing runs.

Key Features & Technological Advantages

• Fully Automatic Size Interchanging: No more manual adjustments. Adjust the web width, flange height, and lip dimensions automatically through the smart PLC touchscreen interface, saving time and increasing flexibility.
• Heavy-Duty Machine Frame & Structure: Engineered with thick, solid steel welded base frames and precision-machined rolling stations to ensure maximum rigidity, eliminating vibration during high-speed, heavy-gauge operation.
• Premium Roller Material & Coating: Rollers are fabricated from premium GCr15 steel or Cr12 tool steel, subjected to rigorous vacuum quenching heat treatment and finished with hard chrome plating to prevent surface scratches on galvanized coatings.
• Advanced Hydraulic Post-Cutting System: Utilizes a high-strength hydraulic cutting mechanism that guarantees zero material deformation, perfectly smooth edges, clean cuts, and minimal blade wear.
• High-Precision Smart PLC Control: Integrated with world-class PLC control systems (such as Siemens, Mitsubishi, or Panasonic) and high-accuracy encoders to maintain strict length tolerances within ±1mm at maximum production speeds.
• Multi-Size Pre-Punching System: Supports customized online hydraulic punching for customized hole patterns, allowing seamless installation of the finished purlins directly on the construction site without further modification.
• High Durability Guide Rails: Features heavy-duty linear guide rails that ensure the precision of the width-changing motor adjustments over years of continuous industrial operations.

Technical Parameters & Detailed Specifications

Industrial Applications of Structural Purlins

The high-quality steel structural profiles manufactured by this machine are widely used as crucial load-bearing roof purlins and wall girts. Due to their excellent structural strength and cost-effectiveness, they provide the fundamental structural support framework for industrial factories, large-scale commercial storage facilities, logistical warehouses, railway stations, exhibition centers, airports, and modern commercial steel infrastructure projects.

Additionally, they are highly demanded in the renewable energy sector for assembling heavy-duty solar panel mounting ground racks. The precise nesting capability of modern purlins makes them perfect for continuous span beams in heavy-duty architectural design, making this machinery an essential asset for steel processing factories and infrastructure contractors worldwide.

Comprehensive Production Line Components

A complete production line consists of several high-performance modules designed to work in perfect synchronization:

• Hydraulic Uncoiler / De-coiler: Safely holds and feeds the heavy steel coils into the leveling machine. Supports automatic expansion and hydraulic clamping.
• Leveling and Guiding Device: Straightens the steel sheet to eliminate coil set and internal stress before forming, ensuring a perfectly flat surface profile.
• Hydraulic Punching Device: Executes accurate online punching according to pre-programmed digital patterns for easy site assembly.
• Purlin Rolling Mill: Gradually shapes the steel plate through sequential precision roller passes into the perfect structural profile without damaging the protective zinc coating.
• Hydraulic Cutting Station: Automatically cuts the shaped profile to the exact specified length using high-grade cutting die materials.
• Output Run-out Table: Collects and holds the finished heavy-duty purlins ready for packaging and shipping. Available in manual or automatic stacking variants.

Quality Control and Machine Testing

Every unit undergoes a rigorous multi-hour testing phase prior to shipment. We ensure that all electrical systems, hydraulic pressures, and PLC automatic dimension-changing modules perform perfectly under real load conditions. Our strict tolerance monitoring guarantees that the final outputs meet International Standards for metal structural building components, giving you total peace of mind for heavy industrial projects.

Get an Instant Factory-Direct Quote

As an experienced and professional roll forming machine manufacturer, we offer fully customized engineering designs to perfectly match your specific profile drawings, punching patterns, and production capacities. Contact us today to receive a factory-direct wholesale price, detailed technical specifications, and a customized machinery layout proposal to elevate your steel manufacturing business!
