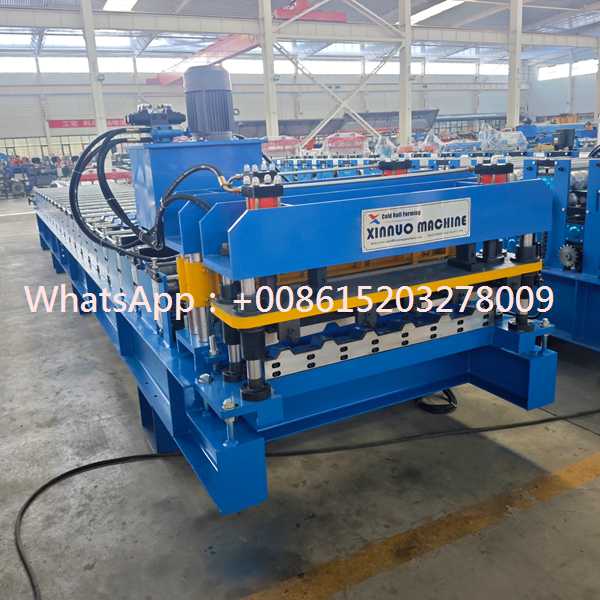

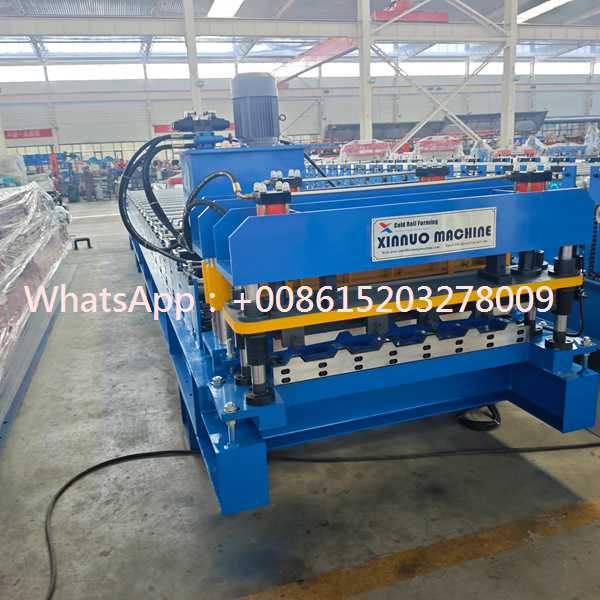

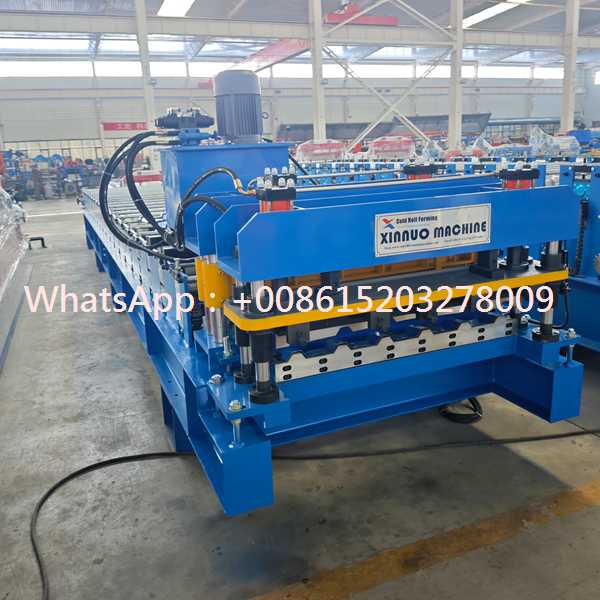

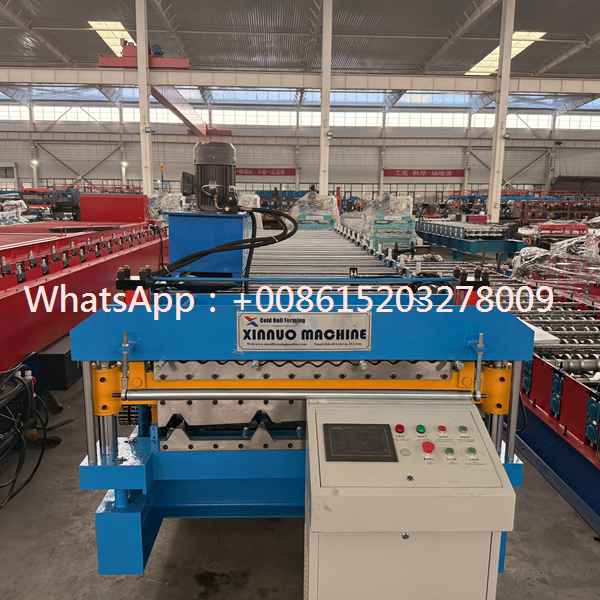

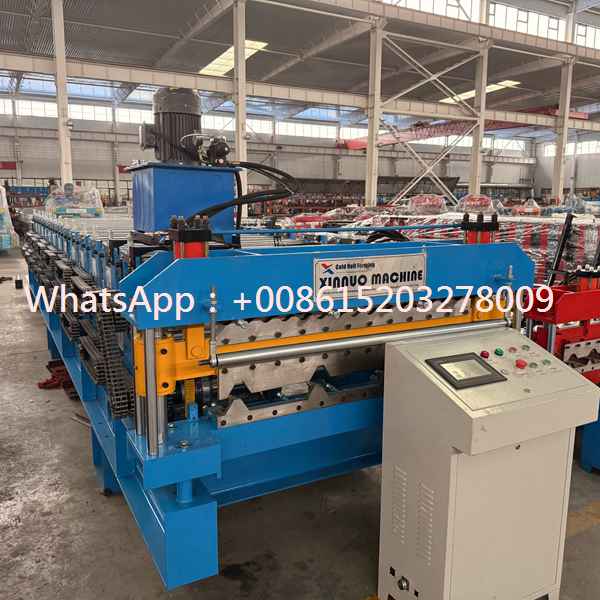

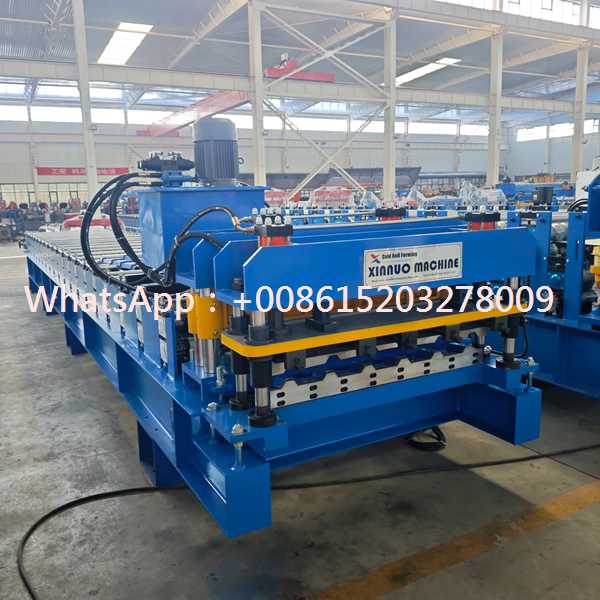

The High Speed Roof Panel Roll Forming Machine is an advanced production system designed for manufacturing metal roofing panels with high efficiency, stable performance and accurate dimensions. It is developed for customers who require faster production capacity and reliable output quality in modern construction material manufacturing.
This machine adopts continuous cold roll forming technology to transform metal coils into finished roof panels through multiple forming stations. The high-speed design improves production efficiency while maintaining excellent profile accuracy and surface quality.
The equipment is widely used for producing trapezoidal roof sheets, corrugated panels, wall cladding sheets and other customized metal building panels. It is suitable for steel structure companies, roofing material factories, industrial construction suppliers and large-scale building projects.
The high speed roof panel roll forming machine integrates material feeding, profile forming, length measurement and automatic cutting functions into one complete production line. The continuous working mode reduces manual intervention and improves overall manufacturing efficiency.
Compared with traditional roofing sheet equipment, this machine is optimized for faster processing speed and higher production capacity. It helps manufacturers complete more orders within shorter production cycles while maintaining consistent product quality.
The automatic operating system simplifies machine management and allows operators to monitor production parameters conveniently during daily operation.
The forming section consists of precision-designed roller stations that gradually shape flat steel coils into finished roofing profiles. The progressive forming process reduces material stress and ensures smooth panel appearance.
The rollers are manufactured according to different roof panel designs, including trapezoidal profiles, corrugated sheets and customized construction panels. The optimized forming structure improves dimensional accuracy and product stability.
The heavy-duty machine frame provides strong support during high-speed operation, reducing vibration and improving equipment service life.
| Item | Specification |
|---|---|
| Machine Type | High Speed Roof Panel Roll Forming Machine |
| Production Material | PPGI, Galvanized Steel, Color Steel |
| Material Thickness | 0.3-0.8 mm |
| Production Speed | 20-50 m/min |
| Forming Method | Automatic Cold Roll Forming |
| Control System | PLC Intelligent Control |
| Cutting Type | Hydraulic Automatic Cutting |
| Profile Type | Trapezoidal, Corrugated, Customized |
| Operation Mode | Continuous Automatic Production |
| Production Capacity | High Efficiency Industrial Output |
The machine is designed to produce roofing panels with accurate dimensions and consistent quality. The precise roller arrangement ensures stable forming performance throughout the production process.
Manufacturers can adjust panel specifications according to different construction requirements, including sheet width, wave shape, thickness and cutting length.
This flexibility allows the equipment to meet various market demands and support customized roofing product production.
| Production Feature | Application Advantage |
|---|---|
| High Speed Forming | Increases daily production capacity |
| Accurate Dimension Control | Improves installation efficiency |
| Customized Profiles | Meets different building designs |
| Automatic Operation | Reduces labor requirements |
The feeding system provides stable coil transportation into the forming unit. The guiding mechanism keeps steel material correctly positioned, helping maintain production accuracy during high-speed operation.
The machine can be combined with auxiliary equipment such as automatic decoilers, leveling systems and coil handling devices to create a complete automated roofing panel production line.
The automatic cutting unit works together with the PLC control system to achieve accurate length measurement and rapid sheet cutting. The synchronized operation improves production efficiency and reduces production errors.
The cutting system is designed for continuous production requirements, providing clean cutting performance and convenient finished panel handling.
| Process | Description |
|---|---|
| Coil Installation | Prepare raw metal coil |
| Material Feeding | Transfer coil into forming system |
| Roll Forming | Create designed roof panel profile |
| Length Measurement | Set required panel dimensions |
| Automatic Cutting | Separate finished roof sheets |
| Product Collection | Prepare panels for transportation |
Roof panels produced by this machine are widely applied in modern construction due to their strength, lightweight structure and excellent weather resistance.
| Feature | Benefit |
|---|---|
| High Production Speed | Improves manufacturing capacity |
| Automatic Control | Provides stable operation |
| Precision Rollers | Ensures accurate panel forming |
| Flexible Configuration | Supports various roof designs |
| Strong Machine Structure | Suitable for industrial production |
The High Speed Roof Panel Roll Forming Machine provides an efficient solution for manufacturers seeking increased production capacity and reliable roofing panel quality. With advanced forming technology, automatic operation and flexible configuration, it meets the requirements of modern metal building material production.
This equipment helps companies improve manufacturing efficiency, reduce production time and provide high-quality roofing panels for industrial, commercial and residential construction applications.
