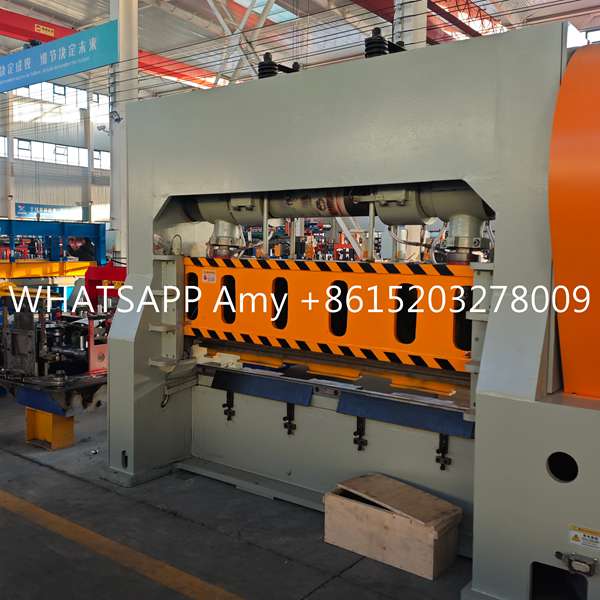

Expanded Metal Mesh Making Machine | Industrial Expanding Line

Product Overview

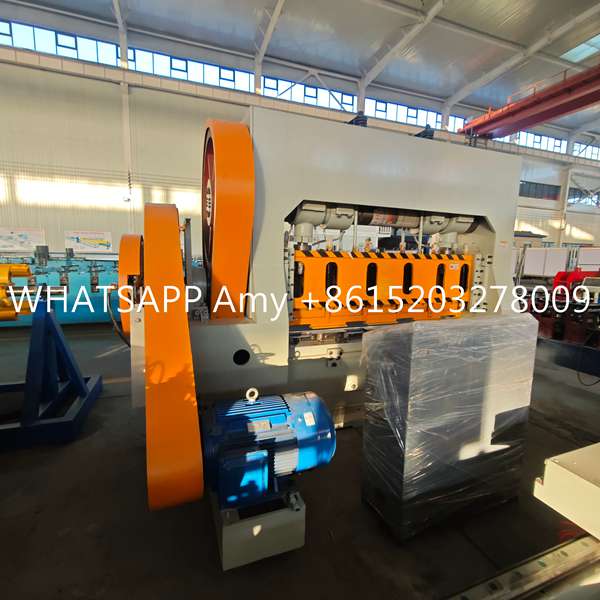

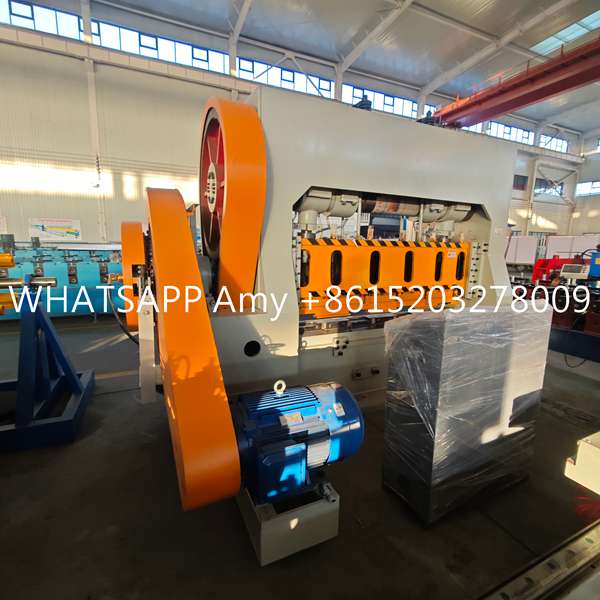

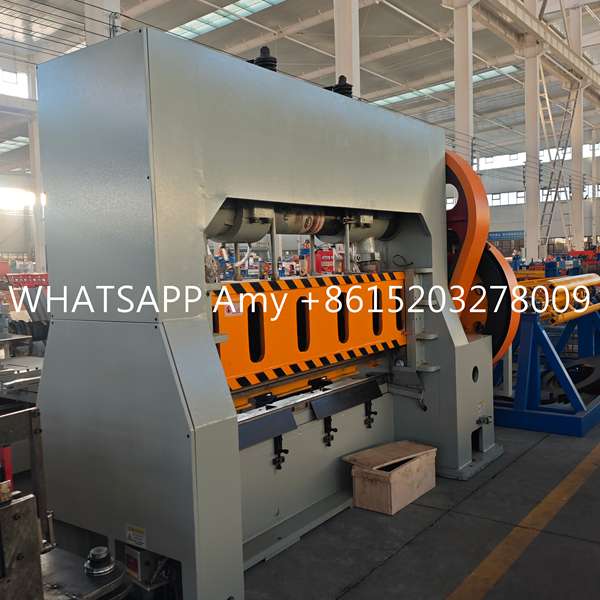

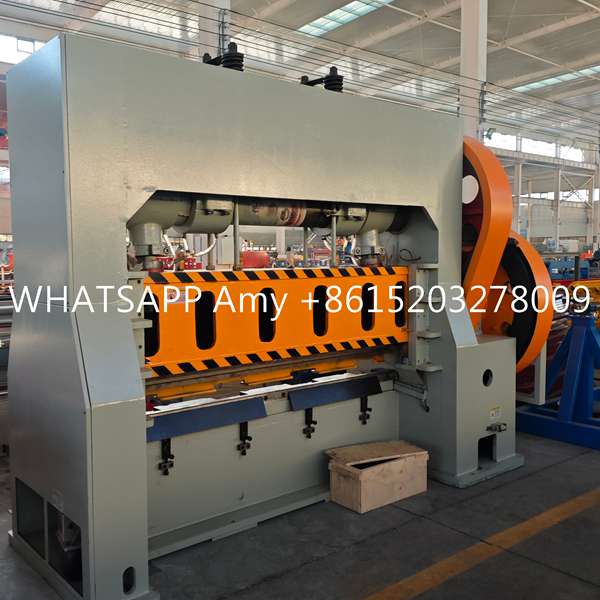

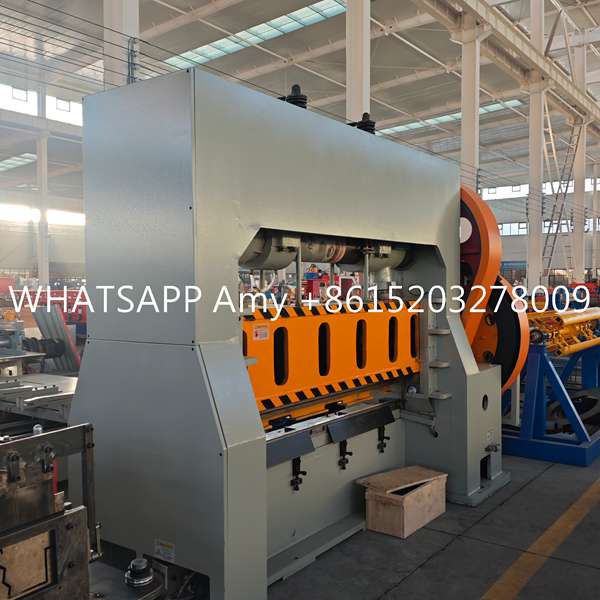

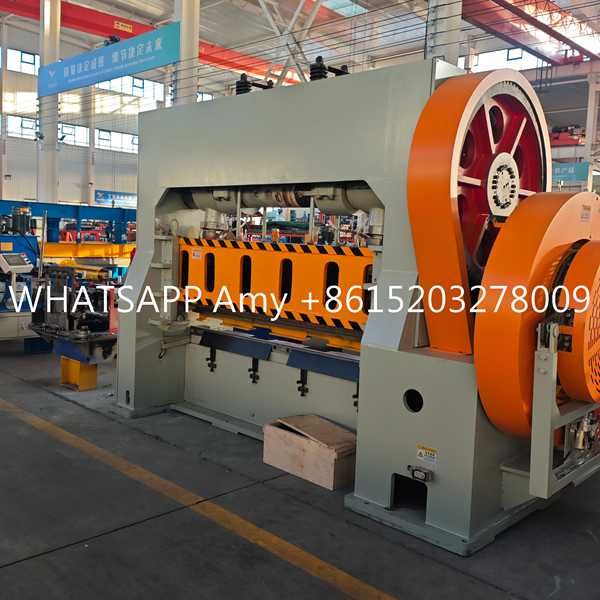

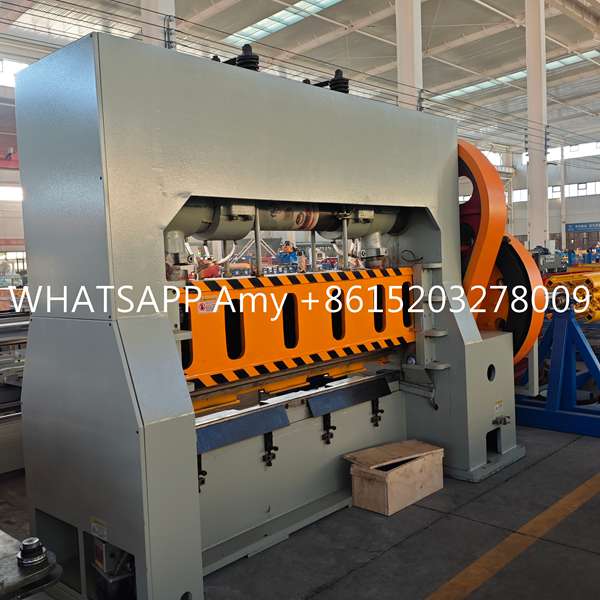

The expanded metal mesh making machine is specialized equipment used to convert flat metal sheets into continuous mesh structures through a synchronized slitting and stretching process. Unlike punching systems, this technology forms mesh without material waste, improving raw material utilization and lowering production cost.

This machine is engineered for industrial-scale production and supports a wide range of materials including mild steel, galvanized steel, stainless steel and aluminum sheets. It is suitable for manufacturing structural mesh panels, protective barriers, ventilation grilles and load-bearing platforms.

The production system can be configured as a semi-automatic unit or a fully automated expanding line depending on customer requirements.

Production Process

1. Metal sheet feeding

2. Precision slitting

3. Controlled stretching and expansion

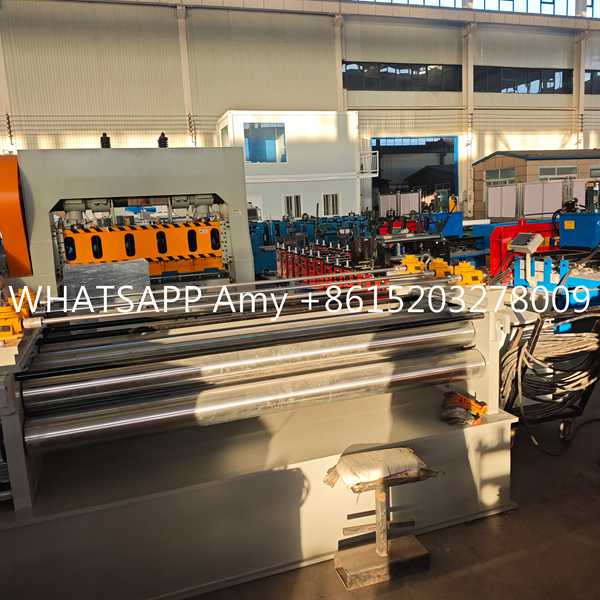

4. Leveling and flattening

5. Hydraulic shearing to length

6. Finished mesh stacking

Each stage is designed to ensure dimensional accuracy and consistent mesh geometry.

Core Features

High Expansion Accuracy

Advanced die design ensures uniform strand width and balanced mesh symmetry.

Adjustable Mesh Opening

The mesh size and expansion ratio can be modified by changing tooling configuration.

Robust Drive System

The mechanical transmission combined with hydraulic support provides stable expansion force even for thicker materials.

Continuous Production Capability

Optimized feeding system enables smooth operation with minimal vibration.

Custom Engineering Support

We provide machine layout planning according to workshop space and local production standards.

Technical Data Range

• Processing thickness: 0.5 mm – 6.0 mm
• Sheet width capacity: up to 2500 mm
• Mesh pattern: Diamond mesh / Special design available
• Control mode: PLC or manual control optional
• Output speed: Depends on thickness and mesh specification
• Power configuration: Customizedv

Typical Applications

Metal mesh produced by this machine is widely used in:

• Safety fencing systems

• Industrial flooring panels

• Architectural facade cladding

• Machinery protection covers

• Storage racks and shelving

• Walkway bridges

• Agricultural enclosures
