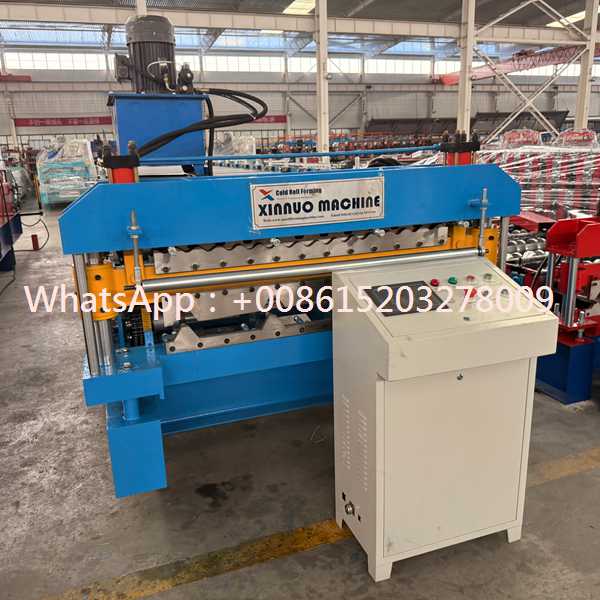

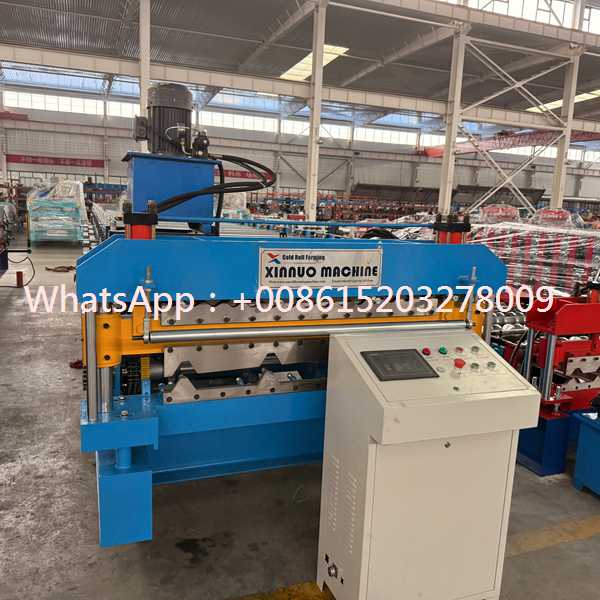

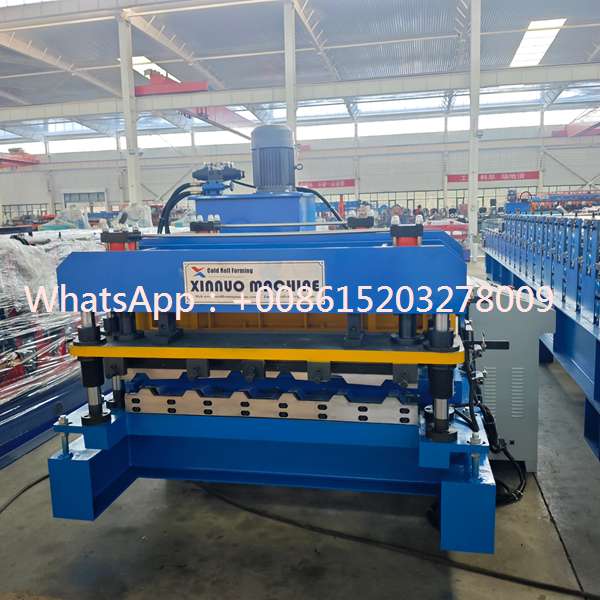

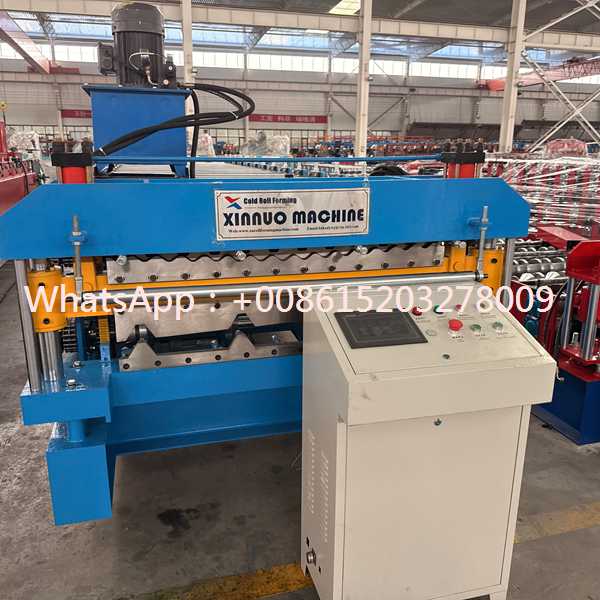

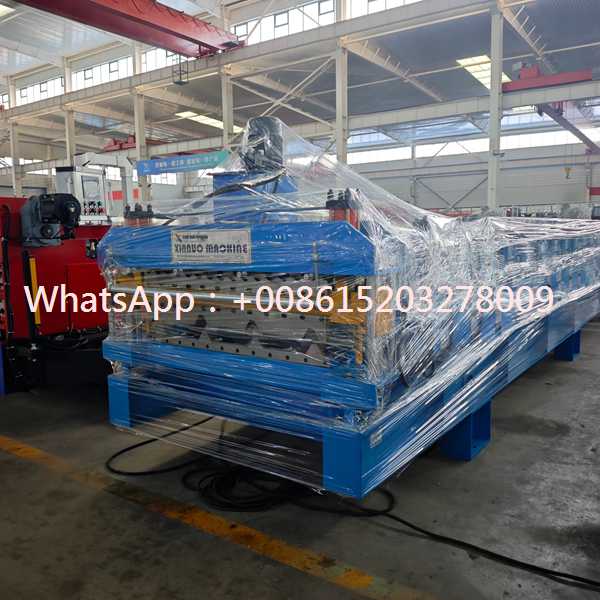

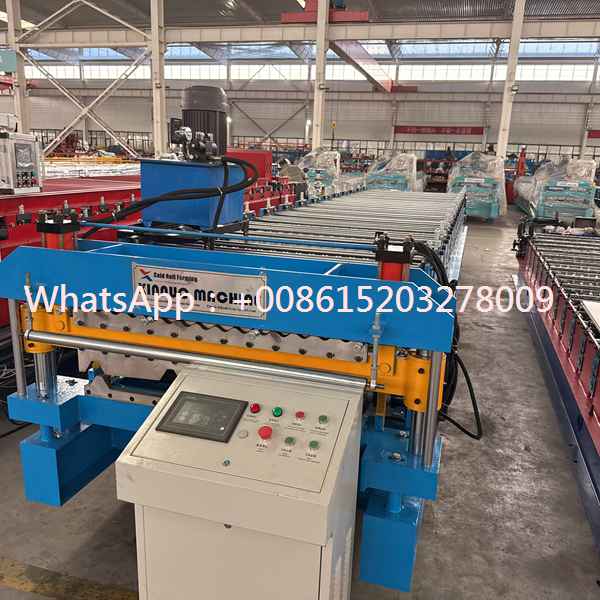

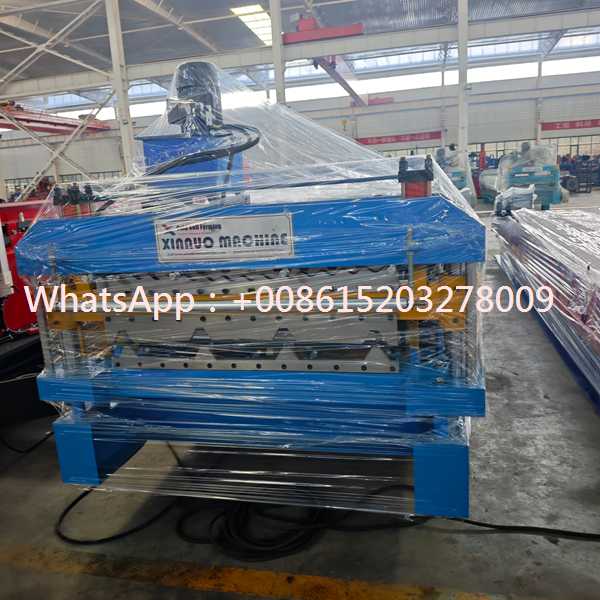

The Automatic Corrugated Sheet Making Machine is a professional production system designed for manufacturing high-quality corrugated metal sheets with accurate dimensions, strong structure and excellent surface appearance. It is widely used in construction material factories, steel structure projects, industrial buildings, warehouses and agricultural facilities.
This machine converts flat metal coils into corrugated sheets through advanced cold roll forming technology. The finished products are widely recognized for their lightweight structure, high strength, weather resistance and easy installation characteristics, making them suitable for various roofing and wall cladding applications.
With automatic operation, precise forming capability and flexible production configuration, this equipment provides an efficient manufacturing solution for companies requiring stable corrugated sheet production capacity and reliable product quality.
The machine integrates material feeding, corrugation forming, automatic measurement and cutting functions into one complete production line. The integrated design helps simplify operation procedures and improve overall production efficiency.
Through the intelligent control system, operators can easily adjust production parameters according to different product specifications. The automated working mode reduces manual intervention and helps maintain consistent output during long-term operation.
The equipment is suitable for manufacturers producing standard corrugated panels as well as customized metal sheets for different construction markets.
The forming section uses specially designed roller groups to create continuous wave patterns on metal sheets. The multi-stage forming process ensures smooth deformation and maintains the original strength of the material.
The roller configuration can be adjusted according to different wave shapes, sheet widths and thickness requirements. This flexibility allows manufacturers to produce various corrugated sheet designs according to customer needs.
The rigid machine frame provides stable support for the forming system, reducing vibration and improving production accuracy during continuous manufacturing.
| Item | Specification |
|---|---|
| Machine Type | Automatic Corrugated Sheet Making Machine |
| Processing Material | Galvanized Steel, Color Steel, PPGI, Aluminum |
| Material Thickness | 0.25-0.8 mm |
| Production Speed | 10-30 m/min |
| Forming Technology | Cold Roll Forming Process |
| Control System | PLC Automatic Control |
| Cutting Method | Hydraulic Automatic Cutting |
| Product Type | Corrugated Metal Sheet |
| Working Mode | Continuous Automatic Production |
| Power Supply | Customized According to Customer Standard |
Different regions and construction industries require different corrugated sheet specifications. The machine can be customized according to customer drawings, samples and technical requirements.
Manufacturers can select suitable forming tools and machine configurations according to their target products. The flexible design supports different sheet dimensions, profile shapes and production capacities.
| Customization Item | Description |
|---|---|
| Wave Pattern | Different Corrugated Designs Available |
| Sheet Width | Customized Panel Dimensions |
| Material Selection | Multiple Metal Coil Options |
| Cutting Length | Adjustable Automatic Setting |
| Production Capacity | Configured According to Requirement |
The feeding system ensures smooth and accurate movement of metal coils into the forming section. The guiding mechanism keeps the material properly aligned and improves the stability of the production process.
Optional auxiliary devices such as automatic decoilers, leveling systems and coil handling equipment can be added to improve production efficiency and reduce manual workload.
The cutting system works together with the control unit to achieve accurate sheet length control. Finished corrugated sheets can be cut according to preset production data, improving product consistency.
The automatic cutting process provides clean separation and prepares finished panels for transportation, storage and installation.
| Production Stage | Main Function |
|---|---|
| Coil Installation | Prepare raw metal material |
| Material Feeding | Guide coil into forming system |
| Corrugation Forming | Create wave-shaped sheet structure |
| Automatic Control | Manage production parameters |
| Sheet Cutting | Produce required panel length |
| Finished Product Output | Collect completed sheets |
Corrugated sheets produced by this machine are widely applied in modern construction because of their excellent strength, durability and economical performance.
| Feature | Benefit |
|---|---|
| Automatic Production | Improves working efficiency |
| Precision Forming | Ensures stable product quality |
| Flexible Design | Supports customized products |
| Strong Structure | Provides reliable operation |
| Easy Management | Simplifies daily operation |
The Automatic Corrugated Sheet Making Machine provides a complete solution for producing professional metal corrugated panels. With automatic control, customized production capability and stable forming performance, it can meet the needs of different construction material manufacturers.
This equipment helps enterprises improve production capacity, reduce manufacturing costs and provide reliable corrugated sheet products for global building applications.
