The corrugated roll machine is a core piece of automated equipment in the global metal processing and construction industries, engineered to convert flat metal coils into structurally robust corrugated sheets through a continuous, precision-driven rolling process. These corrugated sheets are prized for their excellent load-bearing capacity, corrosion resistance and cost-effectiveness, making them a go-to material for roof and wall cladding, industrial workshop enclosures, logistics warehouse partitions, agricultural greenhouse frames and temporary disaster relief shelters.
As such, the machine plays an indispensable role in supporting both large-scale infrastructure projects and small-scale building needs worldwide.
The machine operates through a streamlined, four-stage modular workflow that integrates automation and precision engineering to guarantee consistent product quality. The first stage is uncoiling: metal coils—typically galvanized steel, cold-rolled steel or aluminum alloy—are loaded onto an uncoiling unit, which feeds the material steadily into the system while preventing tangling and maintaining a uniform supply speed. Next comes leveling: the metal sheet passes through a set of calibrated leveling rollers that eliminate internal stress and surface irregularities caused by long-term coil storage. This step is critical, as uneven sheets can lead to distorted wave patterns and compromised structural integrity in the final product.

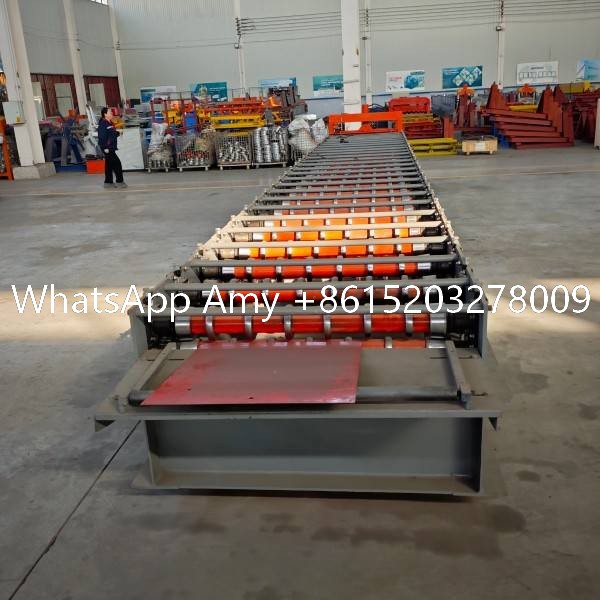

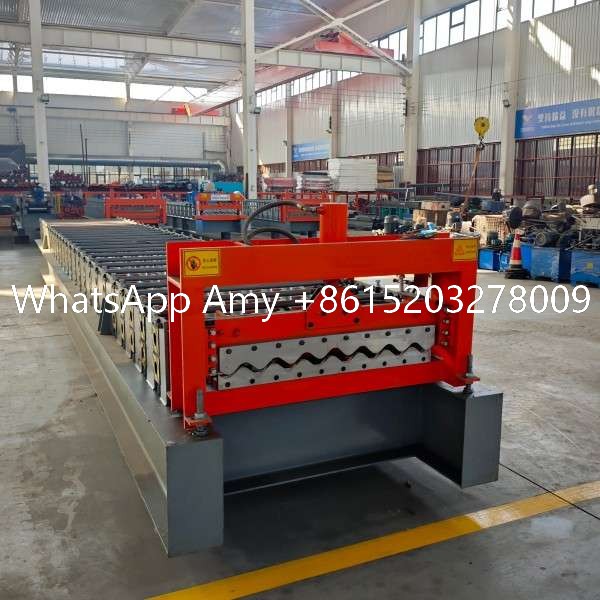

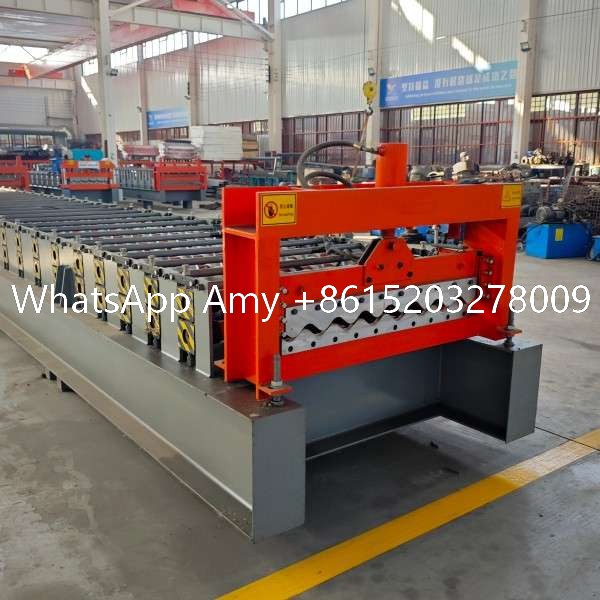

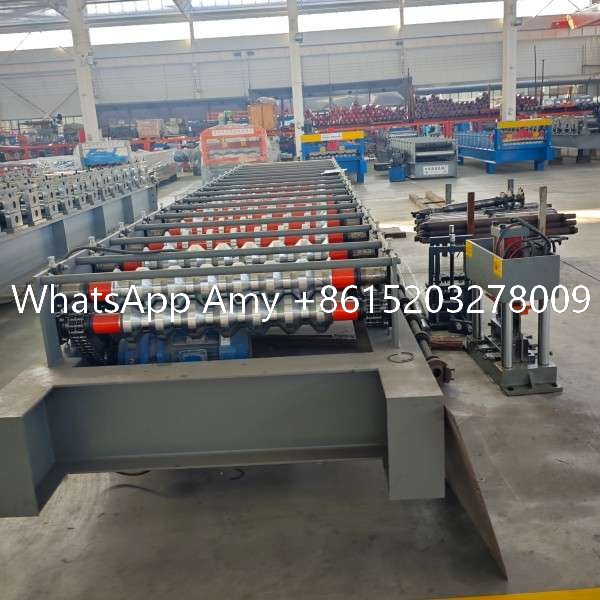

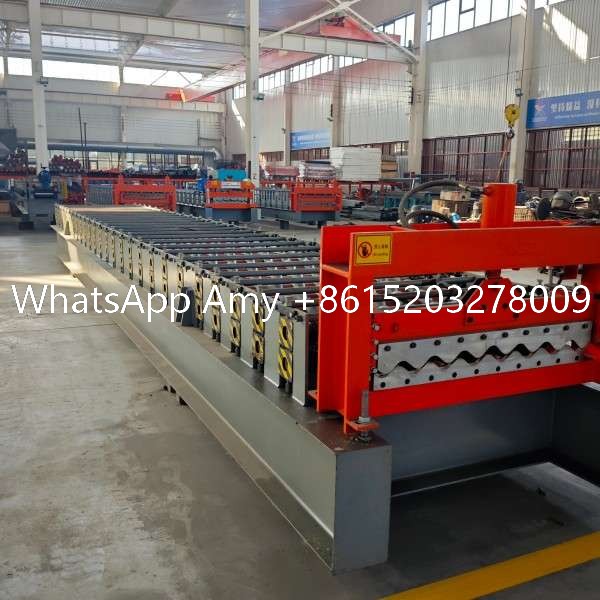

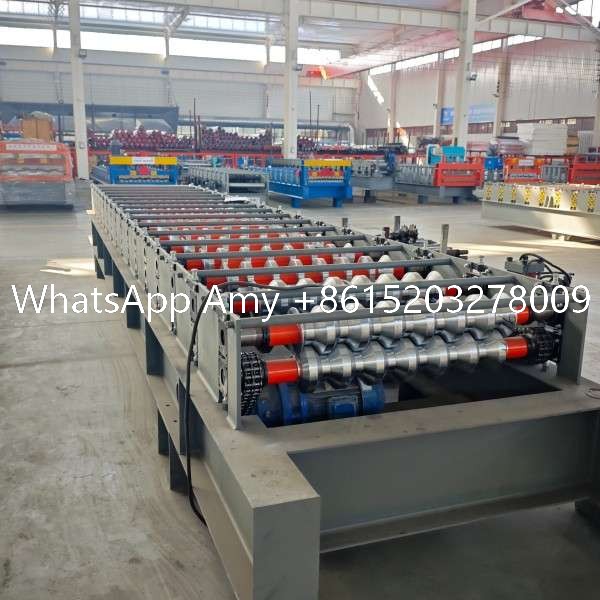

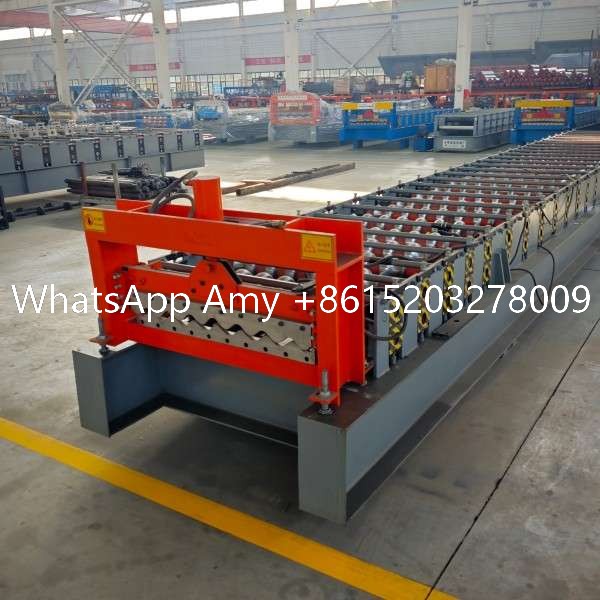

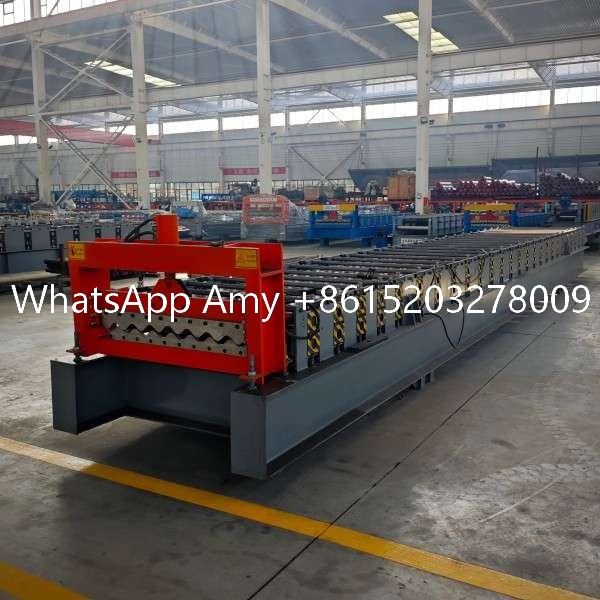

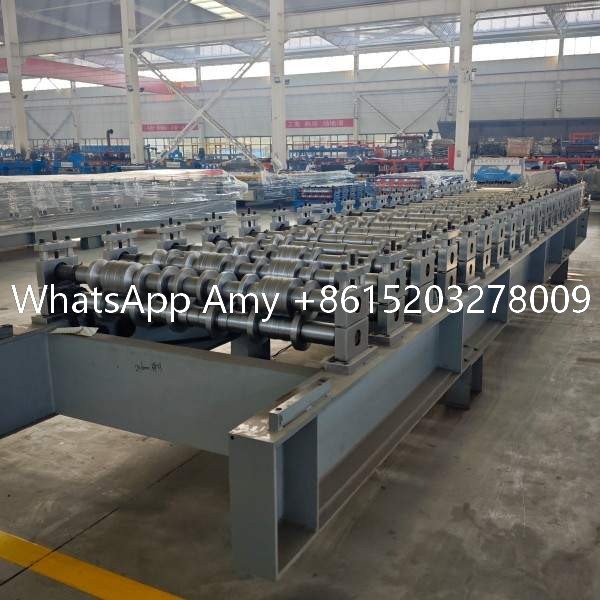

The third and core stage is roll forming: the flattened sheet enters a series of high-quality alloy steel rollers, which exert synchronized pressure to bend the metal into regular, evenly spaced waves through progressive plastic deformation. The wave height and spacing can be easily adjusted by modifying roller parameters, allowing the machine to produce corrugated sheets of different specifications—ranging from 20mm to 100mm in wave height—to meet diverse project requirements. Unlike traditional stamping methods, this continuous rolling process avoids material cracking or deformation, preserving the sheet’s mechanical properties and extending its service life. The final stage is cutting: a PLC-controlled fixed-length cutting system trims the formed corrugated sheet to preset lengths (from 1m to 12m), ensuring high cutting accuracy that aligns with strict engineering installation standards.
The corrugated roll machine boasts a range of performance advantages that set it apart in the competitive market. First, its forming precision is exceptional: the synergy between calibrated alloy steel rollers and intelligent PLC control keeps wave spacing and height variations within ±0.2mm, ensuring consistent product quality across large production batches. Second, it delivers remarkable production efficiency: a single fully automated production line can process 10–15 meters of corrugated sheet per minute, far outpacing manual or semi-automatic alternatives and enabling manufacturers to meet tight project deadlines. Third, it maximizes material utilization: the optimized roller path and minimal edge trimming design reduce raw material waste to less than 3%, significantly lowering operational costs for users.
Beyond efficiency and precision, the machine excels in flexibility and durability, making it suitable for both large-scale factories and small-and-medium-sized processing workshops. Operators can switch between different sheet specifications in minutes via a user-friendly touch control interface, without the need for complex mechanical disassembly or roller replacement. The machine’s frame is constructed from thickened steel plates, ensuring stable operation even during 24-hour continuous production shifts. Additionally, the rolling rollers are coated with hard chrome, enhancing wear resistance and extending the equipment’s service life to over 10 years. The machine also adheres to modern environmental standards, featuring a low-noise gearbox and energy-efficient motor that reduce power consumption by 15% compared to conventional models, aligning with global green manufacturing trends.
As the global construction industry continues to prioritize cost-effectiveness and sustainability, the corrugated roll machine will remain a cornerstone of corrugated sheet manufacturing, supporting the development of affordable housing, industrial infrastructure and agricultural facilities across the globe.
