Heavy Duty Automatic Adjustable Angle Iron Roll Forming Machine for Steel Structural Support Angle Bar Production Line Equipment

Angle Iron Roll Forming Machine – High Strength Steel Angle Production System

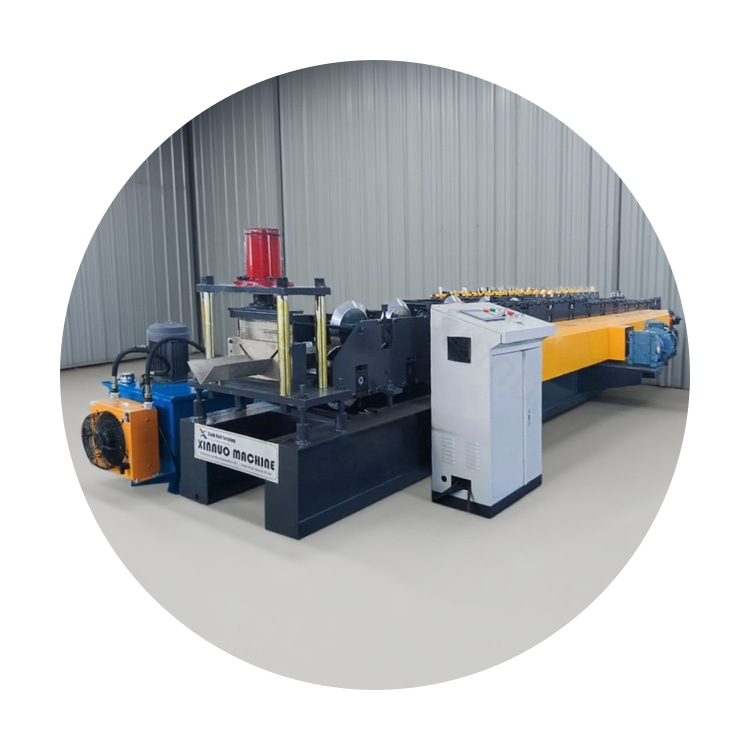

The angle iron roll forming machine is designed for manufacturing L-shaped steel angle bars widely used in structural support systems, building frameworks, and industrial reinforcement applications. It ensures stable forming accuracy and continuous production efficiency for heavy-duty construction use.

1. Continuous High-Speed Forming

The machine enables uninterrupted production of steel coils into precise angle profiles. It is suitable for industrial environments requiring stable output and high production capacity.

2. Adjustable Angle Size System

The forming system supports flexible adjustment of different angle sizes, allowing manufacturers to produce multiple specifications without changing the entire roller setup.

3. Reinforced Industrial Frame

The machine structure is built with heavy-duty welded steel, ensuring stability during long-term operation and resistance to deformation under high load conditions.

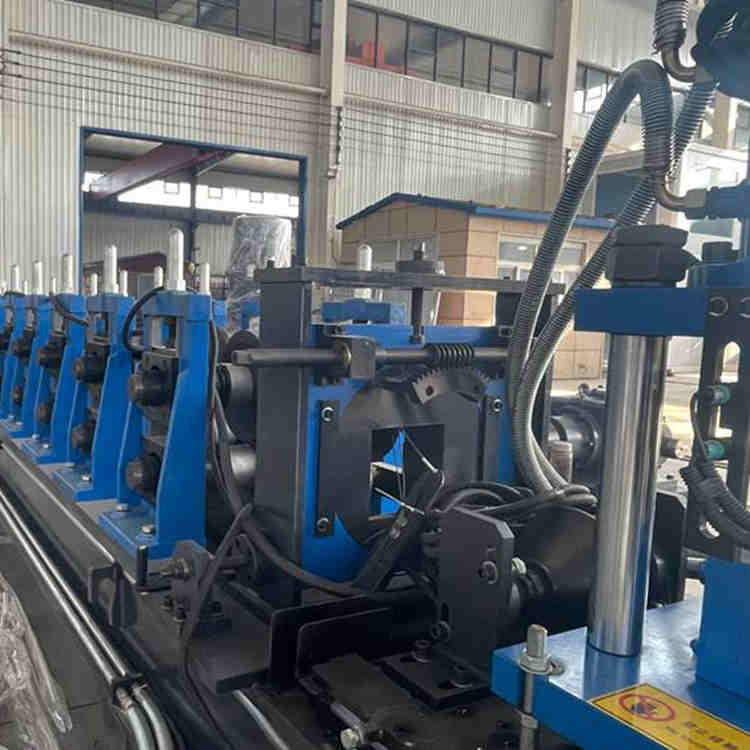

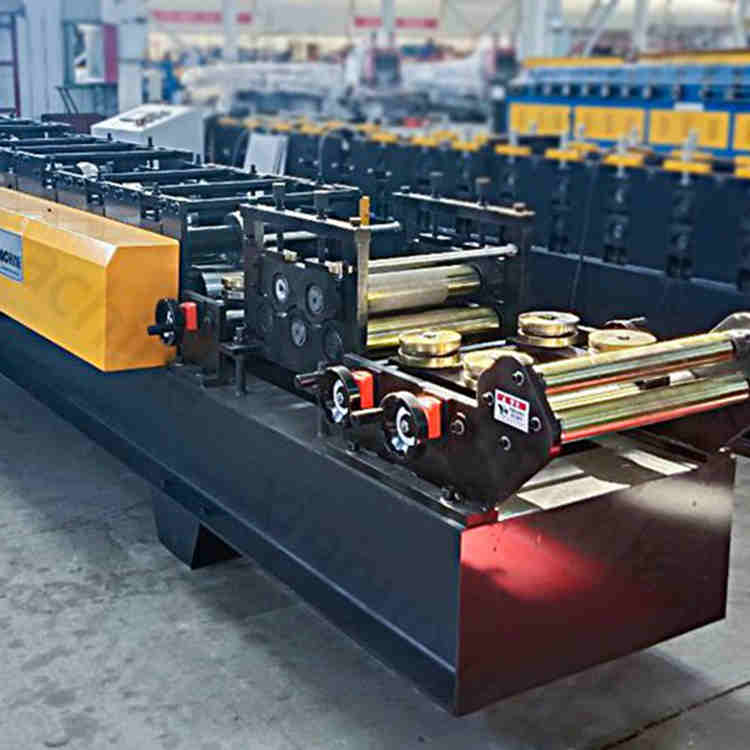

4. Precision Roll Forming Technology

High-quality roller sets ensure accurate shaping of steel strips into consistent L-shaped profiles, maintaining uniformity and dimensional stability throughout production cycles.

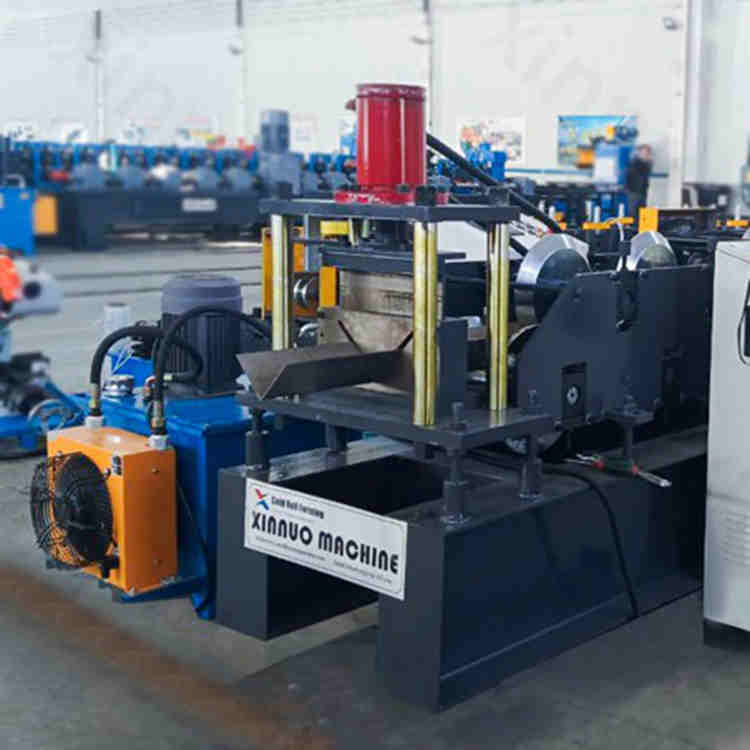

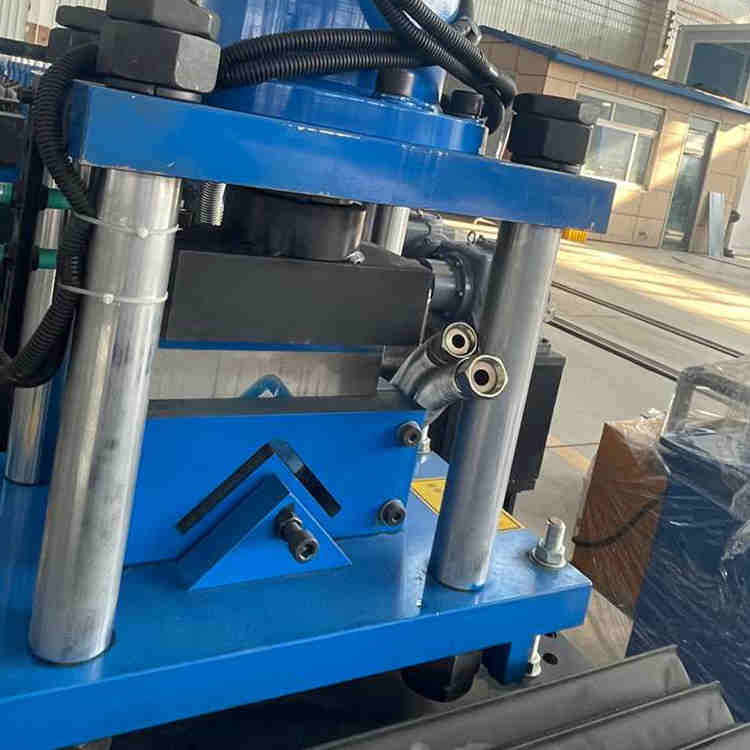

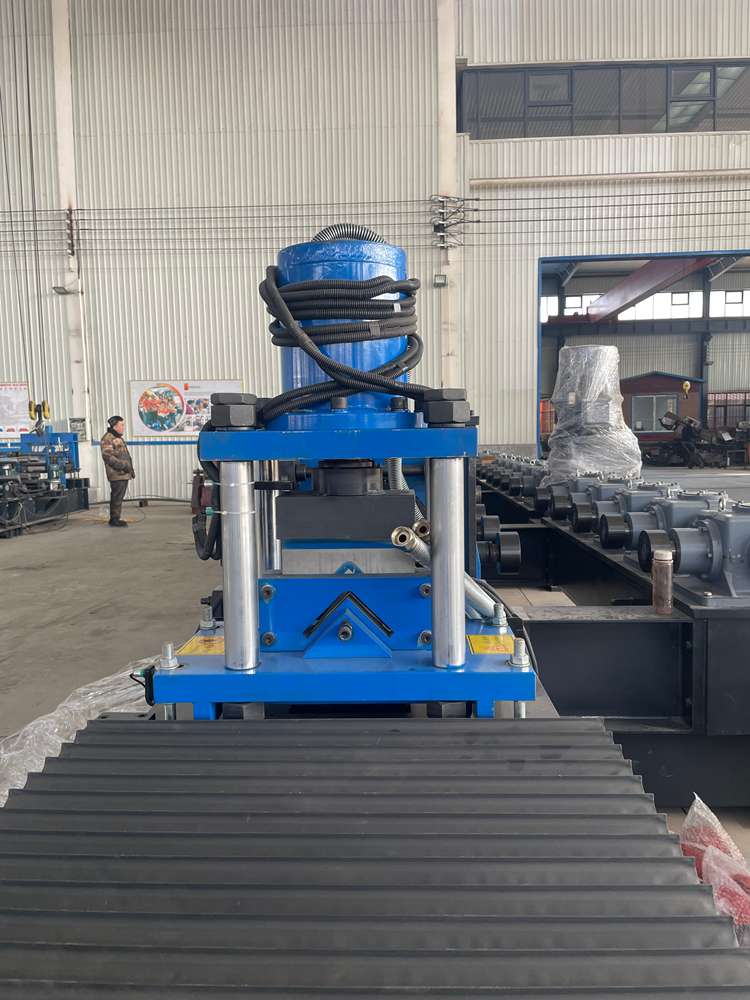

5. Hydraulic Cutting System

The hydraulic cutting unit provides clean and accurate cutting results with minimal burrs, improving product finishing quality and reducing secondary processing needs.

Technical Specification Table

Workflow Overview

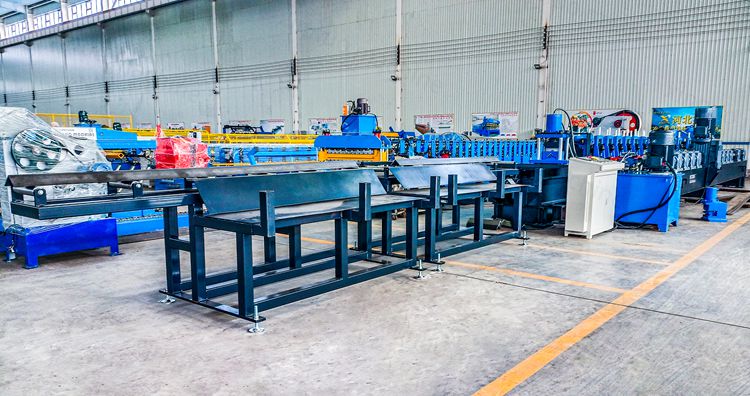

Steel Coil Loading → Decoiler → Leveling System → Roll Forming Section → Length Measuring → Hydraulic Cutting → Output Table

Key Advantages

• Stable continuous production performance
• High precision angle forming accuracy
• Flexible size adjustment capability
• Reduced labor and maintenance cost
• Suitable for heavy steel structure applications

Application Fields

• Steel structure building frameworks
• Industrial support structures
• Warehouse reinforcement systems
• Bridge and infrastructure projects
• Prefabricated steel construction systems

High - Speed Angle Iron Roll Forming Machine: Revolutionizing Construction Framework Fabrication

In the realm of construction and metal fabrication, the high - speed angle iron roll forming machine stands as a game - changer, especially when it comes to shaping angle irons for construction frameworks.

I. Core Mechanics and Efficiency

At its heart, this machine features rapid roller rotation. The precisely engineered rollers spin at optimal speeds, ensuring that the angle iron material is fed through and shaped with remarkable swiftness. This rapid rotation doesn't just save time; it allows for a continuous and smooth forming process. Complementing this is the precise mold control. The molds are crafted with high - precision engineering, enabling them to shape the angle irons to exact specifications. Whether it's a specific angle, length, or thickness requirement for the construction framework, the mold control system ensures consistency across every piece.

Thanks to these two key features, the machine efficiently shapes angle irons. In construction projects, time is of the essence, and this machine significantly cuts down on the time required to produce angle irons. It can churn out a large volume of accurately shaped angle irons in a short period, keeping the construction framework fabrication process on track and preventing delays.

II. Quality and Consistency for Construction

For construction frameworks, the quality and consistency of angle irons are non - negotiable. The high - speed angle iron roll forming machine delivers on both fronts. The precise mold control guarantees that each angle iron has the same dimensions and shape. This uniformity is crucial for the structural integrity of the framework. When building scaffolding, support structures, or the skeletal framework of a building, having angle irons that fit together perfectly ensures stability and safety.

The machine's ability to maintain high - quality shaping even at speed means that there's no compromise on the end product. Construction companies can rely on the angle irons produced by this machine to meet the stringent industry standards, reducing the risk of structural failures and rework.

III. Versatility in Construction Applications

Construction frameworks come in various forms, from small - scale residential projects to large - scale commercial and industrial constructions. This high - speed roll forming machine is versatile enough to cater to these diverse needs. It can produce angle irons of different sizes, which can be used for anything from light - duty frameworks like interior partitions to heavy - duty ones such as building foundations and large - scale infrastructure supports.

In addition, it can adapt to different metal materials commonly used in angle irons, including various grades of steel. This adaptability makes it an invaluable asset for construction companies that handle a wide range of projects, as they can use the same machine to produce angle irons for different applications without the need for multiple specialized machines.

IV. Cost - Effectiveness and Long - Term Value

Investing in a high - speed angle iron roll forming machine brings long - term cost - effectiveness. By increasing production speed and ensuring high - quality output, it reduces labor costs associated with manual shaping or reworking flawed pieces. The consistency it offers also minimizes material waste, as there are fewer discarded angle irons due to improper shaping.

Moreover, its durability and low maintenance requirements mean that it can serve a construction or fabrication business for years, providing a steady stream of accurately shaped angle irons for numerous projects. In the competitive world of construction, where efficiency and cost - control are key, this machine proves to be a worthy investment that pays off in improved project timelines, better - quality structures, and enhanced profitability.
